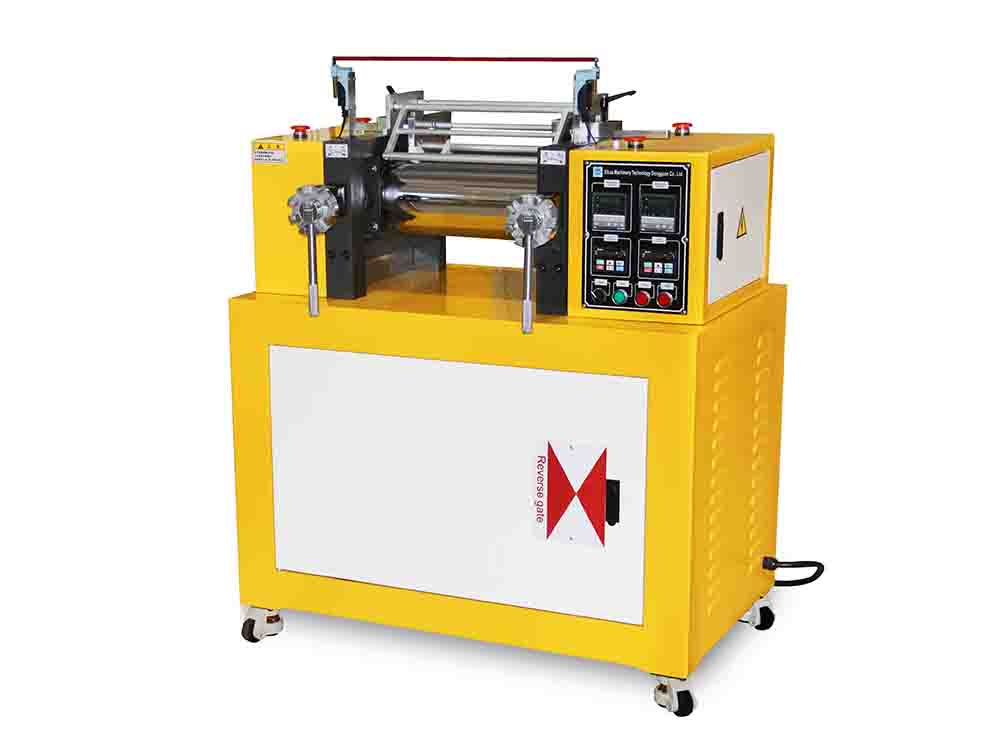

XH-401C-160 Open Refining (Dual Frequency Modulation Mixing) Machine
XH-401C-160 Open Refining (Dual Frequency Modulation Mixing) Machine XH-401C-160 Open Refining (Dual Frequency Modulation Mixing) Machine

loading

XH-401C-160 Open Refining (Dual Frequency Modulation Mixing) Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Its main function is to ensure that the product meets the quality and color requirements of the customer. In order to meet the customer's requirements, the experimental results and their ratios are used in the production line. This machine is also a device that mixes the raw materials and additives used in the experiment evenly
SKU:
Availability:
Quantity:
Inquire Add to Basket

Mainly used for rubber and its products, plastic and its polyolefin products PVC、 The main purpose of industries such as film, roll, profile production, polymer blending, pigments, color masterbatch, stabilizers and stabilizers is to test and compare the changes in physical properties of raw materials after mixing. For example: dispersibility of color, translucency, and material properties


Instrument NameXH - 401CEXH - 401CO
Mixing Capacity1 - 2kgs or as specified
Drum TemperatureAmbient temperature - 300°C
Heating MethodElectric heatingOil heating
Temperature Control Accuracy±2°C±1°C
Drum Rotation Speed0 - 30r/min with dual frequency converters
Drum Speed RatioSelf - adjustable
Drum DimensionsΦ160mm × L 350mm (customizable)
Drum Spacing0 - 5mm adjustable
Safety DeviceMultiple touch - type emergency stops
Motor2 units of 1 HP
Power15 HP
Dimensions (W×D×H)1000×550×1200mm1100×720×1200mm
Power Supply3 - phase, AC380V, 20A
