C61125/160/180/200(16T) Heavy Duty Conventional Lathe Machine

These machines are suitable for various turning works,such as turning of external and internal cylindrical surfaces,end faces,and turning of metric or inch threads,modular threads and diametrical pitch threads,etc.Motorized short taper turning could be done by the top slide independently,and long taper’s motorized turning could be done by top slide combined with longitudinal feed.Further more,these machines can also carry out drilling,trepanning and boring processes,etc.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Products Specification

Specification	UNIT	C61125	C61160	C61180	C61200
Swing over bed	mm	1250	1600	1800	2000
Swing over carriage	mm	900	1250	1450	1650
Max.length of workpiece	mm	3000/4000/5000/6000/8000/10000/12000
Max.turning length	mm	2800/3800/4800/5800/7800/9800/11800
Pan of guideway	mm	1100
SPINDLE
Spindle nose	mm	A2-15
Spindle bore	mm	100
Taper hole of spindle		Metric140
Range of spindle speeds	r/min	Forward:3.15~315;Reverse:3.5~291
No.of spindle speeds		Forward:21;Reverse:12
FEED
No.of Longitudinal and cross		56/56
Feed per revolution	mm	Longitudinal:0.1~12;Transverse:0.05-6;Up turret:0.025~3
No.and range of metric thread		44;1~120mm
No.and range of inch thread		31;28~1/4”
No.and range of module thread		45;0.5~60mm
No.and range of dia.thread		38;1/2~56DP
TURRET
Distance of centerline and tool restingplane	mm	53
Tool post swing range		±90°
Max.travel of cross slide	mm	740/850/900/900
Max.travel of top slide	mm	360
Section of tool shank	mm	50(380x380)
Travel of tool post(per turn of dials)	mm	0.05(0.002")
TAILSTOCK
Dia.of tailstock	mm	260
Travel oftailstock quill	mm	300(12")
Taper hole of tailstock quill		Metric80
OTHERS
Main motor power	kw	30
Length	mm	6120/7120/8120/9120/11120/13120/15120
Width	mm	2058/2130/2330/2430
Height	mm	2200/2380/2480/2580
Max.weightof workpiece	t	16

Optional Specifications

Swing over bed :1250/1600/1800/2000MM

Max.turning dia :900/1250/1450/1650MM

Max.length of workpiece :3000-12000MM

Pan of guideway :1100MM(rectangular guideway)

Spindle bore :100MM

Range of spindle speeds :3.15-315r/min

Main motor power :30kw

Max weight of workpiece :16000kgs

Products Features

This series heavy duty lathes adopt 1,100mm wide rectangular induction hardened and ground bed guide-ways,so of excellent stability,high rigidity,and with maximum bearing of 12 tons between centers.The main spindle is of precision roller bearings’ 3-point supporting structure.Saddle guide-ways with Teflon belt coated.Rotating tailstock quill structure to minimize friction and heat generation.

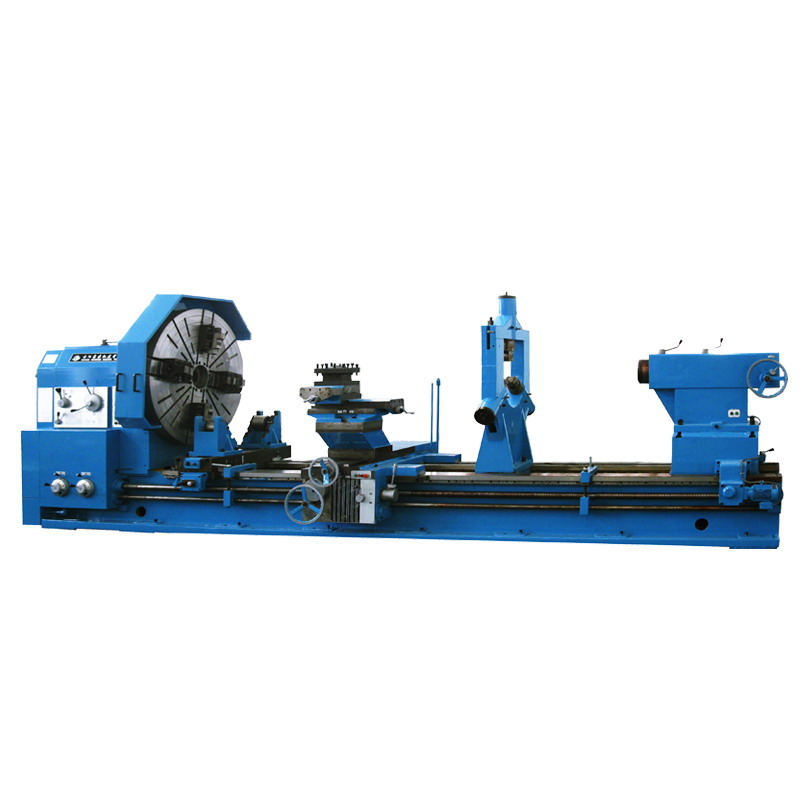

Products Pictures
