Products Specification
| ITEM | UNIT | C61160 | C61200 | C61250 |
| CAPACIYIES | ||||
| Swing overbed | mm | 1600 | 2000 | 2500 |
| Swing over carriage | mm | 1250 | 1600 | 2200 |
| Max.length of workpiece | mm | 3000~20000 | ||
| Max.torque of face chuck | kg.m | 8000 | ||
| Formof bed guide way | 3 GUIDE WAY | |||
| Span of guide way | mm | 1600 | ||
| Max.cutting force | kg | 16000 | ||
| Max.weight of workpiece | t | 32 | ||
| SPINDLE | ||||
| Taper hole of spindle | 75° | |||
| Dia.chuck D | mm | 1600/1800/2000 | ||
| Range of spindle speeds | r/min | 0.8-160 | ||
| No.of spindle speeds | STEPIESS | |||
| FEED | ||||
| Feed motion level | 18 | |||
| Range of longitudinal feed | mm | 0.125~48 | ||
| Range of feed | 0.063~24 | |||
| Metric thread | mm | 2~40 | ||
| Inch thread | mm | 1~14 | ||
| Module thread | mm | 1.5~20 | ||
| TURRET | ||||
| Max.travel of cross slide | mm | 725/725/800 | ||
| Max.travel of top slide | mm | 600 | ||
| Section of tool shank | mm | 70 | ||
| TAILSTOCK | ||||
| Dia.of tailstock | mm | 300 | ||
| Travel of tailstock quill | mm | 300 | ||
| Taper hole of tailstock quill | mm | 100(1:7) | ||
| Rapid speed of tailstock | mm/min | 3000 | ||
| Rapid speed of tailstock quill | mm/min | 664 | ||
| OTHERS | ||||
| Main motor power | kw | 75 | ||
| Length | mm | 13577~21577 | ||
| Width | mm | 2479/2479/2515 | ||
| Height | mm | 2280/2580/2655 | ||
Optional Specifications
Swing over bed :1600/2000/2500MM
Max.turning dia :1250/1600/2200MM
Max.length of workpiece :3000-20000MM
Pan of guideway :1600MM
Dia.of tailstock :300MM
Range of spindle speeds :0.8-160r/min
Main motor power :75kw
Max weight of workpiece :32000kgs
Products Features
This machine tool bed's structure is integral BOX-SHAPED and three strip rectangular guide way , and it is found once by high quality cast iron (HT300)，through twi-aged processing ,stability is good；Width guide way surface( 1600mm/2090mm ), good rigidity, trong anti-vibration ability；It is adopt inlay steel guide way and accurate ground by import guide way grinder，guarantee the machine tool's longevity, high precision and best receptivity.The machine tool master drive institution is dragged by 75/144kw DC electromotor, and it adopt the mode of speed regulation of adjust magnetism commix with adjust pressure, total ratio of speed regulation is 1：22.2（1：39.58）, the institution's speed regulation progression is third class（63T is 4）, the syntheses speed regulation ratio of mechanism and electric is 1：200（1：266）, thereby made the master axes obtain infinite class speed variation scope 0.8～160（0.5～125）r / min.The Z axe feeding system adopt import precision gear rack structure, the X axe feeding system adopt high precision ball screw, guarantee the stability of process precision.

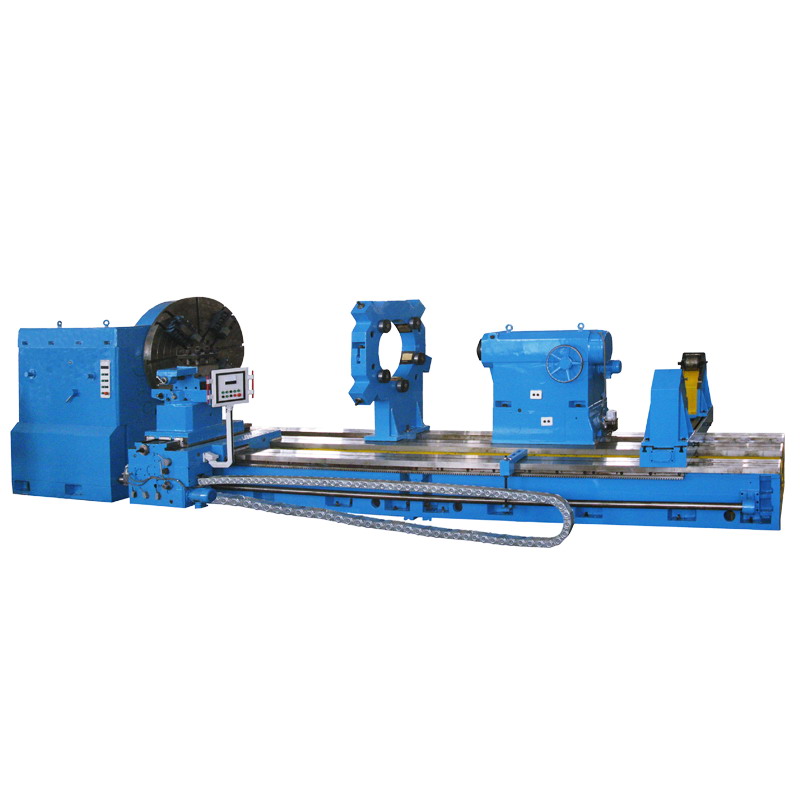

Products Pictures
