C65160 Sphere Turning Lathe Ball Lathe Conventional Lathe Machine
C65160 Sphere Turning Lathe Ball Lathe Conventional Lathe Machine C65160 Sphere Turning Lathe Ball Lathe Conventional Lathe Machine

loading

C65160 Sphere Turning Lathe Ball Lathe Conventional Lathe Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Sphere turning lathe is mainly used for the core body of its external sphere turning. Processing sphere diameter of 1000mm-1800mm. Can do finish turning, semi-finish turning, grinding and other processing work. Rectangular guide way, good stability and good rigidity. Three-axis support structure, rigidity and high accuracy can be powerful cutting. Users can choose the machine according their work-piece or take special orders.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Products Specification

ITEM UNIT C6555 C6595 C65160 C65180
Max.Dia.of spherical mm 550 900 1600 1800
Min.Dia.of spherical mm 50 260 1000 1200
Dia.of spindle hole mm 100 130 100 100
Taper of hole of spindle mm 120 140 140 140
No.of spindle speeds
18 21(12) 21(12) 21
Range of spindle speeds r/min 6~800 3.15~315 3.15~315 3.15~315
Spindle reverse speeds r/min 11~838 3.5~291 3.5~291 3.5~291
Swivel angle of toolpost 0 ±90 ±90 ±55 ±55
Main power kw 11 22 30 30
Weight t 4.4 12 25.4 27.4
Length mm 3725 4700 6120 6220
Width mm 1280 2500 2620 2720
Height mm 1690 2000 2520 2620


Optional Specifications

Max.dia.of spherical :1600mm

Min.dia.of spherical :1000mm

Dia.of spindle hole :100mm

Range of spindle speeds :3.15-315r/min

Spindle reverse speeds :3.5-291r/min

Swivel angle of toolpost :+-55degree

Main motor power :30kw


Products Pictures

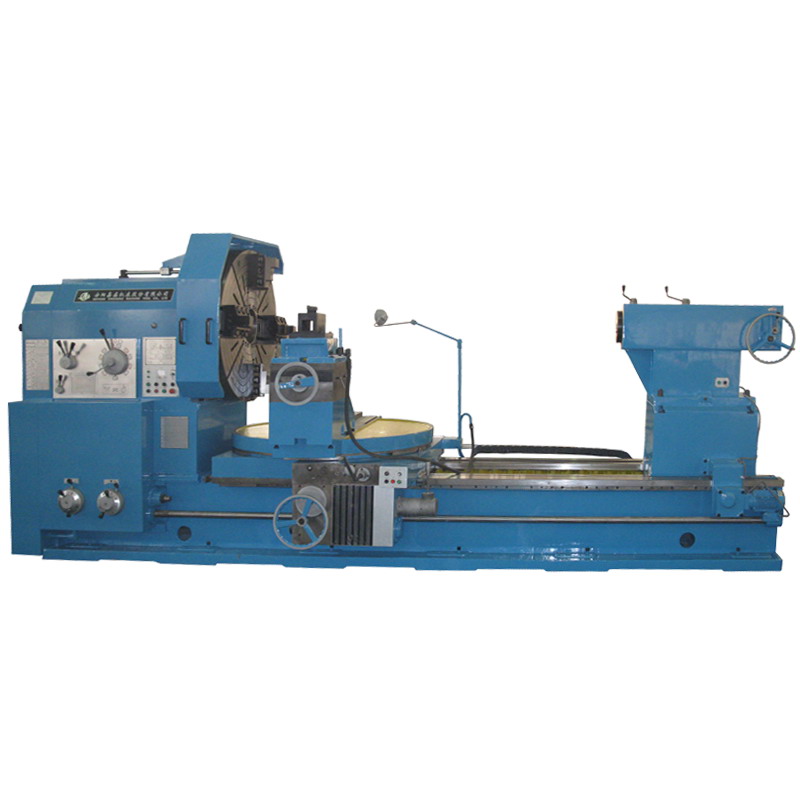

c65160_800
