Products Specification
| Specification | Unit | CDS6150B/C | CDS6250B/C | |
| Max.Swing diameter over bed | mm | φ500 | ||
| Max.Swing diameter over cross slide | mm | φ290 | ||
| Max.Swing diameter in gap | mm | φ760 | ||
| Length in gap | mm | 280 | ||
| Max.workpiece length | mm | 1000/1500/2000/3000 | ||
| Max.cutting length | mm | 950/1450/1950/2950 | ||
| Bed guideway width | mm | 394 | ||
| Spindle nose | D8 | |||
| Spindle bore | mm | CDS-Bφ82/CDS-Cφ105 | ||
| Taper of spindle bore | CDS-B Metric 90(1:20)/CDS-C Metric 110(1:20) | |||
| Chuck size | mm | CDS-B φ250/CDS-Cφ315 | ||
| Max.Spindle torque | Nm | 1100 | ||
| Spindle speed ranges | rpm | CDS-B 26-2000(16 Speeds)/CDS-C 26-1700(16 Speeds) | ||
| Spindle centre height | mm | 250 | ||
| Spindle motor power | kw | 7.5(10 HP) | ||
| Diameter of tailstock quill | mm | φ75 | ||
| Travel of tailstock quill | mm | 150 | ||
| Taper of tailstock quill | No.5 MT | |||
| Longitudinal feed | mm/r | 0.044~1.48(45 Kinds);*0.044~0.148 in/rpm(45 Kinds) | ||
| Cross feed | mm/r | 0.022~0.74 (45 Kinds);*0.031～0.092in/rpm(45 Kinds) | ||
| Metric threads | mm | 0.5~80(73 Kinds*53 Kinds) | ||
| Modular threads | mm | 0.5~40(45 Kinds *66 Kinds) | ||
| Inch threads | TP | 7/16~80(47 Kinds *47 Kinds) | ||
| Diametral pitch threads | DP | 7/8~160(47 Kinds *48 Kinds) | ||
| Max.tool shank size | mm | 25X25 | ||
| Travel of top slide | mm | 150 | ||
| Swivel angle of top slide | o | 4 5 ° | ||
| Max.Travel of Tool post | X-axis | mm | 315 | |
| Z-axis | mm | 950/1450/1950/2950 | ||
| Machine dimensions(L×W×H) | mm | 2930×1223×1295(1000) 3430×1223×1295(1500) 3930×1223×1295(2000) 4930×1223×1295(3000) | ||
| Machine weight | kg | 2170/2420/2620/3120 | ||
Products Configuration
7-Standard toolkit & Oil gun
Products Features
2. High Spindle Speed: The spindle system is dynamically balanced, allowing for high rotational speeds and comprehensive adaptability to tooling techniques.
3. High Rigidity: The main body of the machine tool is made entirely of resin-bonded high-phosphorus castings, and the structure of the main body of the machine tool is made more rational through finite element analysis and optimization.
4. Aging Treatment for Bed Body, High-Frequency Quenching for Guide Rails: Enhances the machine tool's longevity.
5. Precision Grinding for Bed Guide Rails: Ensures high precision along the entire length of the guide rails.
6. Vertical Lead Screw Equipped with Metal Protective Cover: Enhances the personal safety of operators.
7.Rapid Traverse Mechanism in Both Vertical and Horizontal Directions on the Carriage: Makes the operation of the machine tool more convenient and efficient for operators.

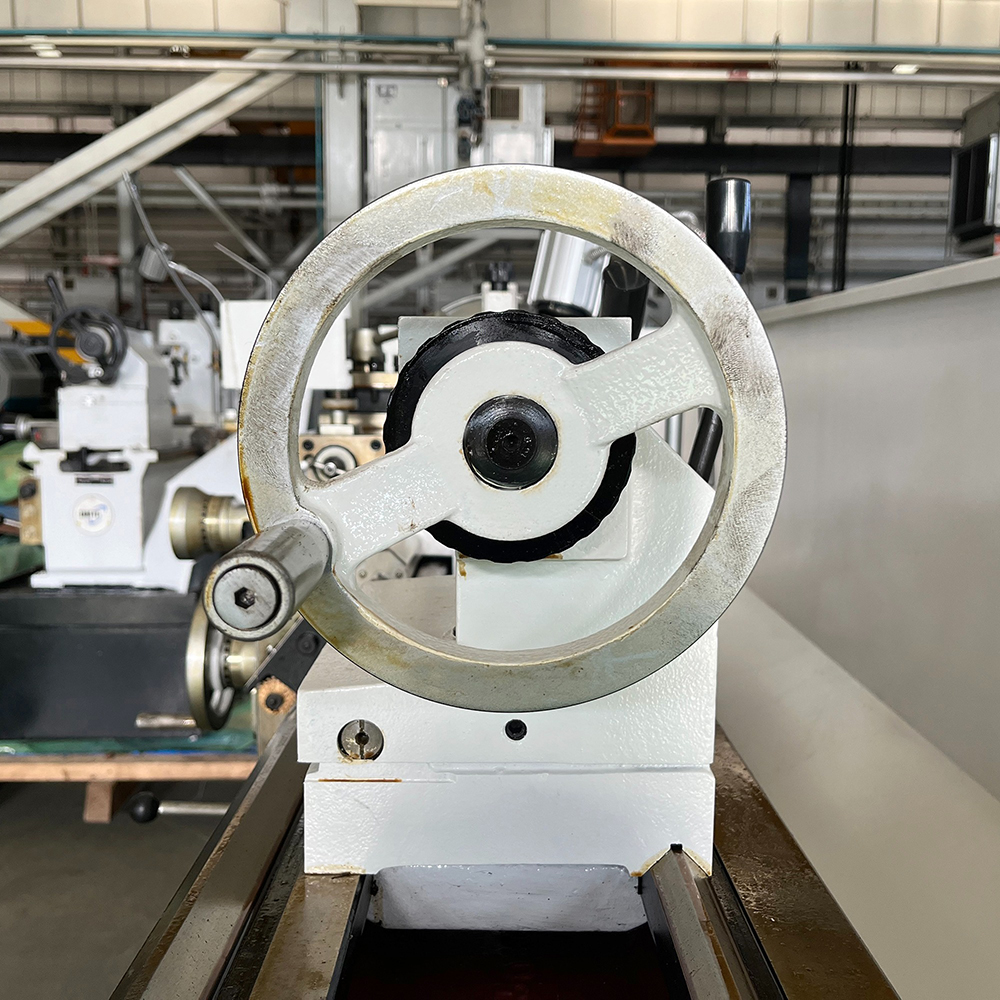

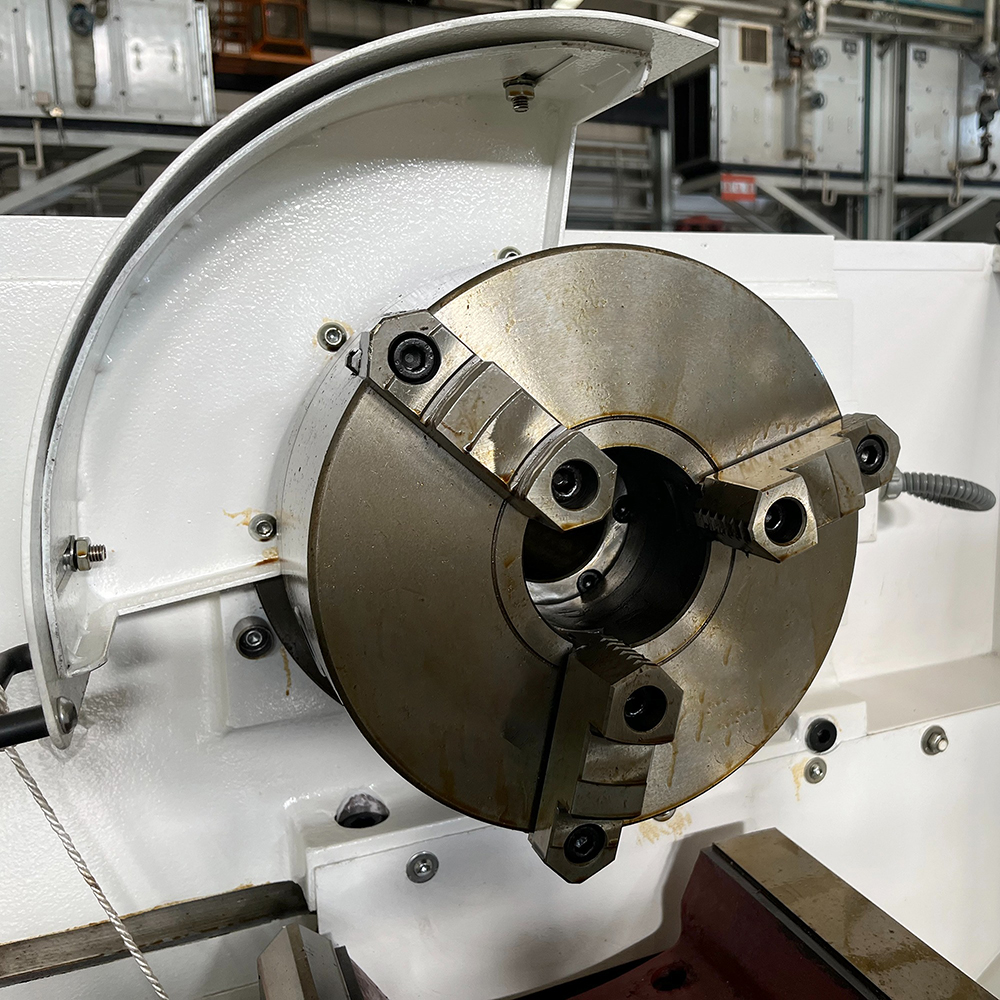

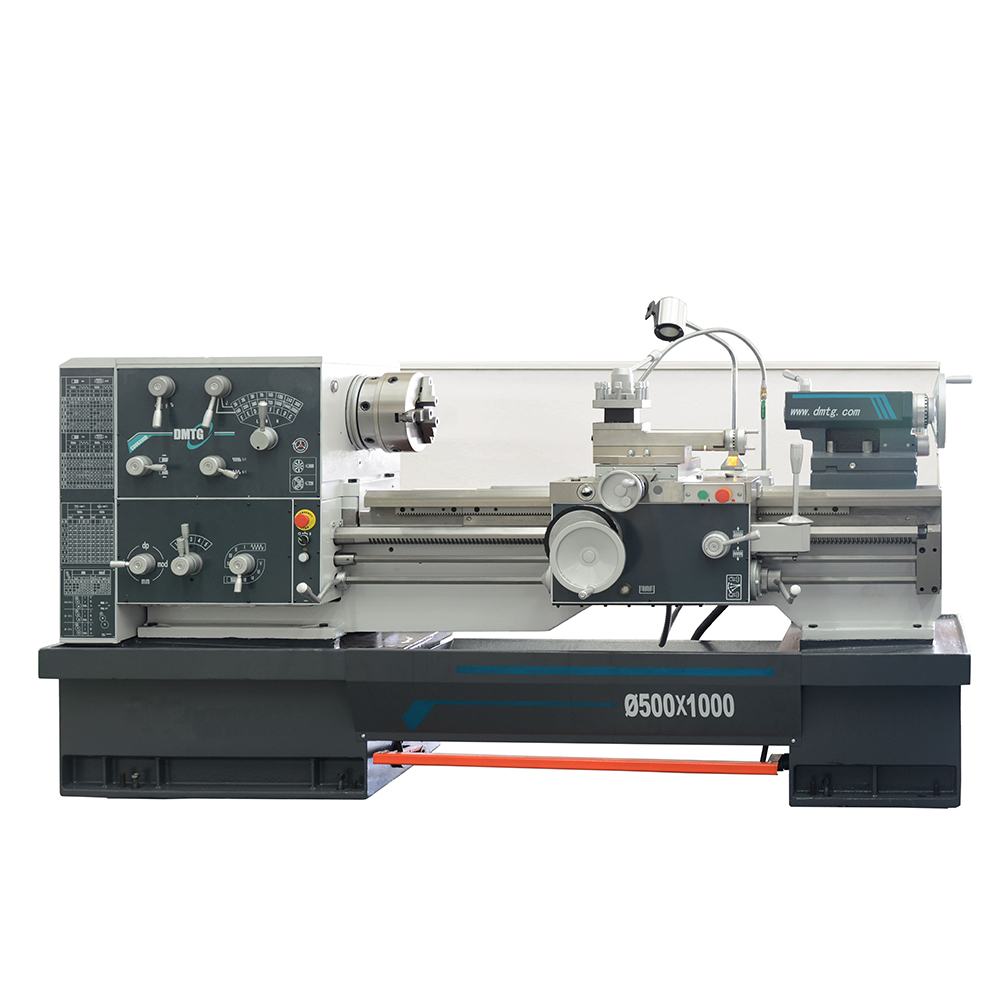

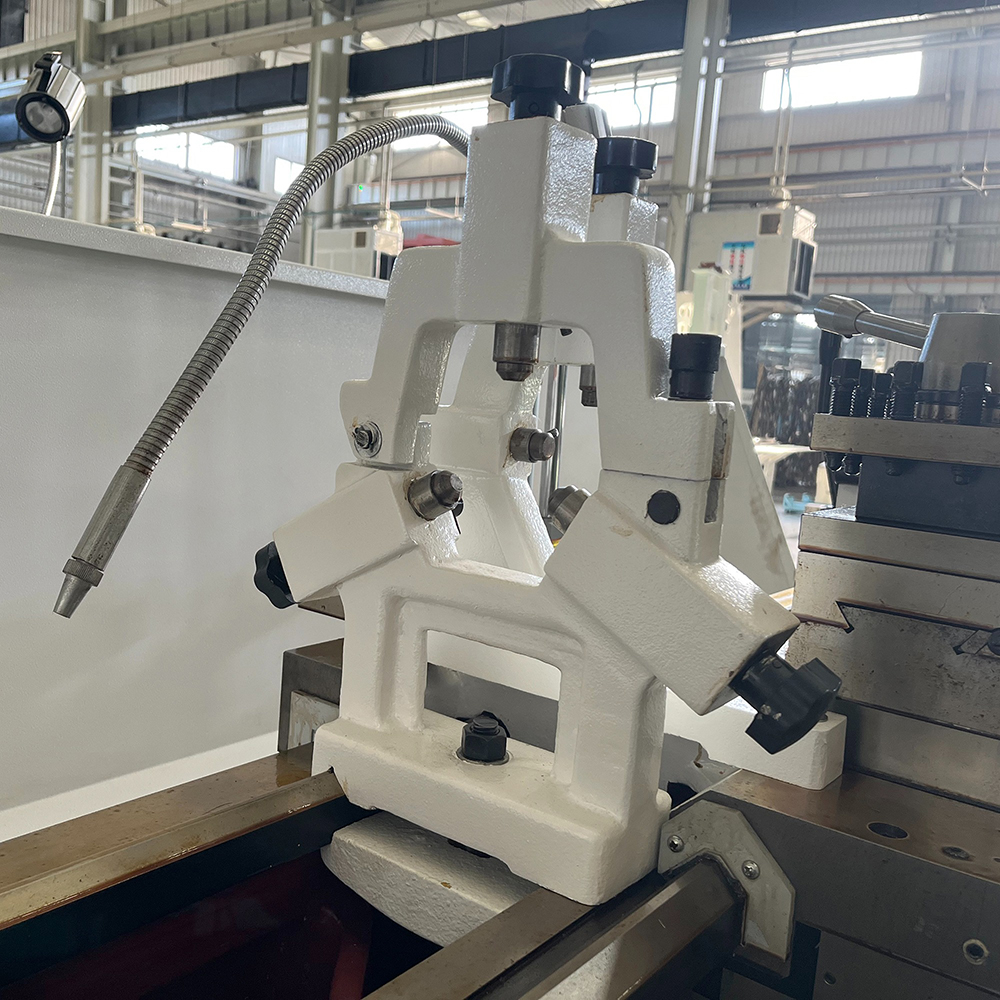

Products Pictures
