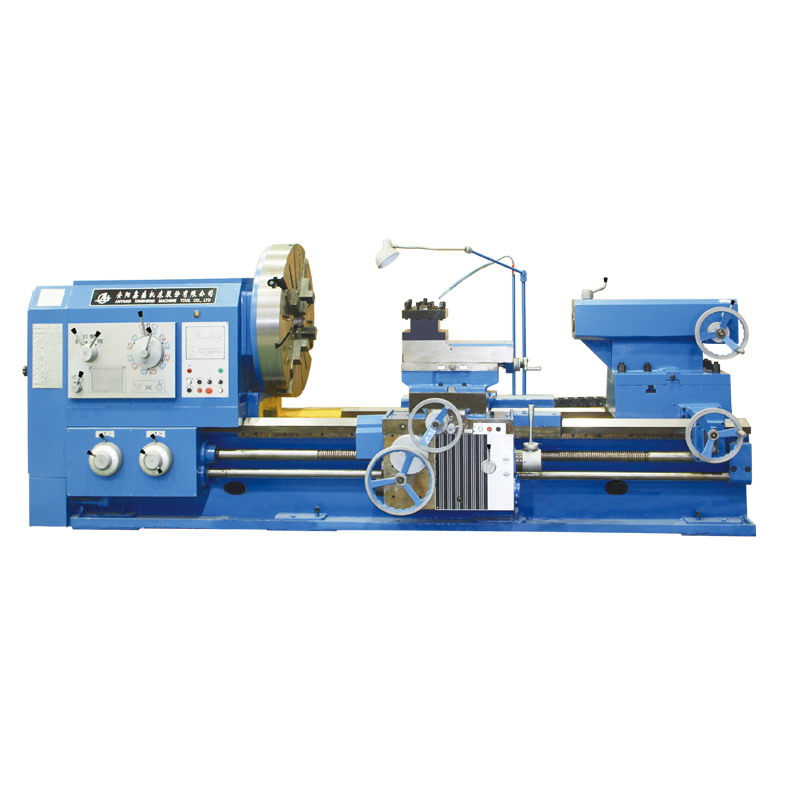

CW6180/100 Heavy Duty Conventional Universal Metal Gap Bed Lathe Machine

CW6180/100 Heavy Duty Conventional Universal Metal Gap Bed Lathe Machine

There lathes are suitable mainly for turning internal and external cylindrical, Conical and other swing surfaces as well as various metric, inch, module and diametric pitch threads. They are can also be used for broaching oil grooves and keyways.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Products Specification

ITEM	UNIT	CW6180	CW61100
CAPACITIES
Swing over bed	mm	800	1000
Swing over carriage	mm	480	680
Max.length of workpiece	mm	1500/2000/3000/4000/5000/6000
Max turning length	mm	1350/1850/2850/3850/4850/5850
Pan of guideway	mm	600
SPINDLE
Spindle nose	mm	C11(C15 optional)
Spindle bore	mm	100(140 optional)
Taper hole of spindle		1:20
Range of spindle speeds	r/min	forward:6~750 reverse:10~775
No.of spindle speeds		18/6
FEED
Longitudinal and cross		64;0.1~24.32
Cross/long longitudinalfeed		1/2
Screw pitch of leadscrew	mm	12
No.and range of metric thread		50;1~240
No.and range of inch thread		26;14~1
No.and range of module thread		53;0.5~120
No.and range of dia.thread		24;28~1
Rapid traverse speed	mm/min	4000
TURRET
Distance of spindle and tool plane	mm	33
Tool post swing range		+90°
Max travel of cross slide	mm	500
Max.travel of top slide	mm	200
Section of tool shank	mm	32(202x202)
TAILSTOCK
Dia.of tailstock	Imm	100
Travel of tailstock quill	mm	250
Taper hole of tailstock quill		morse6
OTHERS
Main motor power	kw	11
Length	mm	3670/3985/5165/6220/7400/8260
Width	mm	1730
Height	mm	1450

Optional Specifications

Swing over bed :800/1000mm

Max.turning dia : :480/680mm

Max.length of workpiece :1500-6000mm

Pan of guideway :600mm

Spindle bore :100/140mm(optional)

Range of spindle speeds :6-750r/min

Main motor power :11kw

Max weight of workpiece :2000kg

Products Features

1. The side wall of bed is constructed with double-rip plates. And the shape of internal ribs is of box type and bevel ribs combination. The rigidity is higher than that of ordinary lathes. The precision is stable. And these lathes can carry out strong force cutting.

2. On apron, there is a device, operated by a single level, used for rapid traverse of the carriage. Spindle’s braking and rotating direction change is controlled by hydraulic system, or by hand operation, all to user’s choice.

3. The saddle guide way is glued by “TSF” soft belt wear resisting materials.

4. On user’s demand, we can equip the lathe with automatic feeding mechanism. The top slide can be used independently for turning of short cone. In combination with longitudinal feeding, it can also turn long taper surface.
