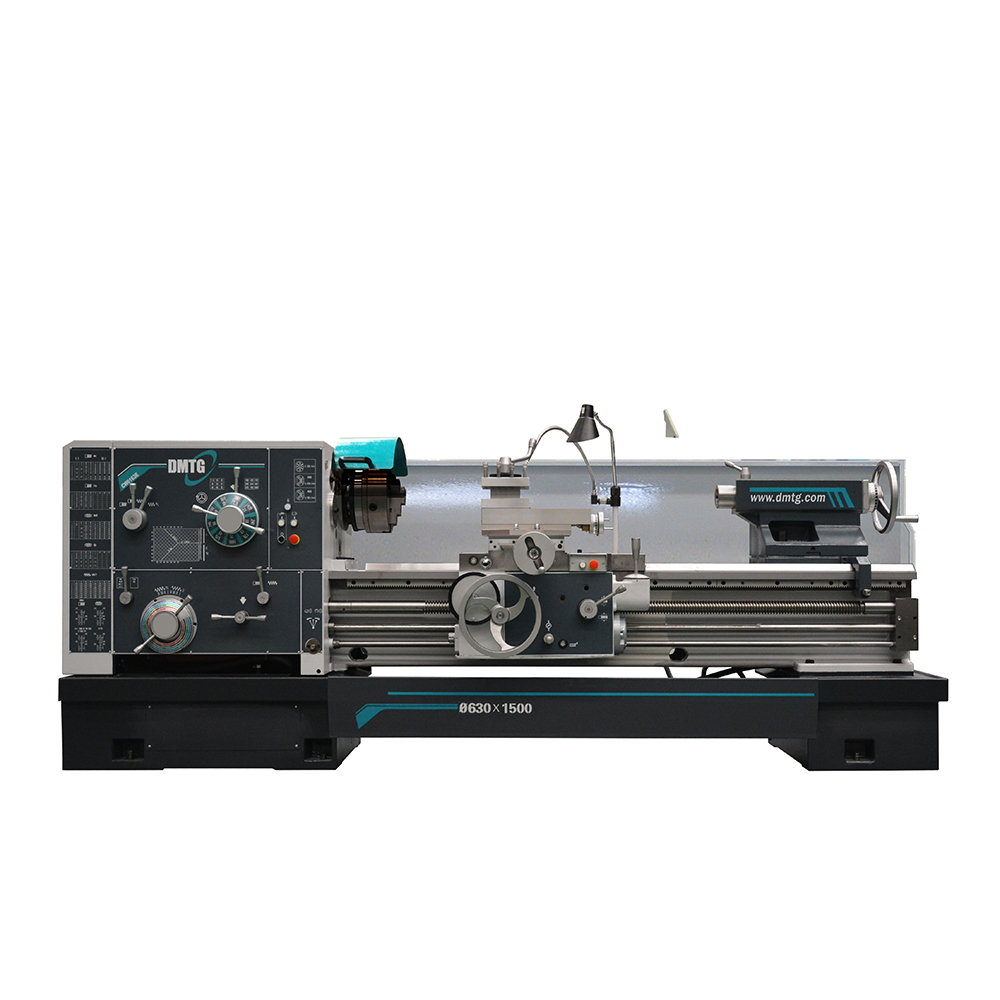

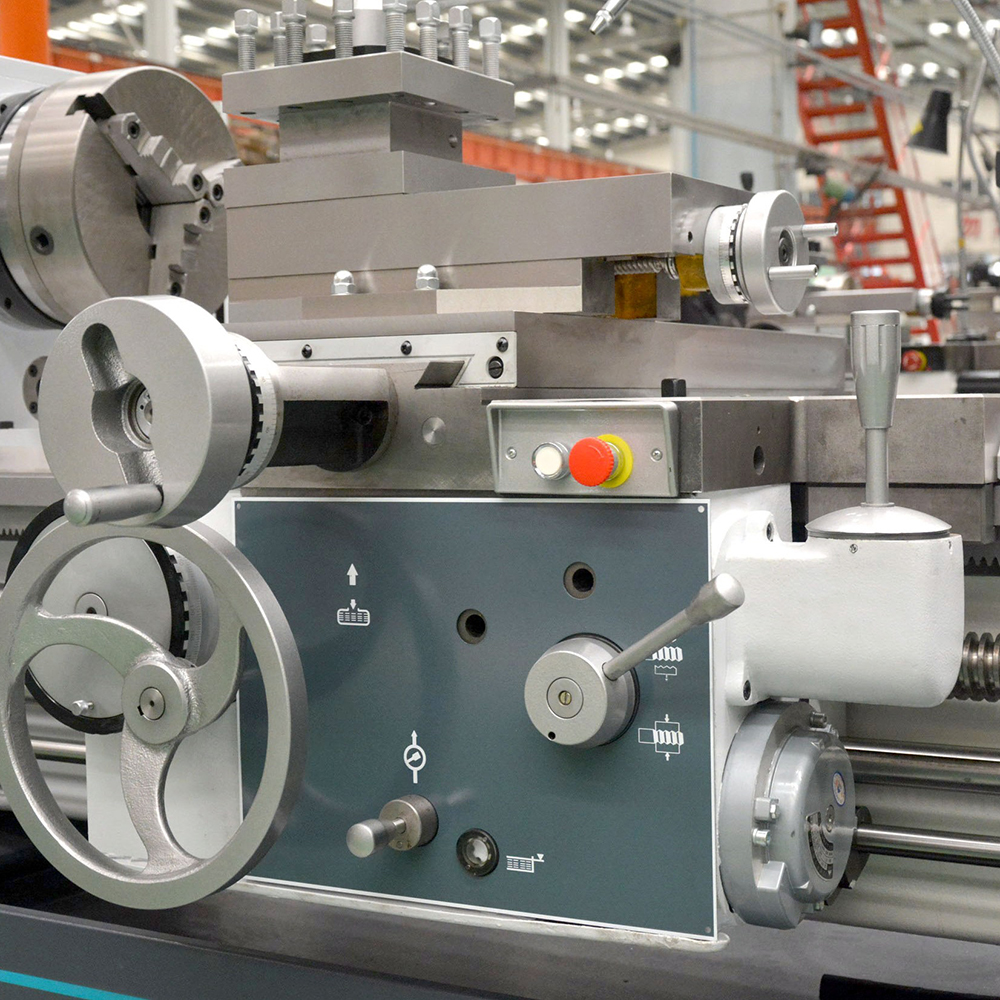

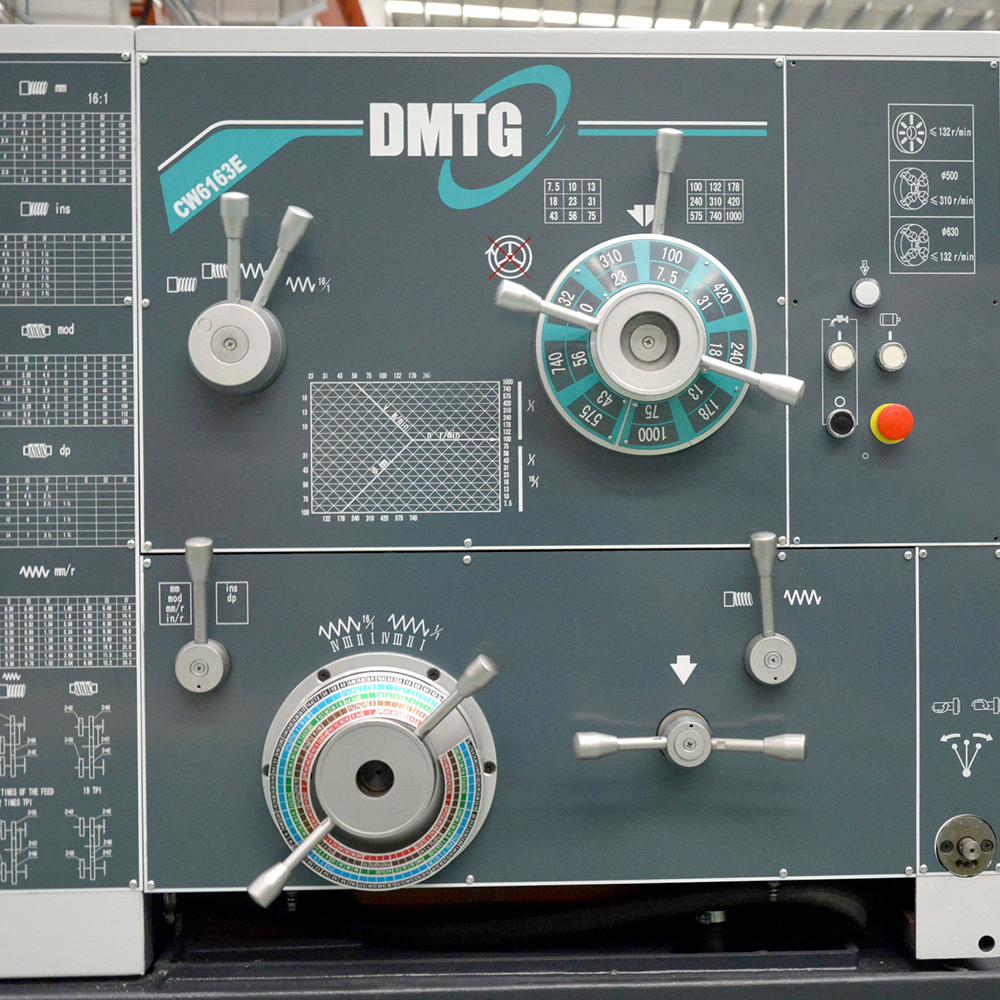

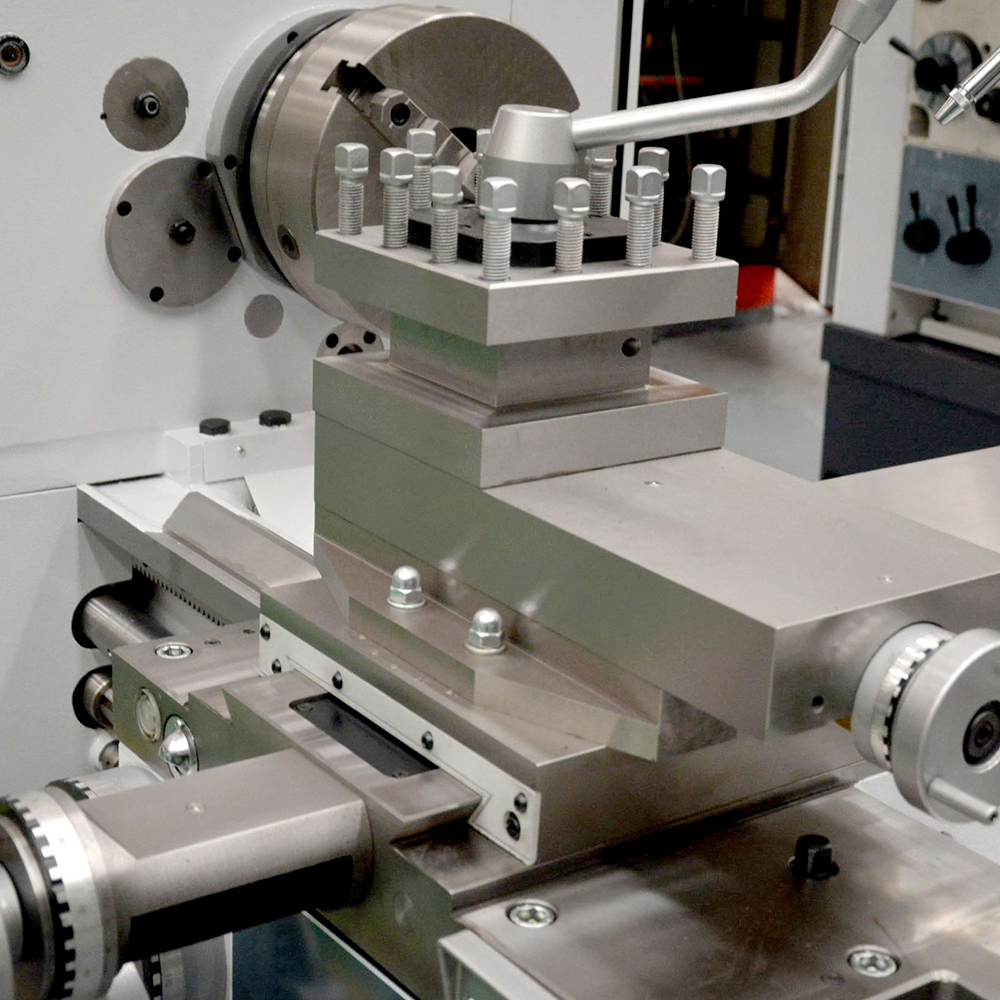

CW-E Series Manual Lathe Machine

The CW-E series conventional lathe is a new type of general-purpose lathe manufactured by our company. This machine tool is capable of handling various turning operations, primarily used for turning inner and outer cylindrical surfaces, tapered surfaces, and other components with rotational surfaces. It can perform tasks such as facing, grooving, cutting off, drilling, and turning various commonly used metric, imperial, module, and pitch threads.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Products Specification

Specification	Unit	CW6263E	CW6280E
Max.Swing diameter over bed	mm	φ630	中800
Max.Swing diameter over cross slide	mm	中350	中480
Max.Swing diameter in gap	mm	φ800	φ1000
Length in gap	mm	350	350
Max.workpiece length	mm	1000/1500/2000/3000/4000/5000/6000
Max.cutting length	mm	600/1100/1600/2600/3600/4600/5600
Bed guideway width	mm	550
Spindle nose		C11 *D11
Spindle bore	mm	φ100(C11)*中105(D11)Opt:φ130(C11/D11)
Chuck size	mm	φ315	φ400
Taper of spindle bore		Metric 120(1:20)Opt:Φ130-Metric 140(1:20)
Max.Spindle torque	Nm	2400
Spindle speed ranges	rpm	7.5-1000(18 Speeds)
Spindle centre height	mm	315	400
Spindle motor power	kw	11kW(1460rpm/50HZ)Opt:15kW(1460rpm/50HZ)
Diameter of tailstock quill	mm	φ100
Travel of tailstock quill	mm	250
Taper of tailstock quill		No.6 MT
Longitudinal feed(metric screw)	mm/r	64 Speeds 1/10.1~1.52;16/11.6~24.3
Longitudinal feed(inch screw)	in/r	64 Speeds1/10.0019~0.0612;16/10.0305~0.98
Cross feed	mm/r	1/2 times of the longitudinal feed
Metric threads(Metric screw)	mm	0.5~240 (52 Kinds)	1~240 (50 Kinds)
Metric threads(Inch screw)	mm	1~256(57 Kinds)	1~256 (57 Kinds)
Modular threads	mm	0.5~120(53 Kinds)*0.5~128(57 Kinds)
Inch threads	TPI	28~1(34 Kinds) *32~1/16(67 Kinds)	14~1(26 Kinds) *32~1/16(67 Kinds)
Diametral pitch threads	DP	28~1(24 Kinds)*32~1/8(57 Kinds)
Max.Tool shank size	mm	30X30
Travel of top slide	mm	200
Swivel angle of top slide	o	±9 0 °
Machine dimensions(L×W×H)	mm	3180×1340×1830(1000) 3630×1340×1830(1500) 4230×1340×1830(2000) 5130×1340×1830(3000) 6040×1430×1830(4000) 7120×1430×1830(5000) 8240×1430×1830(6000)	3180×1380×1830(1000) 3630×1380×1830(1500) 4230×1380×1830(2000) 5130×1380×1830(3000) 6040×1470×1830(4000) 7120×1470×1830(5000) 8240×1470×1830(6000)
Machine weight	kg	4050/4350/4650/5150/ 5950/6650/7450	4250/4550/4850/5350/ 6650/7350/7850
