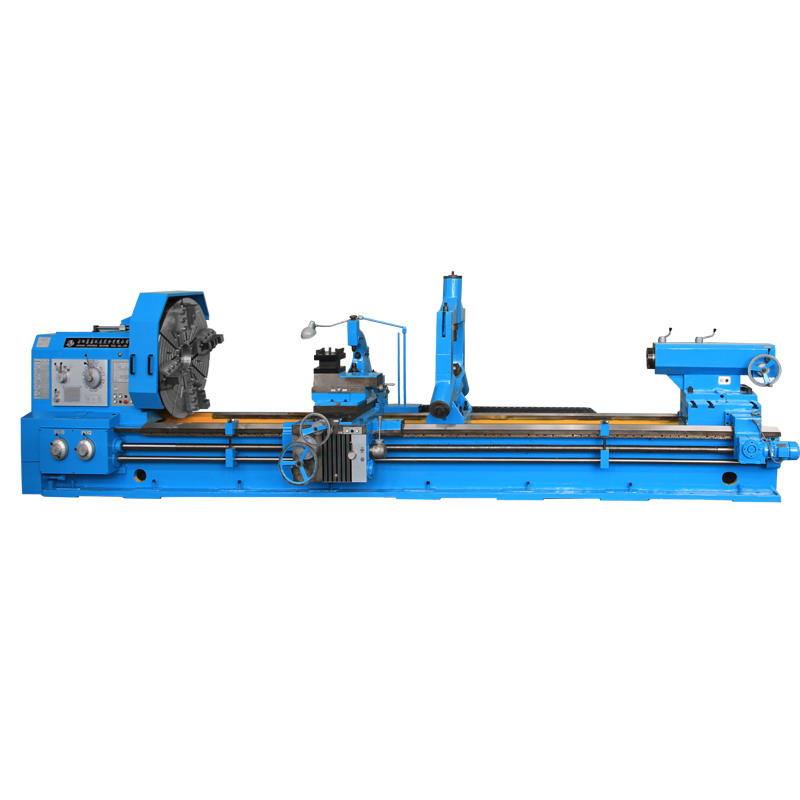

CW61125/140/160(10T) Heavy Duty Conventional Gap Bed Lathe Machine

CW61125 CW61140 CW61160(10T) parallel lathes are for turning of cast iron and steel workpieces, turning of non-ferrous metal parts of big or medium sizes. It can do external cylindrical surface turning, inner hole and end face turning. It can also turn various intemal and external metric, inch, module and diametrical pitch threads, the top slide can be used independenthy for turning of short taper.
These lathes are of high power, high rigidity and wide rotating speed range, so it can be used for high speed and strong force turning.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Products Specification

ITEM	UNIT	CW61125	CW61140	CW61160
CAPACITIES
Swing over bed	mm	1250	1400	1600
Swing over carriage	mm	865	1010	1210
Max.length ofworkpiece	mm	3000/4000/5000/6000/8000/10000/12000
Max.turning length	mm	2800/3800/4800/5800/7800/9800/11800
Pan of guideway	mm	970
Max.cutting force	N	45000
Max.weight ofworkpiece	kg	10000
SPINDLE
Dia.of spindle hole	mm	130
Taper hole of spindle		Metric140
Range of spindle speeds	r/min	forward:3.15~315;reverse:3.5~291
No.of spindle speeds		forward:21;reverse:12
FEED
Longitudinal and cross		56
Range of feed motion	Imm	longitudinal:0.1~12;cross:0.05~6;top siide:0.025~3
No.and range of metric thread		44;1~120
No.and range of inch thread		31;28~1/4
No.and range of module thread		45;0.5~60
No.and range of dia.thread		38;1/2~56DP
TURRET
Max travel of cross slide	mm	650
Max.travel of top slide	mm	300
Section of tool shank	mm	45(260x260)
Tool post swing range		±90°
Rapid of tool post	mm/min	Longitudinal:3740;cross:1870;top slide:935
Max.travel of tool post	mm	2900/3900/4900/5900/7900/9900/11900
TAILSTOCK
Dia.of tailstock	mm	220
Travel of tailstock quill	mm	300
Taper hole of tailstock quill		morse 6
OTHERS
Main motor power	kw	22
Length	mm	6020/7020/8020/9020/11020/13020/15020
Width	mm	1995
Height	mm	217523252525

Optional Specifications

Swing over bed :1250/1400/1600MM

Max.turning dia :865/1010/1210MM

Max length of workpiece :3000-12000MM

Pan of guideway :970MM

Spindle bore :130MM

Range of spindle speeds :3.15-315r/min

Main motor power :22kw

Max weight of workpiece :10000kg

Products Features

1: Bed with high rigidityCasted in whole piece, box type internal structure, of high rigidity, with hardened guidewa, TSF coated carriage to minimize the possibility of low speed stick-slip.

2: Main spindle with high rigidity and high accuracy

Spindle bearing of famous brand, spindle-box of heat-symmetrical structure to avoid spindle axis drifting, oil lubricating to minimize teat distortion. Spindle with three support structure to secure precise transmission and low noice. So the spindle is of low temperature rise ,minimized heat distortion, and long-term steady high accuracy.

Products Pictures
