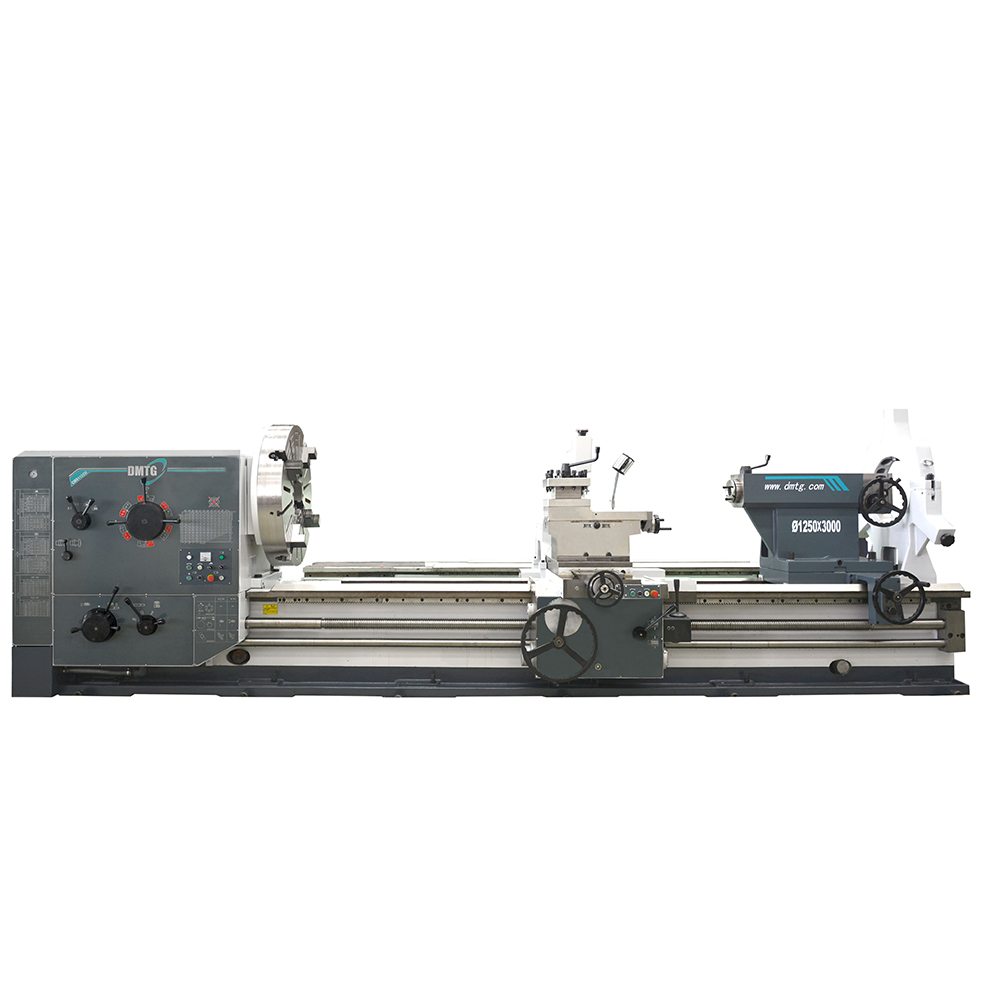

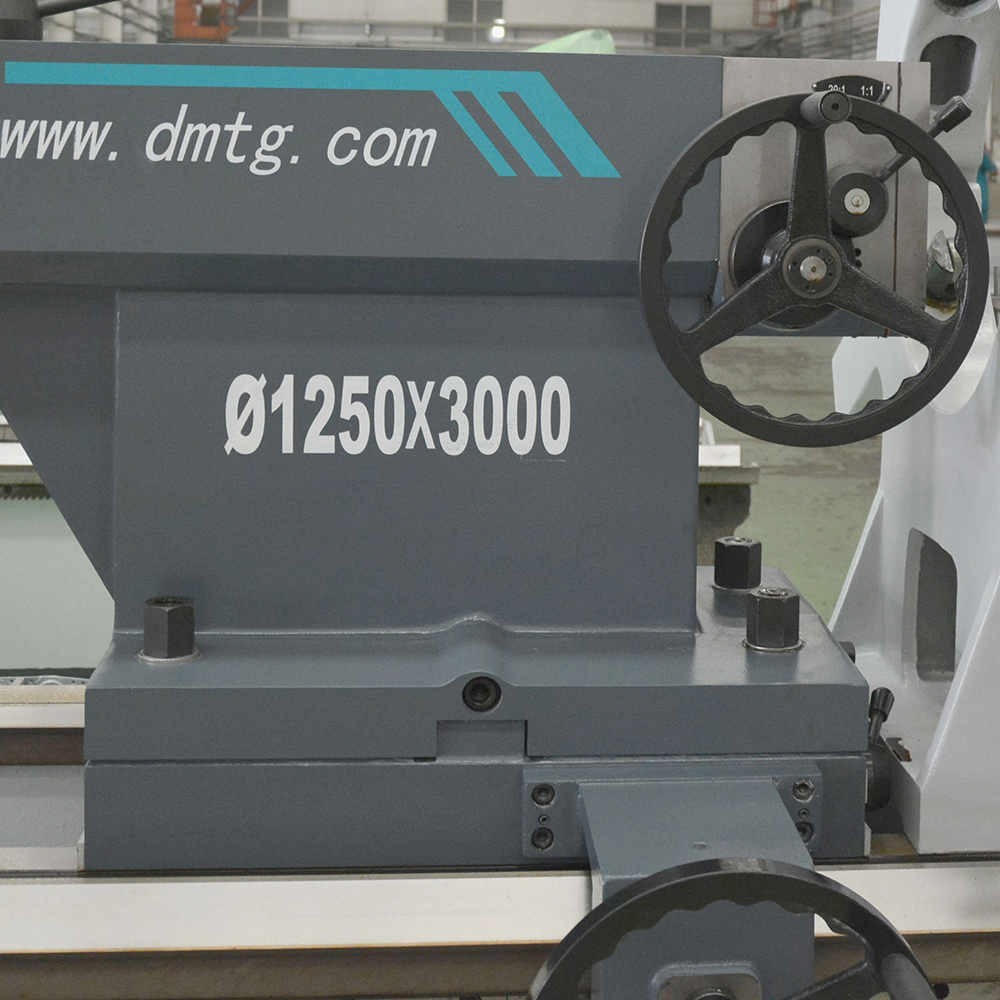

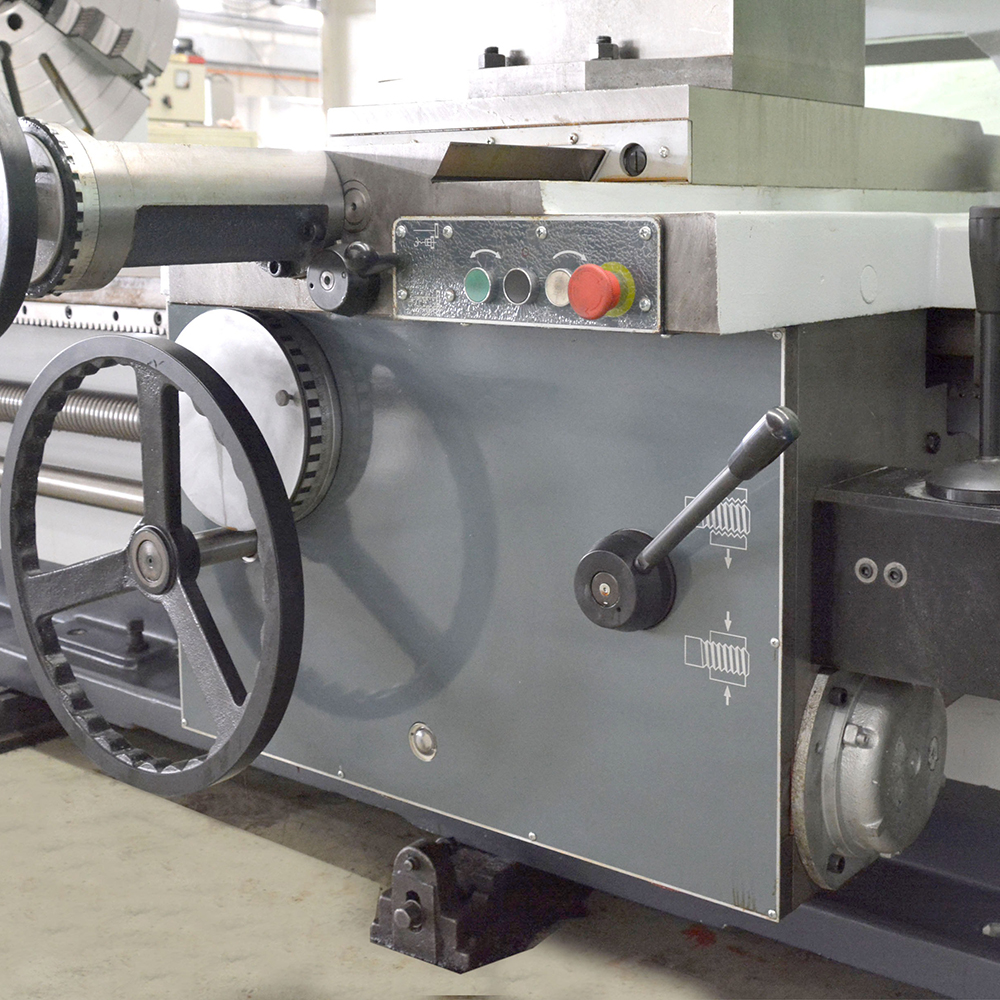

CW-M Series Manual Lathe Machine

The CW-M series large-scale conventional lathe features a mature structure, high power, strong rigidity, and a wide range of spindle speed adjustments. It is suitable for heavy-duty or high-speed cutting, capable of completing various turning operations on shafts and disc-shaped parts, including inner and outer cylindrical surfaces, tapered surfaces, end faces, grooving, chamfering, drilling, tapping, and more.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Products Specification

Specification	Unit	CW61100M	CW61125M
Max.Swing diameter over bed	mm	φ1000	φ1250
Max.Swing diameter over cross slide	mm	φ630	φ880
Max.workpiece length	mm	1500/3000/4000/5000/6000/8000
Max.cutting length	mm	1300/2800/3800/4800/5800/7800
Max workpiece weight	kg	6000(Opt:800010000)
Bed guideway width	mm	755
Spindle nose		A2-15
Spindle bore	mm	φ130

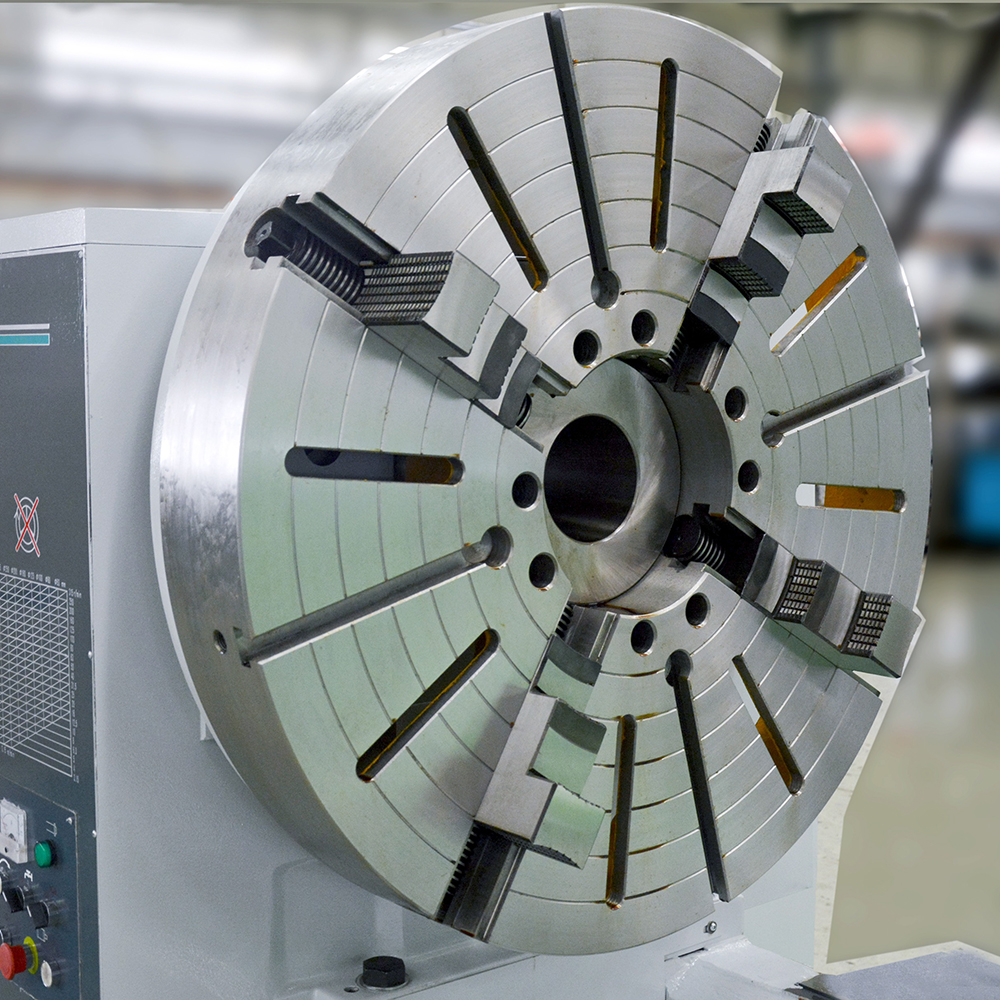

Chuck size	mm	φ1000	φ1000
Taper of spindle bore		Metric 140(1:20)(With No.6MT Reducing sleeve)
Max.Spindle torque	Nm	10.5 kNm(22kW)Opt:12.5kNm (30 kW)
Spindle speed ranges	rpm	3.15-315(21 Speeds)(Reversal 4.5～39012Speeds)
Spindle centre height	mm	500	625
Spindle motor power	kw	220pt:30
Diameter of tailstock quill	mm	φ160(Max.workpiece weight 6T) Opt:中200 Max.workpiece weight 8T, φ240 Max.workpiece weight 10T
Travel of tailstock quill	mm	300
Taper of tailstock quill	mm	Metric 80(With No.6MT Reducing sleeve) Opt:No.6 MT (φ200&240)
Longitudinal feed	mm/r	0.1~12(56 Kinds);*0.0032～0.40 in/rpm (56 Kinds)
Cross feed	mm/r	0.05~6(56 Kinds);*0.0016～0.20 in/rpm (56 Kinds)
Metric threads	mm	1~120 (52 Kinds);*1~120 (52 Kinds)
Modular threads	mm	0.5~60(46 Kinds);*0.5~60(46 Kinds)
Inch threads	TPI	1/4~30(43 Kinds);*1/4~30(43 Kinds)
Diametral pitch threads	DP	1/2~60(49 Kinds);*1/2~60(49 Kinds)
Tool shank size	mm	45X45
Travel of top slide	mm	300
Machine dimensions(L×W×H)	mm	4450×1855×1890(1500) 5950×1855×1890(3000) 6950×1855×1890(4000) 7950×1855×1890(5000) 8950×1855×1890(6000) 10950×1855×1890(8000)	4450×1955×2015(1500) 5950×1955×2015(3000) 6950×1955×2015(4000) 7950×1955×2015(5000) 8950×1955×2015(6000) 10950×1955×2015(8000)
Machine weight	kg	9650/11000/11900/ 12800/13700/15500	10650/12000/12900/ 13800/14700/16500
