Product Specifications
| Model | HMC-40S | HMC-50S | HMC-50S | HMC-63S | HMC-63S | ||
| Project | Specification | Unit | |||||
| Stroke | X-axis stroke | mm | 800 | 1000 | 1050 | 1200 | 1050 |
| Y-axis stroke | mm | 600 | 700 | 750 | 700 | 750 | |
| Z-axis stroke | mm | 500 | 600 | 900 | 700 | 900 | |
| Distance from spindle nose to worktable | mm | 125-625 | 65-665 | 130-1030 | 150-850 | 130-1030 | |
| Distance from spindle center to guide surface | mm | 50-650 | 50-750 | 120-870 | 100-800 | 120-870 | |
| Guide type | / | Three-axis linear guide | Three-axis linear guide | Three-axis linear guide | XZ: Heavy-duty roller rails Y: Rectangular rails | Three-axis linear guide | |
| Machine tool structure | / | Cross slide | Cross slide | Inverted T | Cross slide | Inverted T | |
| Workbench | Table size L*W | mm | 400×400 | 500×500 | 500×500 | 630×630 | 630×630 |
| Table load bearing | kg | 400 | 600 | 600 | 1200 | 1200 | |
| T-slot | no/mm | 5-14×80 | 5-18×100 | 5-18×100 | 5-18×100 | 5-18×100 | |
| Spindle | Spindle taper | type | BT40 | BT50 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 8000 | 6000 | 6000 | 6000 | 6000 | |
| Spindle drive mode | / | Belt spindle | Belt spindle | Belt spindle | Belt spindle | Belt spindle | |
| Feed | XN/Z axis rapid feed | m/min | 20/18/20 | 24/20/24 | 24/24/24 | 20/18/20 | 24/24/24 |
| Maximum cutting feed | m/min | 10 | 10 | 10 | 10 | 10 | |
| Tool changing device | Tool change mode | / | Disc | Disc | Disc | Disc | Disc |
| Tool holder specification | type | BT-40 | BT-50 | BT-50 | BT-50 | BT-50 | |
| Tool capacity | tools | 24 | 24 | 24 | 24 | 24 | |
| Maximum tool diameter (immediate tool) | mm | 78 | 112 | 112 | 112 | 112 | |
| Maximum tool diameter (without immediate tool) | mm | 120 | 200 | 200 | 200 | 200 | |
| Maximum tool length | mm | 300 | 300 | 300 | 300 | 300 | |
| Maximum tool weight | kg | 8 | 18 | 18 | 18 | 18 | |
| Fastest tool change time | sec | 3 | 6 | 5 | 8 | 5 | |
| Motor | Spindle motor (motor) | kW | 11/15 | 11/15 | 15/18.5 | 15/18.5 | 15/18.5 |
| Three-axis servo motor XY/Z | kW | 1.8/1.8/3 | 3/3/3 | 3/3/3 | 3/3/3 | 3/3/3 | |
| Accuracy standard (VDI German standard) | Positioning accuracy | mm | 0.012/0.010/0.010 | 0.012/0.010/0.010 | 0.012/0.010/0.010 | 0.012/0.010/0.010 | 0.012/0.010/0.010 |
| Repeat accuracy | mm | 0.010/0.008/0.008 | 0.010/0.008/0.008 | 0.010/0.008/0.008 | 0.010/0.008/0.008 | 0.010/0.008/0.008 | |
| Power requirements | Electricity requirements | kva | 20 | 25 | 30 | 30 | 30 |
| Air pressure requirements | kg/cm² | 6～8 | 6 | 6～8 | 6～8 | 6～8 | |
| Machine size | Length/width/height | mm | 2700×2800×2600 | 3200×2800×2800 | 3100×3600×2800 | 3300×3400×2800 | 3100×3600×2800 |
| Machine weight | t | 7 | 9 | 13 | 13 | 14 | |
| Model | HMC-63S | HMC-80S | HMC-80S | HMC-80S | HMC-100S | ||
| Project | Specification | Unit | |||||
| Stroke | X-axis stroke | mm | 1000 | 1800 | 1300 | 1400 | 2000 |
| Y-axis stroke | mm | 850 | 900 | 1000 | 1000 | 1100 | |
| Z-axis stroke | mm | 900 | 900 | 1000 | 1000 | 1200 | |
| Distance from spindle nose to worktable | mm | 140-1040 | 200-1100 | 200-1200 | 190-1190 | 350-1550 | |
| Distance from spindle center to guide surface | mm | 90-940 | 0-900 | 120-1120 | 110-1110 | 100-1200 | |
| Guide type | / | Three-axis linear guide | XZ: Heavy-duty roller rails Y: Rectangular rails | Three-axis linear guide | Three-axis linear guide | Three-axis linear guide | |
| Machine tool structure | / | Positive T | Cross slide | Inverted T | Positive T | Inverted T | |
| Workbench | Table size L*W | mm | 630×630 | 800×800 | 800×800 | 800×800 | 1000×1000 |
| Table load bearing | kg | 1200 | 2000 | 2000 | 2000 | 3000 | |
| T-slot | no/mm | 5-18×100 | 7-22×100 | 7-22×100 | 7-22×100 | 7-22×100 | |
| Spindle | Spindle taper | type | BT50 | BT50 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | 6000 | |
| Spindle drive mode | / | Belt spindle | Belt spindle | Belt spindle | Belt spindle | Belt spindle | |
| Feed | XN/Z axis rapid feed | m/min | 20/20/20 | 20/12/20 | 24/24/24 | 20/20/20 | 15/15/15 |
| Maximum cutting feed | m/min | 10 | 10 | 10 | 10 | 10 | |
| Tool changing device | Tool change mode | / | Disc | Disc | Disc | Disc | Disc |
| Tool holder specification | type | BT-50 | BT-50 | BT-50 | BT-50 | BT-50 | |
| Tool capacity | tools | 24 | 24 | 24 | 24 | 24 | |
| Maximum tool diameter (immediate tool) | mm | 112 | 112 | 112 | 112 | 112 | |
| Maximum tool diameter (without immediate tool) | mm | 200 | 200 | 200 | 200 | 200 | |
| Maximum tool length | mm | 300 | 300 | 300 | 300 | 300 | |
| Maximum tool weight | kg | 18 | 18 | 18 | 18 | 18 | |
| Fastest tool change time | sec | 8 | 3 | 3 | 3 | 3 | |
| Motor | Spindle motor (motor) | kW | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 |
| Three-axis servo motor XY/Z | kW | 3/3/3 | 3/3/3 | 3/3/3 | 3/3/3 | 3/3/3 | |
| Accuracy standard (VDI German standard) | Positioning accuracy | mm | 0.012/0.010/0.010 | 0.016/0012/0.012 | 0.012/0.012/0.012 | 0.012/0.012/0.012 | 0.020/0.015/0.015 |
| Repeat accuracy | mm | 0.010/0.008/0.008 | 0.012/0.010/0.010 | 0.010/0.010/0.010 | 0.010/0.010/0.010 | 0.015/0.010/0.010 | |
| Power requirements | Electricity requirements | kva | 30 | 30 | 30 | 30 | 30 |
| Air pressure requirements | kg/cm² | 6～8 | 6～8 | 6～8 | 6～8 | 6～8 | |
| Machine size | Length/width/height | mm | 3100×3300×3200 | 5000×4000×3200 | 4200×4800×3200 | 4200×4300×3200 | 5500×5000×3500 |
| Machine weight | t | 14 | 15 | 16 | 16 | 18 | |
Products Features
1: The machine tool body adopts HT300 high grade cast iron; Japan THK rail is adopted. C3 high precision screw is used in all three axes, 5 FAG original bearings, 3 motor end + 2 tail end, pre-stretching treatment.
2: BT50-190 Taiwan original spindle; The main shaft end has a labyrinth blowing device to protect the main shaft; Spindle configuration ring spray, improve the processing quality.
3: Three axis grating ruler is selected to strictly ensure the positioning accuracy of the machine.
4: Double switching table/four-axis turntable，Realize work exchange and improve processing efficiency；The workpiece is placed outside, convenient for clamping；High rigidity alloy turbine, wear resistance, high positioning accuracy；Relock, reduce deformation, resistant to recutting.
5: Taiwan imported inverter tool library, tool change speed is fast and stable.
Standard Fittings
Knife arm type quick tool change mechanism, rigid tapping, dual working light, spindle nose labyrinth dust blowing,Automatic oil feeding system, air conditioning, three-color warning light, foundation screws and pad, full-cover sealing sheet metal, water tank and chip collecting box, disc type oil-water separator.
Optional parts
Grating ruler, tool breakage detector, spindle center water outlet system, oil mist recovery system, automatic tool setting instrument, rotary table (fourth axis).

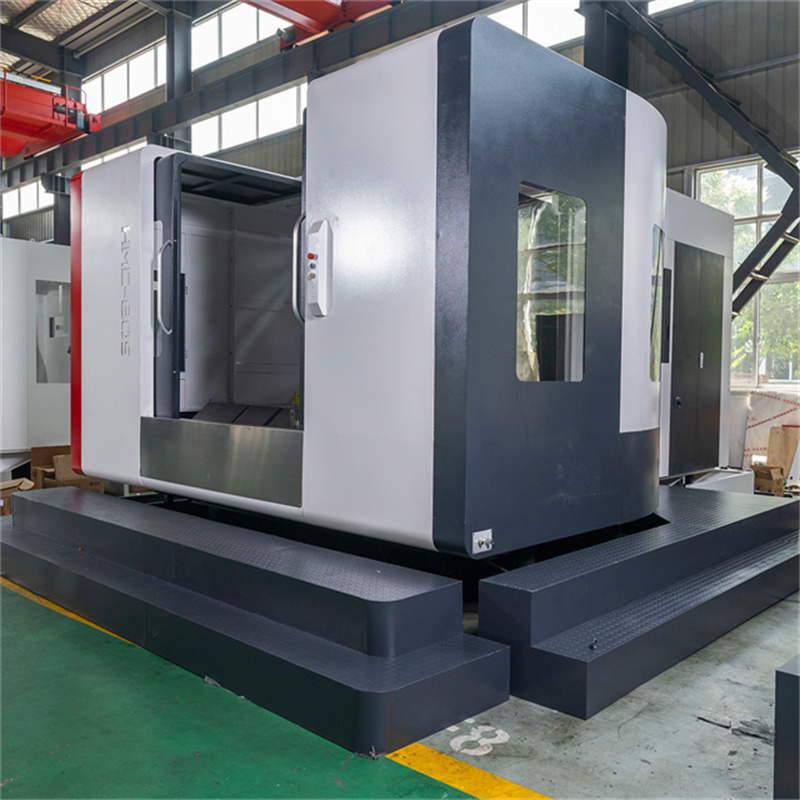

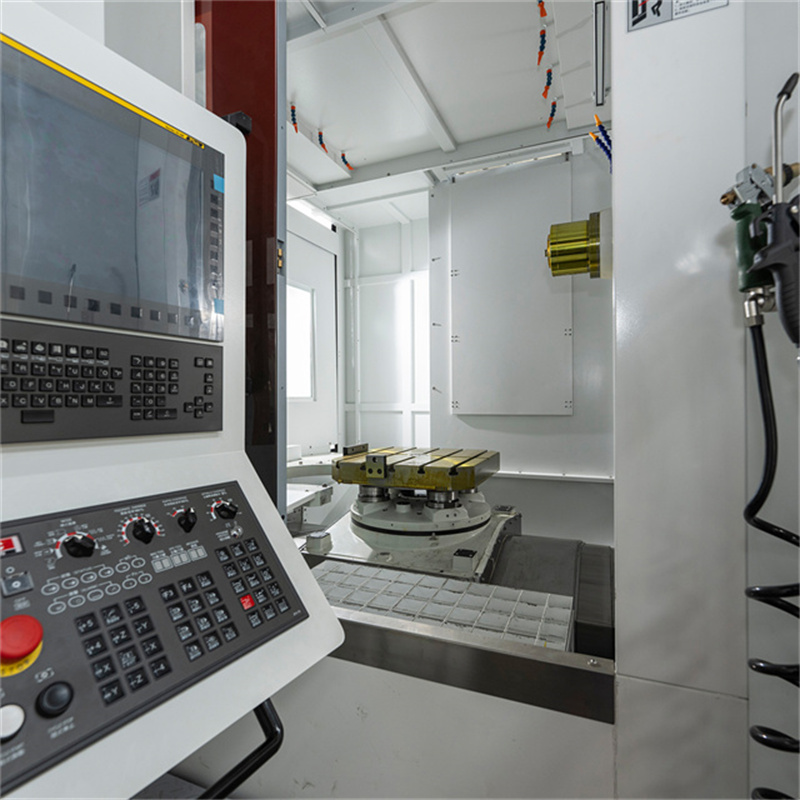

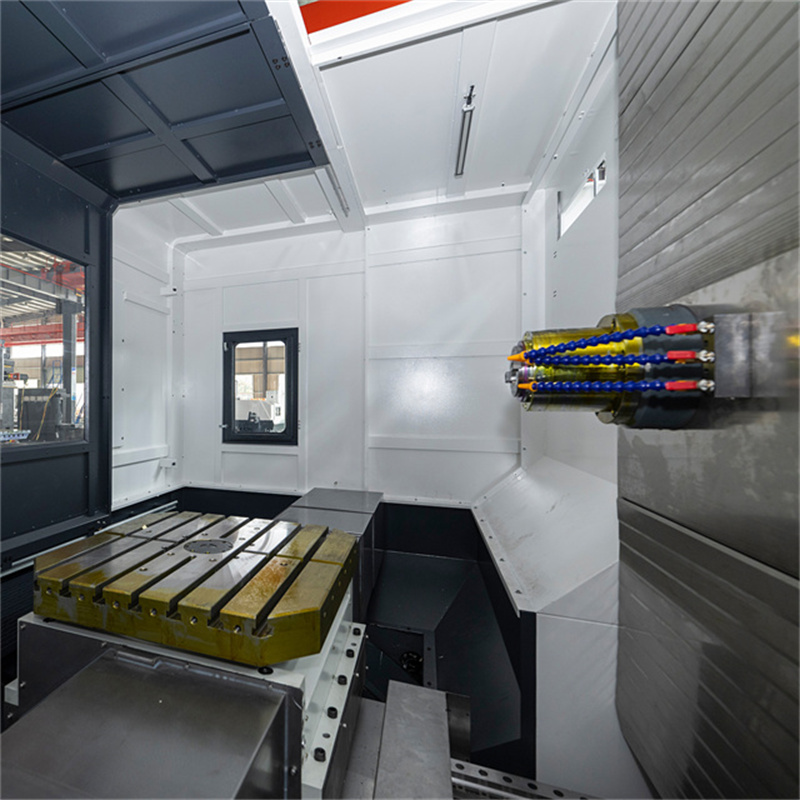

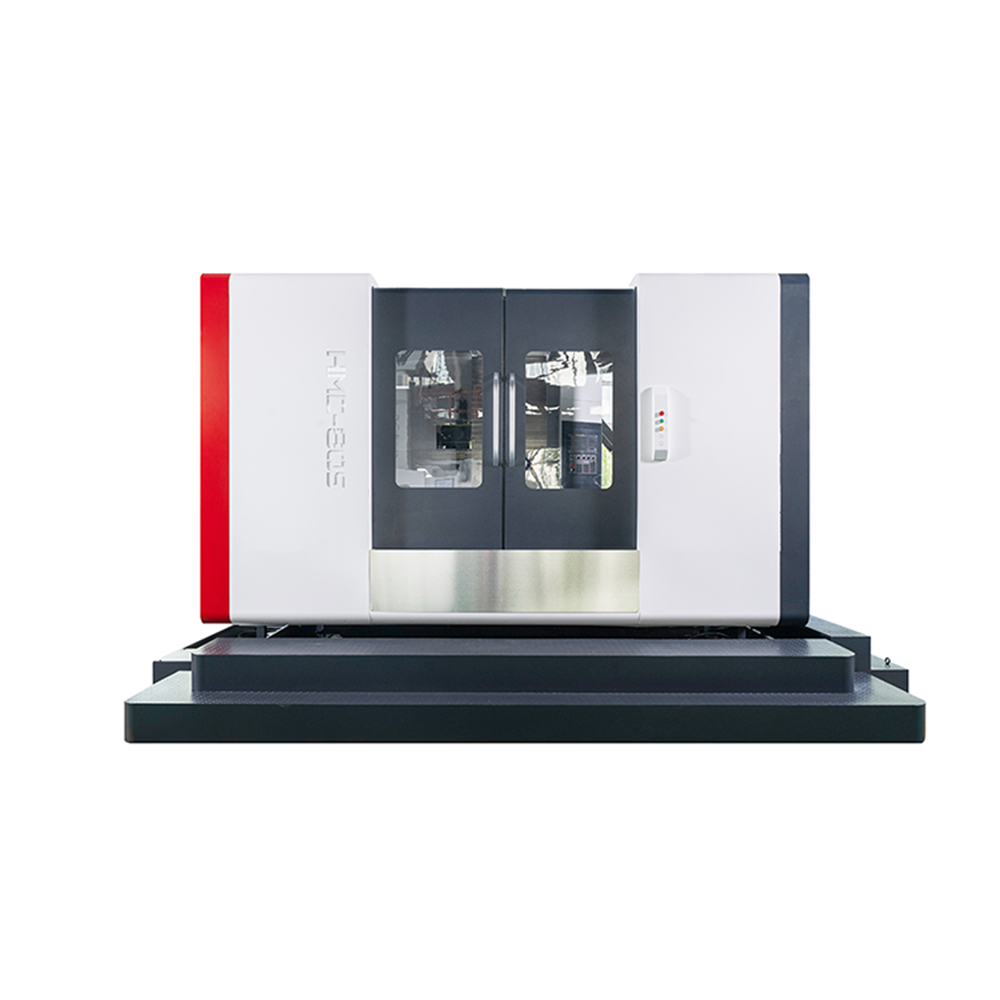

Products Pictures
