Product Specifications
| Model | VMC-1380S2 | VMC-1380S3 | VMC-1580S2 | VMC-1580S3 | ||
| Project | Specification | Unit | ||||
| Stroke | X-axis stroke | mm | 1300 | 1300 | 1500 | 1500 |
| Y-axis stroke | mm | 800 | 800 | 800 | 800 | |
| Z-axis stroke | mm | 700 | 700 | 700 | 700 | |
| Distance from spindle nose to worktable | mm | 150-850 | 150-850 | 130-830 | 170-870 | |
| Distance from spindle center to guide surface | mm | 860 | 860 | 810 | 850 | |
| Guide type | / | Two lines and one hard | Three-axis linear guide | Two lines and one hard | Three-axis linear guide | |
| Workbench | Table size L*W | mm | 1500×800 | 1500×800 | 1700×800 | 1700×800 |
| Table load bearing | kg | 1000 | 1000 | 1500 | 1500 | |
| T-slot | no/mm | 5-18×150 | 5-18×150 | 5-22×140 | 5-22×140 | |
| Spindle | Spindle taper | type | BT50 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | |
| Spindle drive mode | / | Belt spindle | Belt spindle | Belt spindle | Belt spindle | |
| Feed | XN/Z axis rapid feed | m/min | 24/24/24 | 24/24/24 | 20/20/18 | 20/20/18 |
| Maximum cutting feed | m/min | 10 | 10 | 10 | 10 | |
| Tool changing device | Tool change mode | / | Disc | Disc | Disc | Disc |
| Tool holder specification | type | BT-50 | BT-50 | BT-50 | BT-50 | |
| Tool capacity | tools | 24 | 24 | 24 | 24 | |
| Maximum tool diameter (immediate tool) | mm | 112 | 112 | 112 | 112 | |
| Maximum tool diameter (without immediate tool) | mm | 200 | 200 | 200 | 200 | |
| Maximum tool length | mm | 300 | 300 | 300 | 300 | |
| Maximum tool weight | kg | 18 | 18 | 18 | 18 | |
| Fastest tool change time | sec | 3 | 3 | 3 | 3 | |
| motor | Spindle motor (motor) | kW | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 |
| Three/five axis servo motor X/N/Z/B/C | kW | 3/3/3 | 3/3/3 | 3/3/3 | 3/3/3 | |
| Accuracy standard (VDI German standard) | Positioning accuracy | mm | 0.015/0.012/0.012 | 0.015/0.012/0.012 | 0.015/0.012/0.012 | 0.015/0.012/0.012 |
| Repeat accuracy | mm | 0.012/0.010/0.010 | 0.012/0.010/0.010 | 0.012/0.010/0.010 | 0.012/0.010/0.010 | |
| Power requirements | Electricity requirements | kva | 25 | 25 | 25 | 25 |
| Air pressure requirements | kg/cm | 6～8 | 6～8 | 6～8 | 6～8 | |
| Machine size | Length/width/height | mm | 3600×3200×3000 | 3600×3200×3000 | 4000×3400×3000 | 4000×3400×3000 |
| Machine weight | t | 11 | 11 | 14 | 14 | |
| Model | VMC-1690S2 | VMC-1690S3 | VMC-1890S2 | VMC-1890S3 | ||
| Project | Specification | Unit | ||||
| Stroke | X-axis stroke | mm | 1600 | 1600 | 1800 | 1800 |
| Y-axis stroke | mm | 900 | 900 | 900 | 900 | |
| Z-axis stroke | mm | 630 | 800 | 600/700 | 800 | |
| Distance from spindle nose to worktable | mm | 160-790 | 160-960 | 112-712/812 | 160-960 | |
| Distance from spindle center to guide surface | mm | 950 | 960 | 950 | 960 | |
| Guide type | / | Two lines and one hard | Three-axis linear guide | Two lines and one hard | Three-axis linear guide | |
| Workbench | Table size L*W | mm | 1800×900 | 1800×900 | 2000×900 | 2000×900 |
| Table load bearing | kg | 1600 | 1600 | 1600 | 1600 | |
| T-slot | no/mm | 5-22×165 | 5-22×165 | 5-22×165 | 5-22×165 | |
| Spindle | Spindle taper | type | BT50 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | |
| Spindle drive mode | / | Belt spindle | Belt spindle | Belt spindle | Belt spindle | |
| Feed | XN/Z axis rapid feed | m/min | 20/20/15 | 20/20/15 | 20/20/15 | 20/20/15 |
| Maximum cutting feed | m/min | 10 | 10 | 10 | 10 | |
| Tool changing device | Tool change mode | / | Disc | Disc | Disc | Disc |
| Tool holder specification | type | BT-50 | BT-50 | BT-50 | BT-50 | |
| Tool capacity | tools | 24 | 24 | 24 | 24 | |
| Maximum tool diameter (immediate tool) | mm | 112 | 112 | 112 | 112 | |
| Maximum tool diameter (without immediate tool) | mm | 200 | 200 | 200 | 200 | |
| Maximum tool length | mm | 300 | 300 | 300 | 300 | |
| Maximum tool weight | kg | 18 | 18 | 18 | 18 | |
| Fastest tool change time | sec | 3 | 3 | 3 | 3 | |
| motor | Spindle motor (motor) | kW | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 |
| Three/five axis servo motor X/N/Z/B/C | kW | 3/3/3 | 3/3/3 | 3/3/3 | 3/3/3 | |
| Accuracy standard (VDI German standard) | Positioning accuracy | mm | 0.020/0.013/0.013 | 0.020/0.013/0.013 | 0.020/0.013/0.013 | 0.020/0.013/0.013 |
| Repeat accuracy | mm | 0.015/0.010/0.010 | 0.015/0.010/0.010 | 0.015/0.010/0.010 | 0.015/0.010/0.010 | |
| Power requirements | Electricity requirements | kva | 25 | 25 | 20 | 20 |
| Air pressure requirements | kg/cm | 6～8 | 6～8 | 6～8 | 6～8 | |
| Machine size | Length/width/height | mm | 4600×4000×3200 | 4600×4000×3200 | 4800×4000×3200 | 4800×4000×3200 |
| Machine weight | t | 15 | 15 | 16 | 16 | |
Products Features
1: The three shafts use imported Φ40-C3 screw, the three shafts use FAG original bearing, 3+2 mode, pre-drawing treatment.
2: BT50-155/190 Taiwan original spindle, spindle end with labyrinth blowing device to protect the spindle; Spindle configuration ring spray, improve the processing quality.
3: The bed is made of high grade HT300 cast iron material, quenched, and all slide surfaces are finely polished to ensure machine accuracy and durability.
4: Imported heavy-duty roller rail is adopted.
Standard fittings
Automatic chip removal machine, rigid tapping, dual working light, spindle nose end labyrinth dust blowing, automatic oil lubrication system, electric box heat exchanger, three-color warning light, foundation screws and pads, full cover sheet metal sealing, water tank and chip collecting box, spindle ring spray, disc type oil water separator, Hand-held dust blower air gun, machine cleaning water gun, tool kit, operation manual.
Optional parts
Grating ruler, tool damage detector, oil mist recovery system, spindle center water outlet system, spindle center water outlet system, rotary table (fourth axis), 10000rpm belt spindle, HSK-63-18000 electric spindle, automatic tool setting instrument, laser radius tool setting instrument.

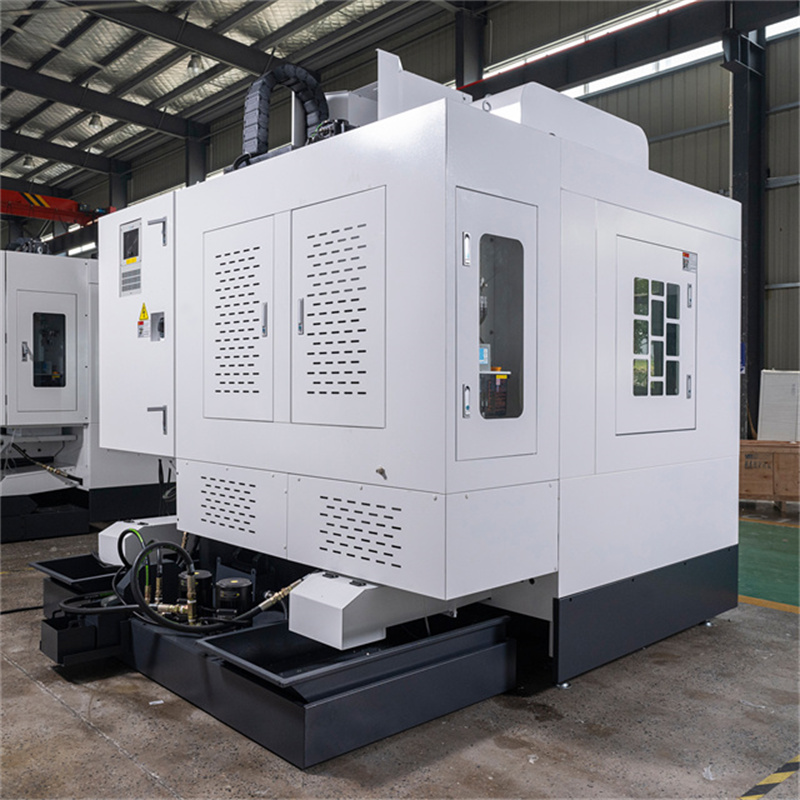

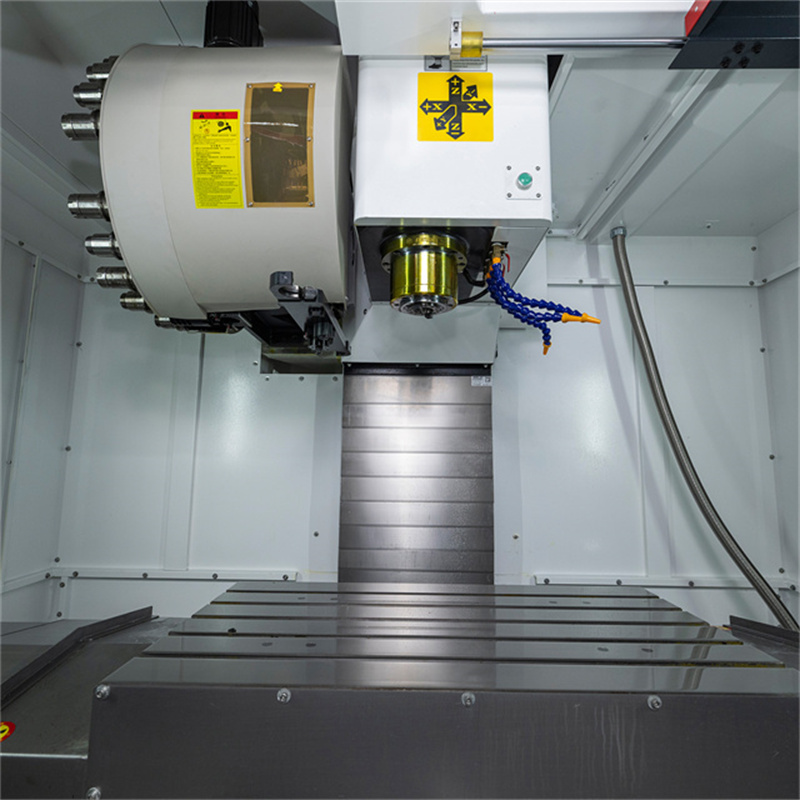

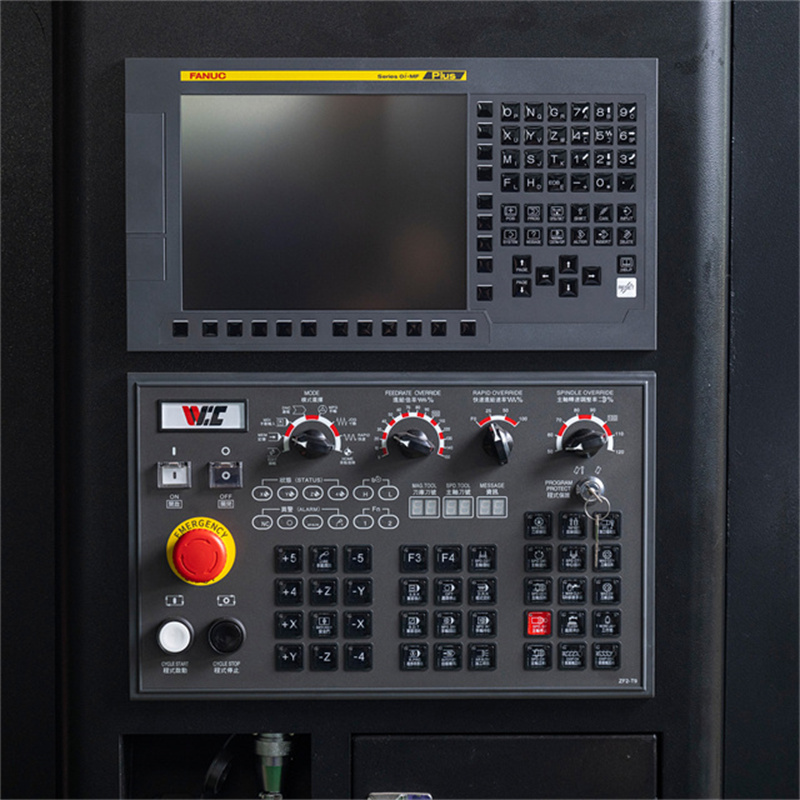

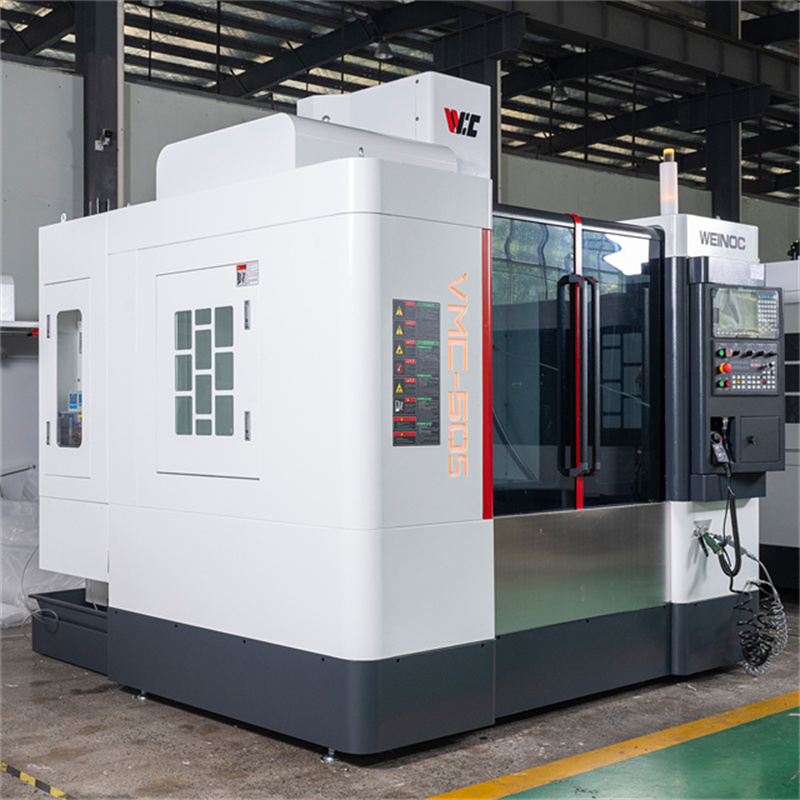

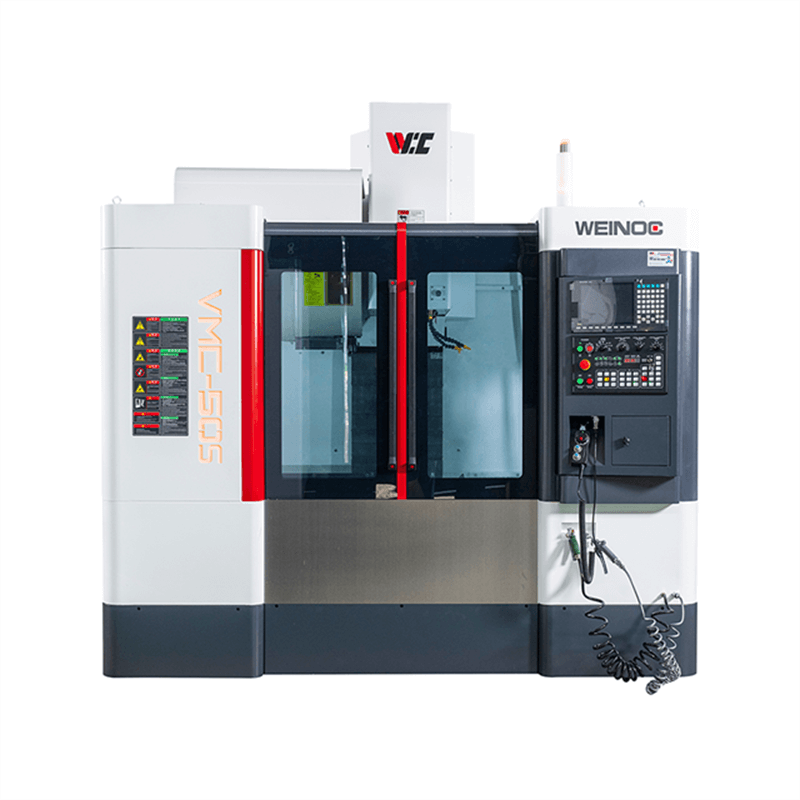

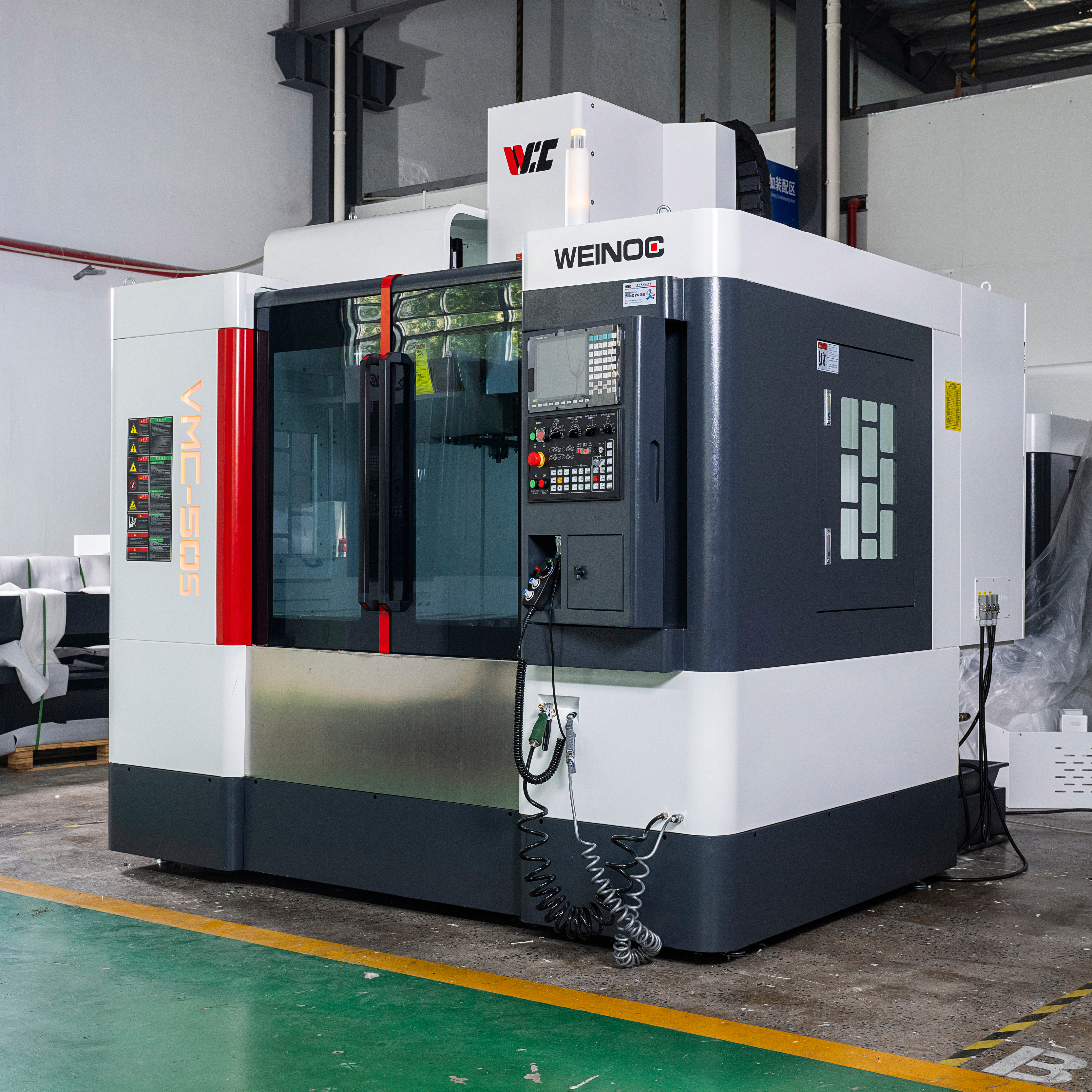

Products Pictures
