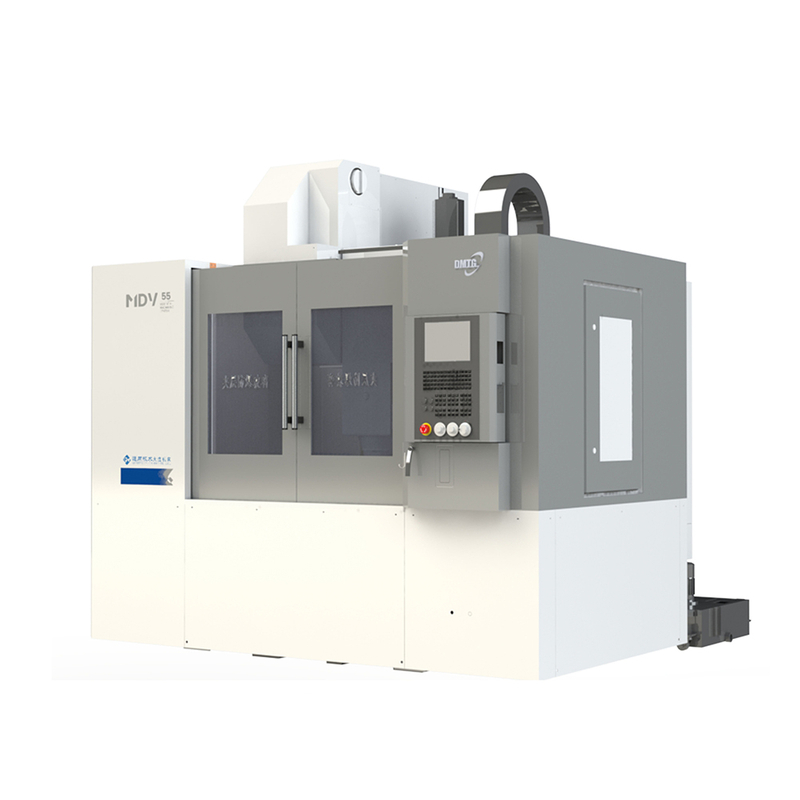

Products Specification

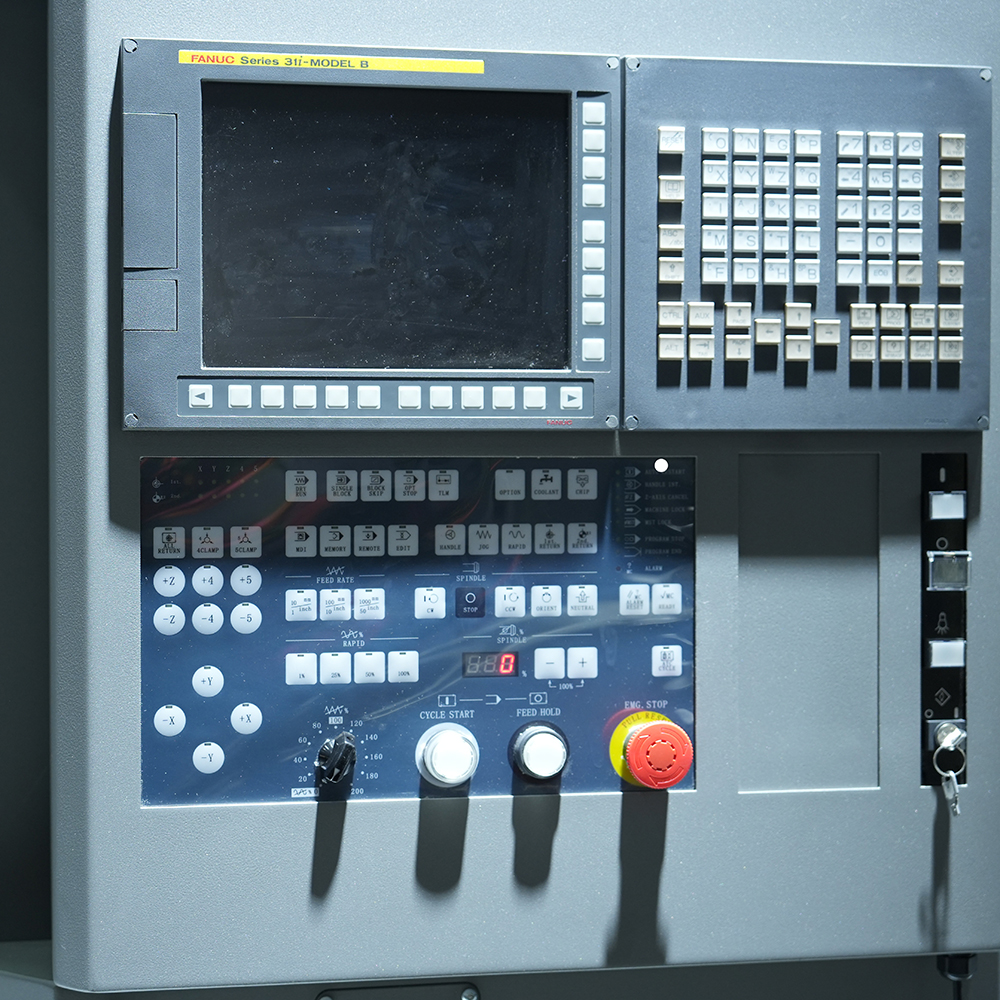

| Specification | Unit | MDV55 | MDV75 |
Worktable size(LxW) | mm | 1050X560(Opt:1250X560) | 1550X740 |
Max.load | kg | 800 | 1500 |
T-slots (numbers*width*centre distance) | mm | 5X18X110 | 5X22X140 |
X/Y/Z Axis travel | mm | 1020/550/510 | 1530/740/660 |
X/Y/Z Axis guide way type | Box way | Box way | |
Distance from spindle center to column | mm | 615 | 810 |
Distance from spindle nose to table | mm | 150~660 | 150~810 |
Rapid traverse of X/Y/Z axis | m/min | 30/30/20 | 24/24/20 |
Cutting feed rate | mm/min | 1~10000 | 1~10000 |
Spindle motor power | kW | 7.5/11 | 7.5/11 |
Max.spindle speed | r/min | 8000(Gear box) | 6000(Gear box) |
Spindle taper | No.50(7/24) | No.50(7/24) | |
Tool magazine capacity | 20T(Opt:30T) original high-speed synchronous tool changer | 20T(Opt:30T) original high-speed synchronous tool changer | |
Tool shank type | BT50 | BT50 | |
Max tool weight | kg | 20 | 20 |
Max.tool diameter (w/o adjacent tools) | mm | 20T:Φ110/φ200 | 20T:Φ110/φ200 |
Tool change time(T-T) | S | 2 | 2 |
X/Y/Z axis positioning accuracy | mm | 0.008/0.008/0.008 | 0.012/0.008/0.008 |
X/Y/Z axis repeatability accuracy | mm | 0.005/0.005/0.005 | 0.007/0.007/0.007 |
CNC controller | FANUC 31i-MB | FANUC 31i-MB | |
Machine dimensions(LXWXH) | mm | 3398X2880X2846 | 4140X4000X3436 |
Machine weight | kg | 7500 | 10500 |
Products Features

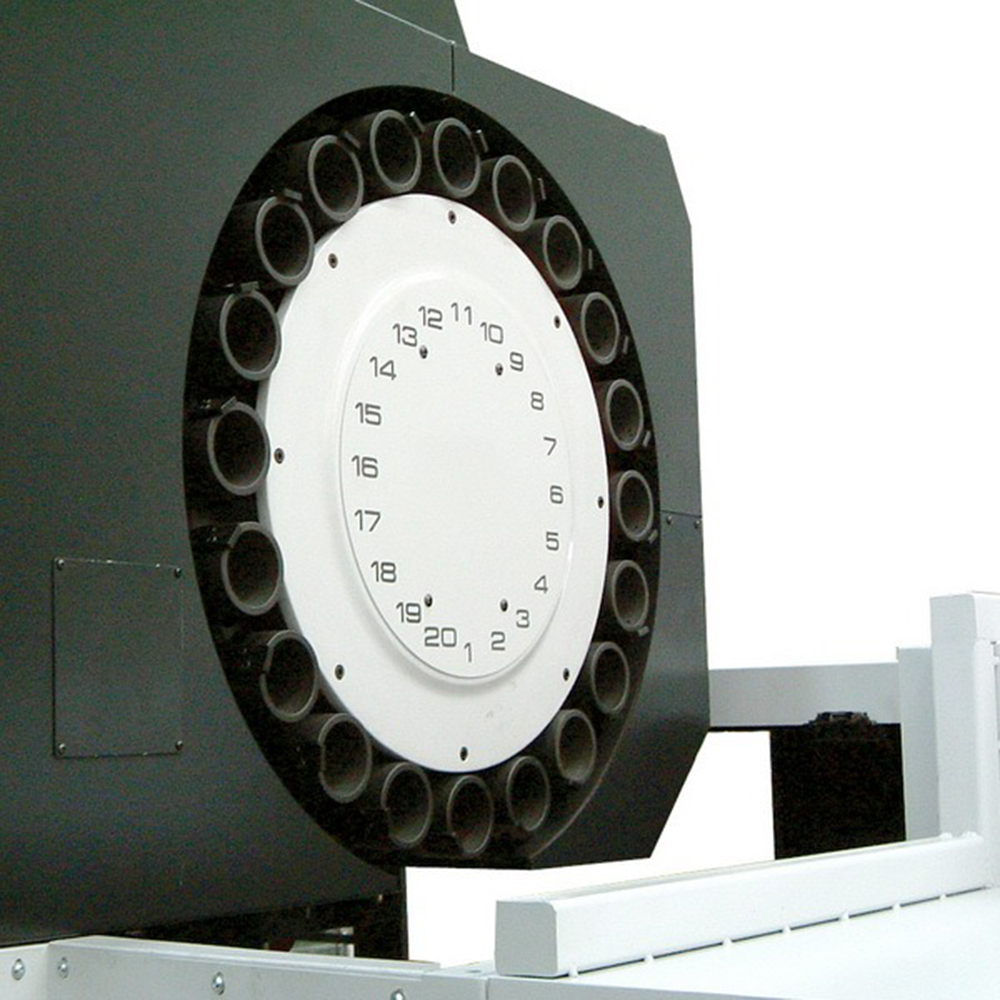

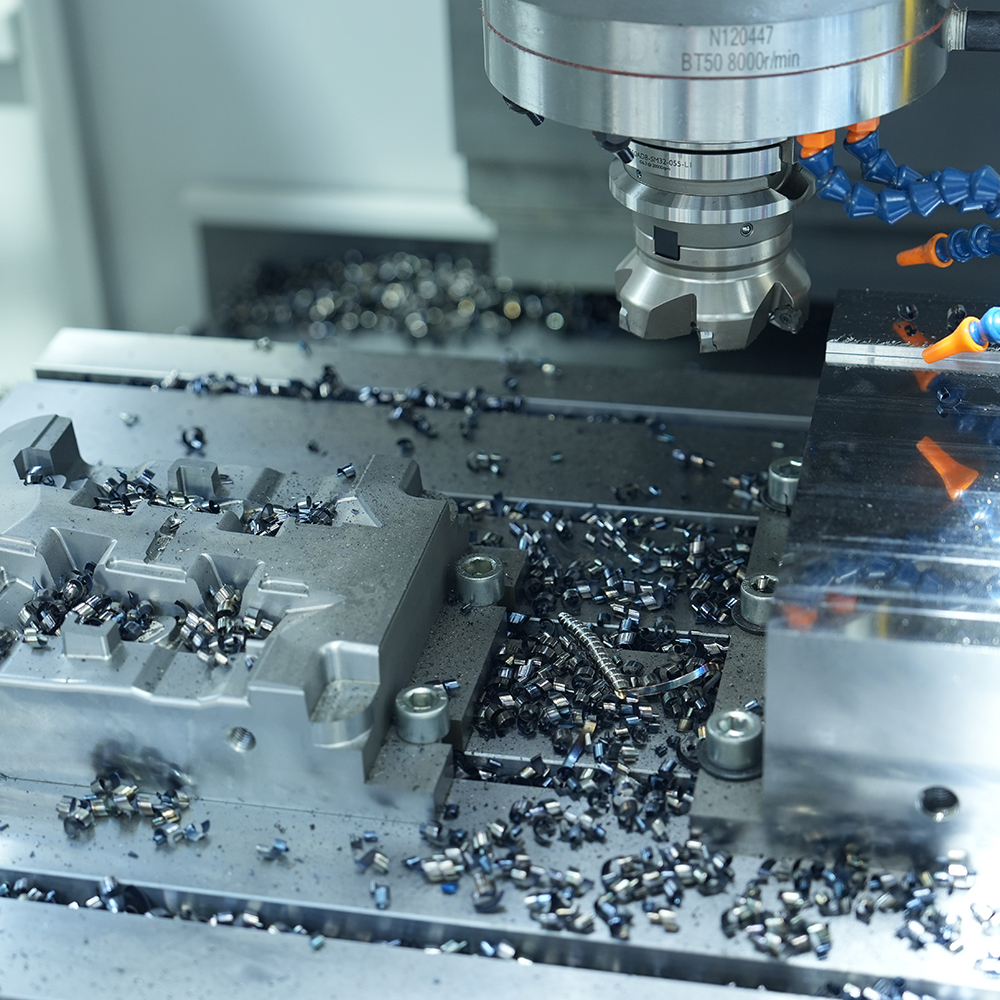

2: High Speed: The machine tool spindle employs a variable-speed gear transmission structure with a maximum speed of 8000rpm and two-speed gear shifting, meeting both low-speed cutting requirements and high-speed machining needs. An optional 13000rpm electric spindle is also available. The X, Y, and Z axis guides use high-rigidity imported resin-bonded plastic sheet hardened guide slide pairs. The machine tool's tool changer employs a robotic arm that releases and retrieves tools via cam linkage, achieving rapid tool changes (2-second tool change time). All these parameters are at the leading domestic and international levels.
3: High Rigidity: The main body of the machine tool is made entirely of high-strength resin sand castings, with the bed being a integral casting. The column is fixed to the rear bed, while the cross slide and worktable move on it, enhancing the overall stability of the machine tool. Additionally, the machine tool's structure is optimized through finite element analysis during the design process, making it more rational.
Products Pictures
Products Specification
| Specification | Unit | MDV55 | MDV75 |
Worktable size(LxW) | mm | 1050X560(Opt:1250X560) | 1550X740 |
Max.load | kg | 800 | 1500 |
T-slots (numbers*width*centre distance) | mm | 5X18X110 | 5X22X140 |
X/Y/Z Axis travel | mm | 1020/550/510 | 1530/740/660 |
X/Y/Z Axis guide way type | Box way | Box way | |
Distance from spindle center to column | mm | 615 | 810 |
Distance from spindle nose to table | mm | 150~660 | 150~810 |
Rapid traverse of X/Y/Z axis | m/min | 30/30/20 | 24/24/20 |
Cutting feed rate | mm/min | 1~10000 | 1~10000 |
Spindle motor power | kW | 7.5/11 | 7.5/11 |
Max.spindle speed | r/min | 8000(Gear box) | 6000(Gear box) |
Spindle taper | No.50(7/24) | No.50(7/24) | |
Tool magazine capacity | 20T(Opt:30T) original high-speed synchronous tool changer | 20T(Opt:30T) original high-speed synchronous tool changer | |
Tool shank type | BT50 | BT50 | |
Max tool weight | kg | 20 | 20 |
Max.tool diameter (w/o adjacent tools) | mm | 20T:Φ110/φ200 | 20T:Φ110/φ200 |
Tool change time(T-T) | S | 2 | 2 |
X/Y/Z axis positioning accuracy | mm | 0.008/0.008/0.008 | 0.012/0.008/0.008 |
X/Y/Z axis repeatability accuracy | mm | 0.005/0.005/0.005 | 0.007/0.007/0.007 |
CNC controller | FANUC 31i-MB | FANUC 31i-MB | |
Machine dimensions(LXWXH) | mm | 3398X2880X2846 | 4140X4000X3436 |
Machine weight | kg | 7500 | 10500 |
Products Features
2: High Speed: The machine tool spindle employs a variable-speed gear transmission structure with a maximum speed of 8000rpm and two-speed gear shifting, meeting both low-speed cutting requirements and high-speed machining needs. An optional 13000rpm electric spindle is also available. The X, Y, and Z axis guides use high-rigidity imported resin-bonded plastic sheet hardened guide slide pairs. The machine tool's tool changer employs a robotic arm that releases and retrieves tools via cam linkage, achieving rapid tool changes (2-second tool change time). All these parameters are at the leading domestic and international levels.
3: High Rigidity: The main body of the machine tool is made entirely of high-strength resin sand castings, with the bed being a integral casting. The column is fixed to the rear bed, while the cross slide and worktable move on it, enhancing the overall stability of the machine tool. Additionally, the machine tool's structure is optimized through finite element analysis during the design process, making it more rational.
Products Pictures
