The bed is made of high-strength high-quality cast iron and resin sand molding. Reinforcement ribs are arranged inside the bed to make the bed structure thick. The guide rail adopts 45 heavy-duty roller guide support structure, and each roller linear guide is densely covered with high-load-bearing slide blocks, so that the machine tool has high rigidity and long-term stable accuracy.

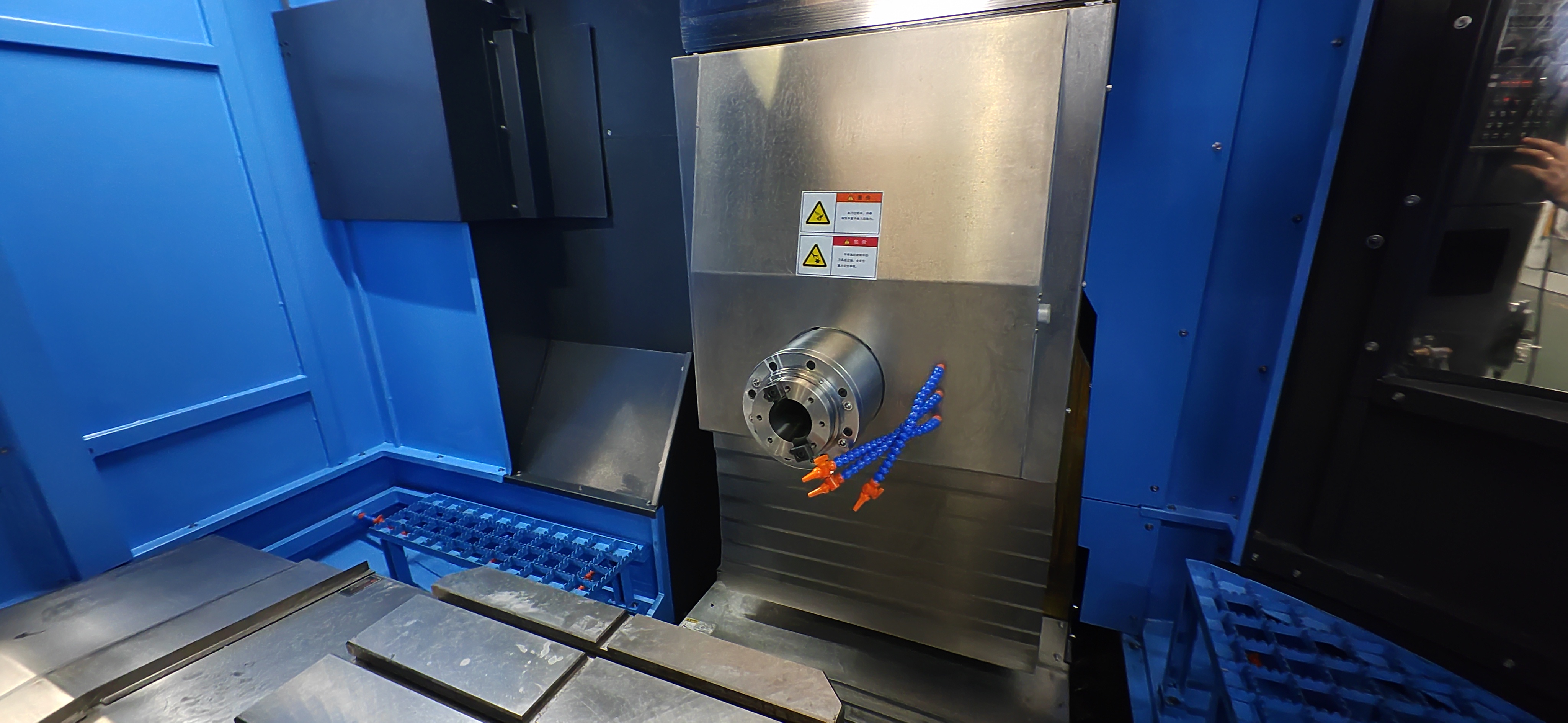

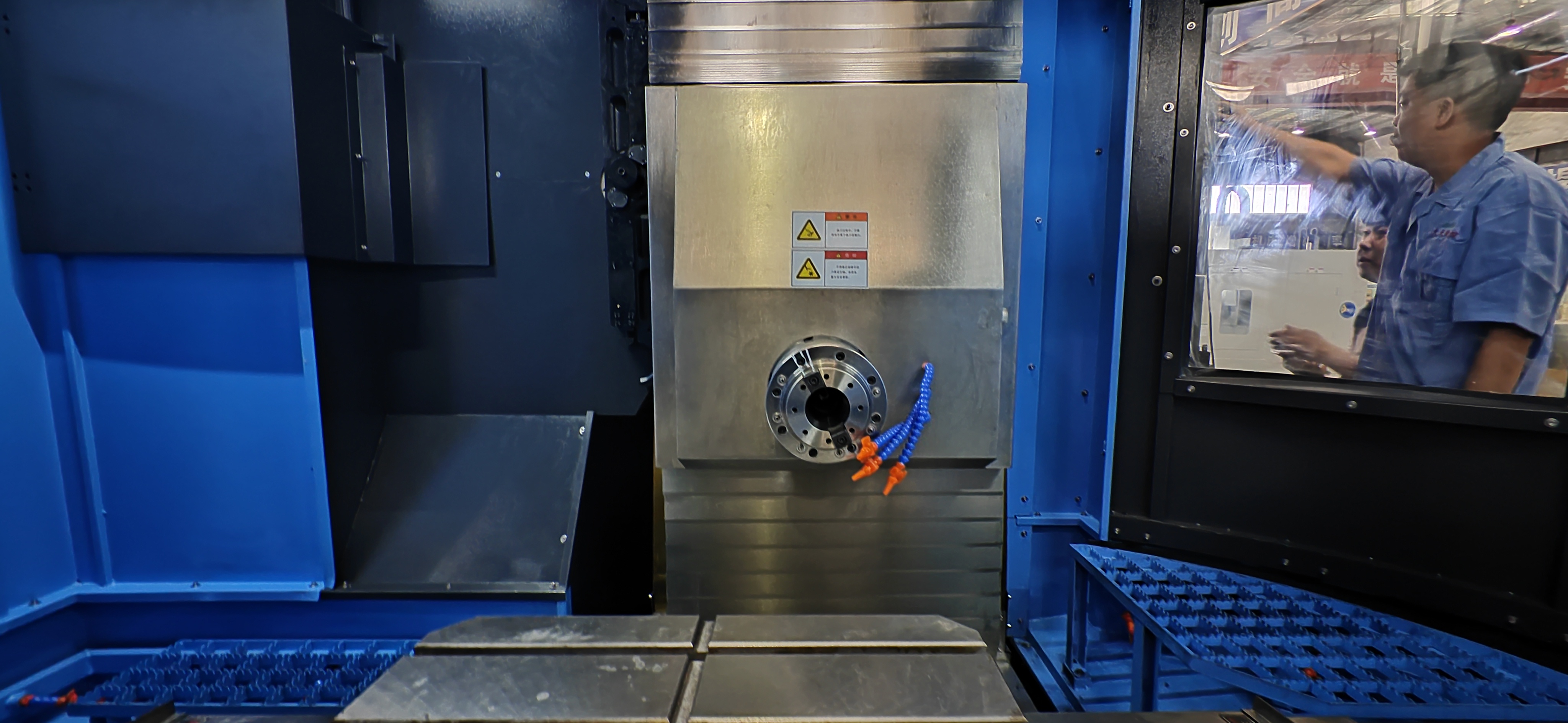

Spindle: high-quality alloy steel, carburizing and quenching, the spindle bearing components are made of imported high-precision spindle-specific set bearings, which can be equipped with a spindle constant temperature cooling system. The spindle movement can be driven by an Italian BF or German ZF speed gearbox, and high and low speed shifting can be achieved through automatic shifting, and stepless speed regulation can be achieved within each speed gear.
The bed is made of high-strength high-quality cast iron and resin sand molding. Reinforcement ribs are arranged inside the bed to make the bed structure thick. The guide rail adopts 45 heavy-duty roller guide support structure, and each roller linear guide is densely covered with high-load-bearing slide blocks, so that the machine tool has high rigidity and long-term stable accuracy.
Spindle: high-quality alloy steel, carburizing and quenching, the spindle bearing components are made of imported high-precision spindle-specific set bearings, which can be equipped with a spindle constant temperature cooling system. The spindle movement can be driven by an Italian BF or German ZF speed gearbox, and high and low speed shifting can be achieved through automatic shifting, and stepless speed regulation can be achieved within each speed gear.
