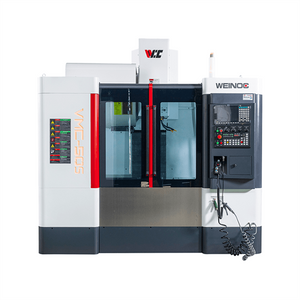

Products Specification

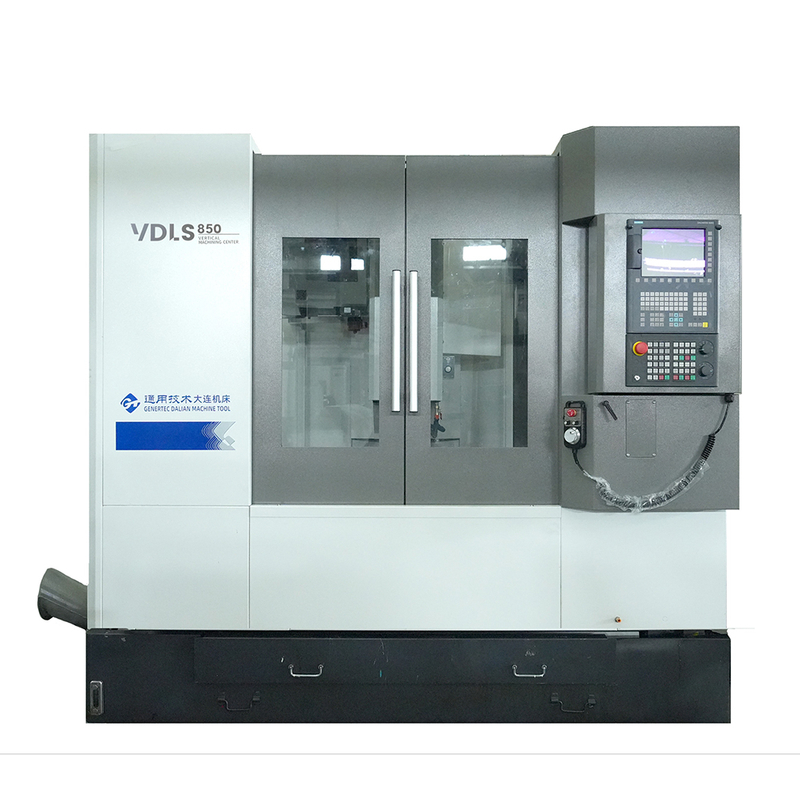

| Specification | Unit | VDLS850 | |
| Worktable size(LxW) | mm | 1000X500 | |
| Max.load | kg | 600 | |
| T-slots (numbers*width*centre distance) | mm | 5X18X100 | |
| X/Y/Z axis travel | mm | 860/510/560 | |
| XY/Z axis guide way type | Linear guideway | ||
| Distance from spindle center to column | mm | 607 | |
| Distance from spindle nose to table | mm | 145~705 | |
| Spindle motor power | KW | 7.5/11 | |
| Max.spindle speed | r/min | 12000 Direct-driven | Opt:8000 Belt-driven |
| Spindle taper | No.40(7:24) | ||
| Rapid traverse of X/Y/Z axis | m/min | 36/36/30 | |
| Max.cutting feed rate | m/min | 10 | |
| Tool magazine capacity | 24T/Arm | ||
| Tool shank type | BT40 | ||
| Max.tool weight | kg | 8 | |
| Max.tool diameter (w/o adjacent tools) | mm | φ78/155 | |
| Tool change time (T-T) | S | 2.7 | |
| X/Y/Z axis positioning accuracy | mm | 0.008/0.008/0.008 | |
| X/Y/Z axis repeatability accuracy | mm | 0.005/0.005/0.005 | |
| CNC controller | FANUC 0i-MF(5)Plus,FANUC 0i- MF(1)PIUS, SIEMENS 828D MITSUBISHI M80B | ||
| Machine dimensions(L×W×H) | mm | 2496X2530X2679 | |
| Machine weight | kg | 5600 | |
Products Configuration
Optional Configurations:
Products Features
1: High Efficiency: The rapid traverse speed of all three axes has been increased by 50%, and the tool change time of the direct-drive spindle has been significantly improved, providing users with high-efficiency machining performance.

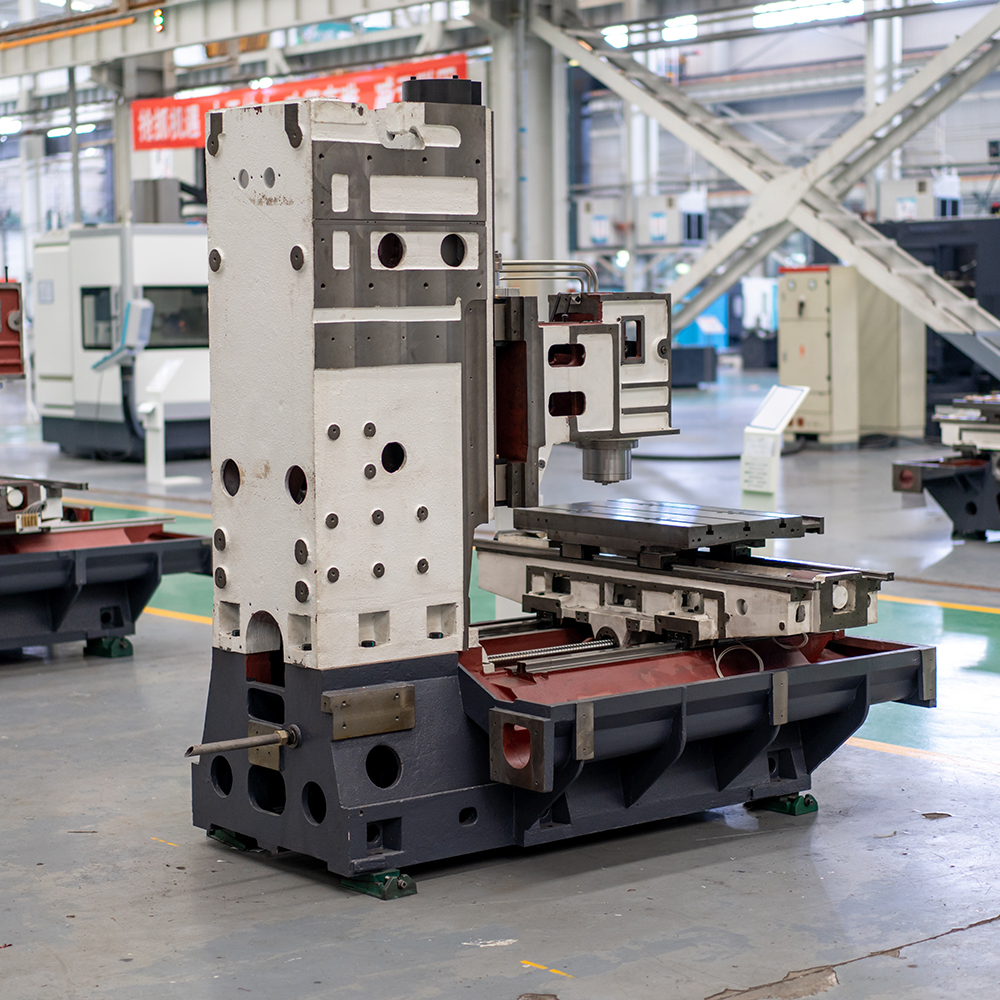

2: High Rigidity: The main components are all made of cast iron, ensuring that cutting forces and the machine's own weight are effectively absorbed, guaranteeing high precision machining.

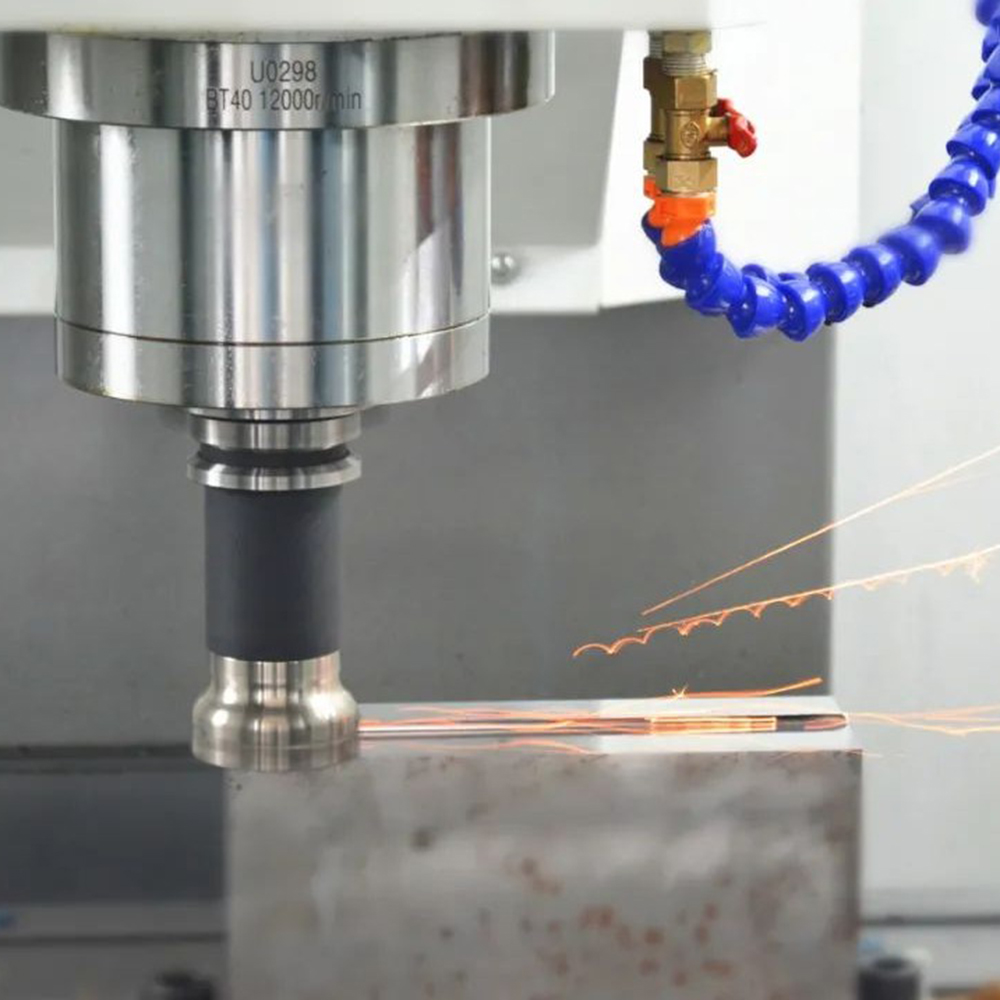

3: High-Performance Spindle: Equipped with high-performance precision spindle bearings, capable of reaching speeds up to 12000rpm, coupled with a spindle oil cooling system to effectively control spindle temperature rise.

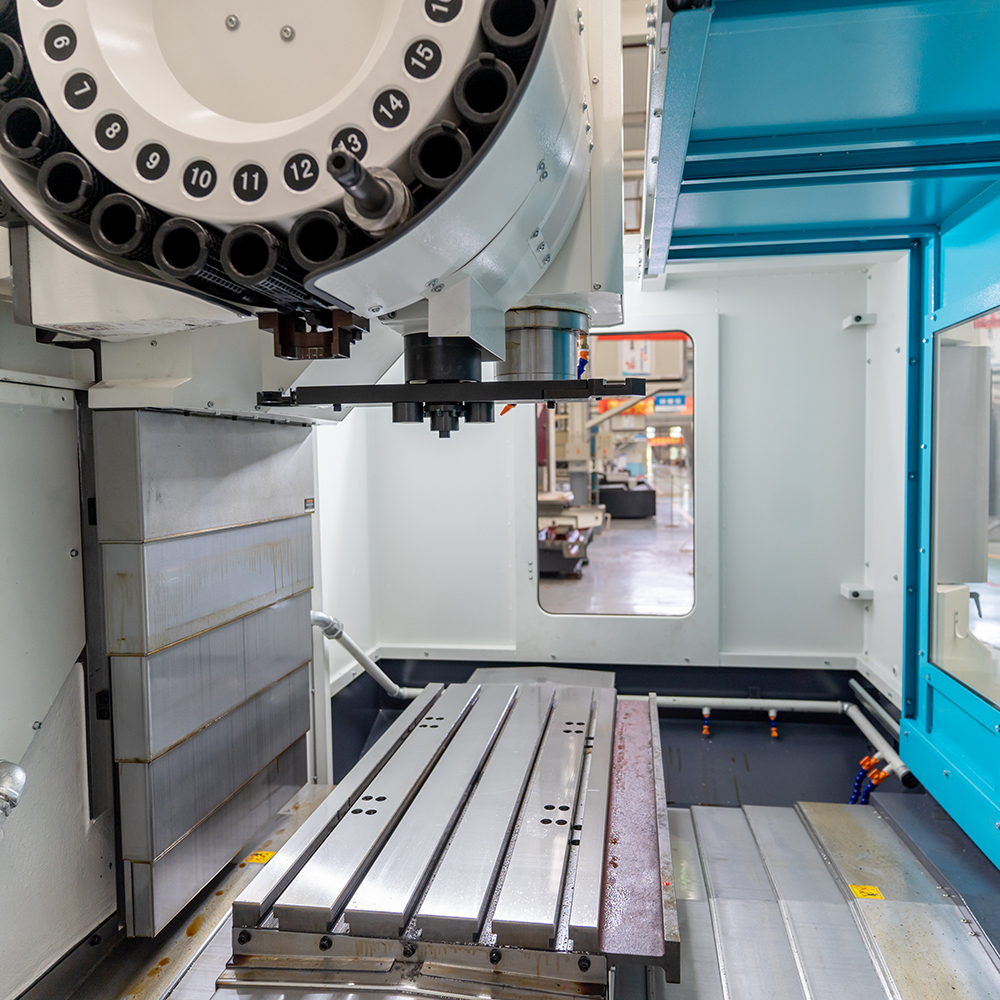

4: Tool Changer: Equipped with a 24-tool robotic tool changer, featuring quick and reliable arm exchanges, stable performance, and reduced tool change time, ensuring efficient and high-quality machining.
5: Linear Axis Drive Structure: Adopts a one-end fixed, one-end supported drive structure, combined with a pre-tensioned ball screw structure, ensuring efficient and accurate drive system operation.
6: Spindle Drive Structure: The spindle and motor are directly connected using a high-speed coupling, minimizing mechanical efficiency losses during transmission.
7: Three-Axis Linear Guide: Smooth operation, with the option of selecting roller guides.
8: Large Diameter C3-Class Ball Screws: Equipped with a pre-tension structure to eliminate thermal expansion, ball screw bearings utilize contact-sealed bearings for reliable operation.
9: Chip Disposal System: Offers an economical and practical spiral chip conveyor, as well as a smooth and reliable chain chip conveyor, providing efficient solutions for various chip types.
Products Pictures
Products Specification
| Specification | Unit | VDLS850 | |
| Worktable size(LxW) | mm | 1000X500 | |
| Max.load | kg | 600 | |
| T-slots (numbers*width*centre distance) | mm | 5X18X100 | |
| X/Y/Z axis travel | mm | 860/510/560 | |
| XY/Z axis guide way type | Linear guideway | ||
| Distance from spindle center to column | mm | 607 | |
| Distance from spindle nose to table | mm | 145~705 | |
| Spindle motor power | KW | 7.5/11 | |
| Max.spindle speed | r/min | 12000 Direct-driven | Opt:8000 Belt-driven |
| Spindle taper | No.40(7:24) | ||
| Rapid traverse of X/Y/Z axis | m/min | 36/36/30 | |
| Max.cutting feed rate | m/min | 10 | |
| Tool magazine capacity | 24T/Arm | ||
| Tool shank type | BT40 | ||
| Max.tool weight | kg | 8 | |
| Max.tool diameter (w/o adjacent tools) | mm | φ78/155 | |
| Tool change time (T-T) | S | 2.7 | |
| X/Y/Z axis positioning accuracy | mm | 0.008/0.008/0.008 | |
| X/Y/Z axis repeatability accuracy | mm | 0.005/0.005/0.005 | |
| CNC controller | FANUC 0i-MF(5)Plus,FANUC 0i- MF(1)PIUS, SIEMENS 828D MITSUBISHI M80B | ||
| Machine dimensions(L×W×H) | mm | 2496X2530X2679 | |
| Machine weight | kg | 5600 | |
Products Configuration
Optional Configurations:
Products Features
1: High Efficiency: The rapid traverse speed of all three axes has been increased by 50%, and the tool change time of the direct-drive spindle has been significantly improved, providing users with high-efficiency machining performance.
2: High Rigidity: The main components are all made of cast iron, ensuring that cutting forces and the machine's own weight are effectively absorbed, guaranteeing high precision machining.
3: High-Performance Spindle: Equipped with high-performance precision spindle bearings, capable of reaching speeds up to 12000rpm, coupled with a spindle oil cooling system to effectively control spindle temperature rise.
4: Tool Changer: Equipped with a 24-tool robotic tool changer, featuring quick and reliable arm exchanges, stable performance, and reduced tool change time, ensuring efficient and high-quality machining.
5: Linear Axis Drive Structure: Adopts a one-end fixed, one-end supported drive structure, combined with a pre-tensioned ball screw structure, ensuring efficient and accurate drive system operation.
6: Spindle Drive Structure: The spindle and motor are directly connected using a high-speed coupling, minimizing mechanical efficiency losses during transmission.
7: Three-Axis Linear Guide: Smooth operation, with the option of selecting roller guides.
8: Large Diameter C3-Class Ball Screws: Equipped with a pre-tension structure to eliminate thermal expansion, ball screw bearings utilize contact-sealed bearings for reliable operation.
9: Chip Disposal System: Offers an economical and practical spiral chip conveyor, as well as a smooth and reliable chain chip conveyor, providing efficient solutions for various chip types.
Products Pictures
