Products Specification
| Specification | Unit | MDH80 | MDH80A | MDH100S |
| Worktable size (L*W) | mm | 800X800 | 800X800 | 1000X100 |
No.of Pallet | 2 | Single table | 2 | |
| Table type | IT Opt:BRT | |||
| Table indexing | IT (1°X360) BRT (0.001°X360°) | |||
| Table indexing time | S | 4.5(90°) | ||
| Pallet changing time | S | 12.5 | 12.5 | |
Max.table load | kg | 2000 | ||
| X/Y/Z axis travel | mm | 1400/1100/1050 | 1400/1100/1000 | |
| X/Y/Z axis guide way type | Linear roller guideway | |||
| Distance from table surface to spindle center | mm | 80~1180 | ||
| Distance from spindle nose to table | mm | 200~1250 | 250~1250 | |
| Rapid traverse of X/Y/Z axis | m/min | 45 | ||
| Max.cutting feed rate | m/min | 20 | ||
| Spindle taper | No.50(7:24) | |||
| Max spindle speed | rpm | 8000(Motorized) Opt:12000(Motorized) Opt:①4000(Gear drive) Opt:②4000(Gear drive) | ||
| Spindle motor power (Continueous/30 min) | kW | 8000rpm:25/30 12000rpm:25/30 ①4000rpm:22/26 ②4000rpm:30/37 | ||
| Tool magazine capacity | T | 40 | ||
| Tool shank type | BT50 | |||
| Max.tool length | mm | 500 | ||
| Max.tool weight | kg | 25 | ||
| Max.tool diameter (w/o adjacent tools) | mm | φ115(φ270) | ||
| Tool changing time(T-T) | S | 2.5 | ||
| X/Y/Z axis positioning accuracy | mm | 0.01 | ||
| X/Y/Z axis repeatability accuracy | mm | 0.006 | ||
CNC controller | FANUC 31i | |||
| Machine dimension(LXWXH) | mm | 6153X3717X3827 | 5050X3682X3827 | 6153X3717X3827 |
| Machine weight | kg | 24000 | 21000 | 24500 |
Products Configuration
Standard Configurations:

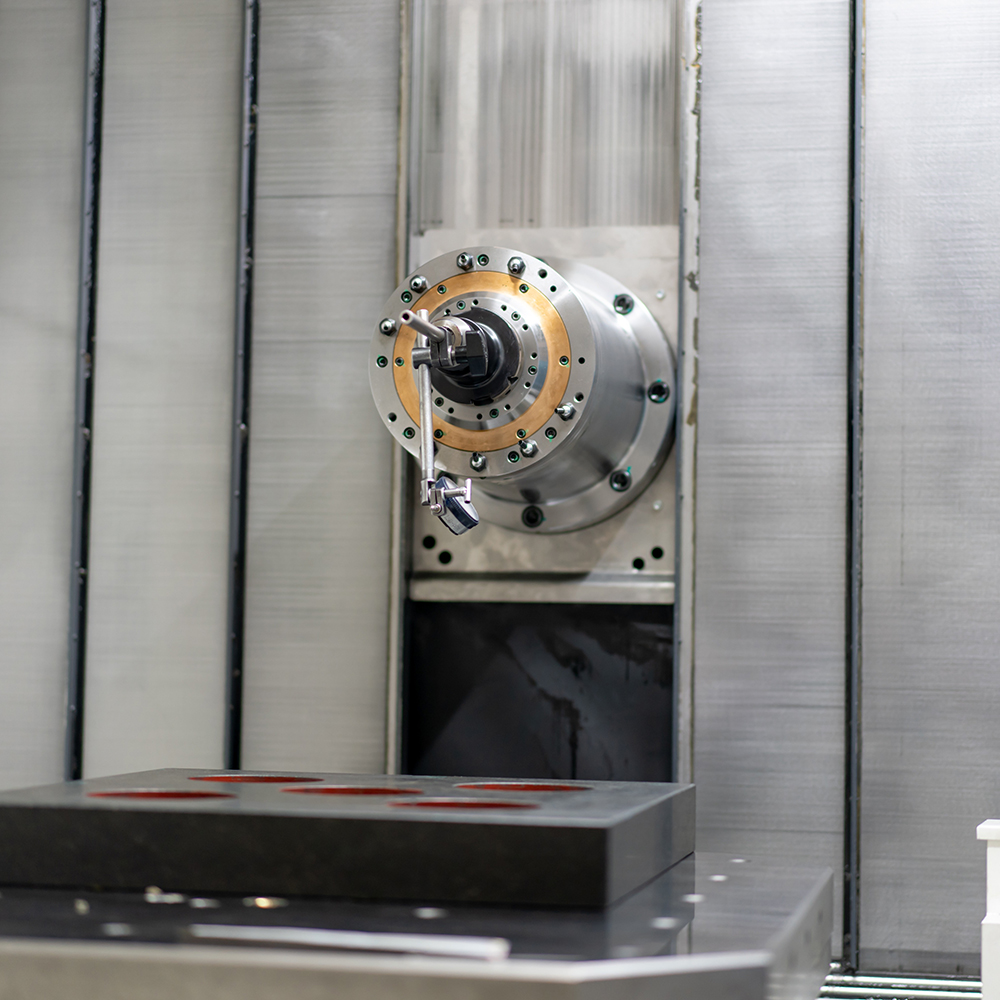

Spindle with two speed range

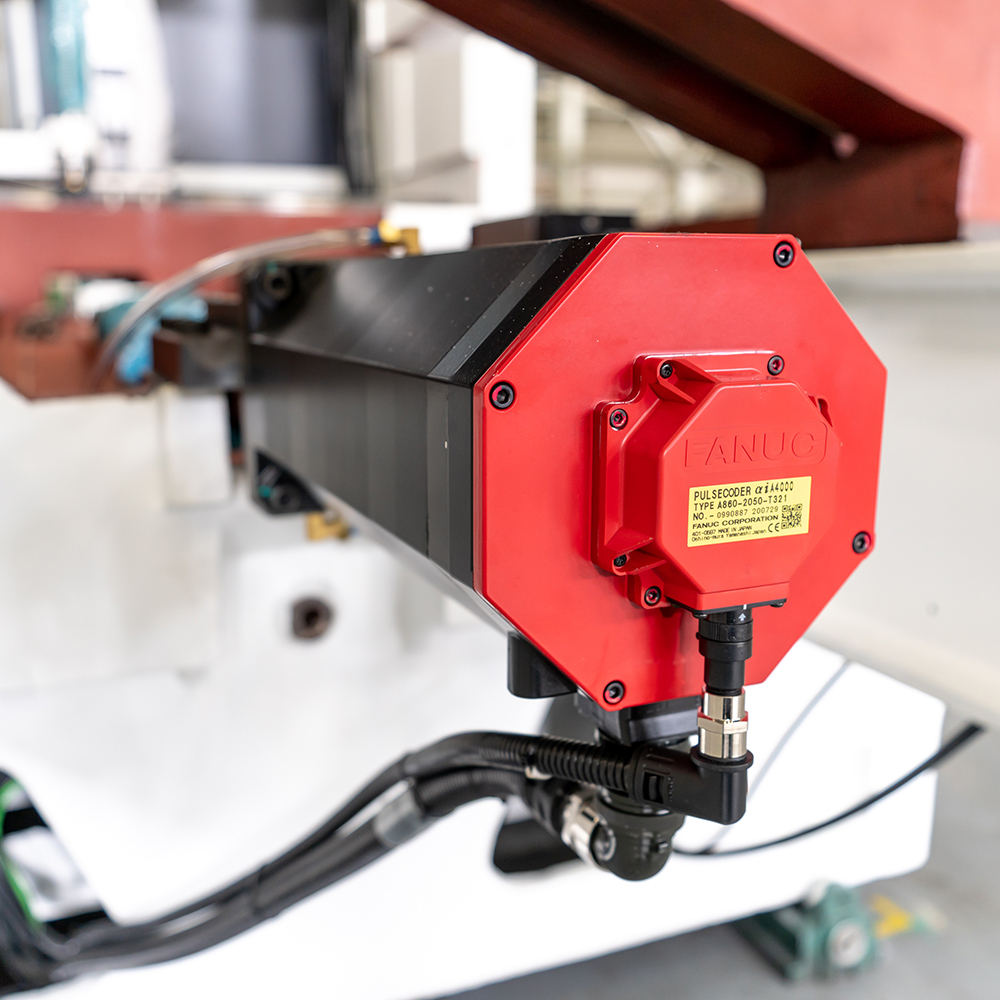

Core-cooled ball screws

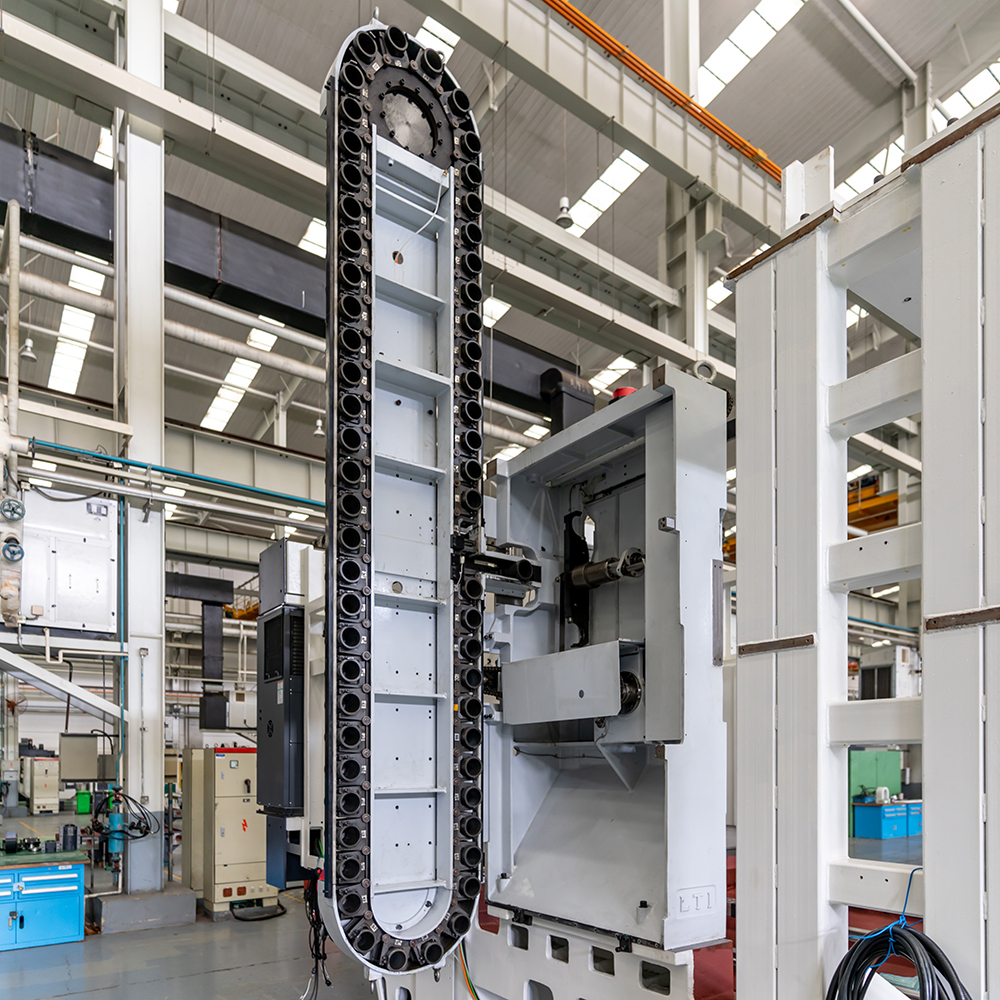

Chain type tool magazine
Screw type chip conveyor(Double-side mounted)
Auto lubrication system
Rigid tapping
Heat exchanger
Optional Configurations:
Built-in-rotary table(BRT)
High volume flushing system
Air conditioner
HEIDENHAIN linear scale
Gear box spindle60T/80T/120T
Chain type tool magazine(60T/80T MDH125)
Coolant-through spindle coolant system and high-pressure unit
Ceiling shower
Tool probe &work piece probe
Oil-water separator system
Chain-type chip conveyor

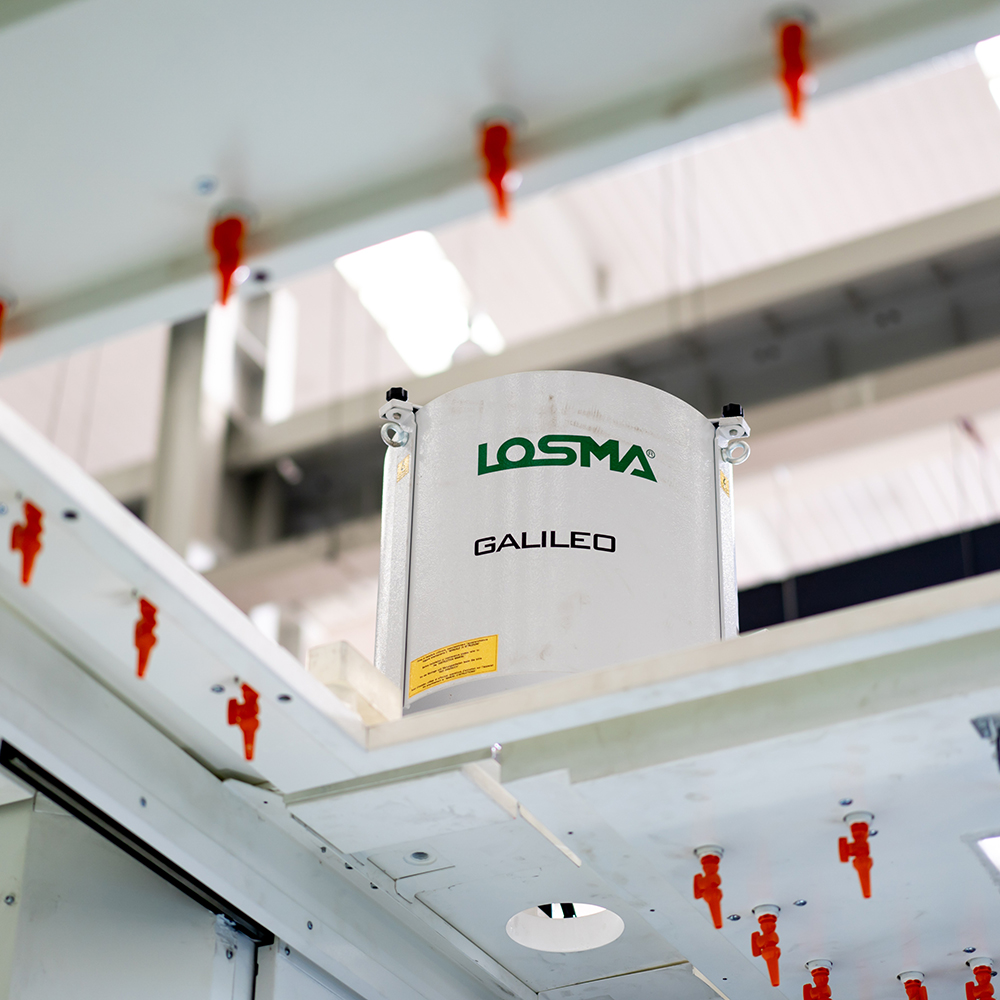

Mist collector
Products Features
1: High Precision: The X, Y, and Z axes of the machine tool all adopt advanced hollow cooling technology, effectively controlling thermal deformation during machining and enhancing machining accuracy. Additionally, the machine has temperature compensation capabilities, with temperature sensors installed at critical points. The CNC system analyzes and compensates for temperature variations, ensuring high precision and stability. The machine's positioning accuracy is 0.010mm, and its repeatability is 0.006mm.
2: High Speed: The machine tool features an electric spindle structure with a maximum speed of 8000rpm and internal two-speed variations (optional 12000rpm electric spindle and 4000rpm gear spindle). It can fulfill both low-speed cutting requirements and high-speed machining demands. The X, Y, and Z axis linear guides employ high-rigidity linear roller guides, allowing for rapid movement at speeds of up to 45m/min, and cutting speeds of 20m/min. The machine's tool changer disengages the spindle, changes the tool, and re-engages the spindle using a cam mechanism for quick tool changes (change time: 2.5 seconds). The worktable exchange process uses hydraulic lifting and continuous cam movement for rapid exchange (exchange time: 12.5 seconds), with a 90° indexing time of 4.5 seconds.
3: High Rigidity: The main components of the machine are made of resin sand castings, with the bed being a monolithic casting. The columns, slideways, and worktable move on the bed. The worktable and tool changer robot are fixed to the bed, ensuring overall rigidity. Additionally, finite element analysis was employed during the design process to optimize the machine's structure.

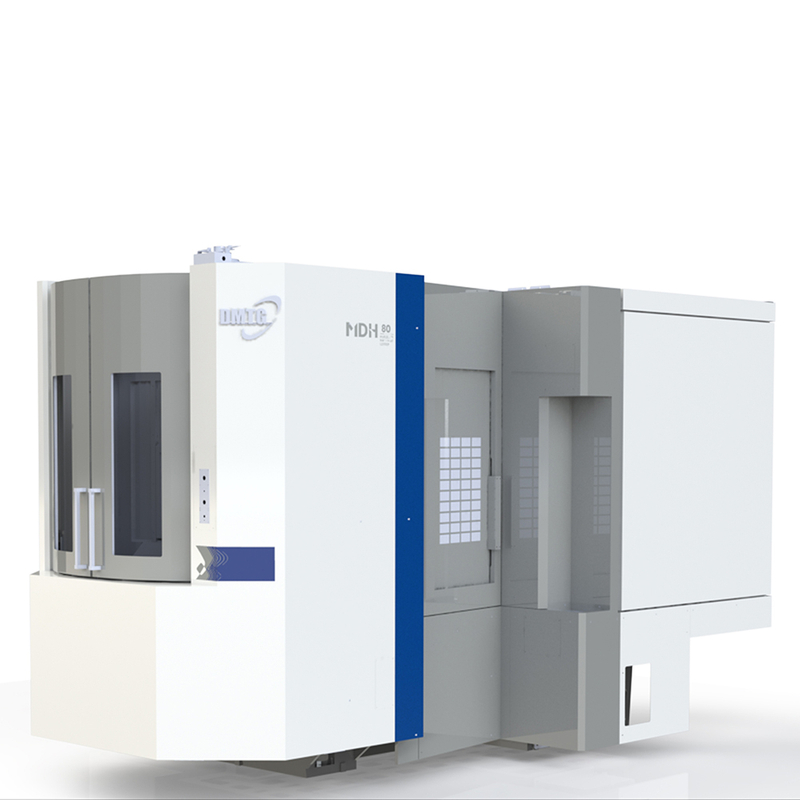

Products Pictures
