Products Specification
| Specification | Unit | VDF1800 |
| Worktable size(Lx W) | mm | 2000X800 |
| Max.load | kg | 2500 |
| T-slots(numbers*width*centre distance) | mm | 6X18X125 |
| X/Y/Z axis travel | mm | 1880/830/790 |
| X/Y/Z axis guide way type | Box way (Y-4) | |
| Distance from spindle center to column | mm | 850 |
| Distance from spindle nose to table | mm | 166～956 |
| Spindle motor power | kw | 15/18.5 |
| Max.spindle speed | r/min | 6000 |
| Spindle taper | No.50(7/24) | |
| Rapid traverse of X/Y/Z axis | m/min | 15/15/12 |
| Max.cutting feed rate | m/min | 6 |
| Tool magazine capacity | 24T/Arm | |
| Tool shank type | BT50 | |
| Max.tool weight | kg | 15 |
| Max.tool diameter (w/o adjacent tools) | mm | 24T:Φ125/250 |
| Tool change time (T-T) | S | 3.5 |
| X/Y/Z axis positioning accuracy | mm | 0.019/0.008/0.008 |
| X/Y/Z axis repeatability accuracy | mm | 0.008/0.005/0.005 |
| CNC controller | FANUC 0i-MF (1) PIUS,SIEMENS 828D | |
| Machine dimensions(L×W×H) | mm | 5200×3250×3120 |
| Machine weight | kg | 14500 |
Products Configuration
Standard Configurations:
24T am-type ATC
Ball screw and linear guideway
Heat exchanger
Spindle air blow
Spindle coolant ring
Compact oil-water separator
Screw-type chip conveyor
Rigid tapping
Workpiece coolant system
Air gun
Automatic lubrication system
Optional Configurations:
Spindle oil chiller
Coolant through spindle and high-pressure unit
High volume flushing system
4th axis rotary table
Air conditioner
Chain-type chip conveyor and chip cart
Tool probe & workpiece probe
M30 automatic power off
Products Features
2: High-precision ball screw pairs: After pre-tensioning, the ball screw greatly increases transmission stiffness while eliminating the thermal deformation effects during rapid motion, ensuring positioning accuracy and repeatability.
3: Automatic tool changer system with pneumatic and electric control actions, free of pollution, easy to maintain, and offering quick and reliable tool exchanges.
4: The machine is equipped with a complete protective cover for aesthetics, safety, leak prevention, and environmental protection. The spiral-type automatic chip removal device is simple, environmentally friendly, and suitable for transporting both metal and non-metal chips.
5: Highly efficient automatic lubrication system with good lubrication properties and minimal oil wastage.
6: Ingenious oil-water separation equipment reduces the mixing of cutting fluid and oil, preventing deterioration of the cutting fluid and extending its lifespan.
7: The wiring inside the electrical box conforms to safety standards, ensuring the control system operates without external interference. The electrical box is equipped with a heat exchanger to effectively control the temperature within, ensuring stable long-term operation of the control system.
8: High-precision lead compensation: Each transmission shaft employs high-precision laser measurement compensation, enhancing the accuracy of each axis's positioning and making it more suitable for machining high-precision parts.

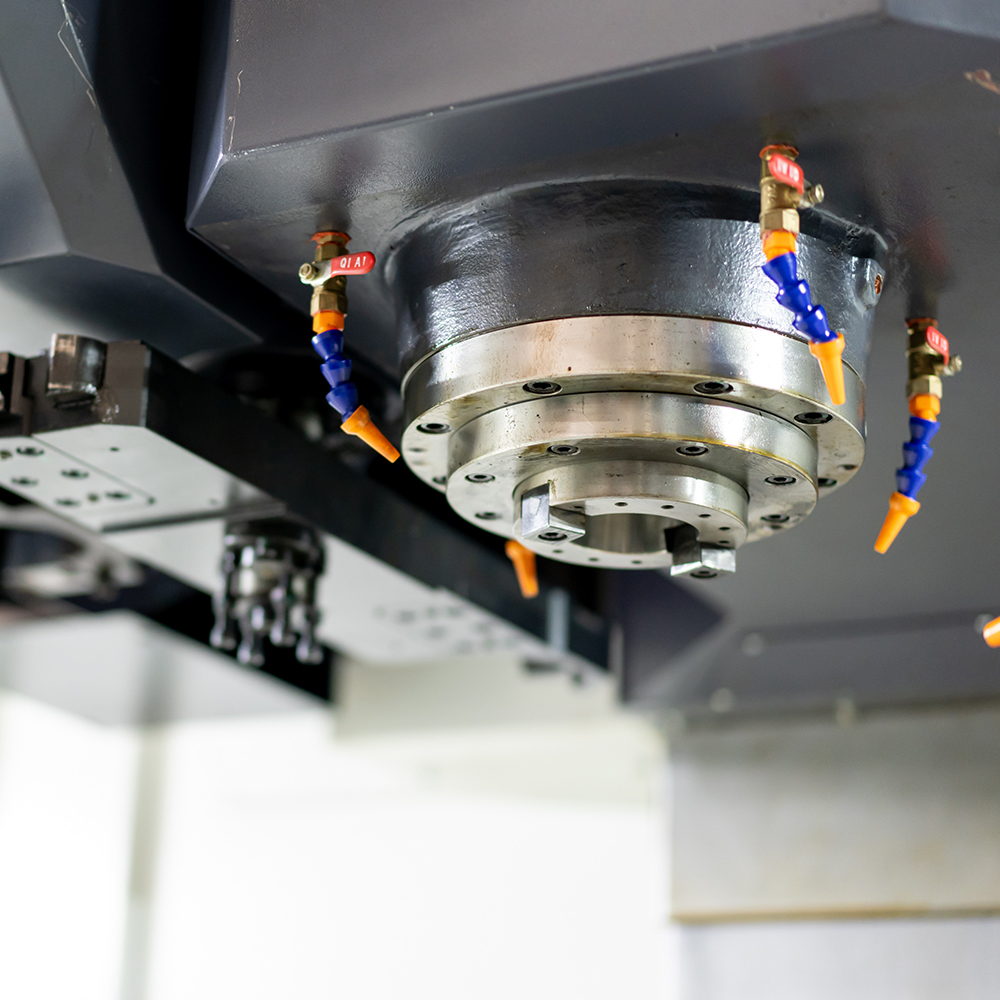

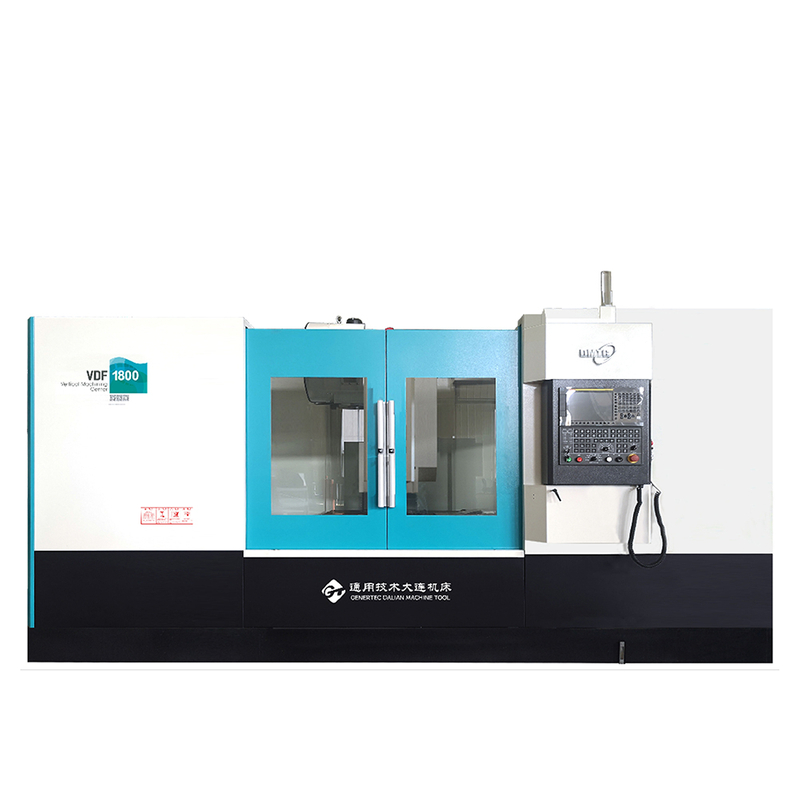

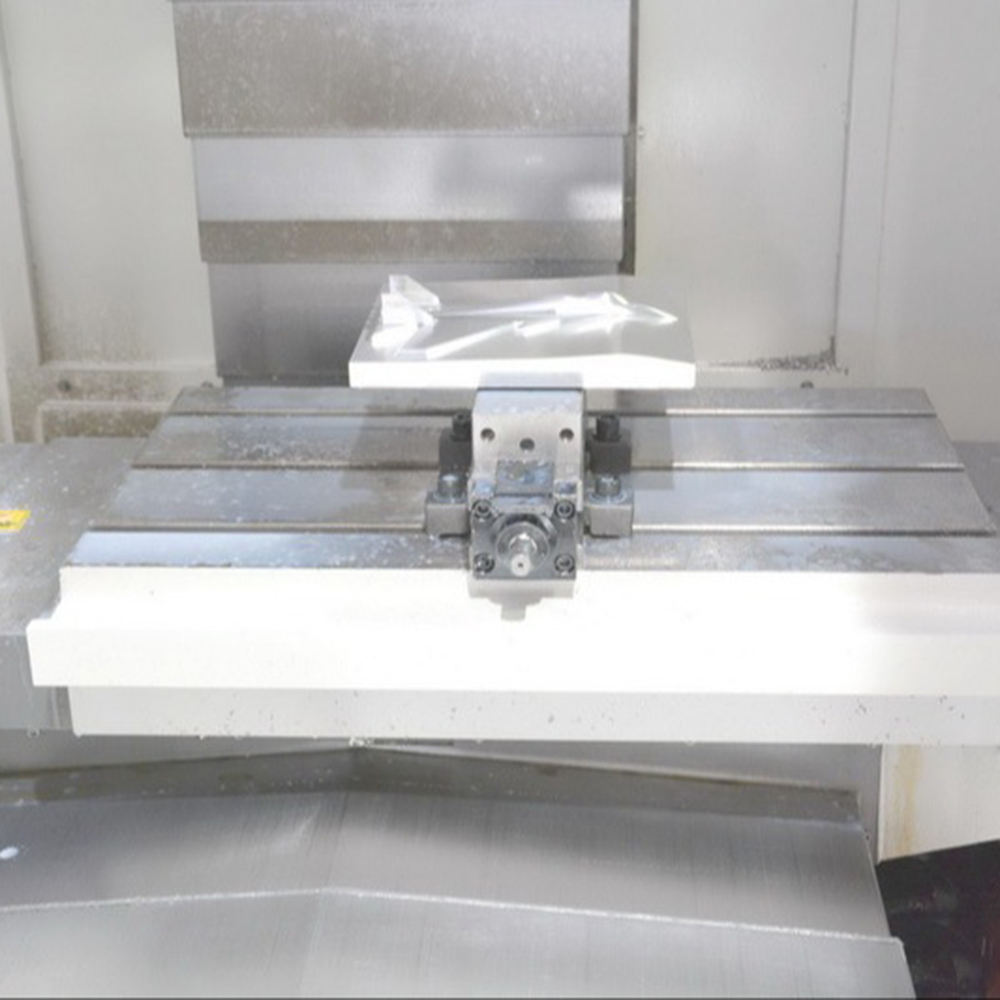

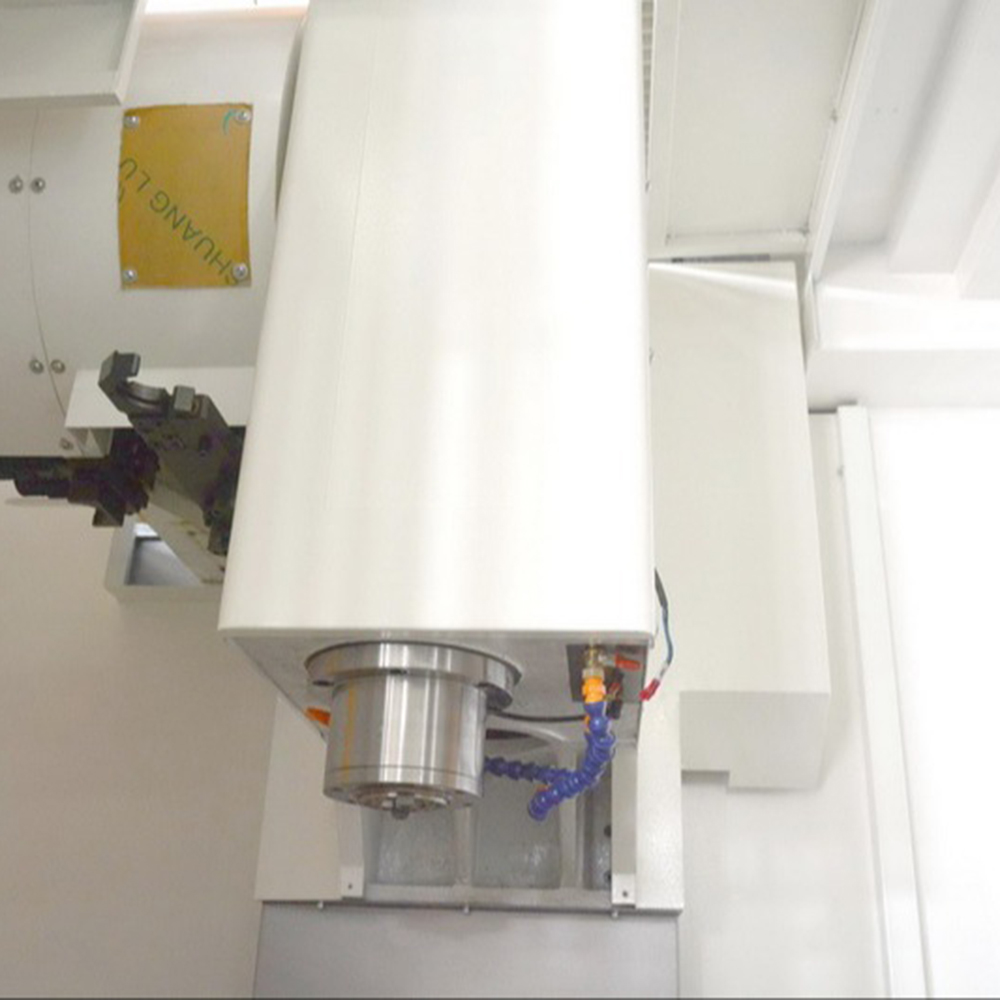

Products Pictures
