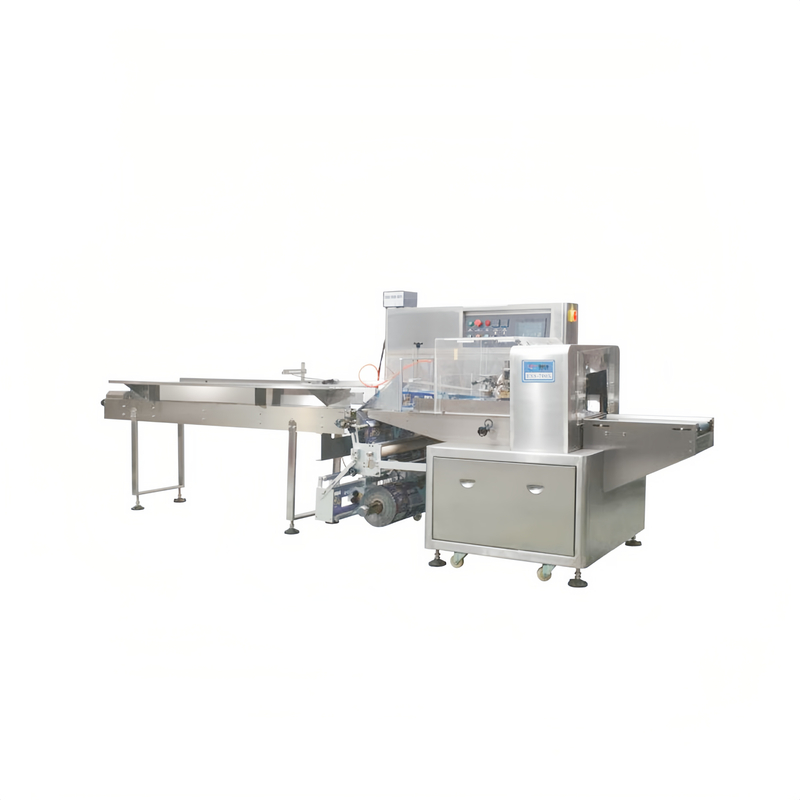

CY-350X to CY-900X Lower Left Paper Pillow Wrapping Machine
CY-350X to CY-900X Lower Left Paper Pillow Wrapping Machine CY-350X to CY-900X Lower Left Paper Pillow Wrapping Machine

loading

CY-350X to CY-900X Lower Left Paper Pillow Wrapping Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The CY-X series pillow packing machines feature lower film feeding with full servo control for precise and efficient packaging. Ideal for high-speed applications in food, medical, and daily goods industries, these models offer fast changeovers, excellent sealing accuracy, and compatibility with various film types and product sizes.
SKU:
Availability:
Quantity:

Product Features:

1: Three-servo system

Bag length is set and cut instantly—no need for film adjustments, saving time and materials.


2: Intuitive HMI interface

Easy and fast parameter setup with real-time diagnostics.


3: Accurate color mark tracking

High-sensitivity photoelectric eye ensures precise sealing position with digital input.


4: Independent PID temperature control

Ensures stable sealing quality for a wide range of film materials.


5: Positioning stop function

Avoids film waste and prevents blade sticking during machine stop.


Product Parameter:

TypeCY-350XCY-450XCY-600XCY-700XCY-800XCY-900X
Film widthMax.350mmMax.450mmMax.600mmMax.700mmMax.800mmMax.900mm
Bag length120-280mm150-450mm160-500mm180-660mm210-650mm240-700mm
Bag width50-160mm50-180mm100-280mm100-300mm120-350mm150-400mm
Product heightMax.65mmMax.80mmMax.110mmMax.130mmMax.150mm
Film rotl diameterMax.320mm
Packaging rate40-230bag/min40-150bag/min20-150bag/min20-130bag/min20-120bag/min20-100bag/min
Power220V 50/60Hz 2.6KW220V 50/60Hz 2.8KW220V 50/60Hz 4.5KW
Machine qualityabout 550kgabout 650kgabout 680kgabout 720kgabout 800kgabout 850kg
