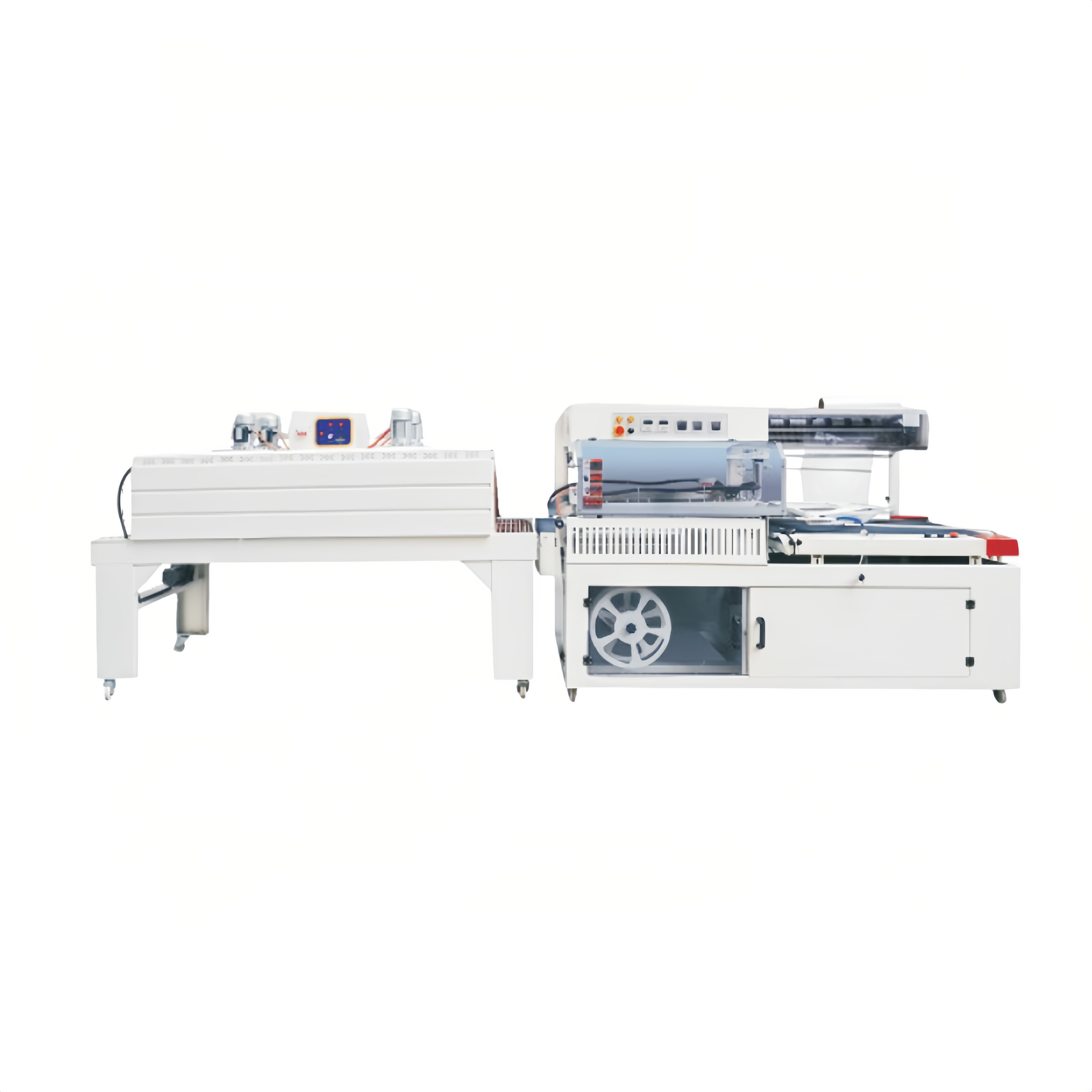

The FL/BF Series automatic L-type sealing machine, equipped with imported photoelectric sensors (horizontal and vertical), is designed for high-speed and precise packaging of small and thin items. It features automatic feeding, adjustable sealing length via photo sensor and timer, and automatic waste film collection. The sealing blade uses a PID digital temperature controller from Autonics, ensuring accurate and responsive sealing temperature.


SKU:
Availability:
Quantity:

Product Features:

1: Precise and automatic sealing

Imported photoelectric sensors detect products from both horizontal and vertical directions for accurate cutting, suitable for small and thin items.


2: No mold or bag changer needed

Sealing size can be easily adjusted via handwheels without replacing molds.


3: Autonics PID temperature controller

Fast response, precise sealing temperature, with auto-protection to prevent product damage.


4: Safe & smart design

Equipped with acrylic safety cover and fault alarm function; ensures operator safety.


5: Integrated auto shrink system

With BS-4522N shrink tunnel featuring adjustable airflow, conveyor speed, and shrink temperature.


Product Parameter:

ModelFL-450AFL-550AFL-750ABS-4522N
Power1.5 kW2.2 kW3.0 kW10 kW
VoltageAC110V–220V/50–60HzAC110V–220V/50–60HzAC110V–220V/50–60HzAC220V/380V 3PH 50/60Hz
Max. Packing Size550 × 450 mm650 × 550 mm850 × 750 mm350 × 250 mm
Max. Packing Height<150 mm<150 mm<200 mm/
Packing Speed15–300 bags/min15–300 bags/min15–300 bags/min0–15 m/min
External Air Source6–8 kg/cm²6–8 kg/cm²6–8 kg/cm²/
Shrink Film TypePOF / PEPOF / PEPOF / PEPOF, PVC, PP
Machine Dimensions1750 × 880 × 1450 mm1950 × 1000 × 1450 mm2250 × 1200 × 1550 mm1600 × 700 × 1380 mm
Machine Weight300 kg350 kg550 kg130 kg


ModelBF-450BF-550BF-650BF-750BF-950
Power220V 50/60Hz, 1.35 kW220V 50/60Hz, 1.5 kW220V 50/60Hz, 1.5 kW220V 50/60Hz, 2.0 kW220V 50/60Hz, 3.0 kW
Packing Speed15–35 packs/min15–35 packs/min15–35 packs/min15–35 packs/min15–35 packs/min
Max Packing Size (L)UnlimitedUnlimitedUnlimitedUnlimitedUnlimited
Max Packing Size (W+H)≤400 mm (H≤200 mm)≤500 mm (H≤200 mm)≤600 mm (H≤200 mm)≤700 mm (H≤200 mm)≤950 mm (H≤250 mm)
Air Pressure5 kg/m²5 kg/m²5 kg/m²5 kg/m²5 kg/m²
Dimensions (L×W×H)1650×800×1460 mm1810×980×1460 mm2010×1080×1460 mm2310×1280×1460 mm2920×1480×1460 mm
Machine Weight300 kg350 kg400 kg450 kg650 kg
