CZW - 6000A Special DC Fluorescent Magnetic Particle Flaw Detector for Pipe Couplings
CZW - 6000A Special DC Fluorescent Magnetic Particle Flaw Detector for Pipe Couplings CZW - 6000A Special DC Fluorescent Magnetic Particle Flaw Detector for Pipe Couplings

loading

CZW - 6000A Special DC Fluorescent Magnetic Particle Flaw Detector for Pipe Couplings

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

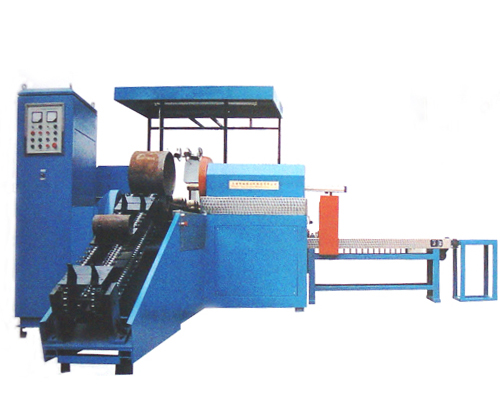

The CZW - 6000A special DC fluorescent magnetic particle flaw detector is designed for magnetic particle flaw detection of oil casing pipe couplings.
This device can magnetize and spray both the inner and outer parts of workpieces with different specifications in one - time operation. It is equipped with a brand - new observation mechanism, which enables all - round inspection. It operates under the control of a microcomputer with a PLC program and has an automatic demagnetization function, making the operation convenient. It is an ideal equipment for magnetic particle flaw detection of pipe couplings.
SKU:
Availability:
Quantity:

Main Technical Specifications

  1. Circumferential Magnetizing Current: 0 - 6000A (Full - wave DC, with bar - passing energization)

  2. Longitudinal Magnetizing Current: 0 - 2800AT (Full - wave DC)

  3. Demagnetization Effect: Less than 2Oe

  4. Applicable Workpieces for Flaw Detection: Outer diameter ranging from 73 - 395mm

  5. Adjustable Magnetizing Pole Spacing: 0 - 500mm

  6. Power Supply: Three - phase four - wire, 380V, 50Hz, 50KVA
