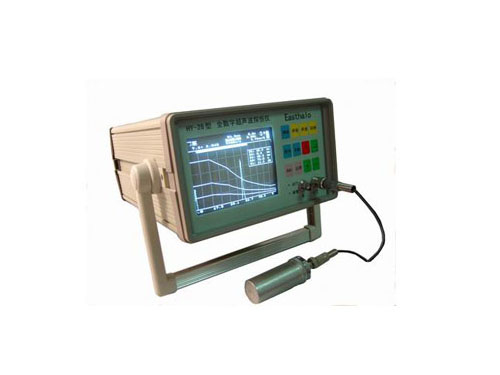

ZN - 1000 All - Digital Intelligent Ultrasonic Flaw Detector

Functions and Features

1. It features a full - Chinese touch - type keyboard. The operation process has Chinese prompts and graphic displays, and users can master it proficiently after simple training.

2. The performance of the instrument and the probe can be automatically measured. The instrument calibration is convenient, and it can measure thickness and material sound velocity.

3. It has 5 independent flaw - detection channels (electronically switched). Multiple flaw - detection processes and standards can be automatically generated (such as for axles, wheels, welds, forgings, plates, pipes, and small - diameter pipes), eliminating the need to carry test blocks during on - site flaw - detection.

4. DAC and AVG curves can be automatically generated, with no restrictions on the number of sampling points. These curves can be compensated and corrected. The DAC curve floats automatically with gain and expands and adjusts automatically with sound path.

5. The position of the defect echo (horizontal, vertical, distance, dB equivalent value) is displayed in real - time. Multiple workpiece and weld cross - sections can be shown.

6. It has DAC alarm gates and histogram alarm gates, and the gate position, width, and height are adjustable at will.

7. It has a peak memory function, which means the highest wave is automatically memorized. The envelope and echo are displayed simultaneously, and it can measure the height of the defect.

8. It can store 200 sets of flaw - detection data. These data can be printed or communicated with a computer (compatible with Windows operating systems), ensuring comprehensive and standardized inspection reports.

9. It adopts a popular international large - screen, high - brightness black - and - white display, which has good contrast, a wide field of view, and is not dazzling.

10. With a low - power - consumption design, it can work continuously for more than five hours.

11. It is lightweight and compact. With a battery, it only weighs 3.6 Kg, making it easy to carry and use.
