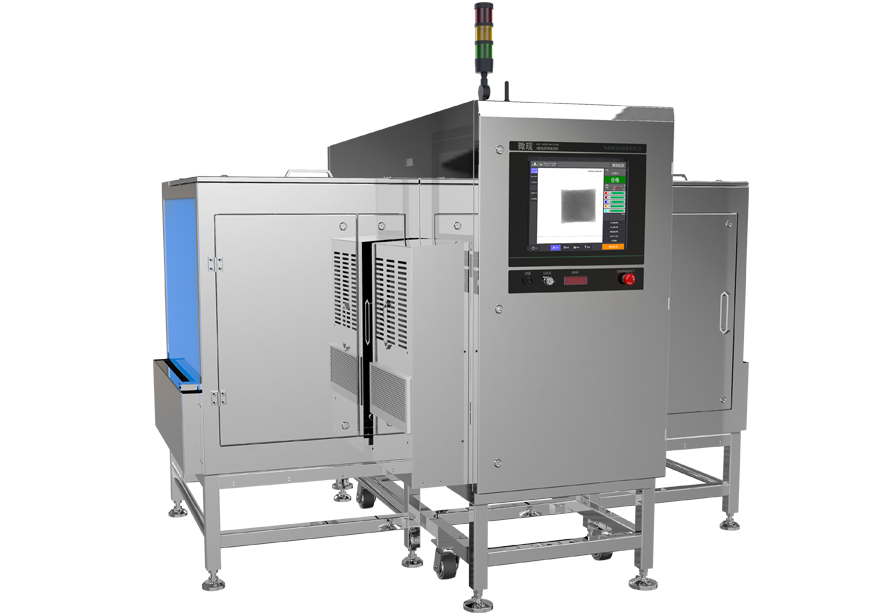

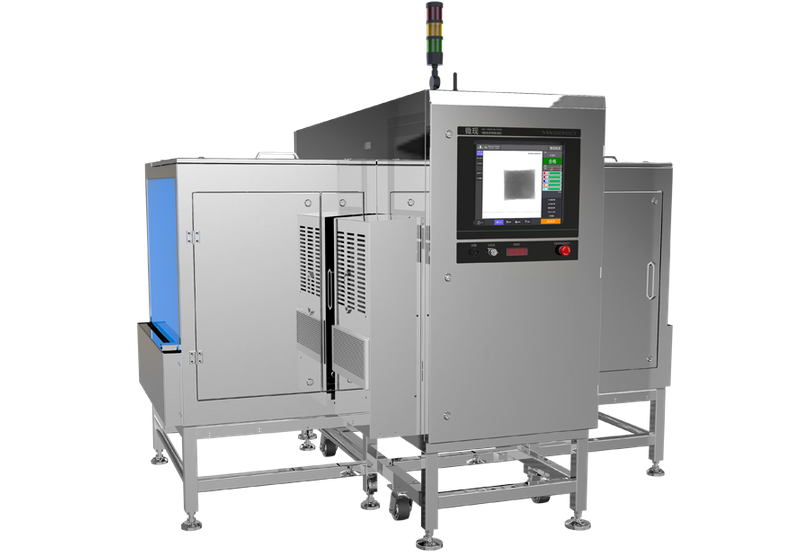

Large Package X-ray Inspection Machine
Large Package X-ray Inspection Machine Large Package X-ray Inspection Machine

loading

Large Package X-ray Inspection Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This X-ray inspection machine features a wide detection channel with a blind - spot - free design across the entire channel, making it suitable for foreign object detection in heavy - duty products.
SKU:
Availability:
Quantity:

Product Advantages

  1. It is applicable to foreign object detection in large and heavy - duty bagged or boxed products.

  2. Utilizes artificial intelligence (AI) algorithms, enabling the detection of low - density and extremely small foreign objects.

  3. Offers multiple rejection methods based on product shapes to accurately remove non - compliant products.

  4. Equipped with a server - grade Linux system, it is immune to computer viruses and does not lose data in case of abnormal power outages.

  5. Supports multiple connection methods such as 4G wireless and wired networks, facilitating remote rapid technical support and operation.

  6. The conveying system and the main unit can be separated, and the machine can be directly washed with water, which is convenient for later maintenance.

  7. Meets radiation safety standards higher than international norms. It has a safety interlock monitoring function, ensuring safe operation.

Product Specifications

ModelVXD - C8060 - S
Channel Specification800*600mm
Dust and Waterproof LevelThe whole machine is IP55, the detection channel is IP66, with built - in condensate pipes
Empty Machine Detection AccuracyMetal ball Φ0.5mm, metal wire Φ0.4*2mm, ceramic ball Φ1.5mm
Temperature and HumidityAmbient temperature: - 10 - 45°C, relative humidity: 30% - 90%, with built - in industrial air - conditioner
Conveyor Belt Speed10 - 50 meters/minute
Conveyor Table Height800±50mm
Product Flow DirectionFrom left to right
Maximum Weight of the Item to be Inspected50KG
X - ray Energy350W/480W
X - ray LeakageLess than 1μSv/h
Detector Size0.4mm/0.8mm high - sensitivity receiver
Material304 stainless steel
Human - Machine Interaction17 - inch industrial touch screen
Operating SystemLinux
SoftwareX - Ray Inspection System
Radiation Protection≤1μSv/h with built - in leakage safety interlock
Power Supply200 - 240VAC, 50 - 60Hz, with built - in precision voltage regulator
Weight1000kg

Detection Range

Foreign objects: metal, glass, ceramics, hard rubber, resin, bone, shell, stone, etc.

Application Scenarios

Foreign object detection for heavy - duty boxed or bagged products.
