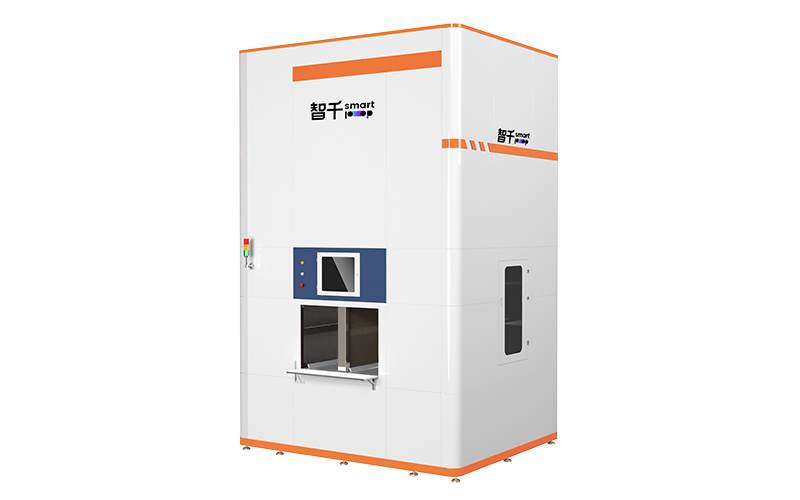

I-BOX is a storage unit that integrates efficient storage and material protection. It operates according to the principle of "goods to people", with a computer-controlled lifting fork in the center of the container. The fork is controlled by the computer to access and store the material box according to instructions. Based on ergonomics, the material retrieval port is designed at the optimal height for more convenient and comfortable operation. Suitable for industries such as footwear and clothing, books, kitchen and bathroom, electronics, manufacturing, food, medicine, e-commerce, and automobiles. The optimal utilization of space can be placed on outdoor house walls, factory corners, and multi story spaces.
SKU:
Availability:
Quantity:

security guarantee

Automatically monitor the weight of stored goods, and if it exceeds the preset range, the system will automatically alert and remind to ensure the safe operation of materials, personnel, and equipment;

Install safety barriers at the entrance and exit of the warehouse to ensure that personnel are in a locked state during storage and picking, ensuring the safety of the operation process;

Intelligent lighting will be turned on every personnel operation


ParameterDetails
ModelZQ 3101
Dimensions (Length × Width × Height)2200 - 4800×2100 - 3000×250 - 1200mm
Rated Load30 - 80kg
Widest Customization3000mm
Longest Customization4800mm
Tallest Customization1200mm
Standard Bin Dimensions510×350×170mm (customizable) / Maximum Bin 600×800×300mm
Goods Picking MethodPlate Fork
