Small stature, 1.5 T heavy load capacity
The body width is only 932 mm, supporting narrow lane traffic and a maximum load capacity of 1.5 T.
360 ° panoramic view, multiple safety protections
Supports up to 360 ° scanning range, 40 m detection distance, large field of view, safer; Equipped with multiple safety protections such as 3D secure obstacle avoidance laser, secure edge contact, distance sensor, and hardware self-test.
More than 3 types of vehicles, wide-angle high-precision recognition
Support multiple sizes and types of trays, shelves, and cages; Can recognize from multiple angles and with high precision (such as nine legged pallets, Sichuan style pallets, non-standard pallets).
400000 m ² Large Map
Supports recognizing maps up to 400000 square meters, easily crossing regional restrictions, providing greater handling space and storage location options.
2 m/s, 100% acceleration
The maximum running speed is 2 m/s, which is 100% faster than the old flat handling vehicle.
Fast charging and quick swapping, dual electric and dual battery life
Supports up to 46A fast charging, charging for 1 hour, single battery range of 4 to 6 hours, dual battery range of 8 to 10 hours. 3-minute novice quick battery change; Global insurance certified modular battery, supporting dual battery combinations, enjoying dual battery life.

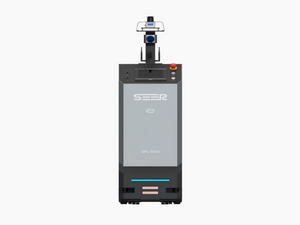

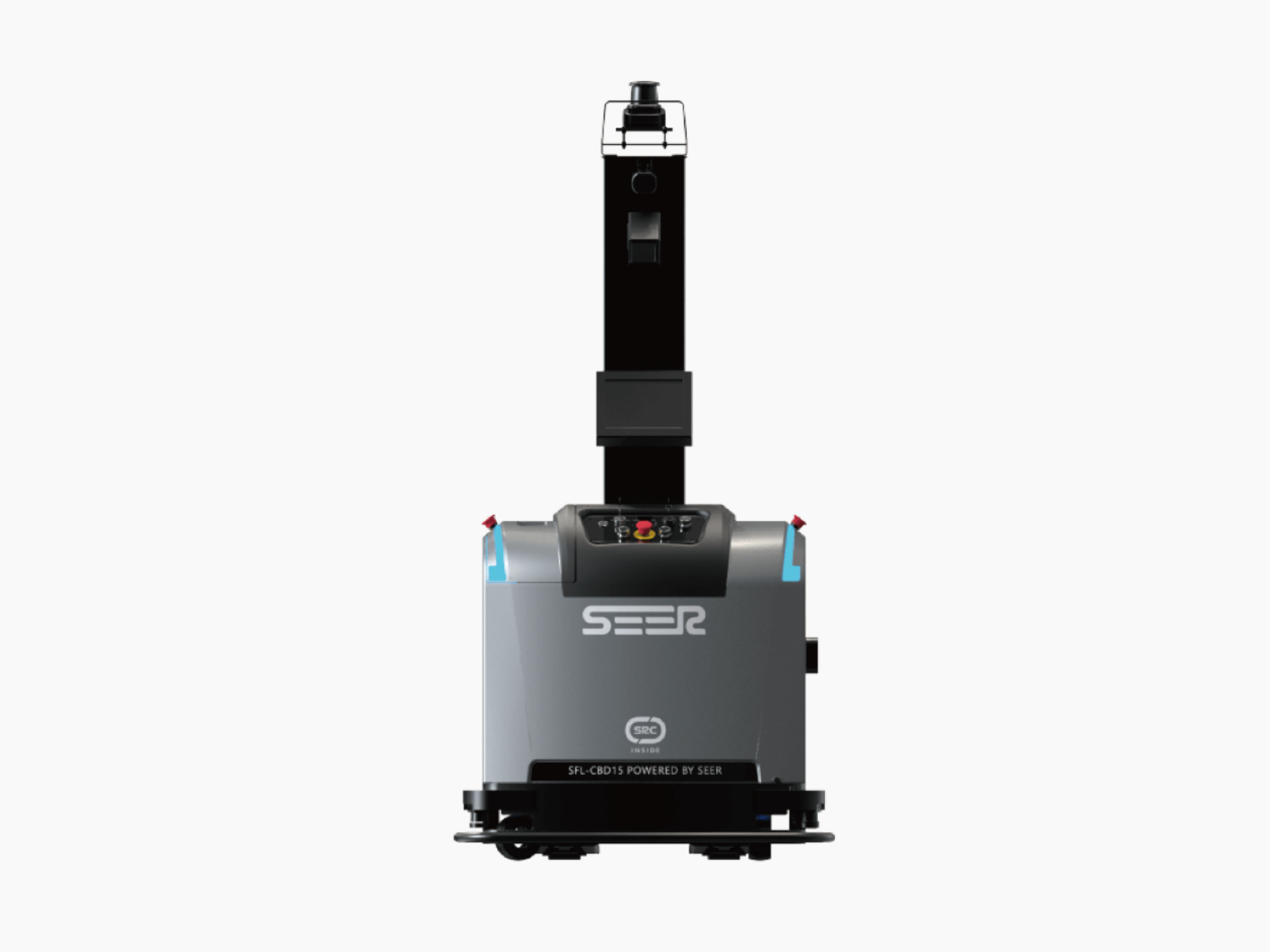

| Product Name | Laser SLAM Floor - type Intelligent Forklift |
| Driving Modes | Automatic Navigation, Hand - held Device Driving |
| Navigation Method | Laser SLAM |
| Pallet Type | Three - bar pattern |
| Rated Load Capacity | 1500 kg |
| Load Center Distance | 600 mm |
| Self - weight (Including Battery) | 388 kg |
| Standard Lifting Height | 205 mm |
| Overall Dimensions of the Vehicle (Length × Width × Height, Excluding Fork Tips) | 1712 x 932 x 1902 mm |
| Fork Dimensions (Length × Width × Height, Excluding Fork Tips) | 1220 x (170 + 7) x 75 mm (7 mm wire - slot plate) |
| Outer Width of Forks | 550 / 600 / 680 mm |
| Right - angle Stacking Aisle Width for Pallet 1000×1200 (1200 Along Fork Placement) | 2252 mm |
| Right - angle Stacking Aisle Width for Pallet 800×1200 (1200 Along Fork Placement) | 2190 mm |
| Right - angle Stacking Aisle Width for Pallet 1000×1000 (1000 Along Fork Placement) | 2224 mm |
| Minimum Turning Radius | 1524 mm |
| Ambient Temperature and Humidity Range | Temperature: 0°C ~ 50°C / Humidity: 10% ~ 90%, No Compression Condensation |
