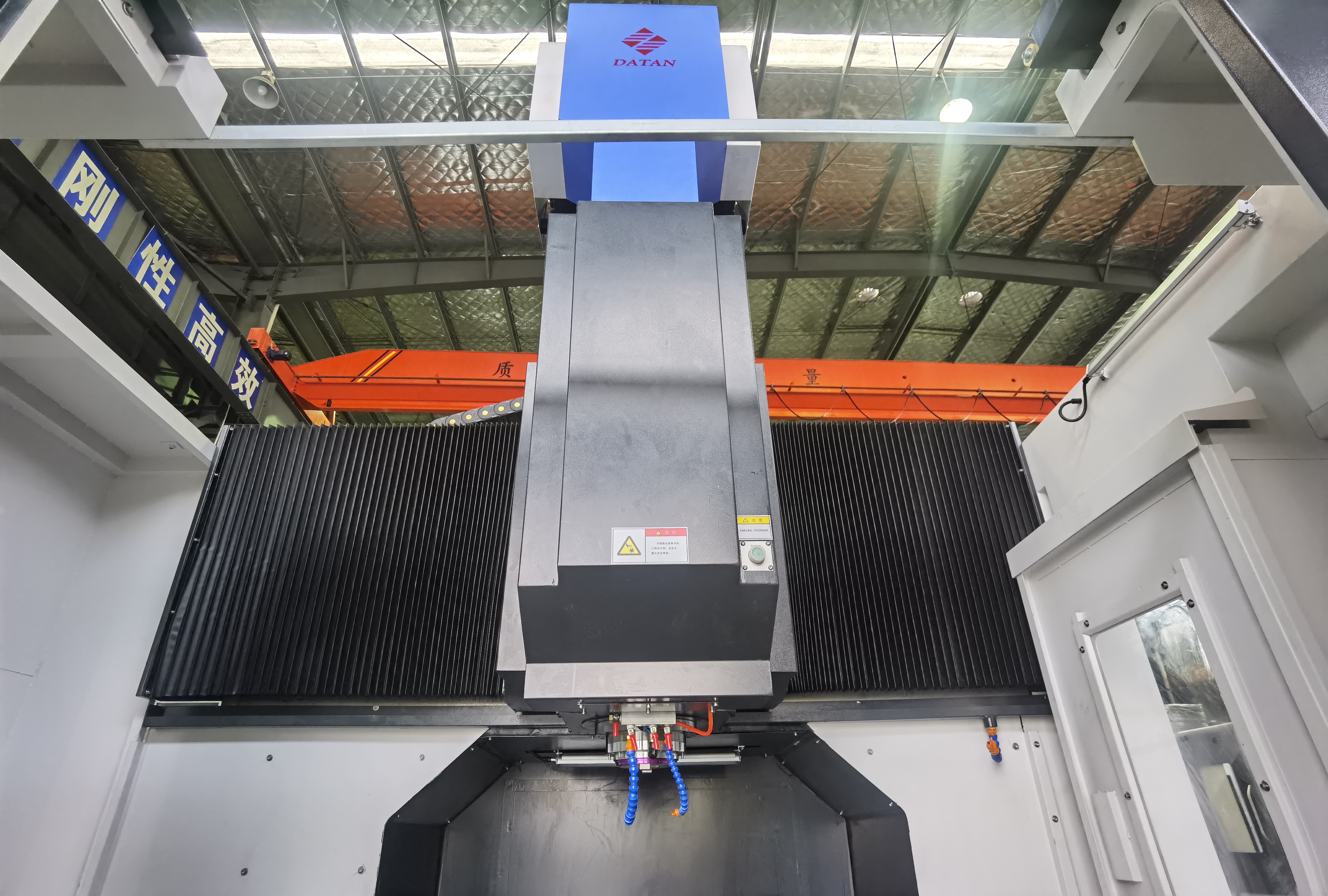

Box-Type Ram Structure for Enhanced Rigidity & Stability
The patented box-type ram provides greater torsional resistance compared to a round ram, improving machining stability and precision.

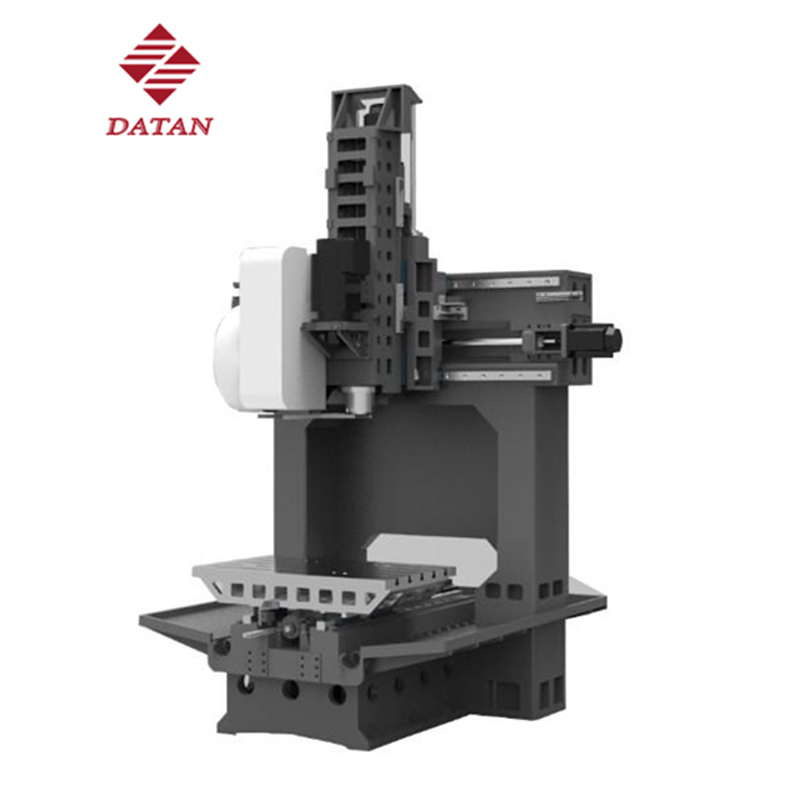

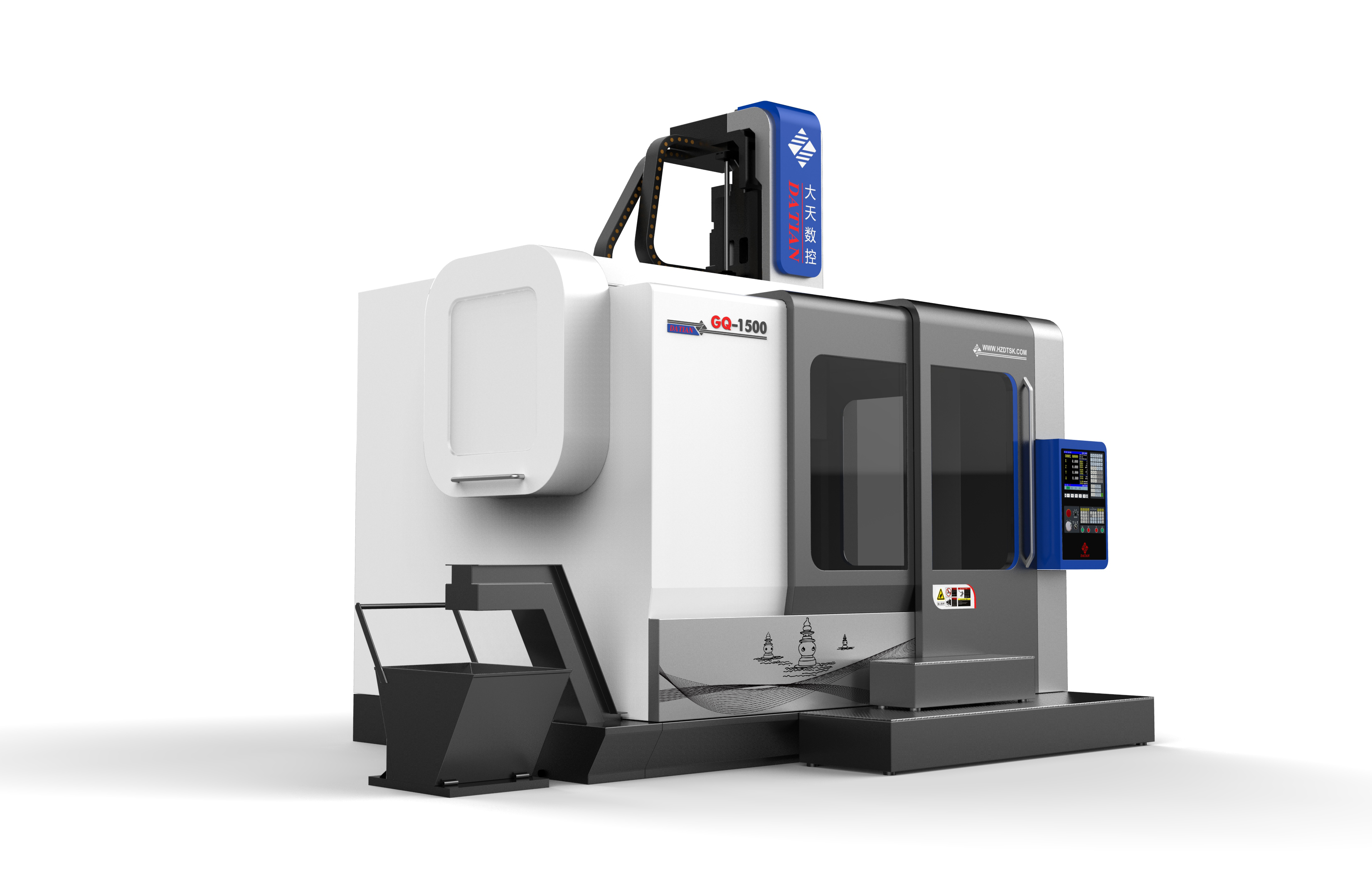

Integrated Beam and Column Structure for Maximum Rigidity
The one-piece cast structure minimizes deformation and enhances vibration resistance, ensuring long-term precision.

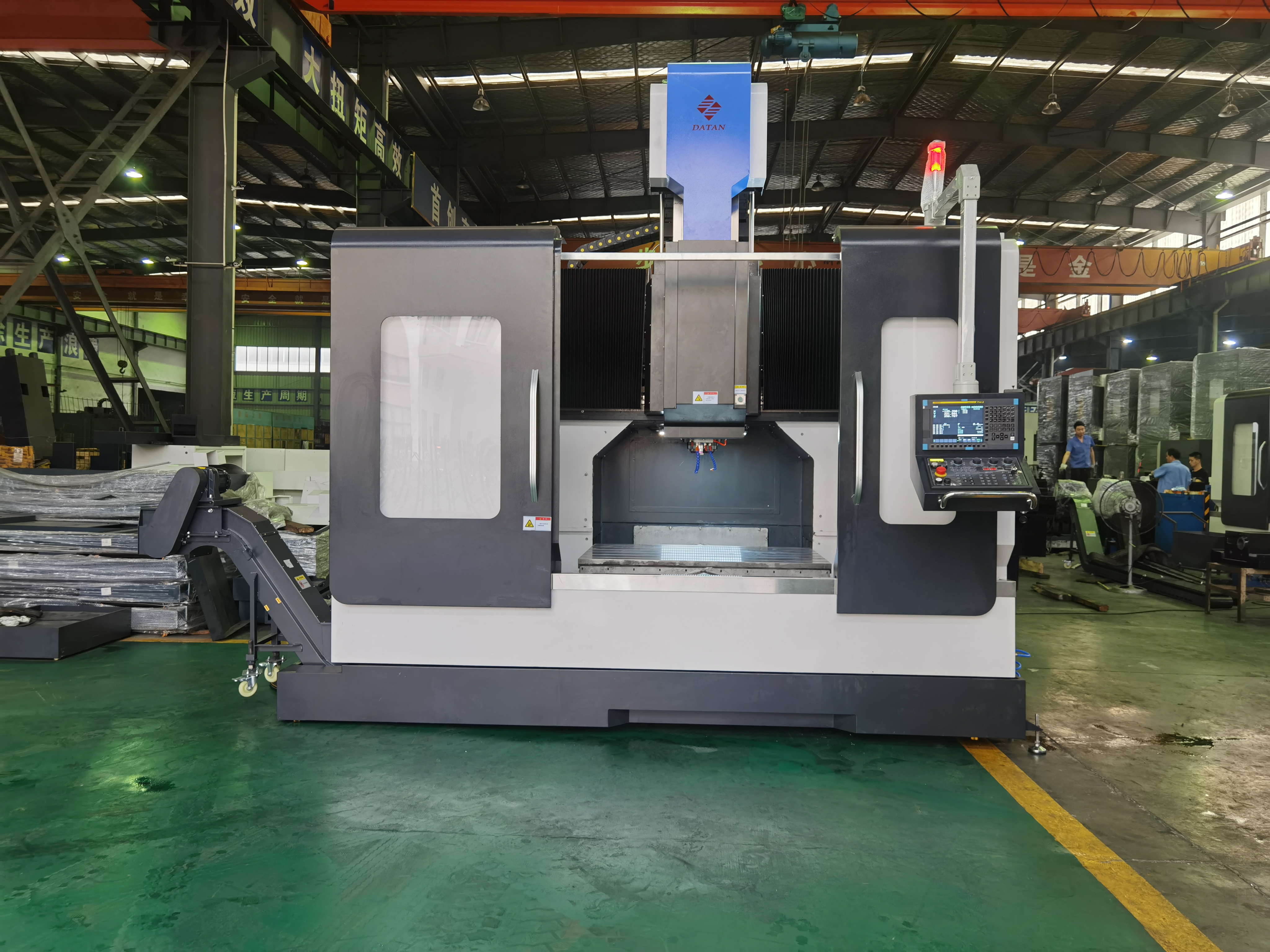

Compact Footprint for Optimized Space Utilization
The compact design minimizes space usage, making it suitable for modern manufacturing facilities.

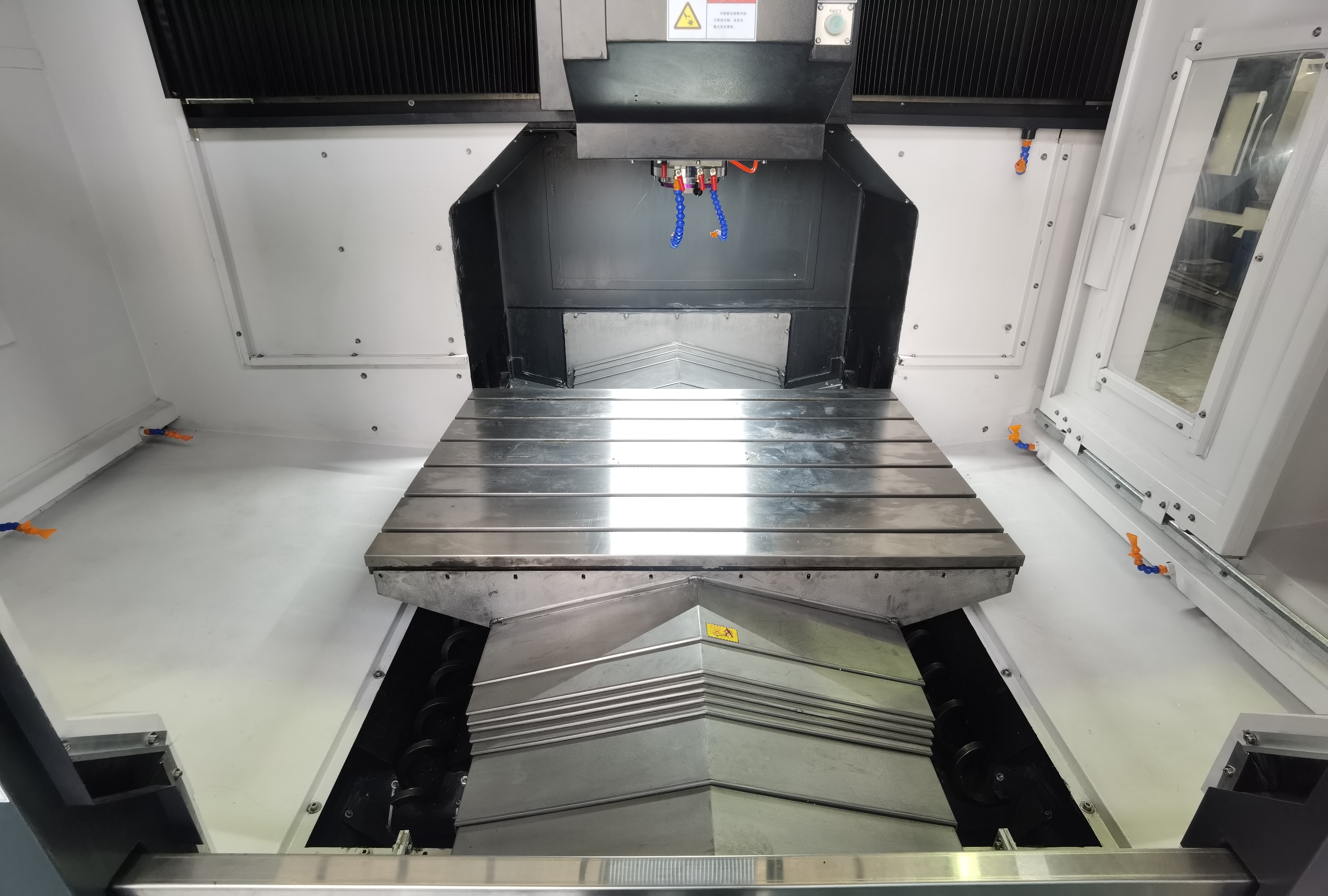

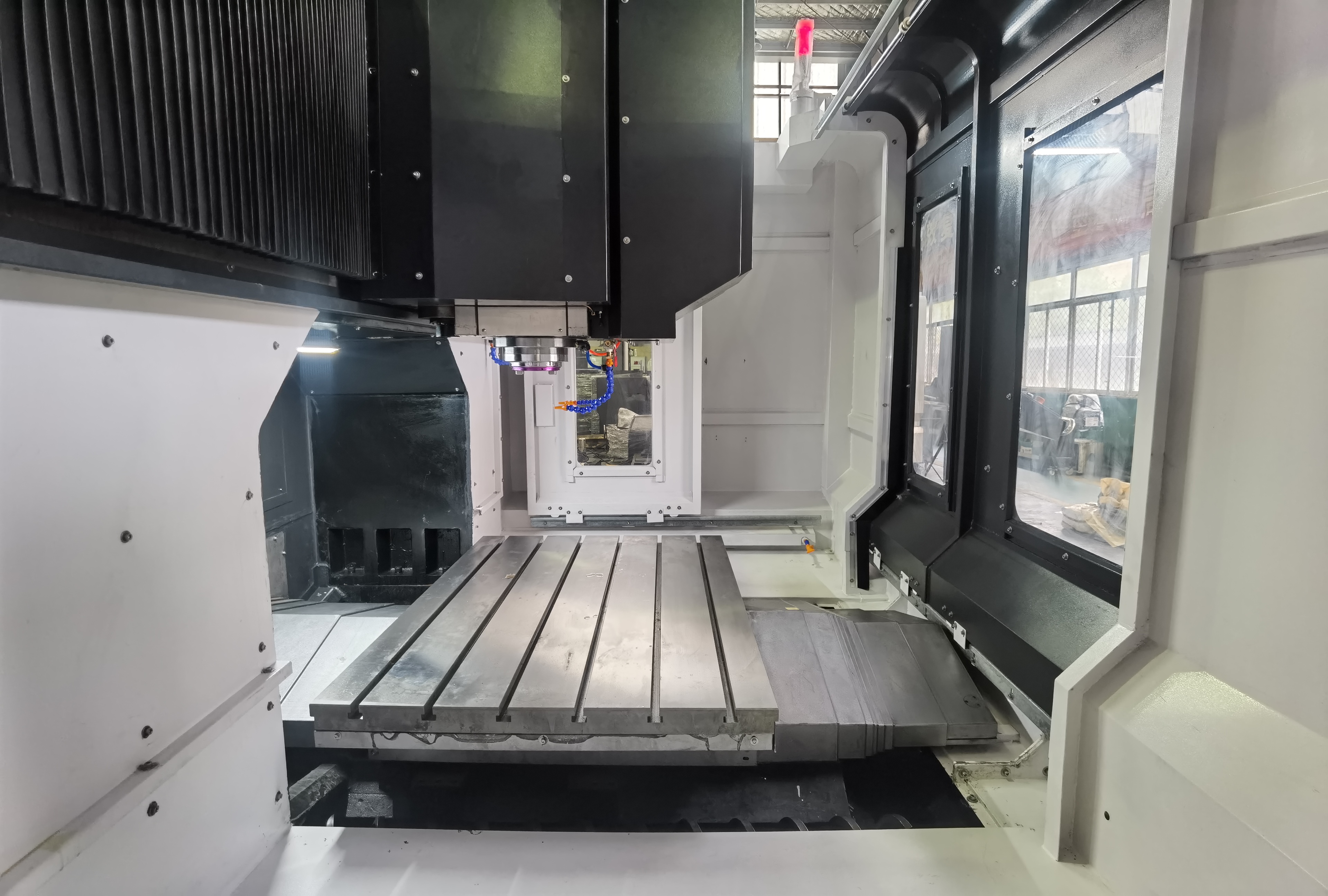

Fully Supported Worktable for Superior Machining Accuracy
The 100% fully supported worktable enhances workpiece stability and improves machining accuracy.
Optimized Tool Magazine System for Faster Tool Changes
Features a 24-tool rotary magazine, optimizing tool change paths for reduced tool change time and increased efficiency.

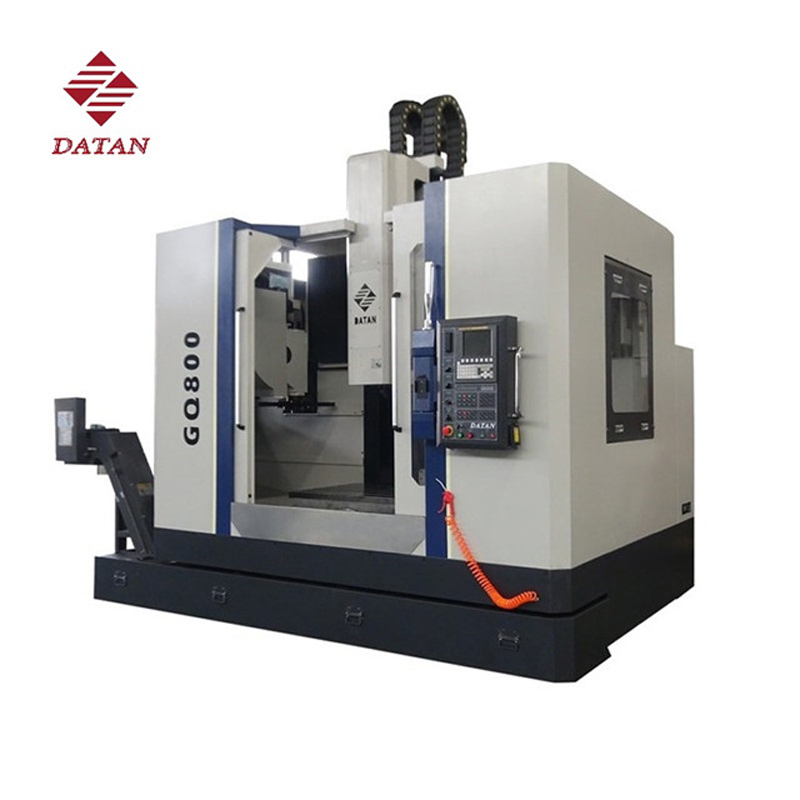

The GQ Series Gantry Machining Center is widely used in mold manufacturing, aerospace, automotive components, and precision mechanical processing. It is particularly suitable for high-precision complex part machining, such as molds, engine components, aerospace structures, and large workpieces. With high rigidity and a high-speed spindle, it significantly reduces machining cycles, improves productivity, and meets the demands of high-precision, high-efficiency, and mass production.
Model | GQ-600 | GQ-800 | GQ-1510 |
X-Axis Travel (mm) | 1000 | 1300 | 1500 |
Y-Axis Travel (mm) | 600 | 800 | 1000 |
Z-Axis Travel (mm) | 500 | 600 | 600 |
Spindle Nose to Worktable Distance (mm) | 100 - 600 | 150 - 750 | 150 - 750 |
Worktable Size (mm) | 1000 × 600 | 1300 × 800 | 1450 × 1000 |
Worktable T-Slot (mm) | 5 × 18 × 120 | 5 × 18 × 140 | 5 × 18 × 140 |
Gantry Width (mm) | 1060 | 1360 | 1500 |
Worktable Load Capacity (kg) | 800 | 1000 | 2000 |
Spindle Type | NO.40 | NO.50 | NO.50 |
Spindle Speed (rpm) | 100 - 10000 | 160 - 6000 | 60 - 6000 |
Spindle Motor Power (kw) | 7.5 / 11 | 11 / 15 | 15 / 18.5 |
X-Axis Rapid Traverse (m/min) | 36 | 36 | 24 |
Y-Axis Rapid Traverse (m/min) | 36 | 36 | 24 |
Z-Axis Rapid Traverse (m/min) | 24 | 24 | 24 |
Cutting Feed Rate (mm/min) | 10 - 10000 | 10 - 10000 | 10 - 8000 |
Linear Motion Positioning Accuracy (mm) | 0.02 | 0.02 | 0.02 |
Linear Motion Repeat Positioning Accuracy (mm) | 0.015 | 0.015 | 0.015 |
Machine Weight (T) | 6.5 | 9 | 11 |
Floor Space (L × W) (mm) | 3200 × 2400 | 3400 × 2600 | 4000 × 3100 |
Overall Machine Height (mm) | 4000 | 4300 | 4300 |
Y-Axis Alternative to Large Vertical Machining (mm) | 1060 | 1580 | 1580 |
High Precision Alternative to Medium Vertical Machining (mm) | 850 | 1370 | 1370 |
