Machine Features:
Cold Cutting Technology:
Produces smooth, deformation-free, oxidation-free bevel surfaces.
Meets Welding & NDT Requirements:
Ideal for non-destructive testing and radiographic inspection processes.
Adjustable Processing Speed:
Variable feed speed ensures optimal performance for different material types.
Stable Spindle Locking:
Secure locking during processing; quick and easy release after operation.
Electric Lifting System:
Simple height adjustment improves operational accuracy and convenience.
Compact & Efficient Design:
Self-propelled structure ensures stable movement and high processing efficiency.
Higher Efficiency Than Manual Processing:
Faster, more precise, and more consistent than manual chamfering methods.
Wide Beveling Range:
Supports multiple bevel types and angles for diverse industrial applications.
Products Specification:
| Item | Specification |
| Power Supply | 380V / 50Hz three-phase AC |
| Total Power | 6.59 kW (Main motor: 3kW × 2, Lift motor: 0.2kW 220V/50Hz) |
| Spindle Speed | 1500 r/min |
| Processing Groove Speed | 0.7–1.5 m/min (variable frequency adjustable) |
| Thickness of Clamping Plate | 4–80 mm |
| Bevel Angle Range | 0° to –90° (adjustable as desired) |
| Cutterhead Diameter | 80 mm (maximum bevel width 80mm) |
| Number of Disc Cutters | 7 discs, 7 square eight-blade inserts |
| Groove Types | K/V/X/Y bevel + uphill opening + 0-degree side groove + transition groove |
| Height Adjustment System | Electric lifting + elastic floating lift |
| Clamping Method | Electric automatic clamping plate |
| Transmission Assembly | 11 transmission wheels (7 upper + 4 lower) |
| Processing Method | Milling |
| Processing Materials | Carbon steel, stainless steel, alloy steel, cast iron, aluminum plate |
| Groove Smoothness | Ra3.2–6.3 |
| Machine Dimensions | 1285 × 770 × 1035 mm |

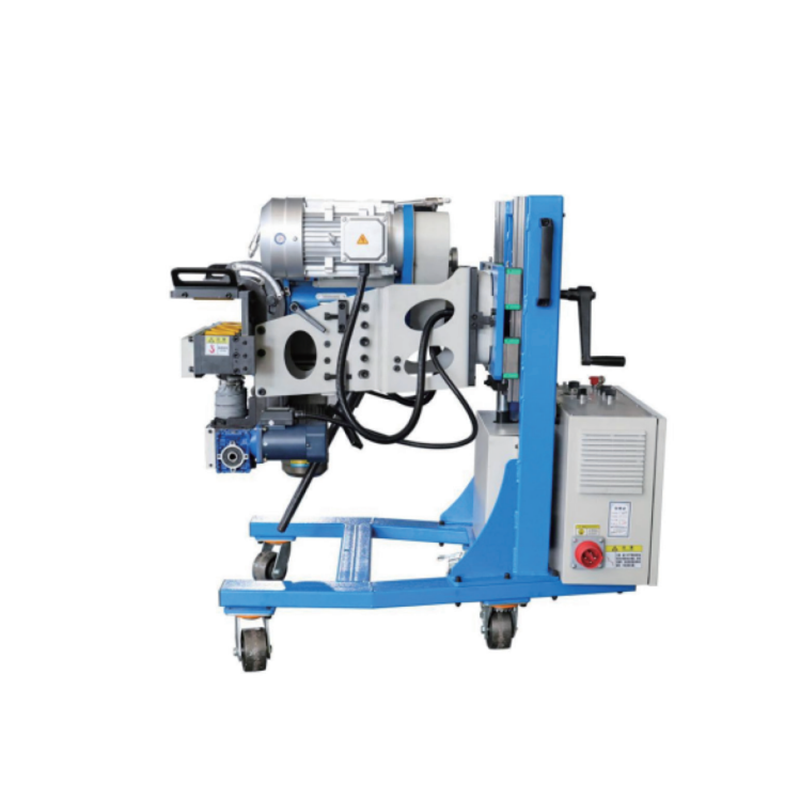

Products Pictures:
