Machine Features:
Energy-saving Transmission System – Equipped with a reducer-drive system for stable and energy-efficient operation.
High Beveling Speed – Maximum processing speed reaches 2.5 m/min, improving efficiency dramatically.
Fully Adjustable Bevel Angle – Supports 25°–45° bevel angle adjustments to meet various welding preparation needs.
Wide Processing Material Range – Can process V/Y-type bevels and K/X-type bevels on carbon steel, manganese steel, aluminum alloy, etc.
Extensive Industrial Applications – Widely used in steel structures, pressure vessels, construction machinery, shipbuilding, machining, metallurgy, petrochemical, wind power, and power tower fabrication.
Stable & Durable – Designed for continuous industrial use, with robust structure and reliable drive system.
Products Specification:
| Item | Specification |
| Motor Voltage | 380V 50Hz |
| Motor Speed | 1450 r/min |
| Groove Steel Plate Thickness | 9–40 mm |
| Motor Power | 2200 W |
| Steel Plate Groove Angle | 25°–45° (arbitrary adjustment) |
| Minimum Clamping Plate Width | ≥ 80 mm |
| Machine Dimensions | 640 × 510 × 1130 mm |
| Weight | 175 kg |
| Feed-in Speed | 1.5–2.4 m/min |
| Maximum Slope Width | 15 mm |

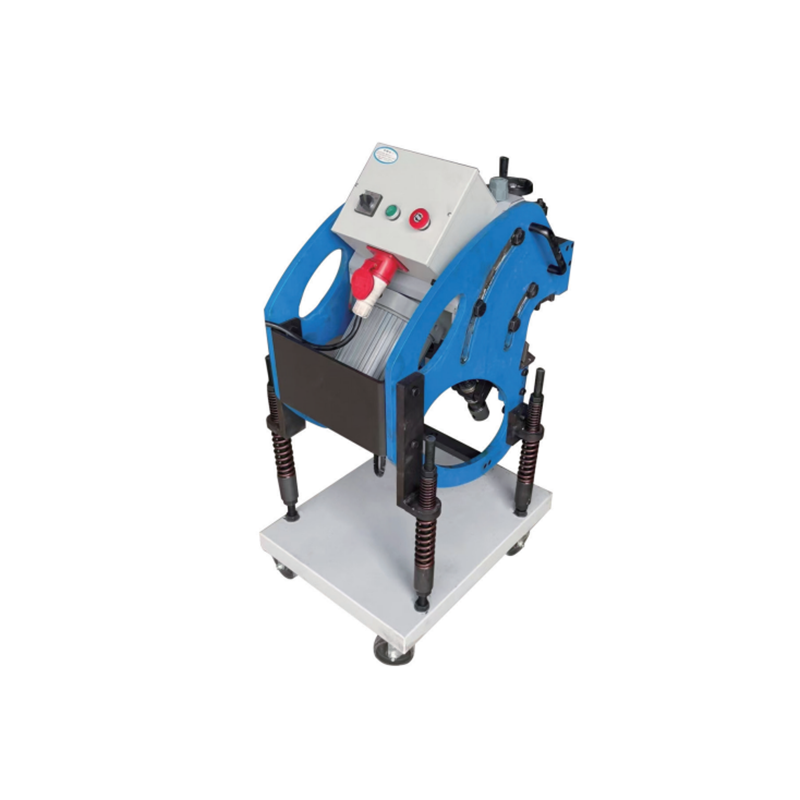

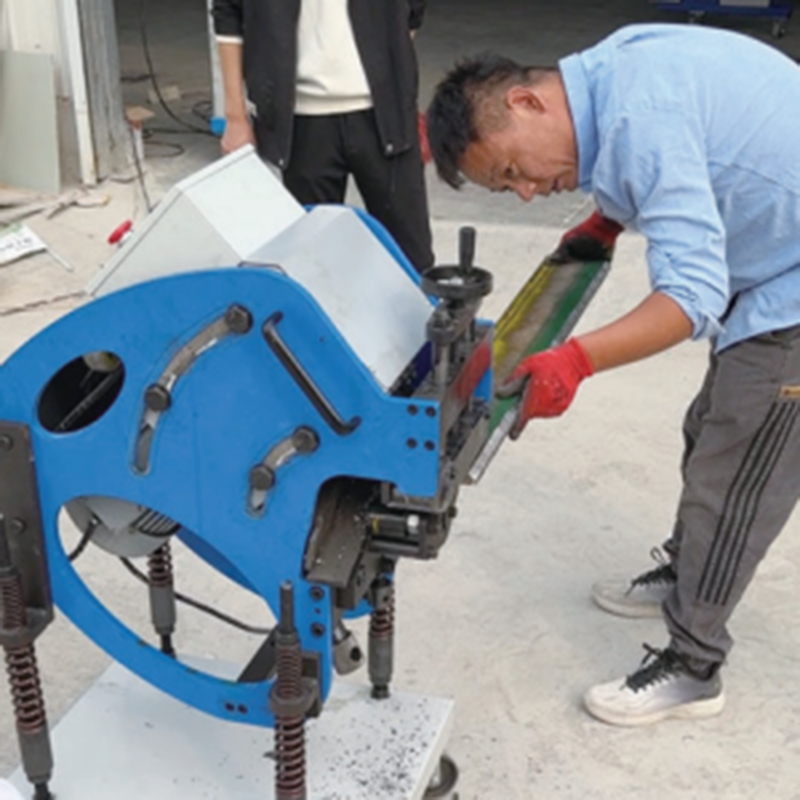

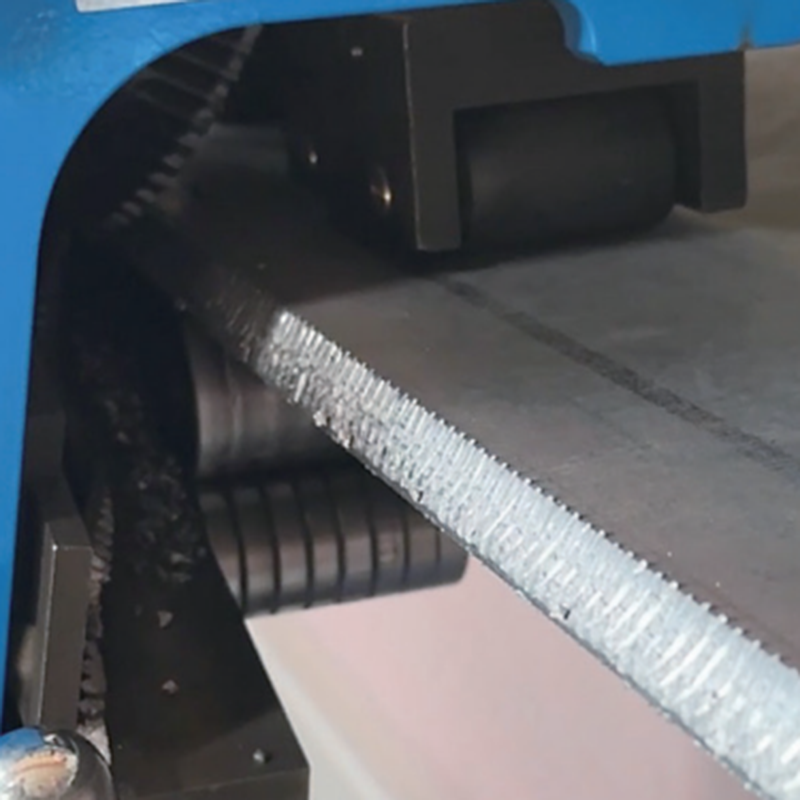

Products Pictures:
