Machine Features:

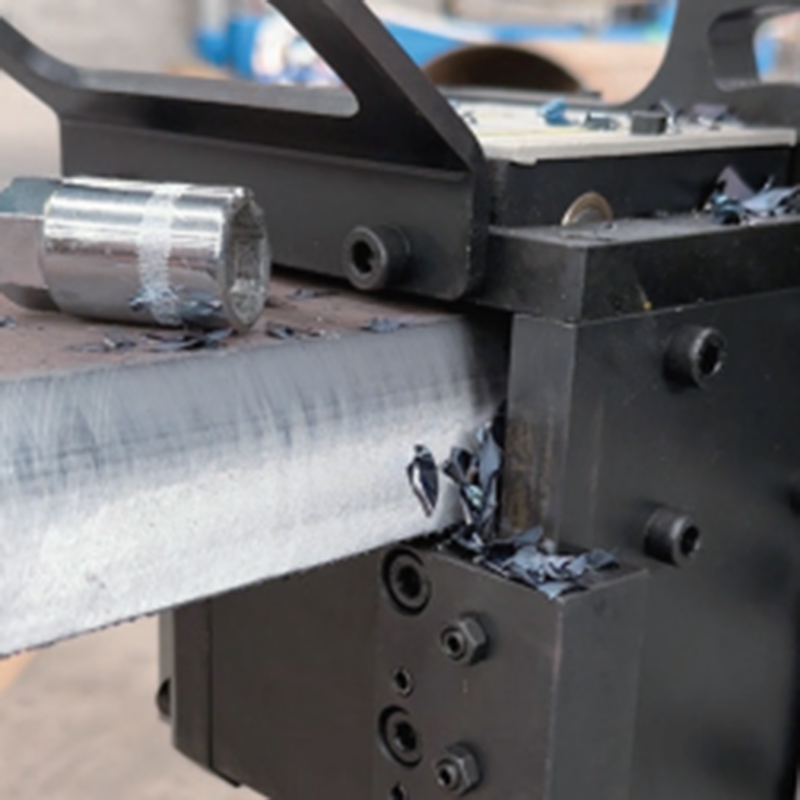

Cold Cutting Process – Achieves oxidation-free, deformation-free bevels for high-quality welding edges.
Meets Welding Standards – Supports non-destructive testing (NDT) and film inspection requirements.
Variable Speed Control – Adjustable feed speed for different material types and bevel depths.

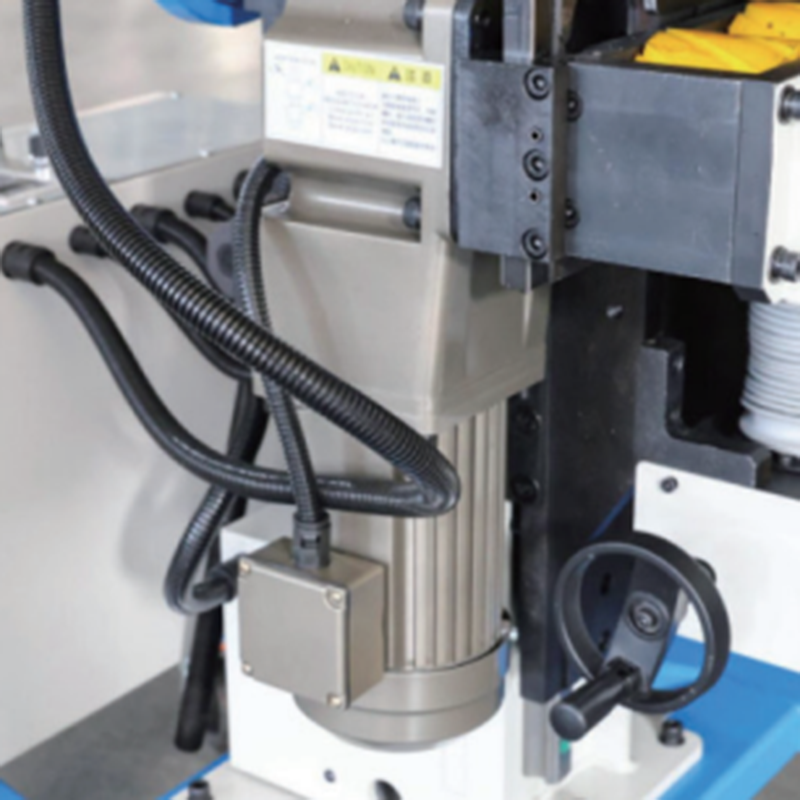

Electric Lifting System – Simple and precise operation with adjustable height control.
Stable Spindle Locking – Firm during processing, smooth release after completion.
Compact Structure – Easy to operate, move, and maintain.
Higher Efficiency – 2–3 times faster than manual chamfering.
Wide Range of Applications – Suitable for various metal plates and bevel shapes.
Products Specification:
| Item | Specification |
| Power Supply | 380V / 50Hz three-phase AC |
| Machine Size | 920 × 710 × 1100 mm |
| Wooden Box Size | 1100 × 800 × 1000 mm |
| Weight | 360 kg |
| Total Power | 6.59 kW (Main motor: 3kW ×2, Lift motor: 0.2kW) |
| Spindle Speed | 1500 r/min |
| Processing Groove Speed | 0.7–1.5 m/min (variable frequency adjustable) |
| Thickness of Clamping Plate | 4–80 mm |

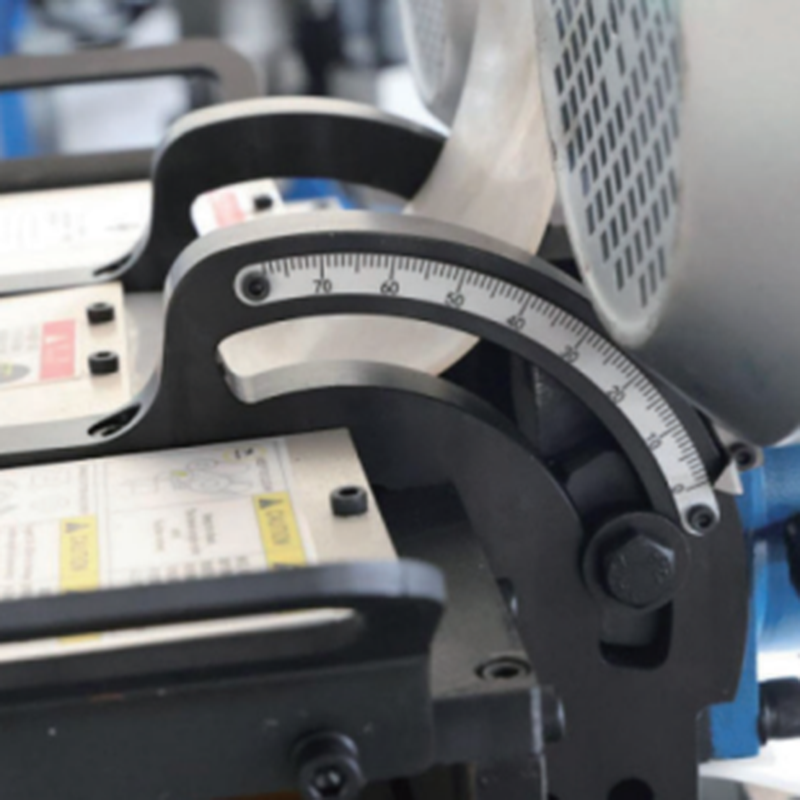

| Processing Groove Angle | 0°–78° (adjustable as desired) |
| Knife Disk Model | FMZ88R-80–27–SN12–06T (max bevel width 80 mm) |
| Blade Specification | SNMX1025 (6 square eight-blade inserts) |
| Groove Type | K/V/X/Y-shaped groove + uphill + 0° side groove |
| Height Adjustment System | Electric lift + elastic floating lifting system |
| Clamping Method | Electric automatic clamping plate (ensuring stable pressure) |
| Transmission Assembly | 11 transmission wheels (7 upper + 4 lower) |
| Processing Method | Milling |
| Applicable Materials | Carbon steel, stainless steel, alloy steel, cast iron, aluminum plate |
| Groove Smoothness | Ra3.2–6.3 |

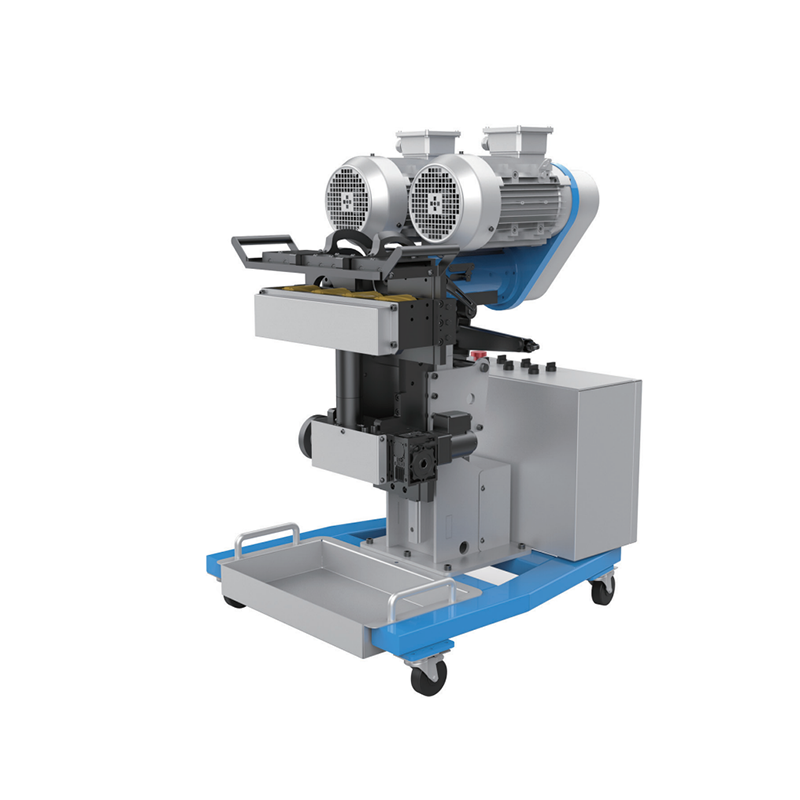

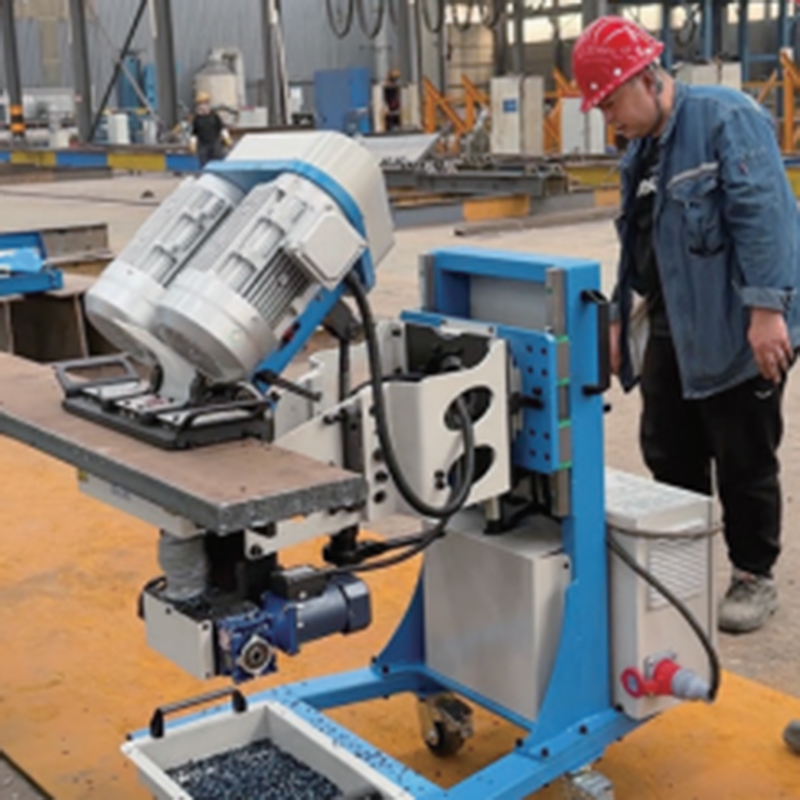

Products Pictures:
