Machine Features:
Suitable for Large Workpieces – Designed for large-diameter pipes and heavy plates, improving work efficiency.
Cold Cutting Process – Ensures smooth, oxidation-free, and deformation-free groove surfaces.
Meets Welding Standards – Supports non-destructive testing (NDT) and film inspection processes.
Variable Speed Control – Adjustable processing speed for different materials and groove depths.
Higher Efficiency – Faster and more precise than manual chamfering.
Wide Application Range – Applicable to various metal materials and pipe beveling tasks.
Products Specification:
| Item | Specification |
| Model | XY-80G |
| Power Supply | 380V / 50Hz three-phase AC |
| Motor Power | Total: 3.52 kW (Cutting main motor: 3 kW 380V/50Hz) |
| Spindle Speed | 1050 r/min |
| Processing Groove Speed | 0–1.5 m/min (variable frequency adjustable) |
| Processing Groove Angle | 0°–90° (adjustable as desired) |
| Blade Diameter | 80 mm |
| Number of Cutting Discs | 7 discs (6 square inserts) |
| Single Groove Width | 0–15 mm |
| Pipe Diameter | ≥ Φ1000 mm |
| Pipeline Height | ≥ 350 mm |
| Clamping Plate Thickness | 6–60 mm |
| Processing Method | Milling and cutting |
| Processing Materials | Carbon steel, stainless steel, alloy steel, cast iron, aluminum plate |
| Groove Smoothness | Ra3.2–6.3 |
| Machine Dimensions | 1070 × 500 × 1070 mm |

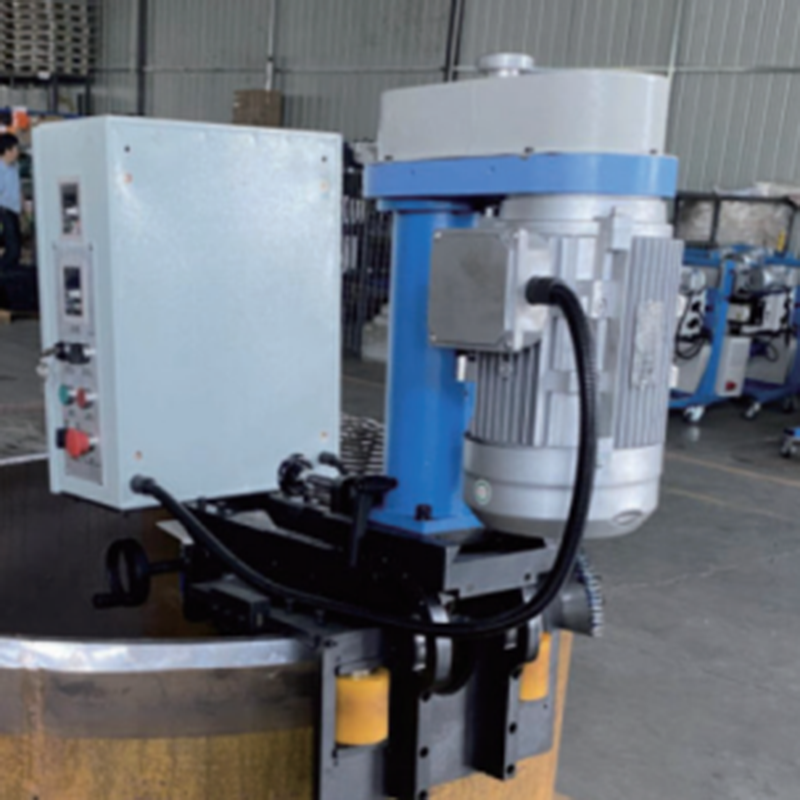

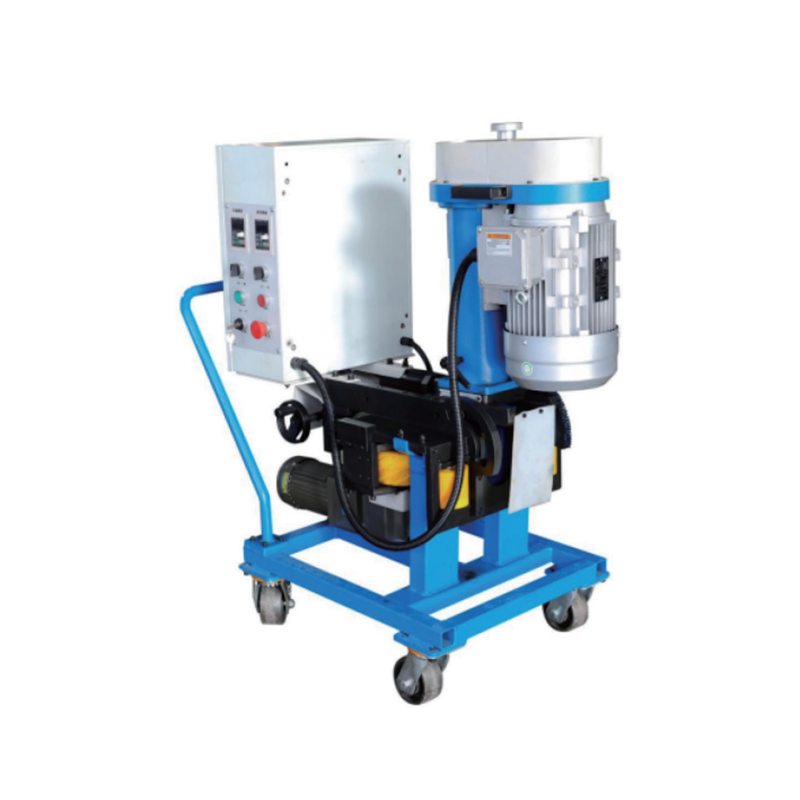

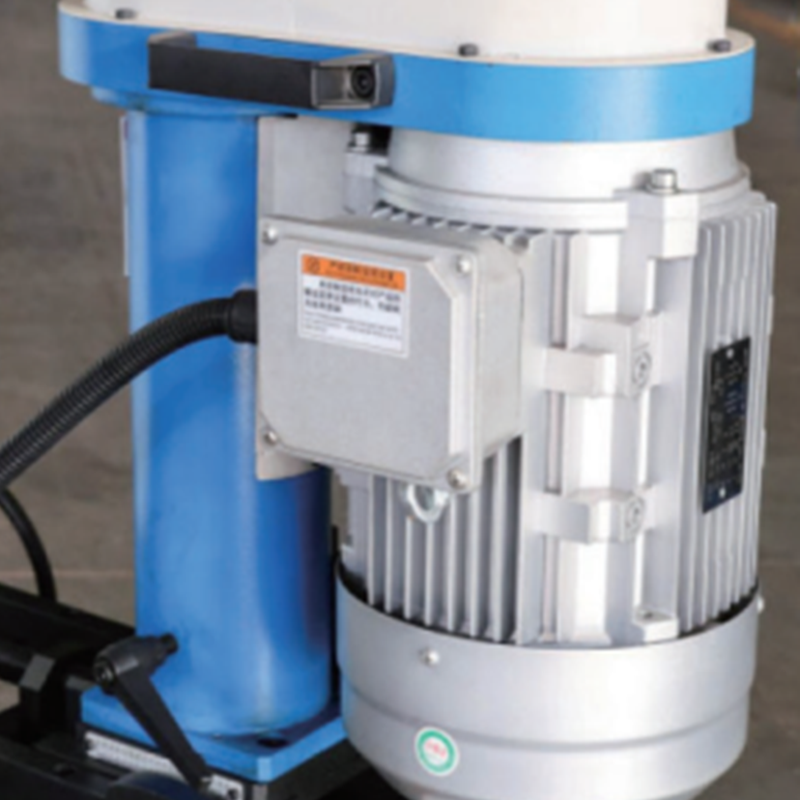

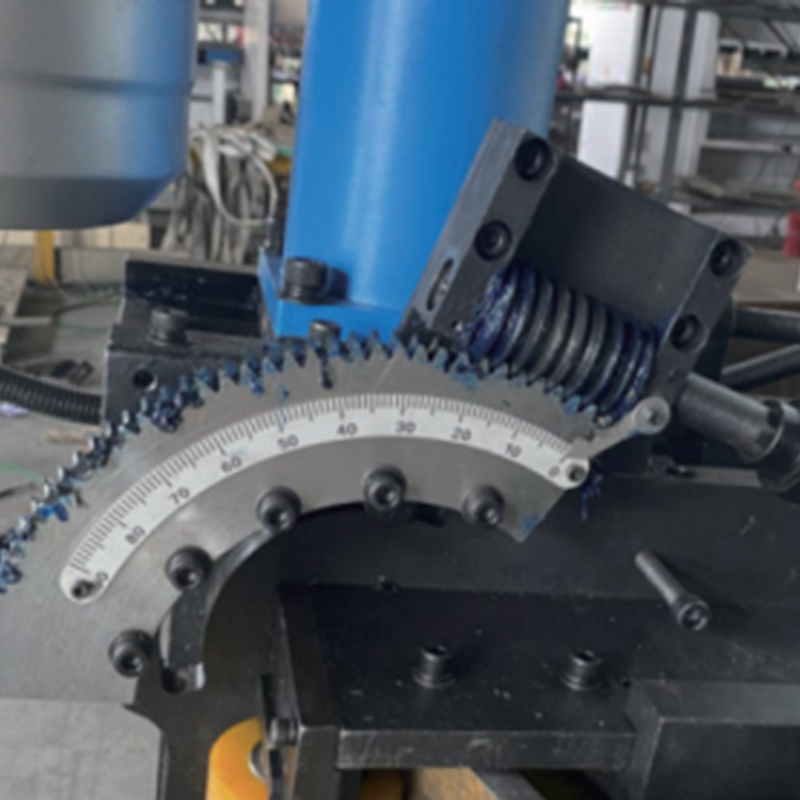

Products Pictures:
