Machine Features:
Oxidation-free Cold Cutting:
No thermal deformation; bevel surface stays clean and smooth.
Meets Welding & NDT Requirements:
Fully compatible with radiographic inspection and welding standards.
Adjustable Processing Speed:
Smooth speed control enhances precision for different material types.
Stable Spindle Locking:
Ensures cutting accuracy and safe operation; easy to release after processing.
Electric Lifting System:
Convenient height adjustment; improves precision and operator comfort.
Compact Structure & Easy Operation:
Self-propelled design ensures stable movement with minimal effort.
Higher Efficiency Than Manual Chamfering:
Delivers faster, more consistent and higher-quality beveling results.
Multiple Groove Types Supported:
Compatible with K / V / X / Y bevels and compound groove structures.
Products Specification:
| Item | Specification |
| Power Supply | 380V / 50Hz three-phase AC |
| Motor Power | Total: 6.59kW (Cutting motor: 3kW × 2, Lift motor: 0.2kW 220V/50Hz) |
| Spindle Speed | 1500 r/min |
| Processing Groove Speed | 0.7–1.5 m/min (variable frequency adjustable) |
| Thickness of Clamping Plate | 4–80 mm |
| Processing Groove Angle | 0° to –90° (adjustable as desired) |
| Cutterhead Diameter | 80 mm (maximum bevel width 80mm) |
| Number of Disc Cutters | 7 discs, 7 square eight-blade inserts |
| Groove Type | K / V / X / Y beveled groove + uphill opening + 0-degree side groove + transition groove |
| Height Adjustment System | Electric lifting + elastic floating lift |
| Clamping Method | Electric automatic clamping (ensuring stable clamping force) |
| Transmission Assembly | 11 sets of transmission wheels (7 upper + 4 lower) |
| Processing Method | Milling |
| Processing Materials | Carbon steel, stainless steel, alloy steel, cast iron, aluminum plate |
| Groove Smoothness | Ra3.2–6.3 |
| Machine Dimensions | 967 × 722 × 1072 mm |

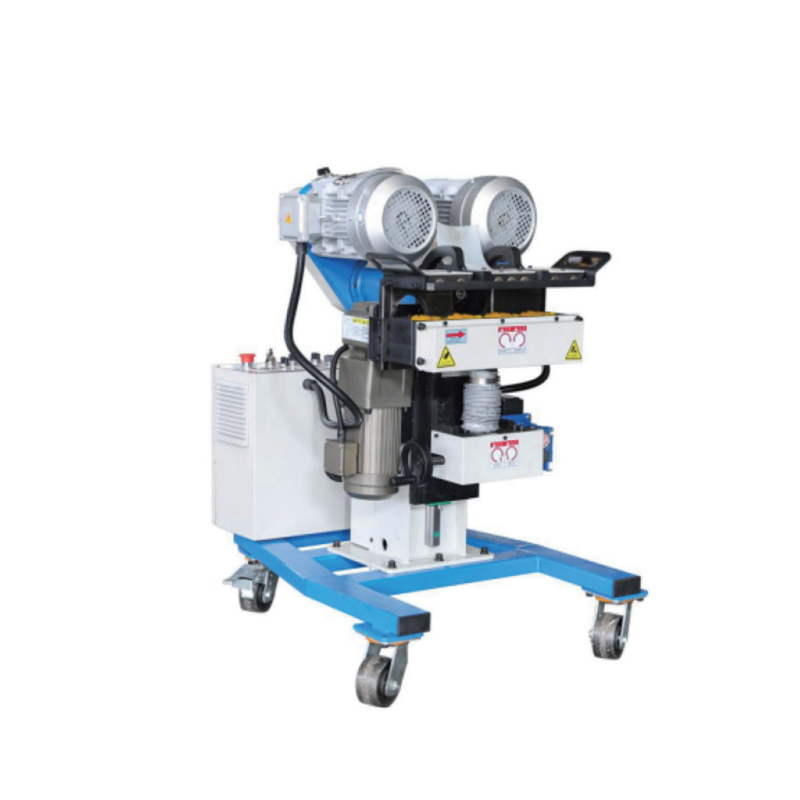

Products Pictures:
