Machine Features:
High Flexibility for Small Workpieces – Ideal for small and medium parts, improving operation efficiency.
Cold Cutting Process – Ensures no oxidation or deformation on groove surfaces.
Meets Welding Standards – Supports non-destructive testing and film inspection.
Adjustable Processing Speed – Variable speed control for precise machining.
Higher Efficiency – Significantly faster and more stable than manual chamfering.
Wide Range of Applications – Suitable for flat beveling, R-angle trimming, and disc-type groove milling.
Compact Desktop Design – Space-saving structure with simple, safe, and reliable operation.
Products Specification:
| Item | Specification |
| Power Supply | 380V / 50Hz three-phase AC |
| Total Power | 6.6 kW (Cutting main motor: 5.5 kW 380V/50Hz; Traveling motor: 1.1 kW 220V/50Hz) |
| Spindle Speed | 1440 r/min |
| Processing Groove Speed | 0–1.5 m/min (variable frequency adjustable) |
| Clamping Plate Thickness | 3–40 mm |
| Processing Groove Angle | 30°–60° (adjustable as desired) |
| Blade Diameter | 80 mm |
| Number of Blades | 20 pcs |
| Single Groove Width | 20 mm |
| Product Size | 790 × 600 × 1160 mm |
| Product Weight | 150 kg |
| Processing Method | Milling |
| Applicable Materials | Carbon steel, stainless steel, alloy steel, cast iron, aluminum plate |
| Groove Smoothness | Ra3.2–6.3 |

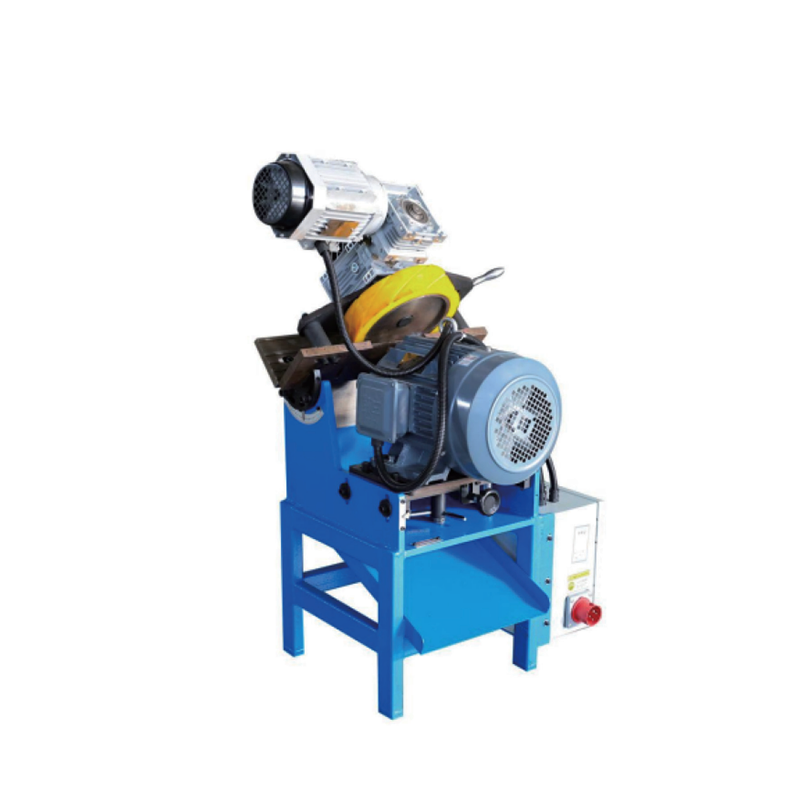

Products Pictures:
