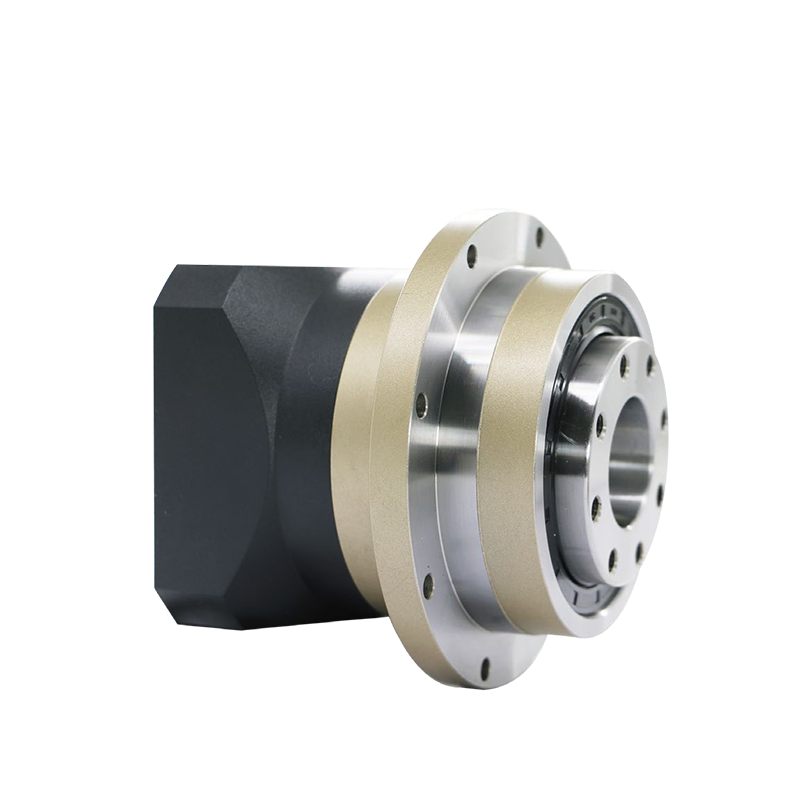

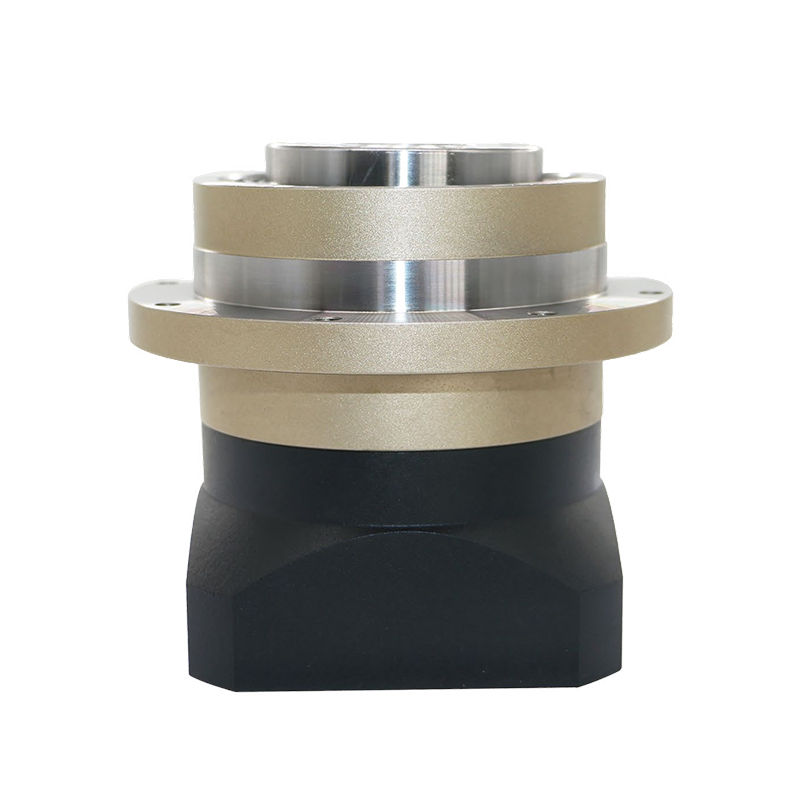

Machine Features:
Ultra-High Precision: Backlash less than 5 arc minutes ensures precise and repeatable positioning performance.
Advanced Gear Technology: Manufactured with ultra-precision machine tools and ISO4-level gear grinding accuracy for smooth operation and high efficiency.
Premium Alloy Gears: Made from high-grade low-carbon alloy forged steel, carburized and quenched to HRC60 hardness for exceptional strength and wear resistance.
Rigid Integrated Design: Cage-type planetary carrier with a one-piece output shaft improves rigidity, accuracy, and load-bearing capacity.
Enhanced Torque and Stability: Full needle roller bearings without cages increase torque transmission and overall structural stability.
Wide Compatibility: Designed to fit a wide range of global servo motors, providing excellent adaptability and easy integration.
Maintenance-Free Operation: Uses synthetic grease with IP65 sealing, ensuring no oil leakage and long-term reliability without maintenance.
AD Series Reducer Rotation Inertial Meter:
| Speed Ratio | Pitch Number | AD64 (kg.cm²) | AD90 (kg.cm²) | AD110(kg.cm²) | AD140(kg.cm²) |
| 3 | 1 | 0.2 | 0.81 | 3.25 | 9.21 |
| 4 | 1 | 0.16 | 0.65 | 2.74 | 7.54 |
| 5 | 1 | 0.15 | 0.62 | 2.71 | 7.42 |
| 7 | 1 | 0.14 | 0.6 | 2.62 | 7.25 |
| 10 | 1 | 0.14 | 0.6 | 2.57 | 7.14 |
| 9 | 2 | 0.15 | 0.6 | 0.47 | 7.03 |
| 12 | 2 | 0.15 | 0.62 | 0.47 | 7.03 |
| 15 | 2 | 0.15 | 0.62 | 0.47 | 7.03 |
| 16 | 2 | 0.15 | 0.62 | 0.47 | 2.71 |
| 20 | 2 | 0.15 | 0.62 | 0.47 | 2.71 |
| 25 | 2 | 0.15 | 0.62 | 0.47 | 2.71 |
| 28 | 2 | 0.14 | 0.6 | 0.47 | 2.71 |
| 30 | 2 | 0.14 | 0.6 | 0.47 | 2.71 |
| 35 | 2 | 0.14 | 0.6 | 0.47 | 2.71 |
| 40 | 2 | 0.14 | 0.6 | 0.47 | 2.71 |
| 50 | 2 | 0.14 | 0.6 | 0.47 | 2.71 |
| 70 | 2 | 0.14 | 0.6 | 0.47 | 2.71 |
Precision Bevel Teeth AD Series Technical Parameters:
| Moment of Inertia | AD64 | AD90 | AD110 | AD140 | Speed Ratio | Pitch Number |
| Rated Output Torque | Nm | 46 | 125 | 210 | 450 | 3 | 1 |
| 52 | 145 | 300 | 550 | 4 | 1 |
| 55 | 155 | 320 | 650 | 5 | 1 |
| 50 | 135 | 290 | 540 | 7 | 1 |
| 42 | 105 | 220 | 440 | 10 | 1 |
| 56 | 125 | 310 | 500 | 9 | 2 |
| 56 | 145 | 310 | 500 | 12 | 2 |
| 56 | 145 | 300 | 500 | 15 | 2 |
| 52 | 145 | 320 | 550 | 16 | 2 |
| 55 | 145 | 320 | 650 | 20 | 2 |
| 55 | 155 | 320 | 650 | 25 | 2 |
| 52 | 155 | 305 | 550 | 28 | 2 |
| 55 | 145 | 320 | 650 | 30 | 2 |
| 55 | 155 | 320 | 650 | 35 | 2 |
| 55 | 155 | 320 | 650 | 40 | 2 |
| 55 | 155 | 320 | 650 | 50 | 2 |
| 55 | 155 | 320 | 650 | 70 | 2 |
| 42 | 105 | 220 | 440 | 100 | 2 |
| Emergency stop torque | Nm | 3 times rated output torque |
| Maximum radial force | N | 2500 | 4500 | 7800 | 12000 | 3-100 |
|
| Maximum axial force | N | 2000 | 3500 | 6000 | 10000 | 3-100 |
|
| Rated input speed n1 | rpm | 4000 | 3000 | 3000 | 3000 | 3-100 |
|
| Maximum input speed n1 | rpm | 6000 | 6000 | 6000 | 6000 | 3-100 |
|
| Super precision backspace P0 | arcmin | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | 1 |
| ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | 2 |
| Precise backspace P1 | arcmin | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | 1 |
| ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | 2 |
| Standard backspace P2 | arcmin | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | 1 |
| ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | 2 |
| Torsional rigidity | Nm/arcmin | 2.8 | 7.5 | 15.5 | 48.5 | 3-100 | 1、2 |
| Service temperature | ℃ | -20℃-+90℃ |
| Average service life | h | 20000 |
| Full load efficiency | % | 97 | 1 |
| 95 | 2 |
| Protection class | / | IP65 | 1 |
| 2 |
| Mounting direction | / | Any direction | 1、2 |
| Noise value | dba/m | ≤60 | ≤60 | ≤60 | ≤60 | 3-100 | 1、2 |
| Lubrication mode | / | All synthetic lubricating oils | 1、2 |
AD Series Planetary Reducer Technical Parameters
| Model | AD64 | AD90 | AD110 | AD140 |
| Stage | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 |
| D | D1 | 79 | 109 | 135 | 168 |
| D2 | 31.5 | 50 | 63 | 80 |
| D3 | 4.5 | 5.5 | 5.5 | 6.6 |
| D4 | 5*6 | 6*7 | 6*7 | 8*7 |
| D5 | M5*10 | M6*12 | M6*12 | M8*16 |
| D6 | 86 | 118 | 145 | 179 |
| D7 | 64 | 90 | 110 | 140 |
| D8 | 40 | 63 | 80 | 95 |
| D9 | 20 | 31.5 | 40 | 50 |
| L | L1 | 84.5 | 111 | 137.5 | 107 | 139 | 171 | 140 | 182 | 224 | 184.5 | 245.5 | 306.5 |
| L2 | 19.5 | 30 | 27 | 38 |
| L3 | 16.5 | 24 | 21 | 32 |
| L4 | 5 | 10 | 10 | 15 |
| L5 | 8 | 10 | 10 | 10 |
| L6 | 8 | 12 | 12 | 12 |
| C | C1 | 14 | 19 | 22 | 35 |
| C2 | 50 | 70 | 110 | 114.3 |
| C3 | 5 | 8 | 10 | 10 |
| C4 | 36 | 45 | 62 | 82.5 |
| C5 | M4*10 | M5*12 | M8*20 | M12*30 |
| C6 | 70 | 90 | 145 | 200 |
| C7 | 60 | 90 | 130 | 180 |
