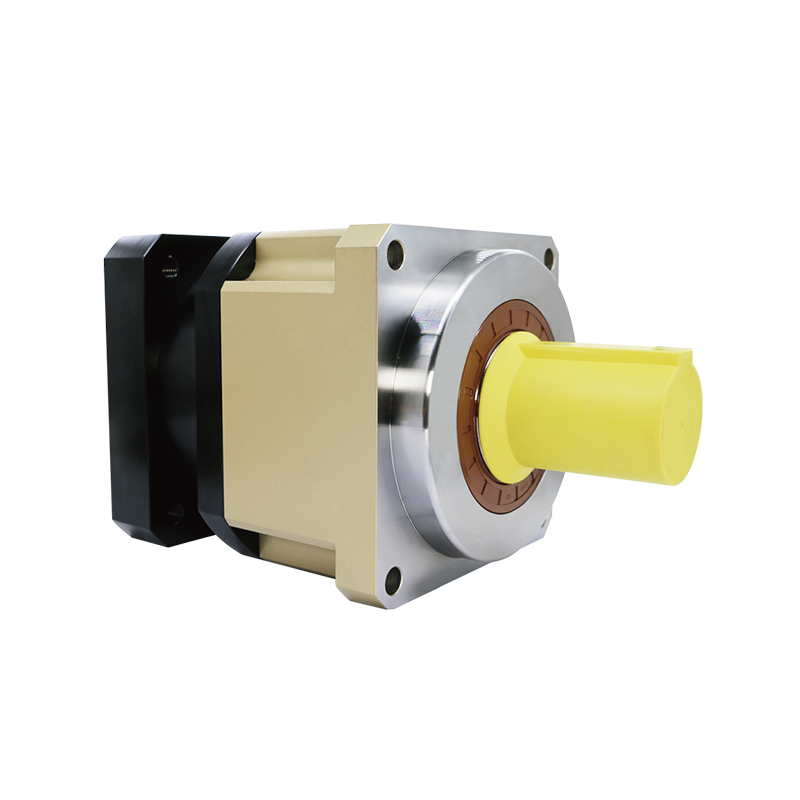

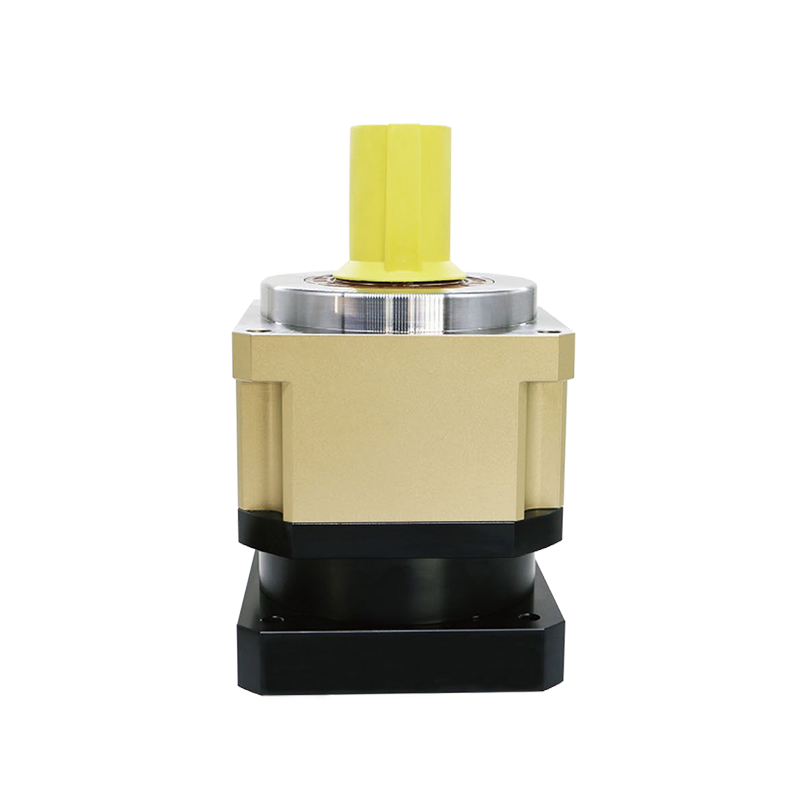

ZY PLX Series High Precision Planetary Reducer

The PLX Series High Precision Planetary Reducer is designed for high-speed, high-torque servo applications that demand superior rigidity, stability, and performance. Manufactured with ISO4-grade precision gears and advanced heat-treated alloy steel, the PLX reducer ensures efficient power transmission, minimal backlash, and extended lifespan. Its compact modular design and IP65 sealing make it ideal for automation systems, robotics, CNC machinery, and motion control solutions requiring continuous reliability.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

Ultra-High Precision: Backlash less than 5 arc minutes for consistent, precise positioning.

High Torque Density: Compact structure delivers maximum torque output in a smaller footprint.

Extended Durability: Gears made from carburized and quenched alloy steel (HRC60) for long-lasting strength.

Rigid Support Design: Integrated cage planetary carrier and output shaft ensure excellent stiffness.

Smooth & Quiet Operation: Advanced gear grinding minimizes vibration and ensures stable performance.

Global Motor Compatibility: Compatible with all major servo motor brands worldwide.

IP65 Sealed & Maintenance-Free: Synthetic grease lubrication eliminates leakage and ensures long-term operation.

PLX Series Reducer Rotation Inertial Meter:

Speed Ratio	Pitch Number	PLX180 (kg.cm²)	PLX220 (kg.cm²)	PLX240(kg.cm²)	PLX280(kg.cm²)	PLX330(kg.cm²)
3	1	22.4	34.8	36.8	/	/
4	1	21.37	33.6	35.47	44.9	75.1
5	1	21.35	32.7	33.46	43.66	74.8
7	1	20.48	30.48	31.86	/	/
8	1	/	/	/	22.5	/
10	1	16.3	14.3	15.4	/	/
9	2	12.35	/	/	/	/
12	2	12.35	/	/	/	/
15	2	12.35	/	/	/	/
16	2	7.54	25.68	26.14	22..5	62.5
20	2	7.42	22.75	26.14	22.5	62.5
25	2	7.54	22.75	26.14	22..5	62.5
28	2	7.42	22.59	26.14	22.5	62.5
30	2	7.14	/	/	/	/
35	2	7.14	22.59	26.14	22.5	62.5
40	2	7.14	22.59	26.14	22..5	62.5
50	2	7.14	22.59	26.14	22.5	62.5
70	2	7.14	22.59	26.14	/	/
100	2	7.54	22.75	26.14	/	/
64	3	7.42	22.75	26.14	22.5	62.5
80	3	7.14	22.75	26.14	22..5	62.5
100	3	7.14	22.75	26.14	22.5	62.5
150	3	7.14	22.75	26.14	/	/
200	3	7.14	22.75	26.14	22.5	62.5
250	3	7.14	22.75	26.14	22..5	62.5
350	3	7.14	22.75	26.14	22.5	62.5
400	3	7.14	22.75	26.14	/	/
500	3	7.14	22.75	26.14	/	/
700	3	7.14	22.75	26.14	/	/
1000	3	7.14	22.75	26.14	/	/

Precision Bevel Teeth PLX Series Technical Parameters:

Moment of Inertia		PLX180	PLX220	PLX240	PLX280	PLX330	Speed Ratio	Pitch Number
Rated Output Torque	Nm	1320	/	/	/	/	3	1
		1650	2420	2560	5620	9800	4	1
		1650	2420	2560	5620	9800	5	1
		1250	1830	2010	/	/	7	1
		/	/	/	3520	/	8	1
		820	1150	1250	/	/	10	1
		1320	/	/	/	/	9	2
		1320	1150	1250	3520	8200	12	2
		1650	1150	1250	3520	8200	15	2
		1650	2420	2560	5620	9800	16	2
		1650	2420	2560	5620	9800	20	2
		1650	2420	2560	5620	9800	25	2
		1650	2420	2560	3520	9800	28	2
		1320	/	/	/	/	30	2
		1650	2420	2560	5620	9800	35	2
		1650	2420	2560	5620	9800	40	2
		1650	2420	2560	5620	9800	50	2
		1320	1830	2010	/	5000	70	2
		820	1150	1250	/	/	100	2
		1650	2420	2560	5620	9800	64	3
		1650	2420	2560	5620	9800	80	3
		1650	2420	2560	5620	9800	100	3
		1650	/	/	5620	9800	150	3
		1650	2420	2560	5620	9800	200	3
		1650	2420	2560	5620	9800	250	3
		1650	2420	2560	5620	9800	350	3
		1650	2420	2560	5620	9800	400	3
		1650	2420	2560	5620	9800	500	3
		1320	1830	2080	3520	5000	700	3
		820	1150	1250	/	3500	1000	3
Emergency stop torque	Nm	2 times rated output torque
Maximum radial force	N	14500	50000	60000	95000	125000
Maximum axial force	N	7250	25000	30000	70000	9000
Rated input speed n1	rpm	3000	2500	2500	2000	1500	3-1000
Maximum input speed n1	rpm	4000	4000	4000	3000	2500	3-1000
Super precision backspace P0	arcmin	/	/	/	/	/	/
Super precision backspace P0	arcmin	/	/	/	/	/	/
Precise backspace P1	arcmin	≤8	≤8	≤8	≤8	≤8	3-1000	1
		≤12	≤12	≤12	≤12	≤12	/	2
		≤15	≤15	≤15	≤15	≤15	/	3
Standard backspace P2	arcmin	≤10	≤10	≤10	≤10	≤10	/	1
		≤15	≤15	≤15	≤15	≤15	/	2
		≤18	≤18	≤18	≤18	≤18	/	3
Torsional rigidity	Nm/arcmin	2.8	7.5	15.5	48.5	77.2	3-100	1、2
Service temperature	℃	-20℃-+90℃
Average service life	h	20000
Full load efficiency	%	97						1
		95						2
		93						3
Protection class	/	IP65						1
								2
								3
Mounting direction	/	Any direction						1、2、3
Noise value	dba/m	≤70	≤70	≤70	≤70	≤70	3-100	1、2、3
Lubrication mode	/	All synthetic lubricating oils						1、2、3

PLX Series Planetary Reducer Technical Parameters

	Model	PLX180			PLX220			PLX240			PLX280			PLX330
	Stage	1	2	3	1	2	3	1	2	3	1	2	3	1	2	3
D	D1	180			220			240			280			340
	D2	215			250			265			315			370
	D3	13			17			18			18			22
	D4	16			20			20			22			25
	D5	59			79.5			79.5			85			95
	D6	M20*35			M20*35			M20*35			M20*35			M20*35
	D7	160			180			225			250			290
	D8	55			75			75			80			90
L	L1	304.5	362	415	398	447.5	486.5	398	447.5	486.5	410	520	582.5	/	602.5	684.5
	L2	106			140			140			145			/	153	153
	L3	85			108			108			105			/	120	120
	L4	20			30			30			35			/	30	30
	L5	25			25			25			30			/	30	30
	L6	10			10			10			10			/	10	10
	L7	65			90			90			90			/	100	100
C	C1	35			42			35			48	42	42	/	35	42
	C2	114.3			180			114.3			250	200	114.3	/	114.3	114.3
	C3	7			8			8			10	10	10	/	8	10
	C4	85			85			85			115	122	119.5	/	90	122
	C5	M12*24			M12*24			M12*24			M16*32	M12*30	M12*30	/	M12*30	M12*30
	C6	200			215			200			300	235	200	/	200	200
	C7	180			190			180			250	220	180	/	180	180
