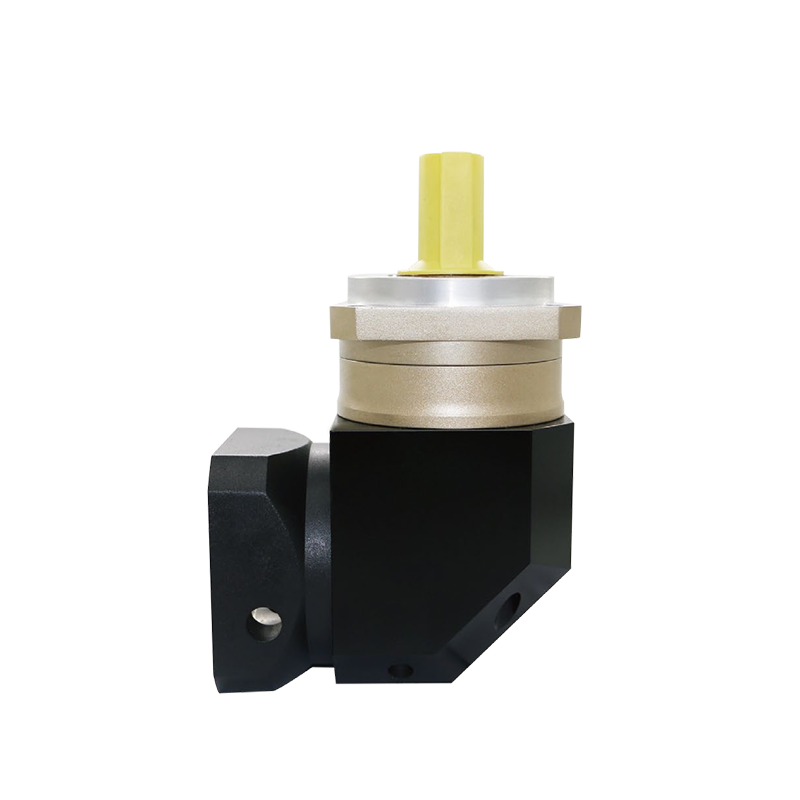

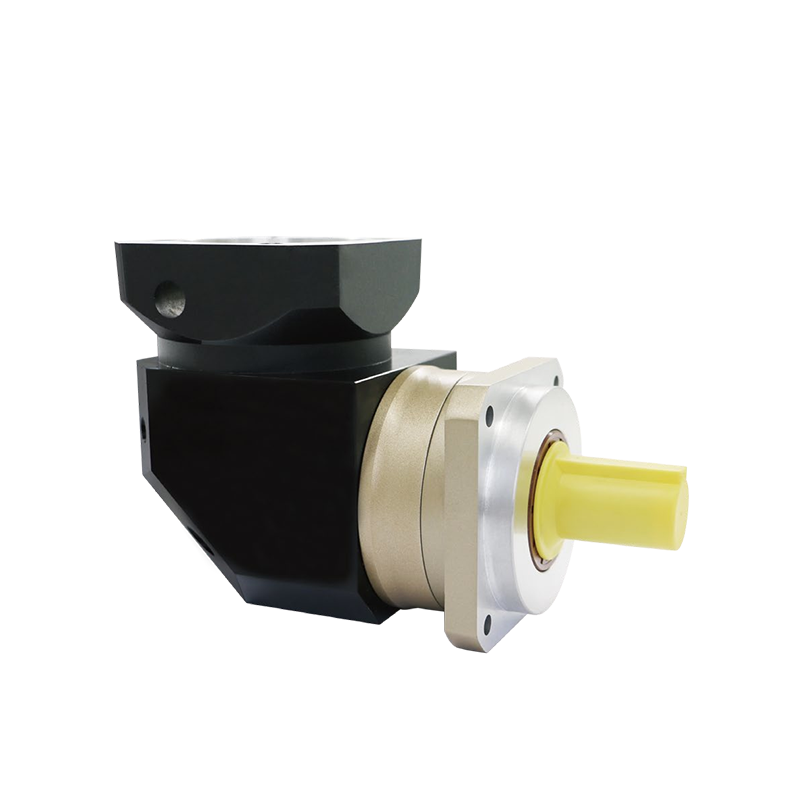

ZY AFR Series High Precision Planetary Reducer

The AFR Series High Precision Planetary Reducer is a right-angle precision gearbox designed for applications requiring compact structure, high torque transmission, and smooth motion control. It adopts advanced ISO4-grade gear grinding technology and an integrated planetary support system for superior accuracy and rigidity. With high transmission efficiency, long service life, and low backlash, the AFR reducer is ideal for servo systems, robotic arms, and CNC automation lines that demand stable, space-efficient performance.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

High Precision: Backlash less than 5 arc minutes for accurate motion control and servo positioning.

Right-Angle Design: Compact structure enables flexible installation and space-saving layout.

High Efficiency: ISO4 precision gear grinding and optimized tooth geometry ensure smooth and low-noise transmission.

Strong Durability: Gears made of low-carbon alloy forged steel, carburized and quenched to HRC60 hardness for long lifespan.

High Rigidity: Cage-type planetary support structure and integrated output shaft provide stability under heavy loads.

Universal Compatibility: Suitable for a wide range of servo motors and automation equipment.

Maintenance-Free: Synthetic grease lubrication with IP65 sealing ensures zero leakage and long-term reliable operation.

AFR Series Reducer Rotation Inertial Meter:

Speed Ratio	Pitch Number	AFR60 (kg.cm²)	AFR90 (kg.cm²)	AFR120(kg.cm²)	AFR140(kg.cm²)
3	1	0.2	0.81	3.25	9.21
4	1	0.16	0.65	2.74	7.54
5	1	0.15	0.62	2.71	7.42
7	1	0.14	0.6	2.62	7.25
10	1	0.14	0.6	2.57	7.14
9	2	0.15	0.6	0.47	7.03
12	2	0.15	0.62	0.47	7.03
15	2	0.15	0.62	0.47	7.03
16	2	0.15	0.62	0.47	2.71
20	2	0.15	0.62	0.47	2.71
25	2	0.15	0.62	0.47	2.71
28	2	0.14	0.6	0.47	2.71
30	2	0.14	0.6	0.47	2.71
35	2	0.14	0.6	0.47	2.71
40	2	0.14	0.6	0.47	2.71
50	2	0.14	0.6	0.47	2.71
70	2	0.14	0.6	0.47	2.71

Precision Bevel Teeth AFR Series Technical Parameters:

Moment of Inertia		AFR60	AFR90	AFR120	AFR140	Speed Ratio	Pitch Number
Rated Output Torque	Nm	46	125	210	450	3	1
		52	145	300	550	4	1
		55	155	320	650	5	1
		50	135	290	540	7	1
		42	105	220	440	10	1
		56	125	310	500	9	2
		56	145	310	500	12	2
		56	145	300	500	15	2
		52	145	320	550	16	2
		55	145	320	650	20	2
		55	155	320	650	25	2
		52	155	305	550	28	2
		55	145	320	650	30	2
		55	155	320	650	35	2
		55	155	320	650	40	2
		55	155	320	650	50	2
		55	155	320	650	70	2
		42	105	220	440	100	2
Emergency stop torque	Nm	3 times rated output torque
Maximum radial force	N	1550	3250	6700	9600	3-100
Maximum axial force	N	775	1625	3350	4800	3-100
Rated input speed n1	rpm	4000	3000	3000	3000	3-100
Maximum input speed n1	rpm	6000	6000	6000	6000	3-100
Super precision backspace P0	arcmin	≤3	≤3	≤3	≤3	≤3	1
Super precision backspace P0	arcmin	≤5	≤5	≤5	≤5	≤5	2
Precise backspace P1	arcmin	≤5	≤5	≤5	≤5	≤5	1
Precise backspace P1	arcmin	≤7	≤7	≤7	≤7	≤7	2
Standard backspace P2	arcmin	≤7	≤7	≤7	≤7	≤7	1
Standard backspace P2	arcmin	≤9	≤9	≤9	≤9	≤9	2
Torsional rigidity	Nm/arcmin	2.8	7.5	15.5	48.5	3-100	1、2
Service temperature	℃	-20℃-+90℃
Average service life	h	20000
Full load efficiency	%	97					1
Full load efficiency	%	95					2
Protection class	/	IP65					1
Protection class	/	IP65					2
Mounting direction	/	Any direction					1、2
Noise value	dba/m	≤60	≤60	≤60	≤60	3-100	1、2
Lubrication mode	/	All synthetic lubricating oils					1、2

AFR Series Planetary Reducer Technical Parameters

	Model	AFR60			AFR90			AFR120			AFR140
	Stage	1	2	3	1	2	3	1	2	3	1	2	3
D	D1	60			90			120			140
	D2	5.5			6.5			8.8			11
	D3	70			100			130			16.5
	D4	5			6			10			12
	D5	16			24.5			38			43
	D6	M5*15			M6*15			M10*25			M12*25
	D7	50			80			110			130
	D8	14			22			32			/
L	L1	79	105.5	132	100	132	164	138.5	180.5	222.5	162.6	223.6	284.6
	L2	35.5			47			62			96.5
	L3	28			36			50			80
	L4	20			31			45			65
	L5	6			10			11			15
	L6	6.5			12			15			12
C	C1	14			19			22			35
	C2	50			70			110			114.3
	C3	5			8			10			10
	C4	33			47			65			84
	C5	58			89			119			154
	C6	M4*10			M6*15			M8*20			M12*24
	C7	70			90			145			200
	C8	60			90			120			180

Right angle planetary gear reducer precision servo gearbox compact planetary reducer
