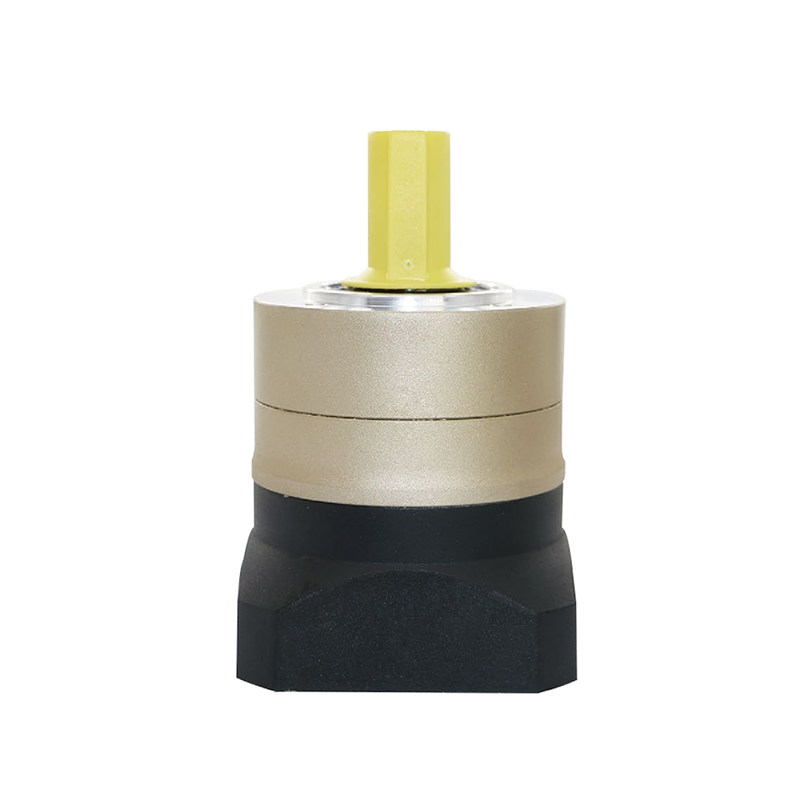

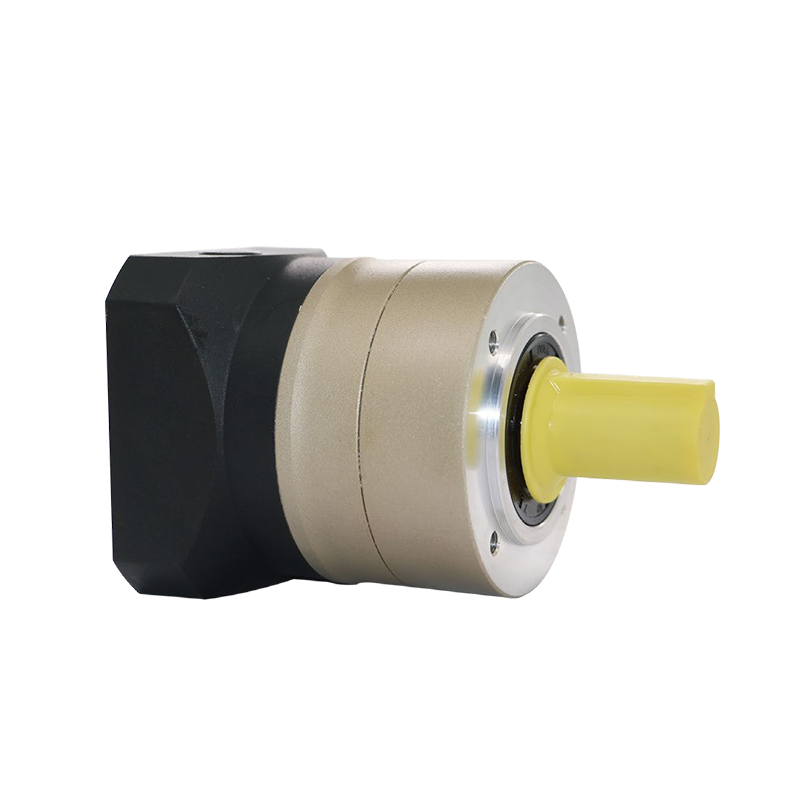

ZY AE Series High Precision Planetary Reducer

The AE Series High Precision Planetary Reducer is engineered for high-performance motion control applications requiring superior accuracy, rigidity, and durability. Utilizing advanced gear grinding technology and precision machining, the AE series achieves ultra-low backlash and exceptional torque output. Its robust structure, premium materials, and IP65 sealed design ensure long service life, stable performance, and maintenance-free operation, making it ideal for servo motors and automation systems.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

High Precision: Backlash less than 5 arc minutes ensures accurate positioning and repeatability.

Advanced Gear Technology: Manufactured with ultra-precision machine tools and world-class grinding technology to achieve ISO4-level accuracy.

Durable Gear Material: Made from high-grade low-carbon alloy forged steel, carburized and quenched to HRC60 for superior strength and long service life.

Integrated Planetary Carrier Design: Cage-type carrier structure with integrated output shaft delivers higher rigidity and precision.

Enhanced Torque Output: Full needle roller bearings without cages increase load capacity and transmission rigidity.

Wide Compatibility: Compatible with all major servo motor brands worldwide.

Sealed and Maintenance-Free: Uses synthetic grease and IP65 sealing design to ensure no leakage and zero maintenance.

AE Series Reducer Rotation Inertial Meter:

Product Model		AE60	AE90	AE120	AE160	Speed Ratio	Pitch Number
Moment of Inertia	kg/cm²	0.2	0.81	3.25	9.21	3	1
		0.16	0.65	2.74	7.54	4
		0.15	0.62	2.71	7.42	5
		0.14	0.6	2.62	7.25	7
		0.14	0.6	2.57	7.14	10
		0.15	0.6	0.47	7.03	9	2
		0.15	0.62	0.47	7.03	12
		0.15	0.62	0.47	7.03	15
		0.15	0.62	0.47	2.71	16
		0.15	0.62	0.47	2.71	20
		0.15	0.62	0.47	2.71	25
		0.14	0.6	0.47	2.71	28
		0.14	0.6	0.47	2.71	30
		0.14	0.6	0.47	2.71	35
		0.14	0.6	0.47	2.71	40
		0.14	0.6	0.47	2.71	50
		0.14	0.6	0.47	2.71	70

Precision Bevel Teeth AE Series Technical Parameters:

Moment of Inertia		AE60	AE90	AE120	AE160	Speed Ratio	Pitch Number
Rated Output Torque	Nm	46	125	210	450	3	1
		52	145	300	550	4
		55	155	320	650	5
		50	135	290	540	7
		42	105	220	440	10
		56	125	310	500	9	2
		56	145	310	500	12
		56	145	300	500	15
		52	145	320	550	16
		55	145	320	650	20
		55	155	320	650	25
		52	155	305	550	28
		55	145	320	650	30
		55	155	320	650	35
		55	155	320	650	40
		55	155	320	650	50
		55	155	320	650	70
		42	105	220	440	100
Emergency stop torque	Nm	3 times rated output torque
Maximum radial force	N	1550	3250	6700	9600	3-100
Maximum axial force	N	775	1625	3350	4800	3-100
Rated input speed n1	rpm	4000	3000	3000	3000	3-100
Maximum input speed n1	rpm	6000	6000	6000	6000	3-100
Super precision backspace P0	arcmin	≤1	≤1	≤1	≤1	≤1	1
Super precision backspace P0	arcmin	≤3	≤3	≤3	≤3	≤3	2
Precise backspace P1	arcmin	≤3	≤3	≤3	≤3	≤3	1
Precise backspace P1	arcmin	≤5	≤5	≤5	≤5	≤5	2
Standard backspace P2	arcmin	≤5	≤5	≤5	≤5	≤5	1
Standard backspace P2	arcmin	≤7	≤7	≤7	≤7	≤7	2
Torsional rigidity	Nm/arcmin	2.8	7.5	15.5	48.5	3-100	1、2
Service temperature	℃	-20℃-+90℃
Average service life	h	20000
Full load efficiency	%	97
Full load efficiency	%	95
Protection class	/	IP65
Protection class	/	IP65
Mounting direction	/	Any direction
Noise value	dba/m	≤60	≤60	≤60	≤60	3-100	1、2
Lubrication mode	/	All synthetic lubricating oils				3-100	1、2

AE Series Planetary Reducer Technical Parameters

	Model	AE60			AE90			AE120			AE160
	Stage	1	2	3	1	2	3	1	2	3	1	2	3
D	D1	62			80			108			145
	D2	M5*12			M6*12			M8*16			M12*24
	D3	5			6			10			12
	D4	18			24.5			35			43
	D5	M5*12			M6*15			M10*25			M12*30
	D6	52			68			90			130
	D7	16			22			32			40
	D8	70			89			120			162
L	L1	115	141.5	168	140	172	204	201	243	285	254.5	315.5	376.5
	L2	35.5			45			61.5			96.5
	L3	28			36			50			80
	L4	21			30			45			66
	L5	6			8			10			15
C	C1	14			19			22			35
	C2	50			70			110			114.3
	C3	5			8			10			10
	C4	35			45			60			82.5
	C5	M4*10			M5*12			M8*20			M12*24
	C6	70			90			145			200
	C7	60			90			130			180

Planetary gear reducer precision gearbox servo motor reducer
