Machine Features:
High Head & Large Flow Output:
Designed to deliver strong water pressure and stable flow, suitable for long-distance and high-demand water transfer.
High Efficiency up to 84%:
Optimized hydraulic structure reduces energy consumption and improves overall operating efficiency.
Durable Industrial Structure:
Cast iron pump casing and impeller combined with a 45# steel shaft ensure long-term reliability.
Low Vibration & Low Noise Operation:
Balanced design provides smooth operation, ideal for continuous-duty applications.
Wide Application Compatibility:
Suitable for irrigation, municipal water supply, fire-fighting systems, cooling circulation, and industrial water transport.
Flexible Customization Support:
Power configuration, motor type, and cable length can be customized according to project requirements.
Products Specification:
| Item | Specification |
| Product Type | Horizontal Electric Centrifugal Water Pump |
| Structure | Single-stage Pump |
| Rated Power | 80 HP / 75 HP / 55 kW |
| Flow Capacity | 250 m³/h |
| Head | 32 m |
| Pressure | 4 MPa |
| Efficiency | Up to 84% |
| Inlet Size | 8 inch |
| Outlet Size | 8 inch |
| NPSHr | 5 m |
| Shaft Seal | Mechanical Seal |
| Pump Casing Material | Cast Iron |
| Impeller Material | Cast Iron |
| Shaft Material | 45# Steel |
| Applicable Temperature | ≤ 120℃ |
| Power Source | Electric |
| Customization Support | OEM / ODM |
| Warranty | 1 Year |

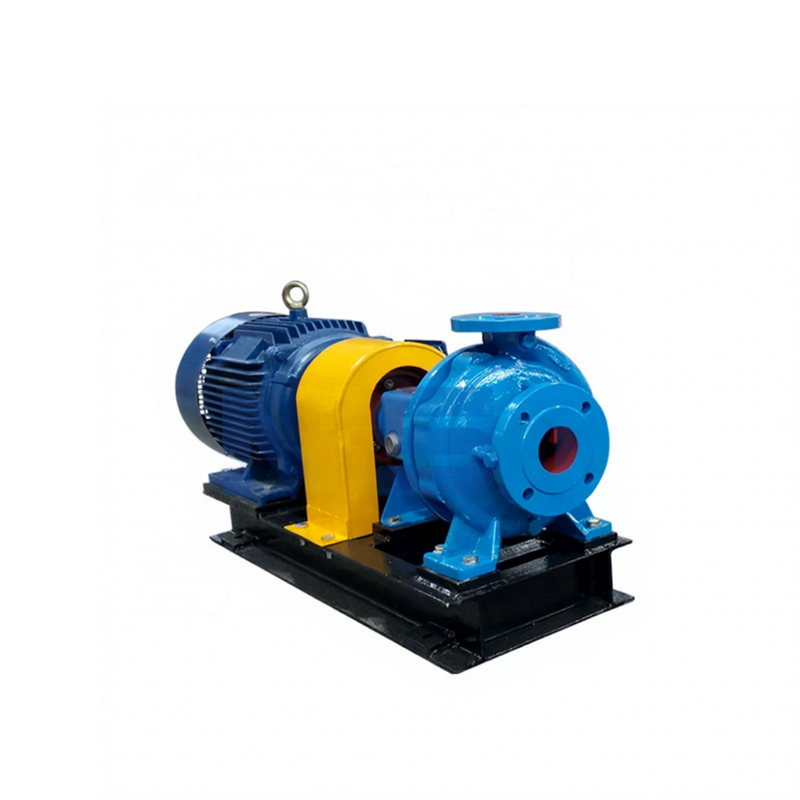

Products Pictures:
