| Quantity: | |
|---|---|
Machine Features:
Designed for Cryogenic Liquids:
Suitable for LO₂, LN₂, LAr, LNG and other cryogenic media under low-temperature conditions.
Compact & Stable Structure:
Small footprint with optimized internal structure for easy installation and stable operation.
High Safety Materials:
Key components made of stainless steel and cryogenic-grade materials to ensure safety in liquid oxygen applications.
Reliable Mechanical Seal:
Strong cavitation resistance, long service life, and easy maintenance.
Balanced Rotor Design:
Impeller and rotor undergo dynamic and static balance testing to reduce vibration and improve stability.
Optional Variable Frequency Control:
Variable frequency motor available to cover a wider range of flow rates and heads.
Smooth Pipeline Connection:
Inlet and outlet flanges with flexible connection and inlet filter reduce pipeline vibration.
Customization Support:
Motor power, voltage, outlet size, and configurations can be customized (OEM / ODM / OBM).
Products Specification:
| Item | Specification |
| Product Type | Cryogenic Centrifugal Pump |
| Applicable Media | Liquid Oxygen (LO₂), Liquid Nitrogen (LN₂), Liquid Argon (LAr), LNG |
| Pump Structure | Centrifugal Pump |
| Flow Rate | 24 m³/h |
| Head | 90 m |
| Pressure | Low Pressure |
| Motor Power | 18.5 kW (Customizable) |
| Speed | 2935 r/min |
| Power Source | Electric |
| Voltage Options | 220V / 380V / Customizable |
| Frequency | 50 Hz / 60 Hz |
| Material | Stainless Steel |
| Shaft Material | Low-temperature Stainless Steel |
| Shaft Seal | Mechanical Seal |
| Efficiency | 54% |
| Outlet Size | Customizable |
| Color | Blue (Customizable) |
| Optional Configuration | Variable Frequency Motor, Safety Valve, Cryogenic Stop Valve |
| Customization Support | OEM / ODM / OBM |
| Warranty | 1 Year |

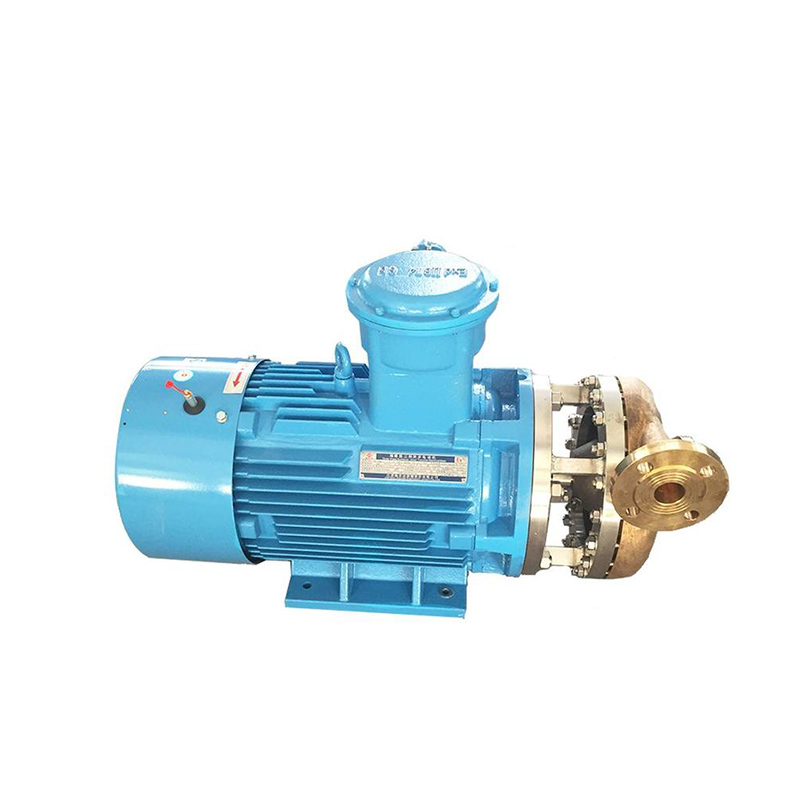

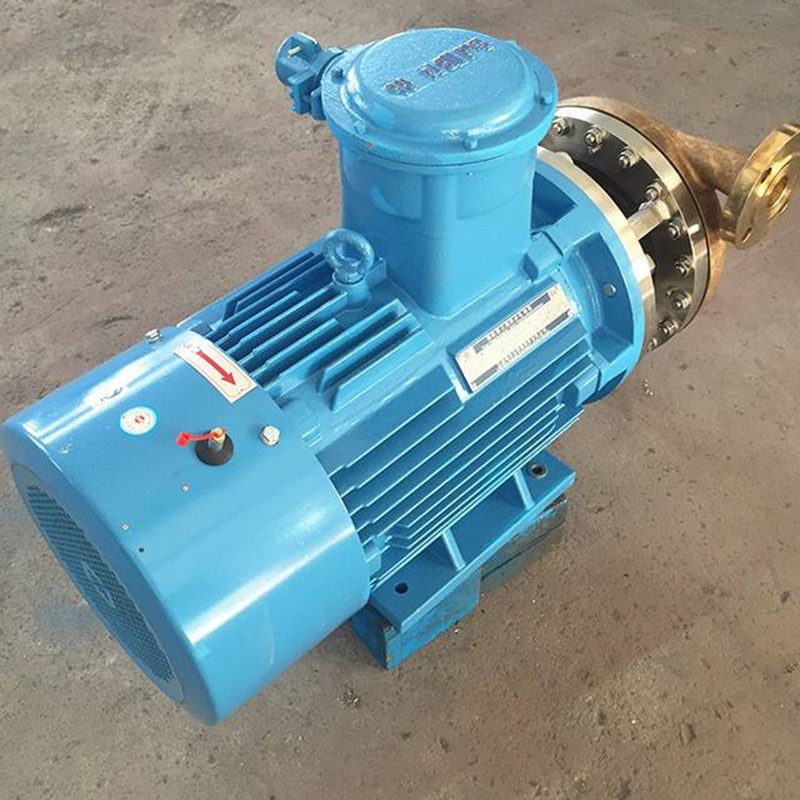

Products Pictures:
