Machine Features:
Large Flow Double Suction Design:
Double suction impeller enables high flow capacity with balanced axial force and smooth operation.
Horizontal Split Case Structure:
Pump casing opens horizontally, allowing inspection and maintenance without removing pipes or motor.
Wide Operating Range:
Flow rate up to 12,500 m³/h and head up to 140 m, suitable for large-scale water systems.
High Pressure Capability:
Designed for working pressure up to 4.0 MPa, suitable for industrial and municipal applications.
Flexible Shaft Sealing Options:
Standard gland packing seal, with mechanical seal available upon request.
Material Adaptability:
By selecting different impeller and wear materials, the pump can handle clean water or water with light sediment.
Reliable Bearing Configuration:
Optimized bearing structure ensures stable operation and long service life under continuous duty.
Wide Application Compatibility:
Suitable for water supply, irrigation, water treatment, mining, flood control, boiler feed water, and industrial circulation systems.
Customization Support:
Power, voltage, outlet size, materials, and sealing configuration can be customized (OEM / ODM / OBM).
Products Specification:
| Item | Specification |
| Product Type | Double Suction Centrifugal Water Pump |
| Pump Structure | Single-stage, Horizontally Split |
| Shaft Position | Horizontal |
| Impeller Type | Double Suction |
| Pressure | ≤ 4.0 MPa |
| Flow Rate Range | 112 – 12,500 m³/h |
| Head Range | 5.6 – 140 m |
| Power Range | 22 – 2240 kW |
| Outlet Size | 6 inch – 48 inch |
| Power Source | Electric Motor |
| Voltage Options | 220 / 240 / 380 / 415 V (Customizable) |
| Applicable Temperature | -20 ℃ to 120 ℃ |
| Pump Material | Cast Iron / Stainless Steel (Optional) |
| Impeller Material | Cast Iron / Stainless Steel (Optional) |
| Shaft Seal Type | Gland Packing / Mechanical Seal |
| Applicable Media | Clean water or light sediment water |
| Typical Applications | Water Treatment, Irrigation, Mining, Industrial Utilities, Flood Control |
| Customization Support | OEM / ODM / OBM |
| Warranty | 1 Year |

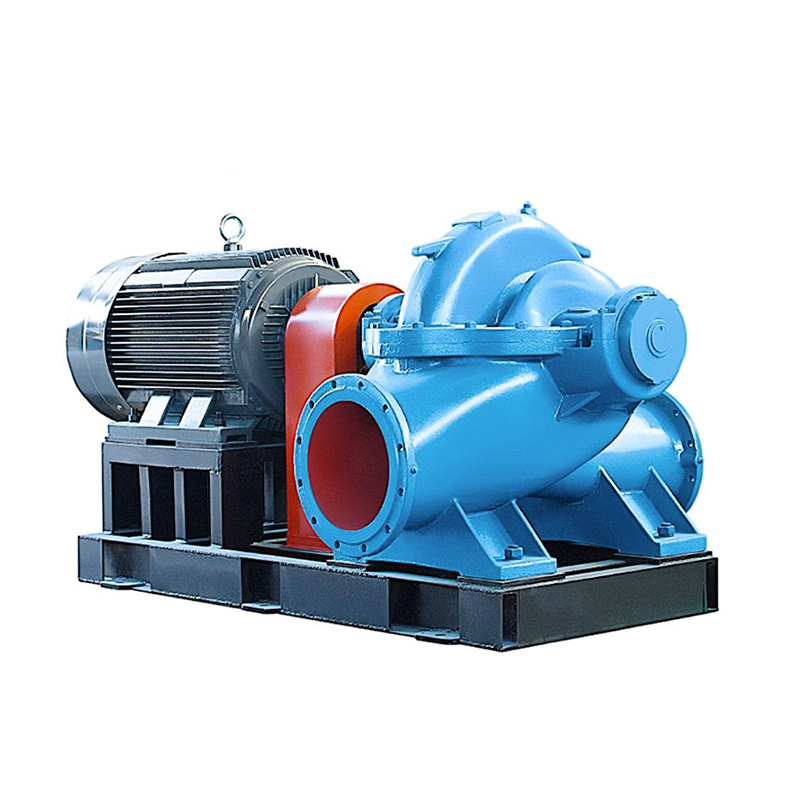

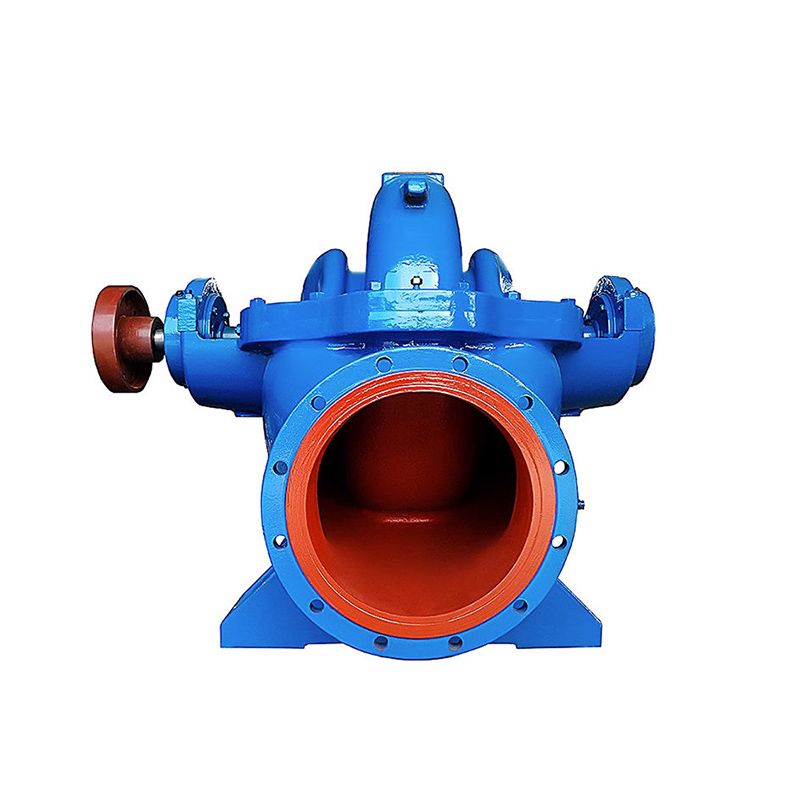

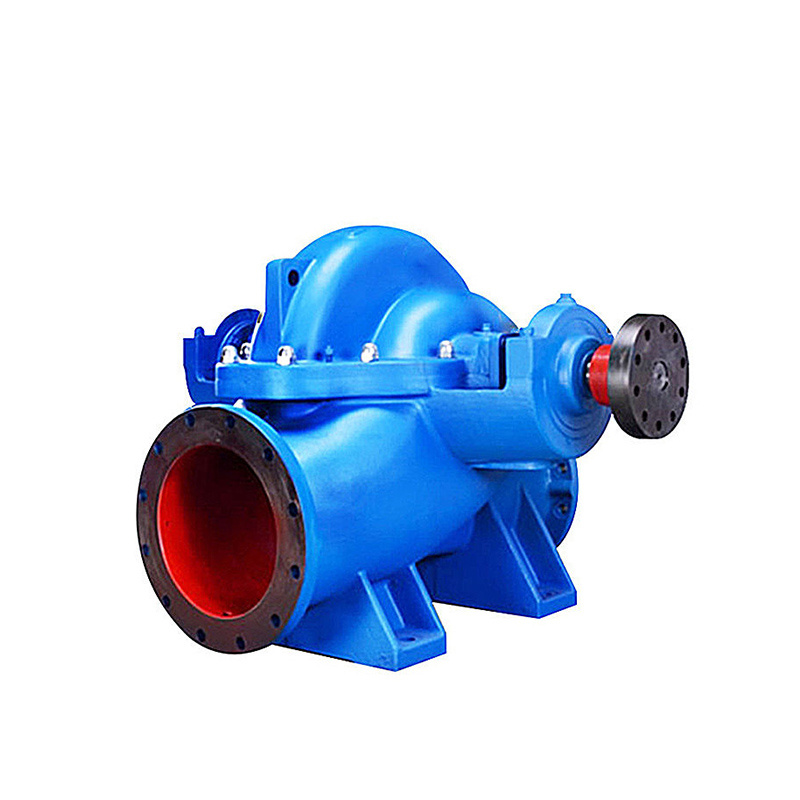

Products Pictures:
