Machine Features:
Auto Coupling Installation System:
Allows easy installation and removal along the guide rail without dismantling pipelines, improving maintenance efficiency and safety.
Non-Clog Hydraulic Design:
Optimized impeller structure ensures smooth flow when handling solids and long fibrous wastewater.
High Strength Pump Construction:
Cast iron pump body provides durability and long service life in industrial wastewater applications.
Multiple Impeller Options:
Single-vane, double-vane, or multi-vane impellers available to match different flow and solid-handling requirements.
Advanced Dual Mechanical Seal System:
Dual mechanical seals with oil bath lubrication provide reliable sealing between motor and wet end.
Built-in Motor Cooling System:
Supports safe operation when fully submerged or operating above water level; optional external cooling available.
High Motor Protection & Monitoring:
IP68 motor protection, Class F insulation, and built-in temperature sensors protect the motor under continuous operation.
Leakage Protection Design:
Oil chamber water leakage probe detects abnormal conditions and cuts off power to prevent motor damage.
Guide Rail Configuration Available:
Standard guide rail length configurable to suit different pump pit depths and installation requirements.
Products Specification:
| Item | Specification |
| Product Type | Auto Coupling Submersible Sewage Pump |
| Installation Type | Submersible with Auto Coupling & Guide Rail |
| Application | Industrial Wastewater / Sewage / Effluent |
| Power Source | Electric |
| Rated Power | Up to 30 kW (Customizable) |
| Horsepower | Up to 40 HP |
| Flow Range | 15 – 800 m³/h |
| Head Range | 12 – 60 m |
| Rated Pressure | Up to 30 m |
| Outlet Size | 6 inch |
| Voltage Options | 220 – 440 V |
| Pump Structure | Submersible Centrifugal Pump |
| Pump Material | Cast Iron |
| Shaft Material | Stainless Steel |
| Motor Protection | IP68 |
| Motor Insulation Class | Class F |
| Cooling System | Built-in (External Cooling Optional) |
| Seal Type | Dual Mechanical Seal (Oil Bath Lubricated) |
| Guide Rail Length | Customizable |
| Cable Length | Customizable |
| Efficiency | Up to 52% |
| Customization Support | OEM / ODM |
| Warranty | 1 Year |

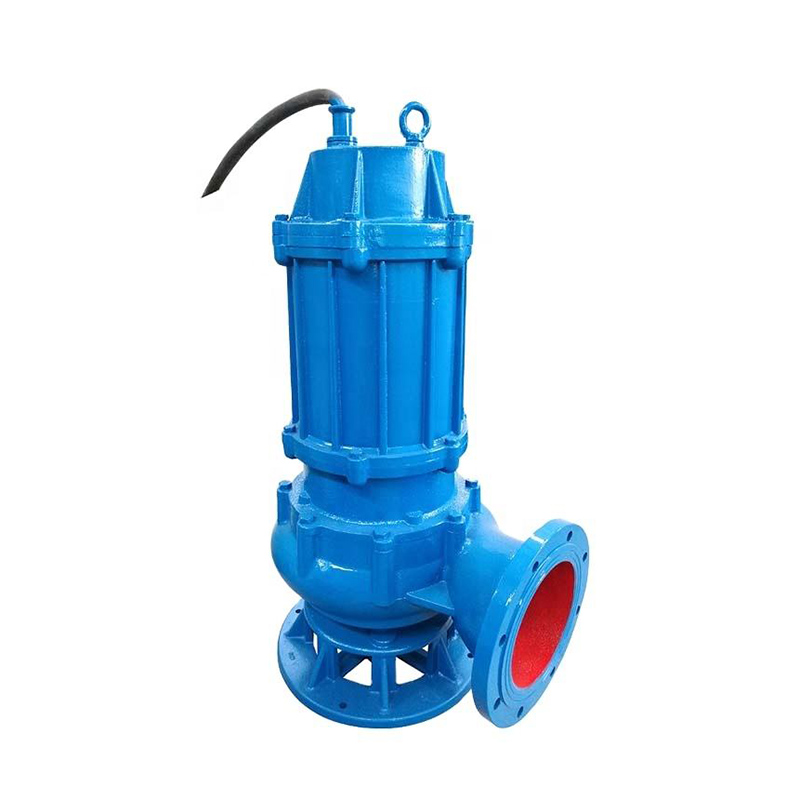

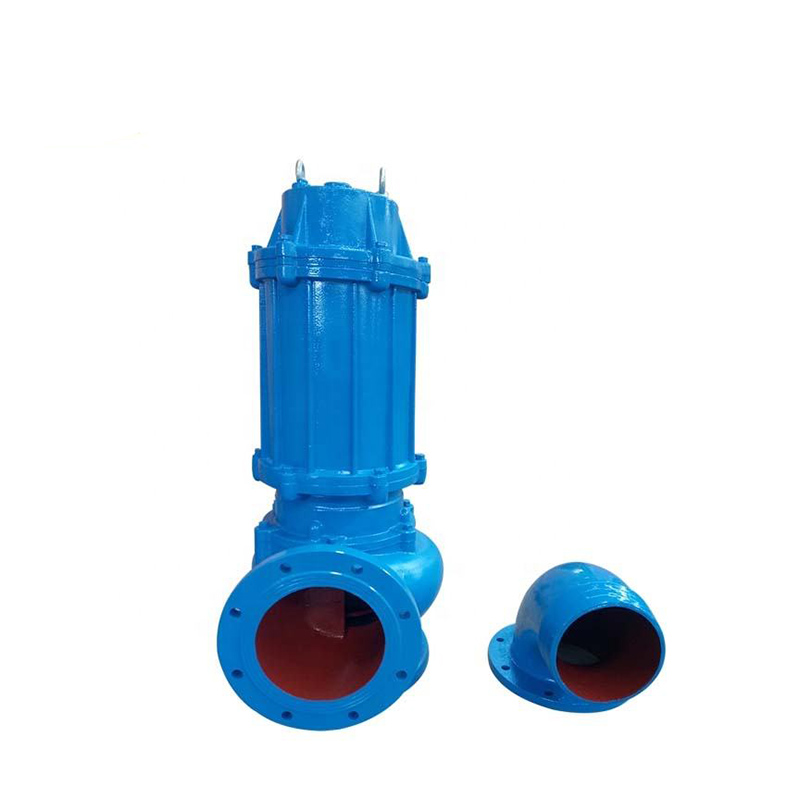

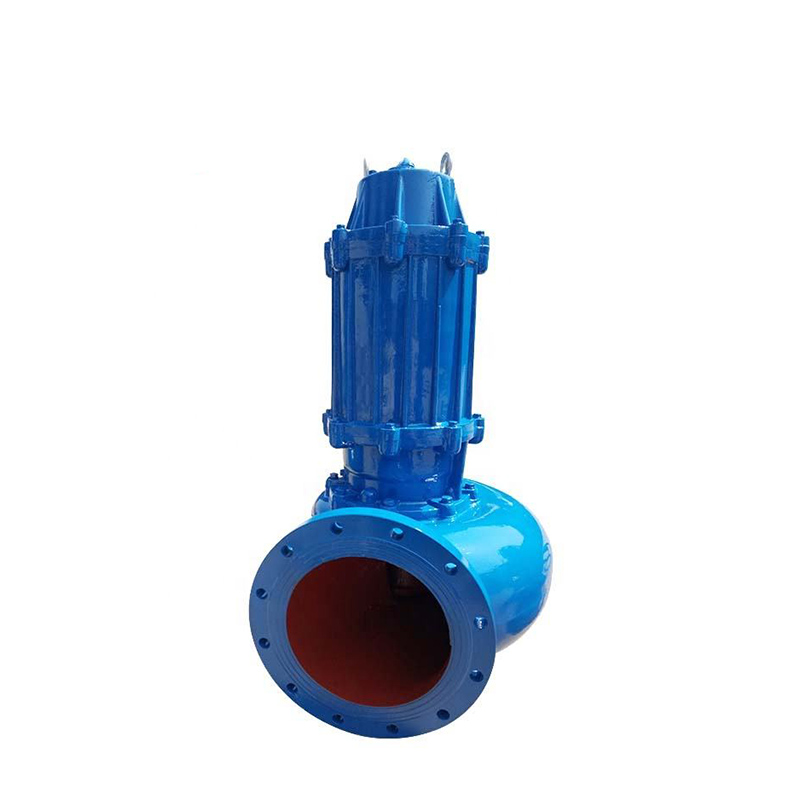

Products Pictures:
