Machine Features:
Self-Priming Centrifugal Design:
After initial filling, the pump can restart without repeated priming, improving convenience and efficiency.
Horizontal Single-Stage Structure:
Compact and space-saving design allows easy installation and stable operation.
Semi-Open Impeller:
Enhances the ability to handle water with light impurities, suitable for irrigation and drainage use.
Reliable Mechanical Shaft Seal:
Stainless steel and ceramic sealing materials help prevent leakage and extend service life.
Three-Phase Electric Motor Drive:
Provides stable power output for continuous agricultural and water transfer applications.
Durable Cast Iron Construction:
Pump body made of cast iron ensures strength and long-term reliability.
Low Pressure Water Transfer:
Designed for low-pressure irrigation and water circulation systems.
Customizable Configuration:
Power, outlet size, and installation details can be customized to meet different project needs (OEM / ODM).
Products Specification:
| Item | Specification |
| Product Type | Self-Priming Centrifugal Pump |
| Installation Type | Horizontal |
| Pump Structure | Single-stage |
| Application | Irrigation / Agricultural Water Transfer |
| Power Source | Electric |
| Motor Type | Three-Phase Motor |
| Rated Power | 11 kW (15 HP) |
| Rotational Speed | 2900 RPM |
| Outlet Size | DN80 mm |
| Discharge Pipe Size | DN15–DN20 |
| Pump Body Material | Cast Iron |
| Impeller Type | Semi-Open |
| Sealing Material | Stainless Steel / Ceramic |
| Pump Principle | Centrifugal |
| Operating Pressure | Low Pressure |
| Liquid Type | Clean Water |
| Motor Enclosure | Totally Enclosed |
| Customization Support | OEM / ODM |
| Warranty | 1 Year |

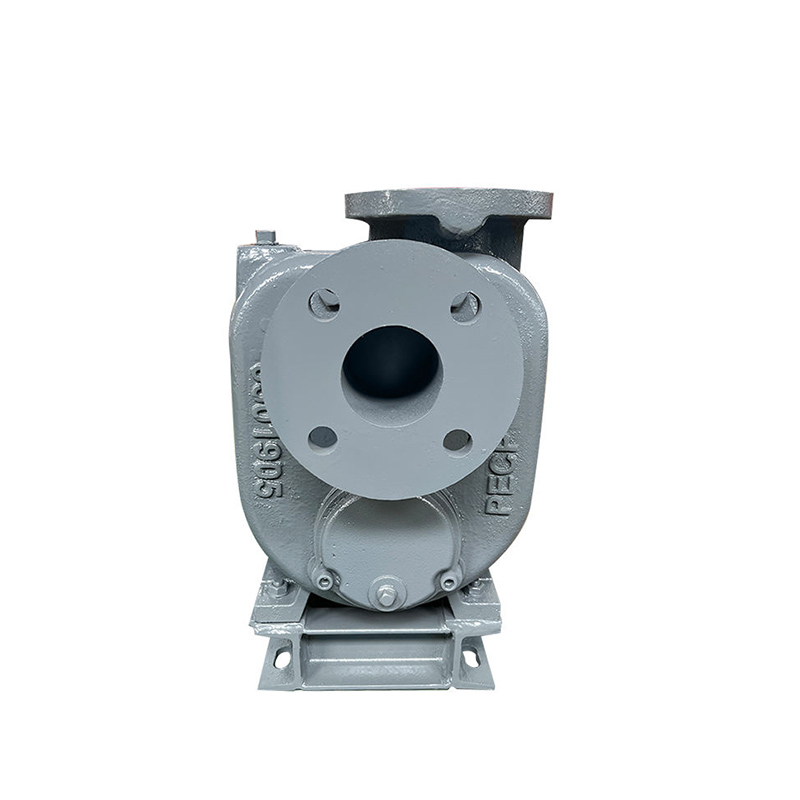

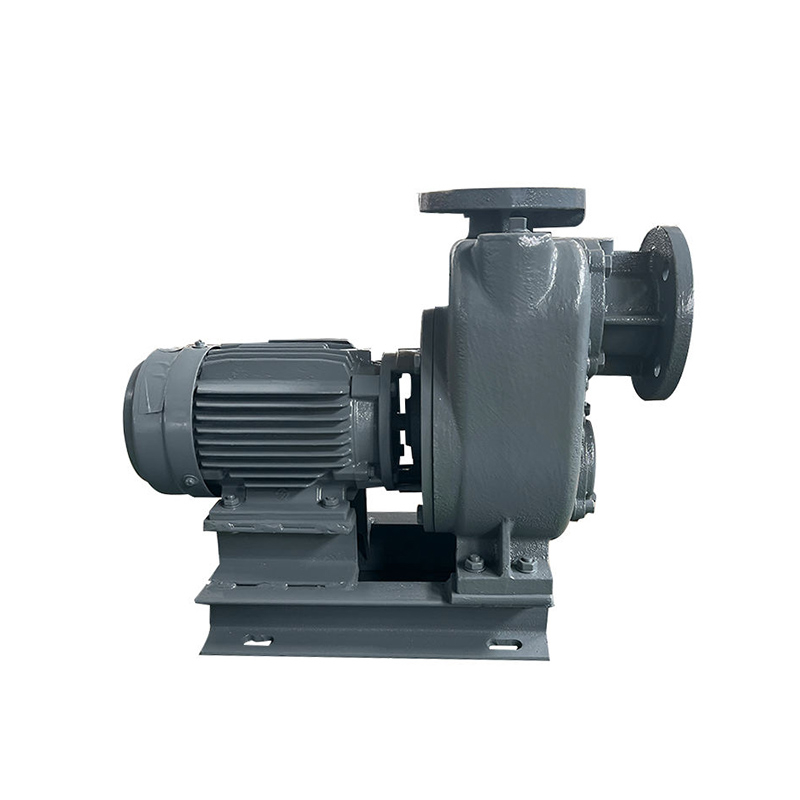

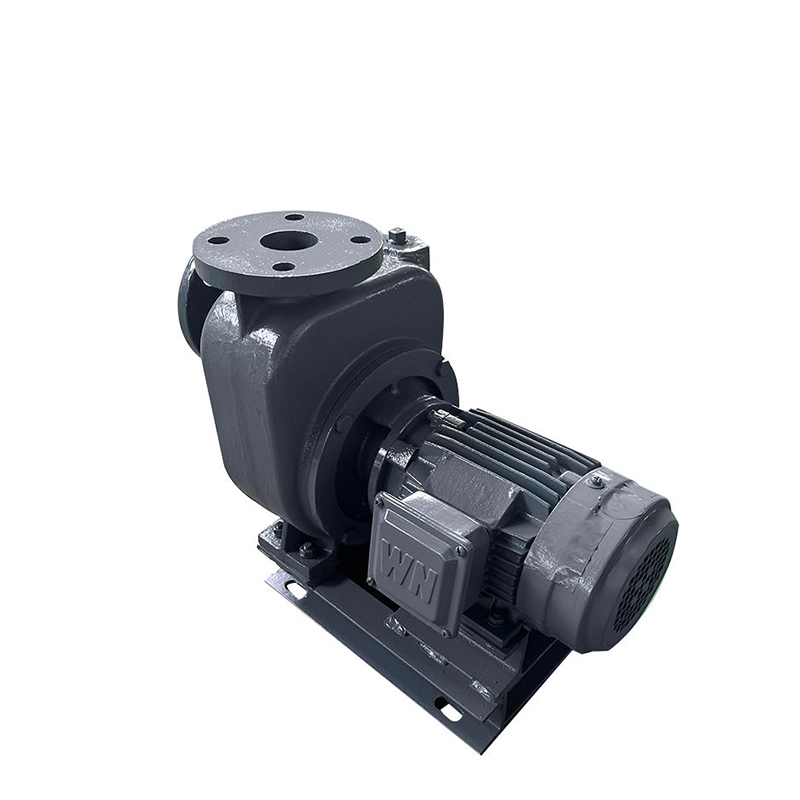

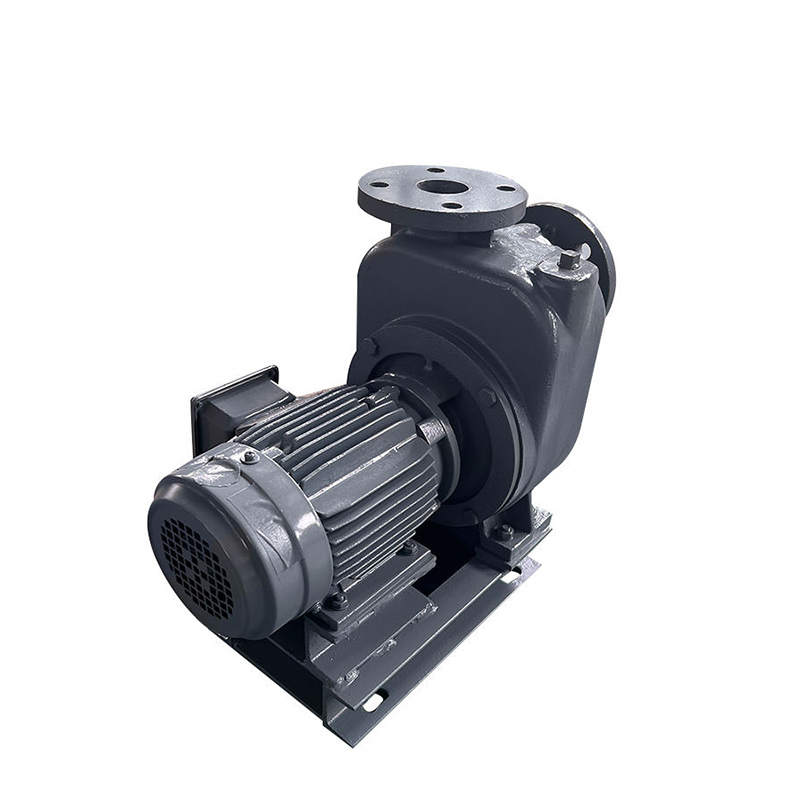

Products Pictures:
Machine Features:
Self-Priming Centrifugal Design:
After initial filling, the pump can restart without repeated priming, improving convenience and efficiency.
Horizontal Single-Stage Structure:
Compact and space-saving design allows easy installation and stable operation.
Semi-Open Impeller:
Enhances the ability to handle water with light impurities, suitable for irrigation and drainage use.
Reliable Mechanical Shaft Seal:
Stainless steel and ceramic sealing materials help prevent leakage and extend service life.
Three-Phase Electric Motor Drive:
Provides stable power output for continuous agricultural and water transfer applications.
Durable Cast Iron Construction:
Pump body made of cast iron ensures strength and long-term reliability.
Low Pressure Water Transfer:
Designed for low-pressure irrigation and water circulation systems.
Customizable Configuration:
Power, outlet size, and installation details can be customized to meet different project needs (OEM / ODM).
Products Specification:
| Item | Specification |
| Product Type | Self-Priming Centrifugal Pump |
| Installation Type | Horizontal |
| Pump Structure | Single-stage |
| Application | Irrigation / Agricultural Water Transfer |
| Power Source | Electric |
| Motor Type | Three-Phase Motor |
| Rated Power | 11 kW (15 HP) |
| Rotational Speed | 2900 RPM |
| Outlet Size | DN80 mm |
| Discharge Pipe Size | DN15–DN20 |
| Pump Body Material | Cast Iron |
| Impeller Type | Semi-Open |
| Sealing Material | Stainless Steel / Ceramic |
| Pump Principle | Centrifugal |
| Operating Pressure | Low Pressure |
| Liquid Type | Clean Water |
| Motor Enclosure | Totally Enclosed |
| Customization Support | OEM / ODM |
| Warranty | 1 Year |
Products Pictures:
