Machine Features:
Non-Clog Hydraulic Design:
Special impeller structure improves solid-passing capacity and reduces blockage during sewage discharge.
Optional Automatic Mixing Function:
Integrated mixing device rotates with the motor shaft to generate strong stirring force, suspending sediment for efficient pumping.
Optional Cutting Structure:
Cutting plate design assists in breaking down impurities without affecting water intake or mixing performance.
Double-End Mechanical Seal:
Dual mechanical seals operate in an oil chamber, ensuring reliable sealing and safe long-term operation.
Hydrodynamic Sub-Impeller Seal:
Auxiliary sealing structure balances axial force, protects the mechanical seal, and extends bearing service life.
Thermal & Overload Protection:
Built-in thermal protector automatically cuts off power during overload or overheating and restarts after cooling.
Leakage Detection Ready:
Optional water leakage detection probe can trigger protective control when leakage is detected.
Wide Power & Flow Range:
Suitable for different project scales, from small pumping stations to large wastewater treatment systems.
Custom Control Options:
Supports manual, semi-automatic, or full protection control cabinet configurations.
Products Specification:
| Item | Specification |
| Product Type | Submersible Sewage Pump |
| Installation Type | Vertical, Submersible |
| Pump Structure | Single-stage |
| Application | Wastewater / Sewage Treatment |
| Power Source | Electric |
| Power Range | 2.2 – 250 kW |
| Horsepower Range | 3 – 340 HP |
| Flow Rate Range | 20 – 200 m³/h |
| Head Range | 5.6 – 330 m |
| Operating Pressure | 0.1 – 10 bar |
| Outlet Size | 50 – 500 mm |
| Outlet Type | Universal |
| Pump Body Material | Cast Iron / Stainless Steel |
| Impeller Material | Stainless Steel |
| Motor Type | AC Copper Wire Motor |
| Control Method | Manual / Semi-Automatic (Optional Cabinet) |
| Liquid Type | Wastewater / Sewage |
| Surface Treatment | Protective Coating |
| Customization Support | OEM / ODM / OBM |
| Warranty | 1 Year |

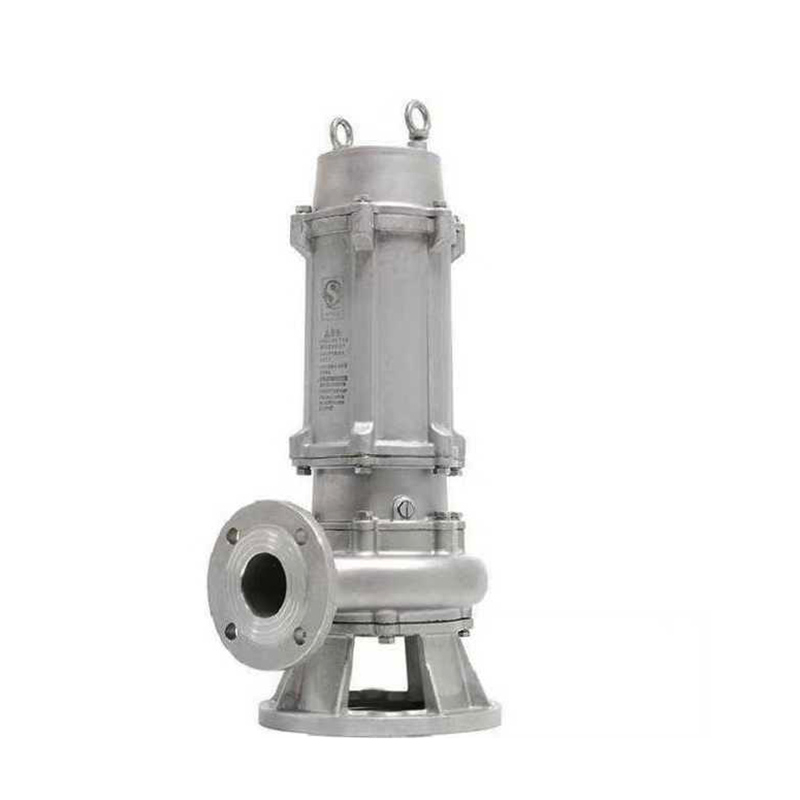

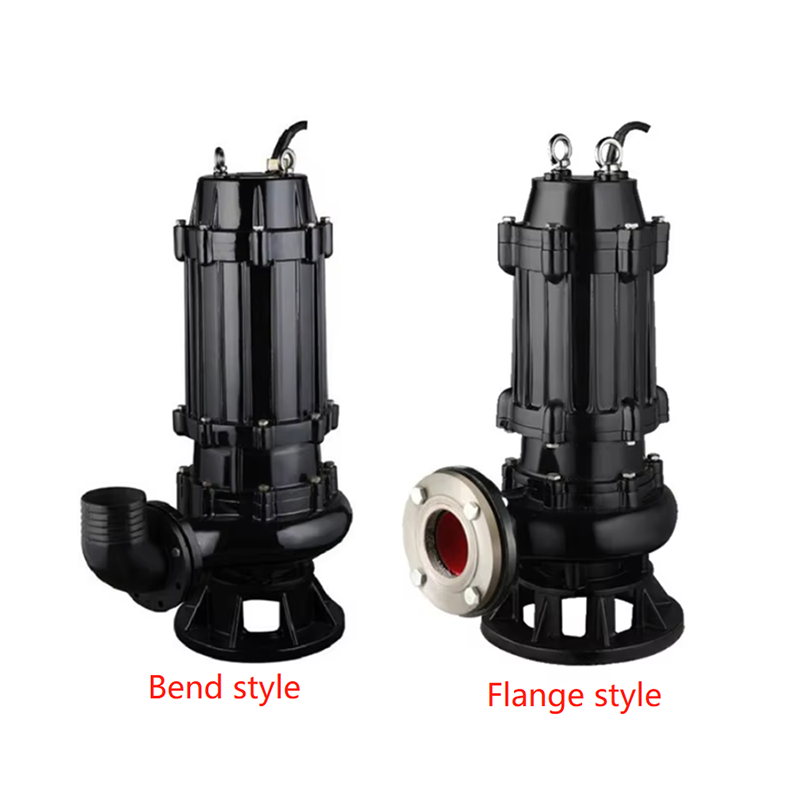

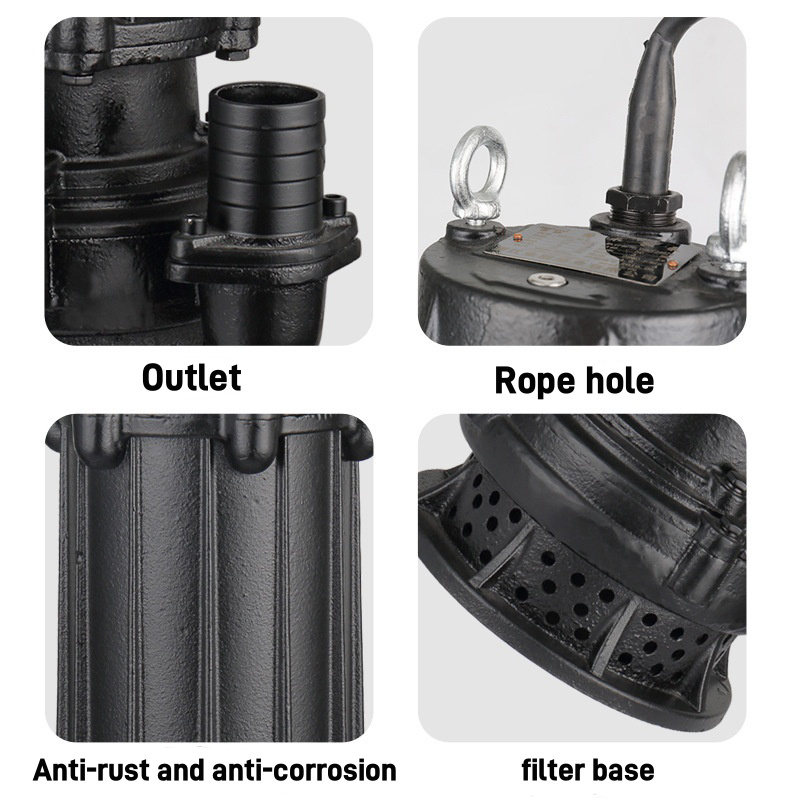

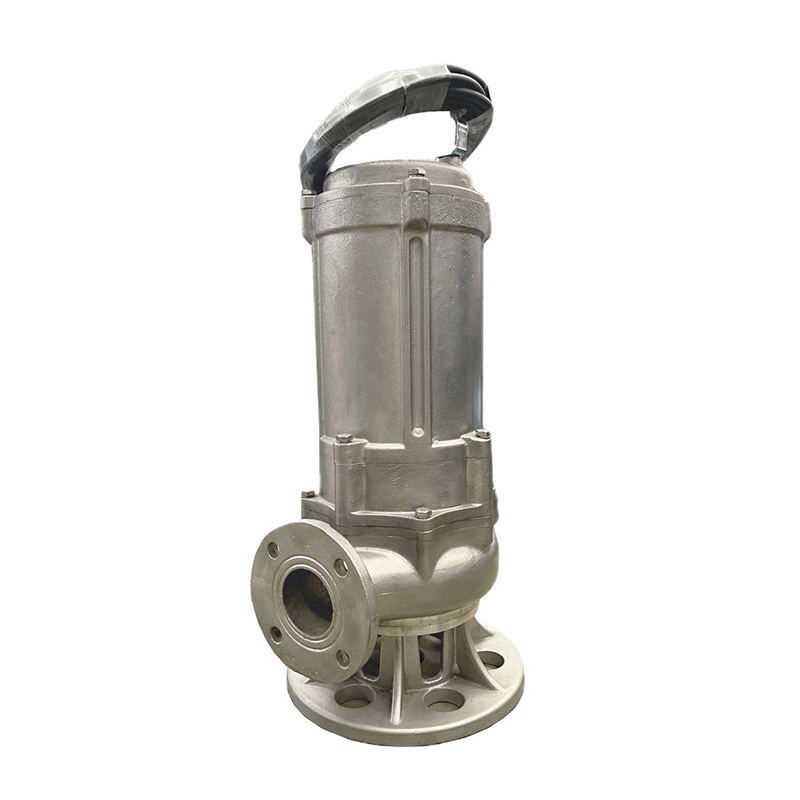

Products Pictures:
Machine Features:
Non-Clog Hydraulic Design:
Special impeller structure improves solid-passing capacity and reduces blockage during sewage discharge.
Optional Automatic Mixing Function:
Integrated mixing device rotates with the motor shaft to generate strong stirring force, suspending sediment for efficient pumping.
Optional Cutting Structure:
Cutting plate design assists in breaking down impurities without affecting water intake or mixing performance.
Double-End Mechanical Seal:
Dual mechanical seals operate in an oil chamber, ensuring reliable sealing and safe long-term operation.
Hydrodynamic Sub-Impeller Seal:
Auxiliary sealing structure balances axial force, protects the mechanical seal, and extends bearing service life.
Thermal & Overload Protection:
Built-in thermal protector automatically cuts off power during overload or overheating and restarts after cooling.
Leakage Detection Ready:
Optional water leakage detection probe can trigger protective control when leakage is detected.
Wide Power & Flow Range:
Suitable for different project scales, from small pumping stations to large wastewater treatment systems.
Custom Control Options:
Supports manual, semi-automatic, or full protection control cabinet configurations.
Products Specification:
| Item | Specification |
| Product Type | Submersible Sewage Pump |
| Installation Type | Vertical, Submersible |
| Pump Structure | Single-stage |
| Application | Wastewater / Sewage Treatment |
| Power Source | Electric |
| Power Range | 2.2 – 250 kW |
| Horsepower Range | 3 – 340 HP |
| Flow Rate Range | 20 – 200 m³/h |
| Head Range | 5.6 – 330 m |
| Operating Pressure | 0.1 – 10 bar |
| Outlet Size | 50 – 500 mm |
| Outlet Type | Universal |
| Pump Body Material | Cast Iron / Stainless Steel |
| Impeller Material | Stainless Steel |
| Motor Type | AC Copper Wire Motor |
| Control Method | Manual / Semi-Automatic (Optional Cabinet) |
| Liquid Type | Wastewater / Sewage |
| Surface Treatment | Protective Coating |
| Customization Support | OEM / ODM / OBM |
| Warranty | 1 Year |
Products Pictures:
