Machine Features:
Large Flow Performance:
Double suction impeller design enables high flow capacity with smooth and stable operation.
Horizontal Split Case Structure:
Single-stage horizontally split casing allows easy maintenance without removing pipelines or motor.
High Pressure Capability:
Strong casing structure supports high-pressure water delivery in continuous-duty applications.
Wide Size & Power Range:
Outlet size from 6 inch to 48 inch and power range from 11 kW to 2240 kW for different system scales.
Flexible Drive Options:
Compatible with electric motor or diesel engine to suit fixed installations or remote sites.
Multiple Material Options:
Pump casing and impeller available in cast iron, stainless steel, and bronze for different water qualities.
Reliable Shaft Sealing:
Supports gland packing or mechanical seal to meet different operating and maintenance requirements.
Customization Support:
Motor, voltage, materials, color, and configuration can be customized (OEM / ODM).
Products Specification:
| Item | Specification |
| Product Type | Double Suction Split Case Centrifugal Pump |
| Pump Structure | Single-stage, Horizontally Split |
| Impeller Type | Double Suction |
| Shaft Position | Horizontal |
| Performance | Large Flow |
| Pressure | High Pressure |
| Outlet Size | 6 inch – 48 inch |
| Power Range | 11 – 2240 kW |
| Power Source | Electric Motor / Diesel Engine |
| Voltage Options | 220 / 230 / 380 / 400 / 415 / 460 / 1000 V |
| Pump Casing Material | Cast Iron / Stainless Steel |
| Impeller Material | Cast Iron / SS304 / SS316 / Duplex Stainless Steel / Bronze |
| Shaft Seal Type | Gland Packing / Mechanical Seal |
| Applicable Media | Clean water and low-abrasive liquids |
| Typical Applications | Irrigation, Water Treatment, Industrial Utilities, Mining Water Supply |
| Customization Support | OEM / ODM |
| Color | Customizable |

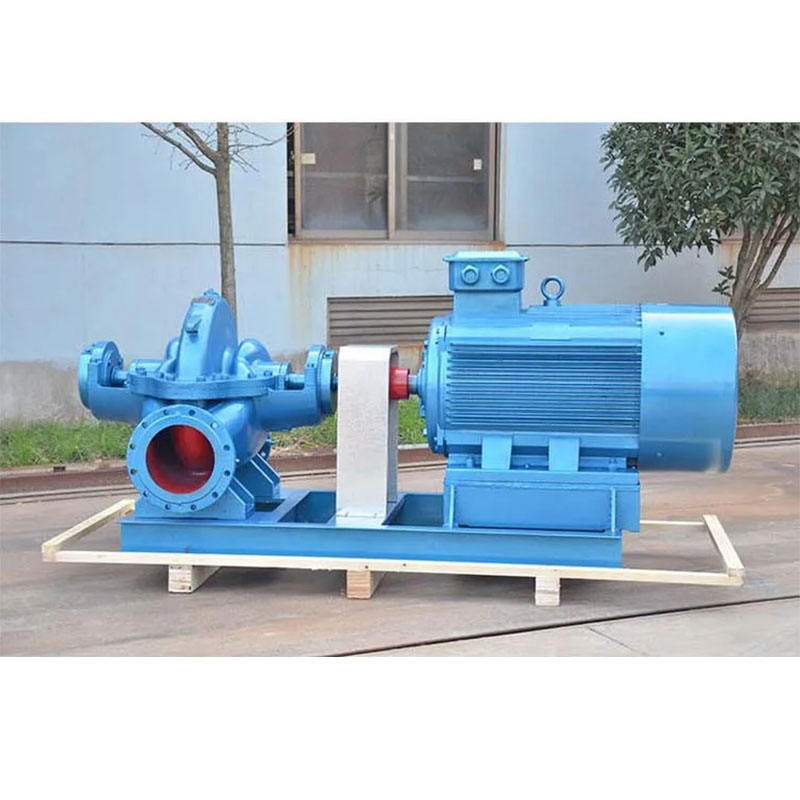

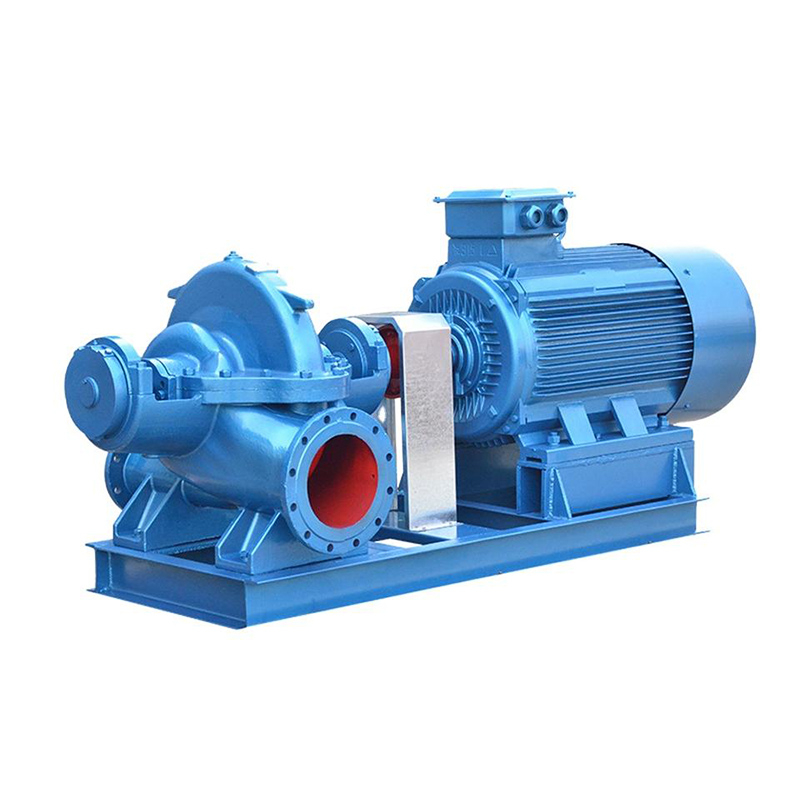

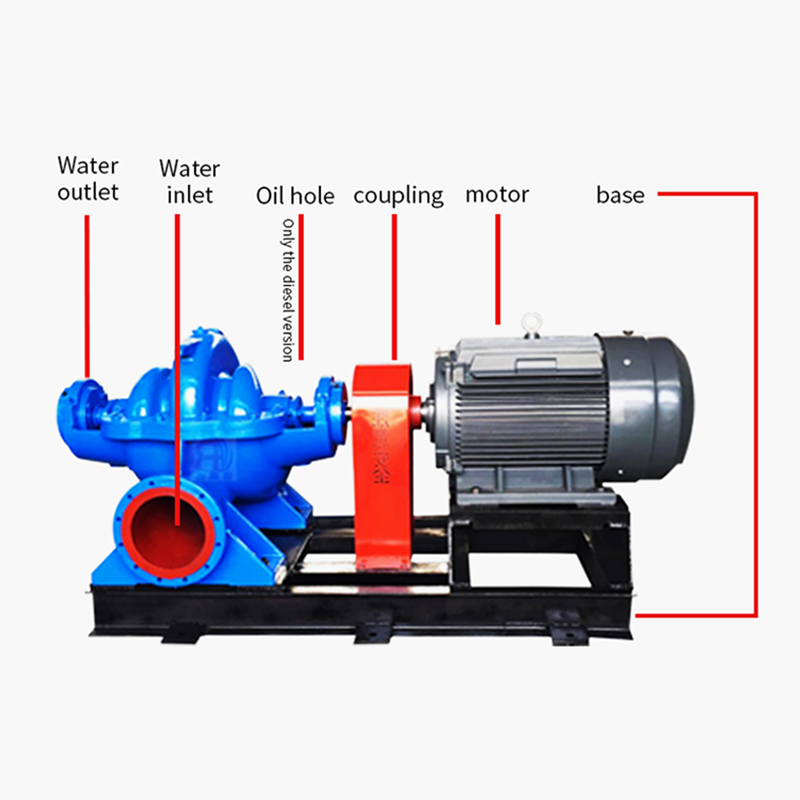

Products Pictures:
