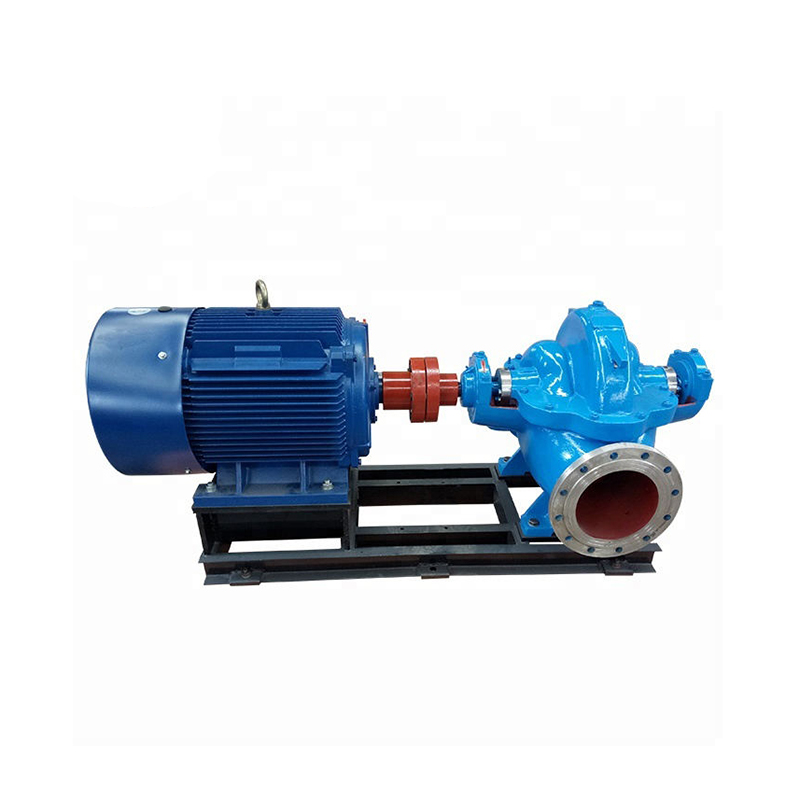

Horizontal split case centrifugal water pump for industrial and municipal systems

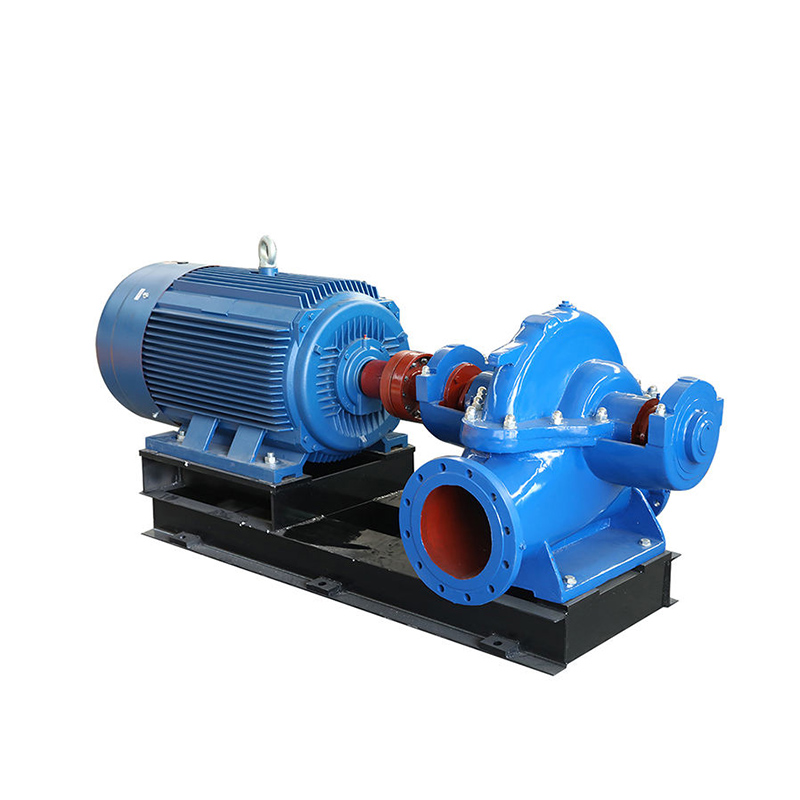

Large outlet split case pump for water distribution and pumping station projects

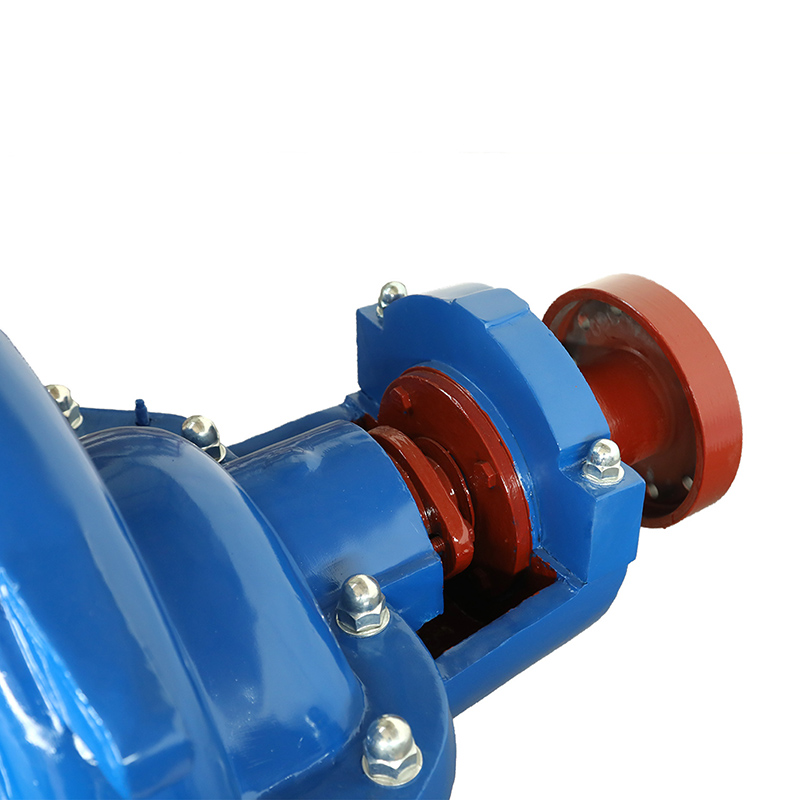

Split case pump for urban water supply, drainage, and flood control applications

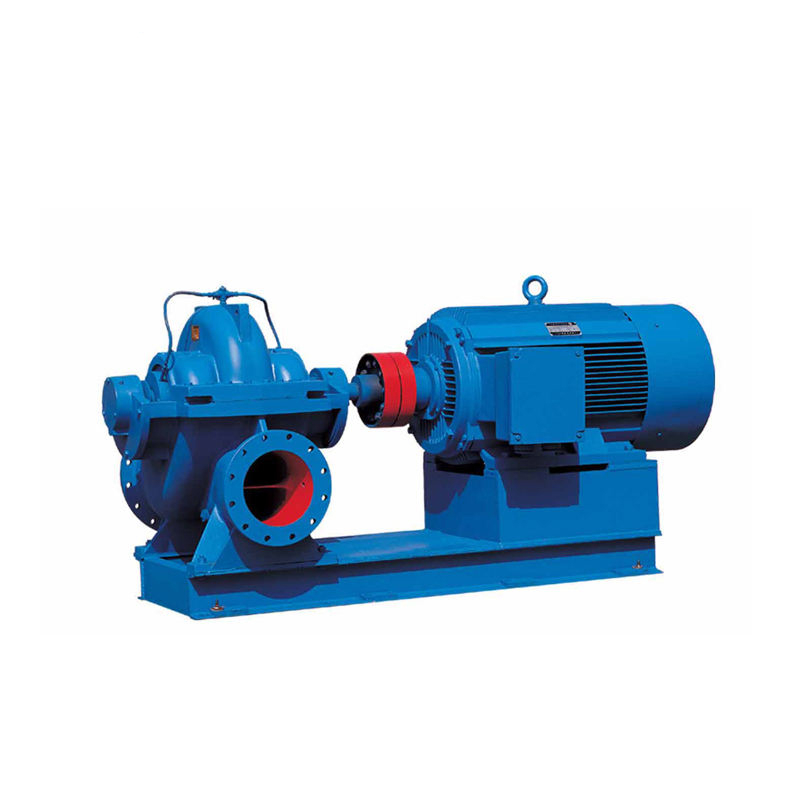

Double Suction Single Stage Centrifugal Water Pump with Electric or Diesel Drive

This single stage double suction centrifugal water pump is designed for high flow and stable head performance in large-scale water transfer and engineering applications. Featuring a horizontally split casing and a high-efficiency double suction impeller, the pump ensures smooth operation, balanced axial force, and long service life.

The pump supports electric or diesel drive and is suitable for continuous operation in water supply, irrigation, flood drainage, industrial circulation, and municipal systems. With a wide power range and multiple material options, it can be adapted to different working conditions and fluid requirements. OEM and ODM customization is available to meet project-specific needs.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

High Flow & Stable Head Performance:

Double suction impeller design delivers large flow capacity with stable pressure output.

Energy-Saving Horizontal Split Structure:

Single stage, horizontally split casing allows easy maintenance and improved operating efficiency.

Wide Power & Size Range:

Power range from 5.5 kW to 3550 kW, outlet size DN80–DN1000, suitable for various engineering scales.

Multiple Drive Options:

Available with electric motor or diesel engine to meet different site conditions.

Durable Construction Materials:

Pump casing and components available in cast iron, cast steel, or stainless steel for different applications.

Low Noise & Long Service Life:

High-quality bearings and mechanical seal ensure reliable operation under continuous duty.

Flexible Customization Support:

Voltage, materials, lubrication type, and configuration can be customized upon request.

Products Specification:

Item	Specification
Product Type	Double Suction Centrifugal Water Pump
Pump Structure	Single-stage, Horizontally Split
Power Range	5.5 kW – 3550 kW
Pressure Range	0.5 – 25 bar
Outlet Size	DN80 – DN1000
Power Source	Electric Motor / Diesel Engine
Voltage Options	380V / 400V / 415V / 460V / 1140V
Frequency	50 Hz / 60 Hz
Pump Material Options	Cast Iron / Cast Steel / Stainless Steel
Lubrication	Grease Lubrication / Oil Lubrication
Shaft Seal	Mechanical Seal
Color	Customizable
Application Temperature	Standard Industrial Water
Customization Support	OEM / ODM
Warranty	1 Year
