Machine Features:
Self-Priming Jet Pump Design:
Enables quick water intake and stable suction performance without frequent manual priming.
Household Pressure Boosting Solution:
Designed to improve water pressure for taps, showers, and home water supply systems.
Stainless Steel Wet-End Components:
Pump body, impeller, and shaft made of stainless steel to resist corrosion and maintain water cleanliness.
Compact & Space-Saving Structure:
Small footprint suitable for home installations such as kitchens, balconies, and pump rooms.
Stable Suction Performance:
Supports suction lift up to 8 m, suitable for shallow wells and household water sources.
Reliable Sealing System:
Ceramic-graphite mechanical seal ensures leak prevention and long service life.
Quiet & Efficient Motor:
Copper-wound motor with enclosed fan cooling provides stable operation and effective heat dissipation.
Automatic Operation Ready:
Can be paired with a pressure controller to achieve automatic start and stop based on water usage.
Products Specification:
| Item | Specification |
| Product Type | Self-Priming Jet Water Pump |
| Application | Household Pressure Boosting |
| Pump Structure | Single-stage |
| Pump Theory | Jet / Centrifugal |
| Power | 250 W |
| Horsepower | 1/3 HP |
| Power Source | Electric |
| Rated Voltage | Standard Household Voltage |
| Suction Lift | Up to 8 m |
| Discharge Size | 1 inch |
| Inlet / Outlet | 1" × 1" |
| Liquid Type | Clean Water |
| Pump Body Material | Stainless Steel (304) |
| Impeller Material | Stainless Steel (304) |
| Shaft Material | Stainless Steel |
| Mechanical Seal | Ceramic – Graphite |
| Motor Type | Copper Wire Motor |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Cable Length | Standard Length |
| Operating Pressure | Low Pressure |
| Warranty | 12 Months |

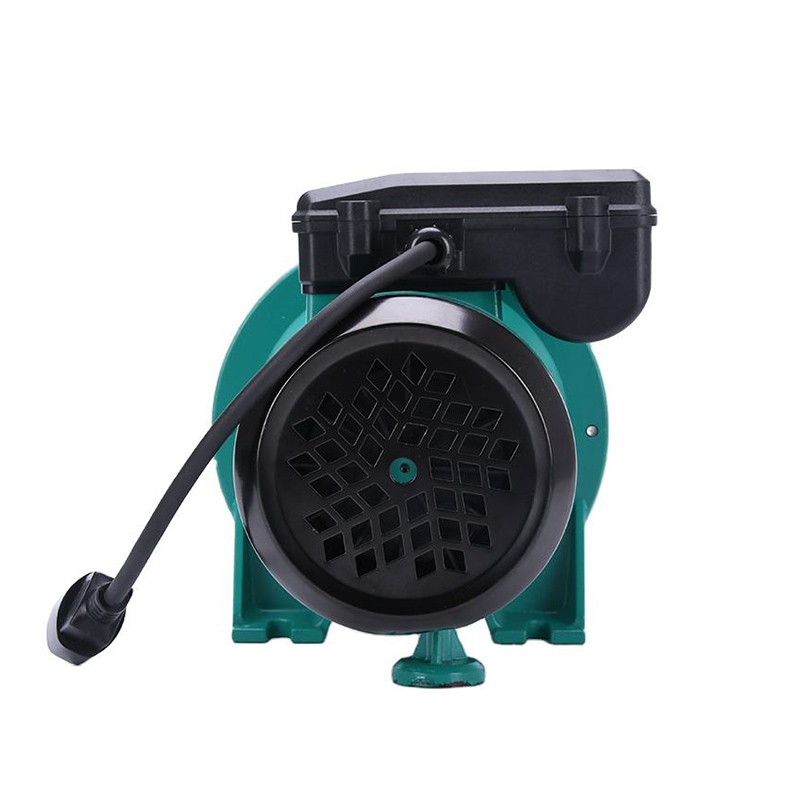

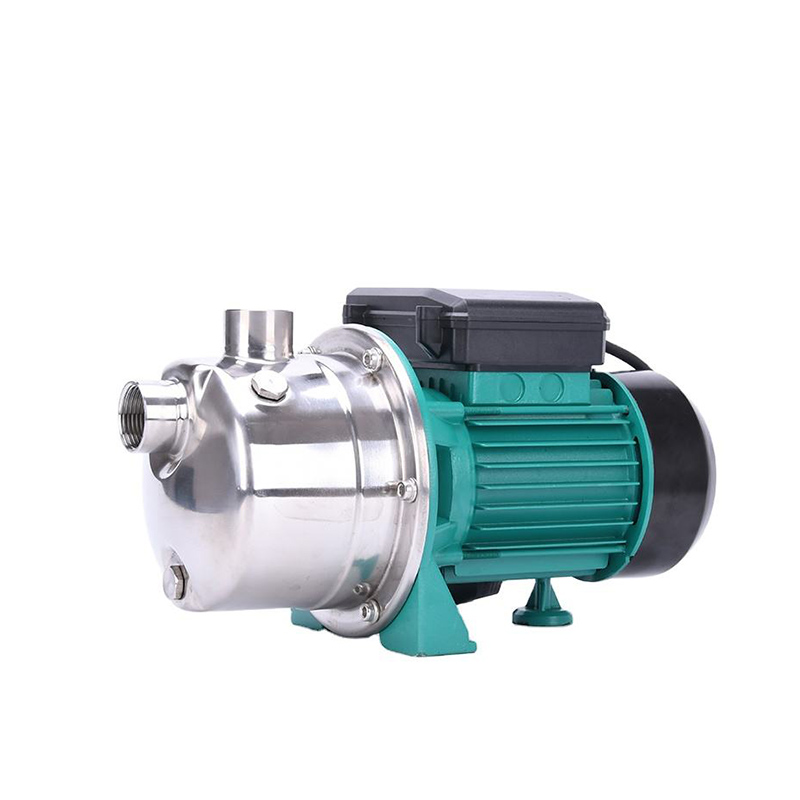

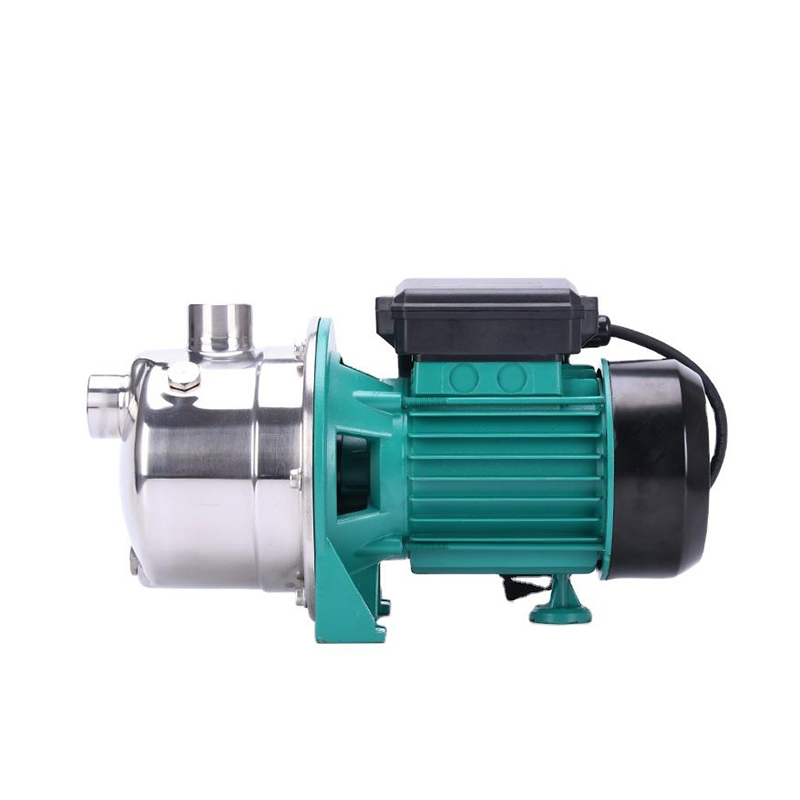

Products Pictures:
Machine Features:
Self-Priming Jet Pump Design:
Enables quick water intake and stable suction performance without frequent manual priming.
Household Pressure Boosting Solution:
Designed to improve water pressure for taps, showers, and home water supply systems.
Stainless Steel Wet-End Components:
Pump body, impeller, and shaft made of stainless steel to resist corrosion and maintain water cleanliness.
Compact & Space-Saving Structure:
Small footprint suitable for home installations such as kitchens, balconies, and pump rooms.
Stable Suction Performance:
Supports suction lift up to 8 m, suitable for shallow wells and household water sources.
Reliable Sealing System:
Ceramic-graphite mechanical seal ensures leak prevention and long service life.
Quiet & Efficient Motor:
Copper-wound motor with enclosed fan cooling provides stable operation and effective heat dissipation.
Automatic Operation Ready:
Can be paired with a pressure controller to achieve automatic start and stop based on water usage.
Products Specification:
| Item | Specification |
| Product Type | Self-Priming Jet Water Pump |
| Application | Household Pressure Boosting |
| Pump Structure | Single-stage |
| Pump Theory | Jet / Centrifugal |
| Power | 250 W |
| Horsepower | 1/3 HP |
| Power Source | Electric |
| Rated Voltage | Standard Household Voltage |
| Suction Lift | Up to 8 m |
| Discharge Size | 1 inch |
| Inlet / Outlet | 1" × 1" |
| Liquid Type | Clean Water |
| Pump Body Material | Stainless Steel (304) |
| Impeller Material | Stainless Steel (304) |
| Shaft Material | Stainless Steel |
| Mechanical Seal | Ceramic – Graphite |
| Motor Type | Copper Wire Motor |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Cable Length | Standard Length |
| Operating Pressure | Low Pressure |
| Warranty | 12 Months |
Products Pictures:
