B2-K1026 CNC Follower Type Eccentric Shaft Grinding Machine

The B2-K1026 CNC follower-type eccentric shaft grinding machine is a high-end CNC grinding machine independently developed by our company. This machine uses advanced follower-type (cutting point tracking) grinding technology. By controlling the X-axis (wheelhead) and C-axis (workpiece rotation) with closed-loop control, it achieves simultaneous grinding of the eccentric diameter and the main shaft journal in a single clamping. It offers agility, flexibility, high efficiency, and precision, making it ideal for use in eccentric shaft production lines and precision mass processing. This machine solves the shortcomings of traditional eccentric fixtures such as poor flexibility and complicated adjustments, significantly improving machining accuracy and efficiency. It is primarily used in the precision machining of eccentric shafts in industries such as robotics, compressors, reducers, and general machinery.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Specification		unit	B2-K095
Maximum Swing Diameter		mm	Φ360
Distance between centers		mm	320 / 500
Center height		mm	180
Maximum grinding diameter		mm	Φ200
Maximum weight between centers		kg	100
Control system			FANUC
Grinding wheel (max)	Outer diameter x width x inner diameter	mm	Φ500(CBN)
Grinding wheel (max)	Line speed	mm/sec	120 / 80
Grinding wheel holder (X-axis)	Full stroke	mm	330
	Feed speed	mm/min	0.1 – 40000
	Minimum setting unit	mm	0.001
Worktable	Type		Two-Tier Tapered Worktable
Rear sliding table (Z-axis)	Feedrate	mm/min	0.1 – 20000
Rear sliding table (Z-axis)	Minimum setting unit	mm	0.001
Headstock	Center		MT.NO.5
Headstock	Rotation speed	r/min	0 - 200（Infinitely variable speed control）
Tailstock	Center		MT.NO.4
Tailstock	Stroke	mm	60
Electrical system	Wheel spindle motor	kW	30/11
	Maximum thrust of wheelhead feed	N.m	9000
	Worktable feed	N.m	11
	Headstock spindle	kW	10
	Hydraulic pump	kW	0.75 (4P)
	Wheel spindle bearing lubrication pump	kW	0.75 (4P)
Capacity	Hydraulic oil + lubrication oil tank	L	45
Capacity	Spindle bearing oil tank	L	100 / 45
Net weight of machine		kg	7000

Products Features

1:Efficient Follower Grinding Technology: Adopts cutting point tracking technology, realizing closed-loop control of the X and C axes for simultaneous grinding of eccentric diameters and main shaft journals, improving efficiency and precision.

2:Stable Structural Design: With a fixed worktable and cross-slide rearward-moving wheelhead, the machine optimizes space utilization and minimizes the footprint.

3:High-Speed Grinding Spindle: The grinding spindle is highly rigid and precise, with CBN wheel speeds reaching up to 120M/S or 80M/S, customizable for various needs.

4:Linear Motor Drive: The X-axis is driven by a linear motor with a closed hydrostatic guideway structure, offering excellent dynamic response. The maximum feed rate reaches 40M/S, meeting the demands of follower grinding.

5:Precision Workpiece Rotation System: The workpiece rotation axis adopts a high-precision rolling bearing structure, equipped with an angular encoder to ensure high rotational and positioning accuracy, enhancing machining precision.

Applications

The B2-K1026 CNC follower-type eccentric shaft grinding machine is ideally suited for precision machining of eccentric shafts in production lines, widely used in industries such as robotics, compressors, reducers, and general machinery. It is particularly effective for high-precision mass production, significantly improving production efficiency and part quality.

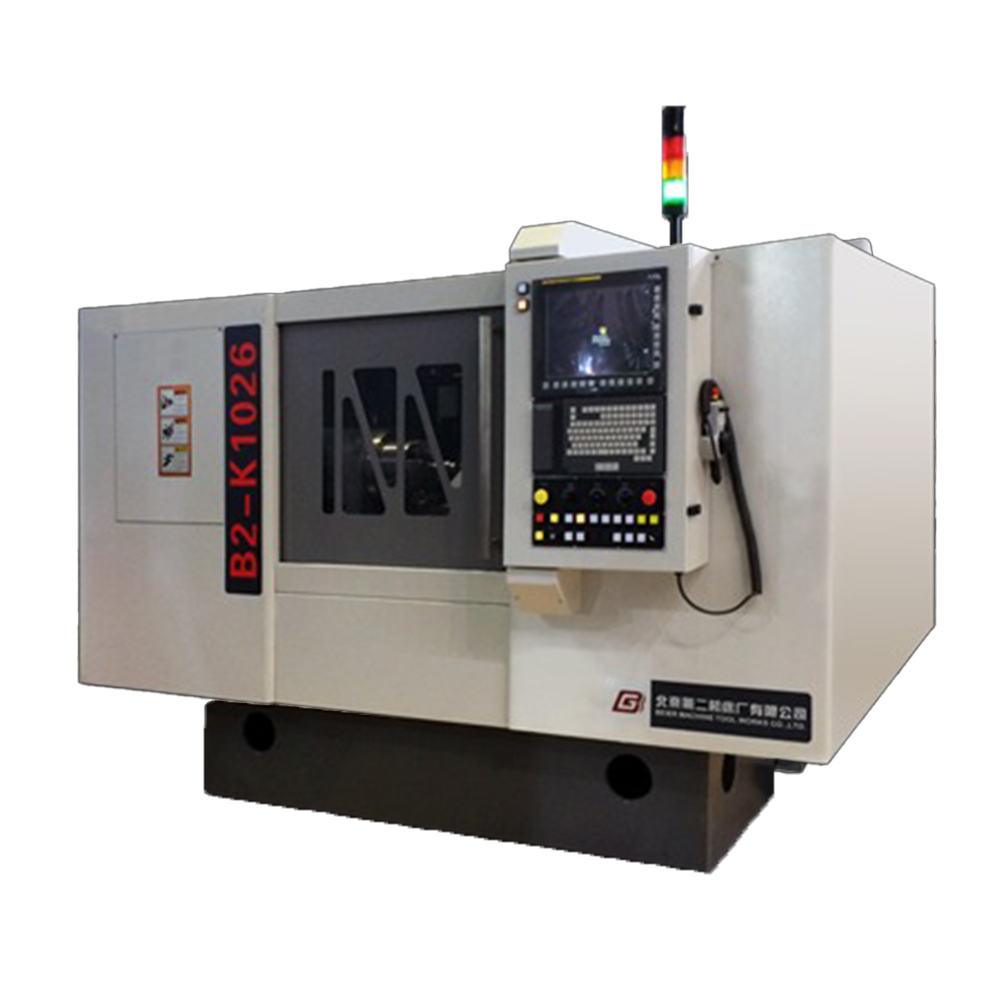

Products Pictures
