| Specification | unit | B2-K3020 | B2-K3032 | |
| Pitch | mm | 500/750/1000 | 500/1000/1500 | |
| Center height | mm | 160 | 180 | |
| Maximum grinding diameter | mm | Φ200 | Φ320 | |
| Bore grinding range | mm | Φ13～φ80 | Φ16～φ120 | |
| Maximum weight between centers | kg | 150 | ||
| Control system | FANUC SIEMENS | |||
| Number of grinding wheels | 3 pcs (outer circle, end face outer circle, inner circle) | |||
| Grinding wheel holder (X-axis) | Feed rate | mm/min | 0.1～5000 | |
| Minimum setting unit | mm | 0.001 | ||
| Worktable (Z-axis) | Type | Two-Tier Tapered Worktable | ||
| Feedrate | mm/min | 0.1～5000 | ||
| Minimum setting unit | mm | 0.001 | ||
| Headstock | Center | MT.NO5 | ||
| Rotation speed | r/min | 30-300 (Infinitely adjustable speed) | ||
| Tailstock | Center | MT.NO4 | ||
| Stroke of center sleeve | mm | 35 (manual)/60 (hydraulic) | ||
| Net weight | kg | 8000/9000/10000 | 10000/12000/14000 | |
Products Features
1:Advanced Composite Grinding:One-time clamping completes external, internal, end face, and conical surface grinding, significantly improving productivity and precision by reducing the need for multiple machine setups.
2:Optimized Structure:The machine features a highly rigid and thermally stable artificial granite bed, ensuring superior vibration absorption, rigidity, and thermal stability during high-precision grinding operations.
3:Multi-Spindle Configuration:The grinding wheel head integrates a hydrostatic, hydrodynamic, and motor spindle system, accommodating external, internal, and end-face grinding wheels, providing maximum flexibility to meet various process requirements.
4:High-Precision Axial Control:It can control up to 7 CNC axes (4 linear and 3 rotary axes), enabling flexible, multi-task grinding operations with agility and high precision.
5:Accurate Dressing and Measurement:Multiple types of diamond dressing devices can be installed for precise CNC dressing with automatic compensation, and an active measurement system ensures full closed-loop control for high-precision grinding.
Applications

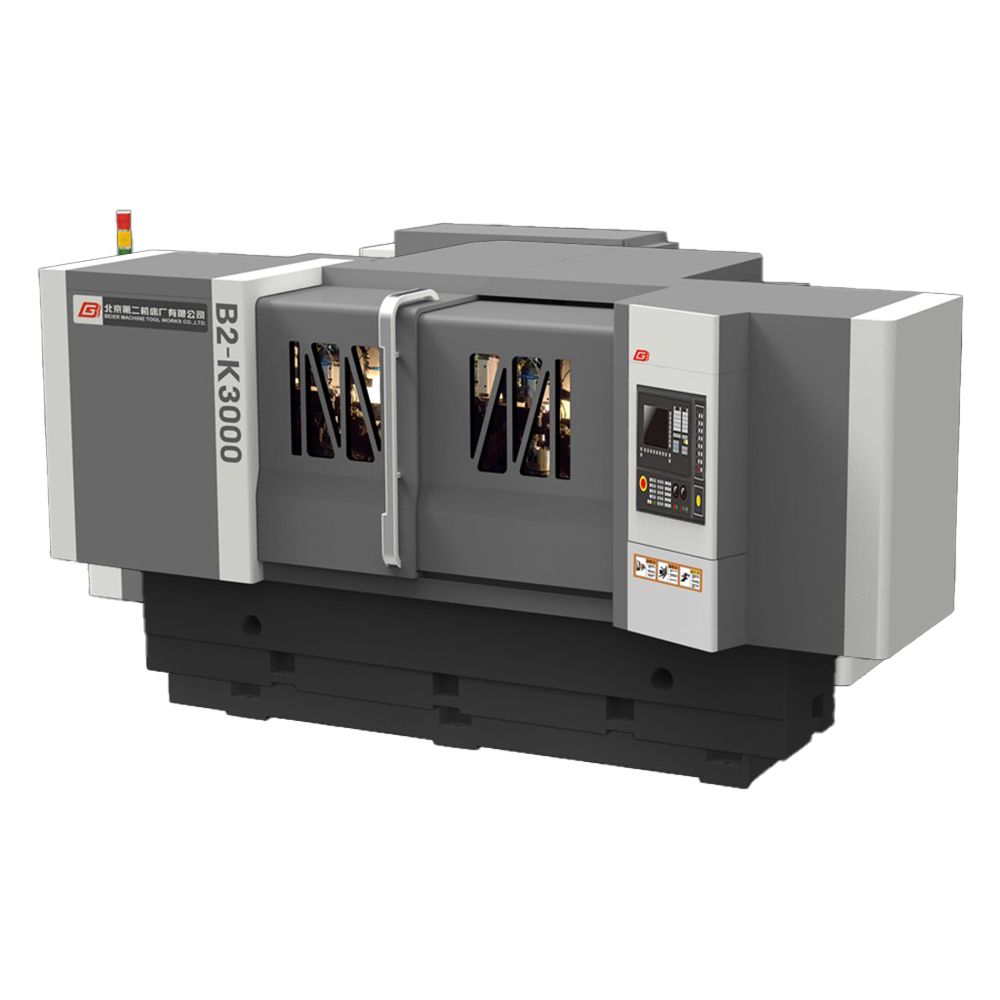

The B2-K3000 series is ideal for precision grinding in industries with high demands for multi-task machining, including military, aerospace, cutting tools, automotive, and general machinery manufacturing. The machine excels in high-volume production environments that require superior accuracy, flexibility, and automation, making it suitable for both mass production and the production of highly precise components such as complex shaft parts.

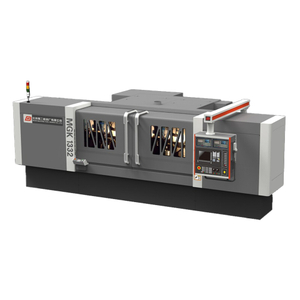

Products Pictures
