| Specification | unit | B2-K2008 | |
| Maximum rotary diameter | mm | Φ320 | |
| Center height | mm | 160 | |
| Maximum grinding diameter | mm | Φ100 | |
| Maximum headstock weight | kg | 30 | |
| Control system | FANUC SIEMENS | ||
| Grinding wheel (max) | Outer diameter x width x inner diameter | mm | Φ600×B×Φ305 |
| Line speed | mm/sec | 45/[50] | |
| Wheel carrier | Feed speed | mm/min | 0.1～5000 |
| Minimum setting unit | mm | 0.001 | |
| Worktable | Feed speed | mm/min | 0.1～5000 |
| Minimum setting unit | mm | 0.001 | |
| Headstock | Gripper | Hydraulic clamping | |
| Rotation speed | r/min | 30-300(Infinitely variable speed control) | |
| Electrical system | Wheel spindle motor | kw | 7.5 |
| Wheelhead feed | N.m | 12(FANUC) | |
| Worktable feeding | N.m | 8(FANUC) | |
| Capacity | Hydraulic oil + lubrication oil tank | L | 45 |
| Spindle bearing oil tank | L | 45 | |
| Net weight | kg | 5450 | |
Products Features
1:High-Precision Hydraulic Clamping System: The headstock is equipped with a specialized fixture, and the workpiece is clamped hydraulically to ensure stability and precision during the grinding process.
2:Hydrostatic and Hydrodynamic Spindle Technology: The grinding spindle adopts a sleeve-type hydrostatic and hydrodynamic spindle system, offering high rotational precision and rigidity. The wheel speed reaches up to 45m/s for precise grinding.
3:Two-Axis Linked Feeding System: The worktable (Z-axis) and grinding wheelhead (X-axis) are driven by AC servo motors and ball screw pairs, with a minimum setting unit of 0.1μm, ensuring precise micro-feed control.
4:Automatic Dressing and Compensation: The diamond dressing device is installed behind the headstock for automatic wheel dressing, and automatic compensation ensures long-term stability of grinding precision.
5:Full Closed-Loop Control: Equipped with an in-process measuring device, the machine achieves full closed-loop control to ensure accuracy and stability in every grinding process.
Applications

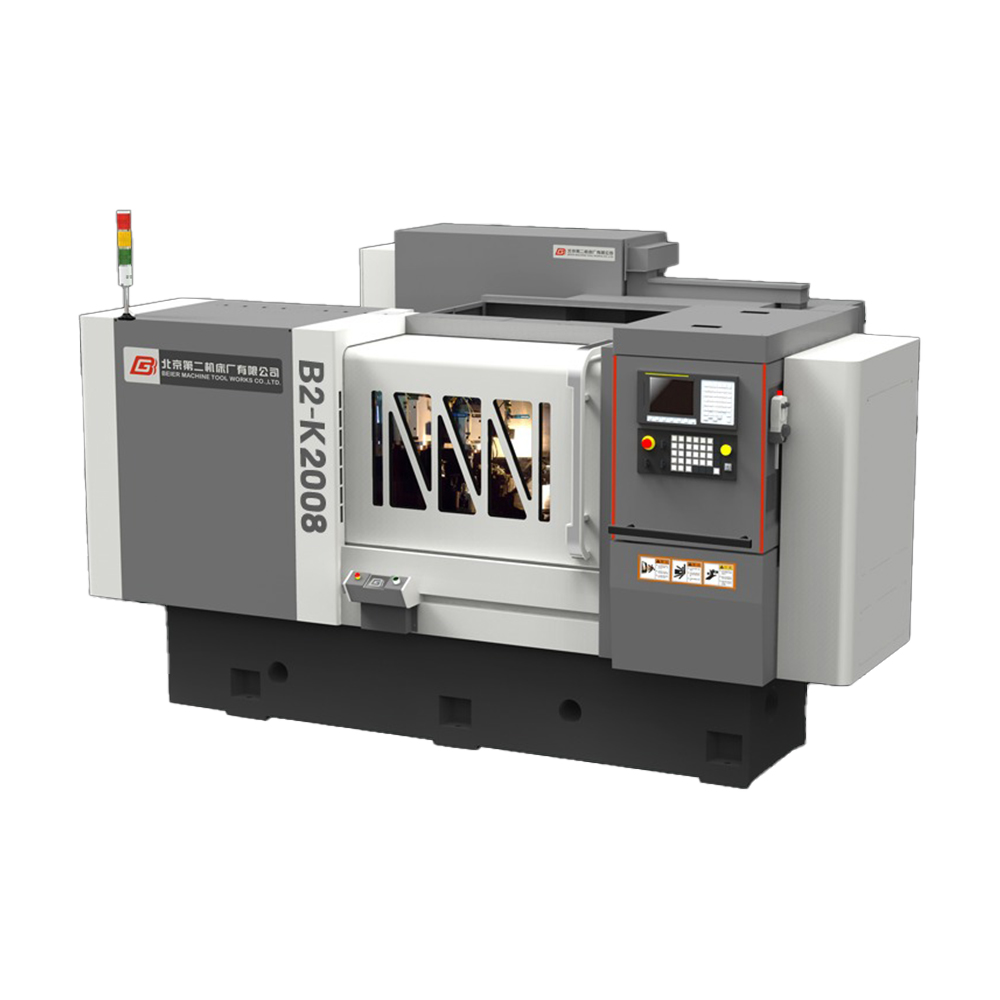

The B2-K2008 CNC Eccentric Shaft Grinding Machine is ideal for high-precision grinding of small eccentric shaft parts. It is widely used in production lines for compressors and general machinery, offering high efficiency and precision for mass production scenarios.
Products Pictures
