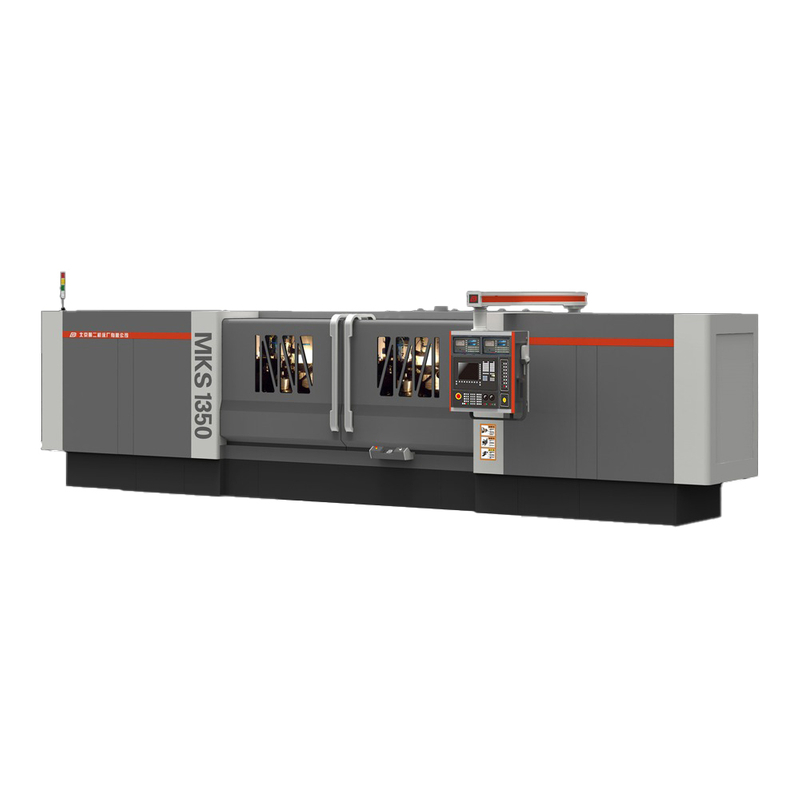

MKS1350/1363 and MKS1650/1663 CNC (Face) Cylindrical Grinding Machines

The MKS1350/1363 and MKS1650/1663 CNC (Face) Cylindrical Grinding Machines are large-scale CNC products independently designed and manufactured by our company. These machines feature high generalization, modularization, rigidity, efficiency, and adaptability. They are particularly suited for batch and mass production of large shaft parts. The machines are easy to operate, reliable in performance, and provide high processing accuracy, making them ideal for industries requiring large cylindrical grinding.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Specification		unit	MKS1350/1363				MKS1650/1663
			×15	×20	×25	×30	×15	×20	×25	×30
Maximum Swing Diameter		mm	Φ540/Φ670				Φ540/Φ670
Distance between centers		mm	1500	2000	2500	3000	1500	2000	2500	3000
Center height		mm	275/335				275/335
Maximum grinding diameter		mm	Φ500/Φ630				Φ500/Φ630
Maximum weight between centers		kg	1000/2000
Control system			FANUC SIEMENS
Grinding wheel (max)	Outer diameter x width x inner diameter	mm	Φ750×120～200×Φ305
			Φ900×100×Φ305
	Line speed	mm/sec	45/60
Wheel carrier	Full stroke	mm	390/450
	Feed speed	mm/min	0.1～5000
	Minimum setting unit	mm	0.001
	Tilt angle		90°				60°
Worktable	Type		Two-Tier Tapered Worktable
	Feedrate	mm/min	0.1～5000
	Minimum setting unit	mm	0.001
Headstock	Center		MT.NO6/metric 80
	Rotation speed	r/min	15-150(Infinitely variable speed control)
Tailstock	Center		MT.NO6/metric80
	Stroke	mm	70
Electrical system	Grinding wheel spindle motor	Kw	18.5/22（MKS1350/1650）
			30/37（MKS1363/1663）
	Wheelhead feed	N.m	22(FANUC)/27(SIEMENS)（MKS1350/1650）
			30(FANUC)/36(SIEMENS)（MKS1363/1663）
	Worktable Feeding	N.m	22(FANUC)/27(SIEMENS)（MKS1350/1650）
			30(FANUC)/36(SIEMENS)（MKS1363/1663）
	Headstock spindle	Kw	4/5.5
	Hydraulic pumps	Kw	0.75(4P)
	Grinding wheel spindle bearing lubrication oil pump	Kw	0.75(4P)
Capacity	Hydraulic oil + lubrication oil tank	L	45/75
	Spindle bearing oil tank	L	45/75
Net weight		T	11/14	12/16	13/18	14/20	11/14	12/16	13/18	14/20

Products Features

1:High Generalization and Modularization:These machines are highly adaptable due to their generalization and modularization, making them suitable for a variety of production requirements.

2:High Rigidity and Precision:The grinding wheel spindle adopts a high-rigidity sleeve-type hydrostatic spindle system, providing excellent rotational accuracy and load capacity. The grinding wheel speed can reach up to 60 m/s (for special orders).

3:Two-Axis Servo Feed:The worktable (Z-axis) and wheelhead (X-axis) are driven by AC servo motors and ball screw systems. The guideways are plastic-coated with a closed multi-point lubrication system, offering excellent vibration absorption, wear resistance, and precision retention.

4:Diamond Dressing and Auto Compensation:Multiple types of diamond dressing devices are available, enabling the precise dressing of complex grinding wheel profiles with automatic compensation features.

5:Closed-Loop Control System:Equipped with an active measurement device, the machine provides full closed-loop control during grinding, ensuring high precision and consistent results.

6:Advanced CNC System:The CNC system offers a user-friendly menu interface and can control up to four axes (X, Z, U, W), meeting the requirements of grinding and dressing cycles.

7:Optional Hydraulic or CNC-Driven Center Rest:Optional CNC or hydraulic-driven automatic tracking center rests are available for processing long, slender shafts, enhancing machine versatility.

Applications

These CNC cylindrical grinding machines are widely used in large-scale production environments, particularly for grinding large shafts and cylindrical parts in industries like automotive, aerospace, energy, and heavy machinery manufacturing. The machines are ideal for high-precision grinding in the mass production of engine shafts, transmission shafts, and other large components requiring exceptional accuracy and surface quality.
