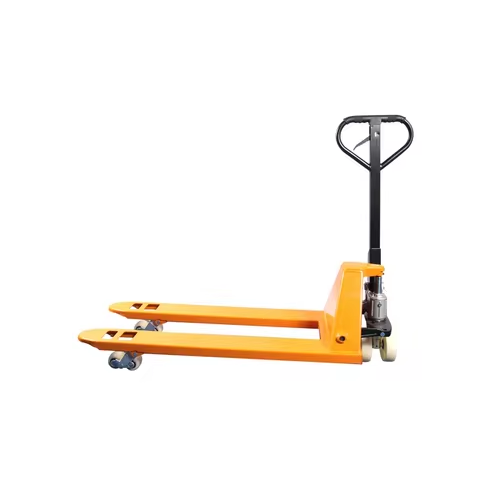

2 ton manual pallet jack compact design for narrow aisles

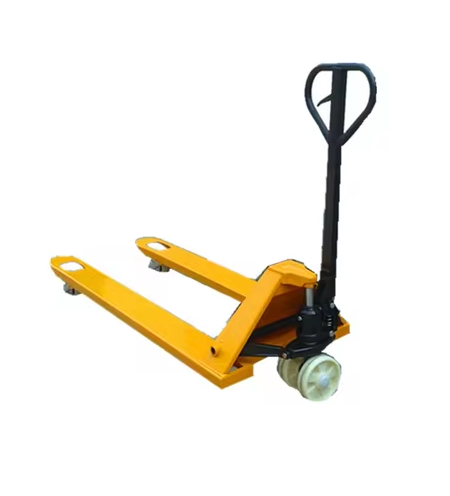

2T/3T Manual Mini Forklift Adjustable Fork Hand Pallet Truck for Warehouse Logistics

This manual mini pallet truck is designed for efficient and reliable warehouse and logistics handling. With a compact structure and lightweight body (only 55 kg), it delivers a strong load capacity of up to 2.5 tons, making it suitable for daily pallet transport in confined working areas. The integrated manual hydraulic pump ensures smooth lifting and lowering without oil leakage, while the optimized fork and wheel configuration provides stable movement and reduced operating resistance.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

High load-to-weight ratio: 55 kg net weight with up to 2500 kg capacity

Smooth manual hydraulic lifting with stable pumping speed

Integrated hand pump structure to reduce leakage risk

Durable fork construction designed for repeated lifting cycles

Low maintenance design with simple spare parts

Compact turning radius for narrow aisle operation

Suitable for daily warehouse pallet handling

Products Specification:

Item	Specification
Product Type	Manual Hand Pallet Truck
Rated Load Capacity	2500 kg (2.5 Ton)
Maximum Lifting Height	200 mm
Overall Height	1186 mm
Fork Length	1150 mm
Fork Width (Overall)	685 mm
Single Fork Width	150 mm
Large Wheel Diameter	200 mm
Small Wheel Diameter	80 mm
Turning Radius	1265 mm
Vehicle Weight	55 kg
Lifting Drive	Manual Hydraulic Pump
Operation Mode	Walk-Behind Manual Operation
Application	Warehouse & Logistics Material Handling
