Machine Features:
1. High Performance with Low Energy Consumption
Equipped with an efficient lithium battery system that delivers strong lifting power while reducing energy usage and daily operating costs.
2. Compact & Maneuverable Mini Design
The smaller chassis allows smooth operation in narrow aisles, dense storage areas, and limited spaces without compromising stability or capacity.
3. Ergonomic & User-Friendly Operation
Thoughtfully designed controls reduce operator fatigue and improve overall handling comfort during long working hours.
4. Advanced Control Technology
Integrated smart control systems ensure stable travel, smooth lifting, enhanced safety, and precise operation.
5. Durable Build Quality
Constructed with robust components and engineered for long service life. The forklift meets international quality requirements for safety, reliability, and performance.
Products Specification:
| Category | Item | Unit | CPD 25 | CPD35 | CPD35 | CPD40 | CPD45 | CPD50 |
| Characteristics | Model Name | - | CPD 25 | CPD35 | CPD35 | CPD40 | CPD45 | CPD50 |
| Power Source | - | Electric | Electric | Electric | Electric | Electric | Electric | |
| Rated Capacity | kg | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| Load Center | mm | 500 | 500 | 500 | 500 | 500 | 500 | |
| Dimensions | Mast Extended Height(with brackrest) | mm | 4060 | 4275 | 4270 | 4250 | 4250 | 4250 |
| Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Mast Height, Lowered | mm | 2060 | 2080 | 2125 | 2350 | 2350 | 2350 | |
| Free Lift Height | mm | 140 | 145 | 150 | 150 | 150 | 150 | |
| Brackrest Height cauculated from the fork surface | mm | 1010 | 1225 | 1220 | 1250 | 1250 | 1250 | |
| Distance from the surface of the seat to the overhead guard | mm | 1035 | 1035 | 1035 | 1020 | 1020 | 1020 | |
| Overhead Guard Height | mm | 2090 | 2106 | 2106 | 2350 | 2350 | 2350 | |
| Overall Length(without forks) | mm | 2550 | 2690 | 2725 | 3195 | 3195 | 3195 | |
| Overall Length(with forks) | mm | 3620 | 3760 | 3795 | 4265 | 4265 | 4265 | |
| Fork Overhang | mm | 435 | 465 | 465 | 555 | 555 | 555 | |
| Wheel Base | mm | 1600 | 1700 | 1700 | 2100 | 2100 | 2100 | |
| Real Overhang | mm | 515 | 525 | 560 | 540 | 540 | 584 | |
| Min. Ground Clearance(from bottom of mast) | mm | 128 | 145 | 145 | 175 | 175 | 175 | |
| Overall Width | mm | 1150 | 1225 | 1225 | 1420 | 1420 | 1420 | |
| Lateral Fork Adjustment(Outside of Fork) (max./min.) | mm | 1024/240 | 1091/250 | 1091/250 | 1340/300 | 1340/300 | 1340/300 | |
| Front Tread | mm | 970 | 1000 | 1000 | 1180 | 1180 | 1180 | |
| Rear Tread | mm | 970 | 970 | 970 | 1190 | 1190 | 1190 | |
| Min. Turing Radius(Outside) | mm | 2240 | 2420 | 2470 | 2600 | 2900 | 2900 | |
| Tilt of Mast Forward(deg)/ Backward(deg) | / | 45820 | 45820 | 45820 | 45820 | 45820 | 45820 | |
| Fork Size | mm | 1070*120*40 | 1070*125*45 | 1070*125*50 | 1070*150*50 | 1070*150*50 | 1070*150*50 | |
| Specification | Travel Speed(laden/unladen) | km/h | 17/19.5 | 18/19.5 | 18/19.5 | 22/22.5 | 22/22.5 | 22/22.5 |
| Lifting Speed(laden/unladen) | mm/s | 570/600 | 450/500 | 380/450 | 370/400 | 370/400 | 460/500 | |
| Self Weight | kg | 3680 | 4370 | 4750 | 5950 | 6200 | 6400 | |
| Tyre | Number of Drive Wheels | - | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 |
| Tyres Type | - | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic |

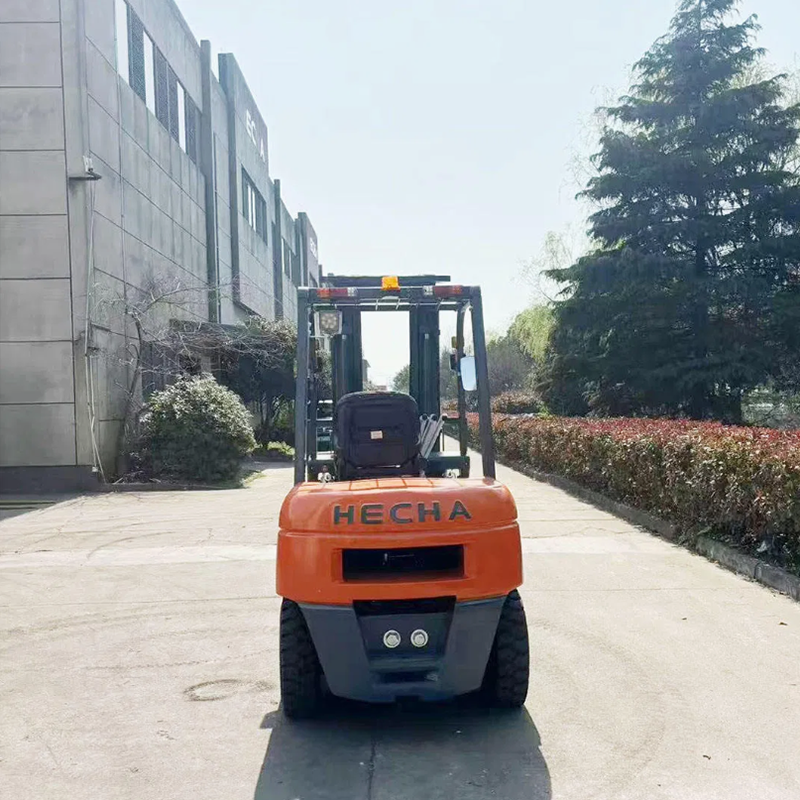

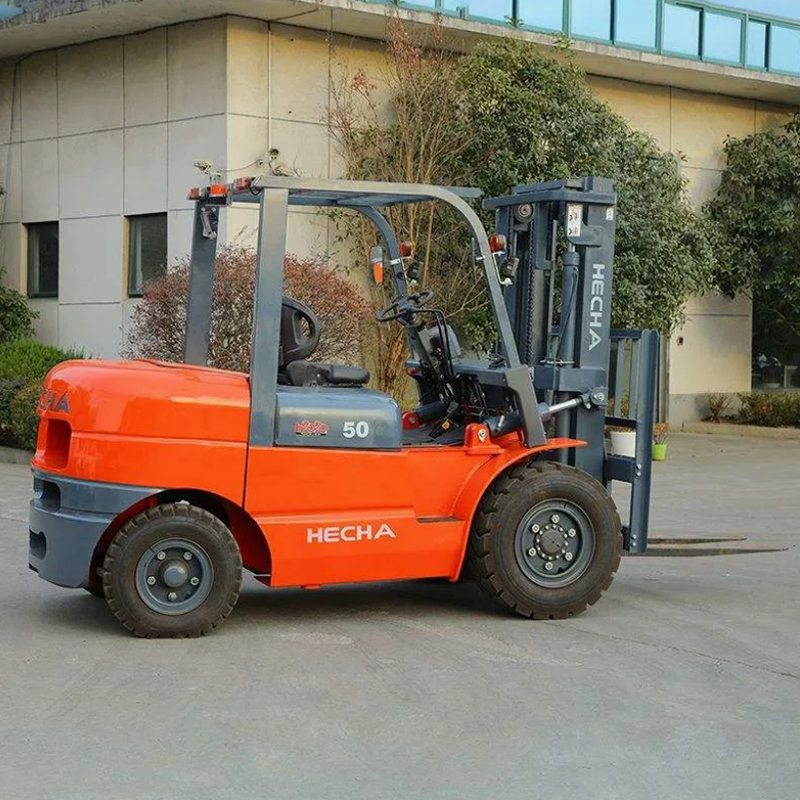

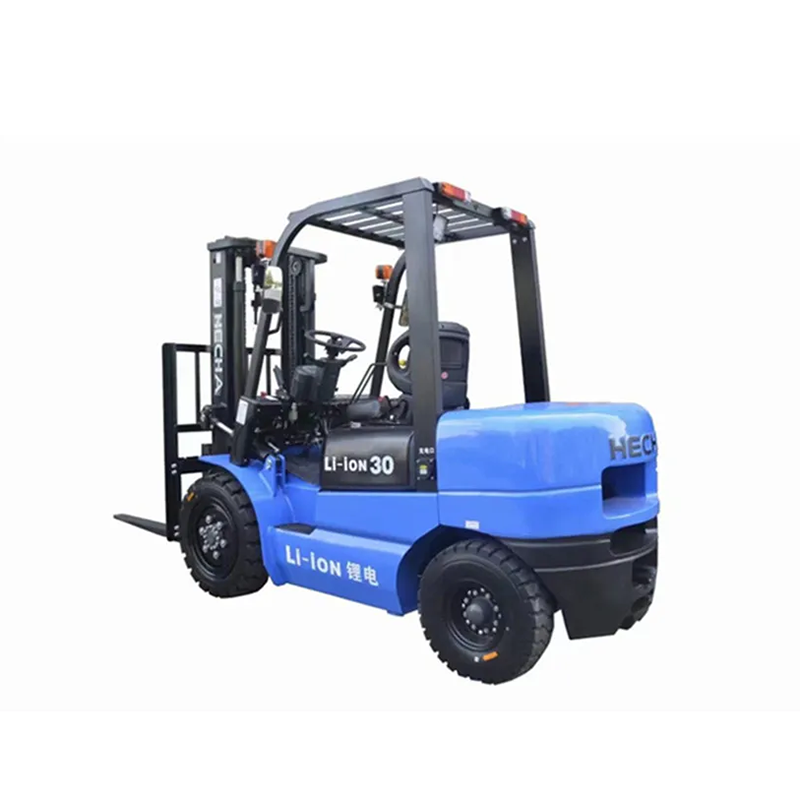

Products Pictures:
