Machine Features:
1. High Performance with Compact Design
The mini chassis and double-fork structure allow efficient handling in narrow aisles, small warehouses, and dense storage areas while maintaining excellent stability.
2. Energy-Saving Battery System
Equipped with a high-efficiency battery, the forklift provides long working hours, reduced operating costs, and consistent lifting performance.
3. Ergonomic & Easy to Operate
User-friendly controls and an ergonomic design minimize fatigue, ensuring smooth operation even during extended shifts.
4. Advanced Control Technology
Integrated control systems deliver precise movement, stable lifting, enhanced safety, and responsive handling across different operating conditions.
5. Durable Build & Certified Safety
Manufactured with strong structural components and built to meet international safety and quality standards for long-term reliability.
Products Specification:
| Category | Item | Unit | CPD 25 | CPD35 | CPD35 | CPD40 | CPD45 | CPD50 |
| Characteristics | Model Name | - | CPD 25 | CPD35 | CPD35 | CPD40 | CPD45 | CPD50 |
| Power Source | - | Electric | Electric | Electric | Electric | Electric | Electric | |
| Rated Capacity | kg | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| Load Center | mm | 500 | 500 | 500 | 500 | 500 | 500 | |
| Dimensions | Mast Extended Height(with brackrest) | mm | 4060 | 4275 | 4270 | 4250 | 4250 | 4250 |
| Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Mast Height, Lowered | mm | 2060 | 2080 | 2125 | 2350 | 2350 | 2350 | |
| Free Lift Height | mm | 140 | 145 | 150 | 150 | 150 | 150 | |
| Brackrest Height cauculated from the fork surface | mm | 1010 | 1225 | 1220 | 1250 | 1250 | 1250 | |
| Distance from the surface of the seat to the overhead guard | mm | 1035 | 1035 | 1035 | 1020 | 1020 | 1020 | |
| Overhead Guard Height | mm | 2090 | 2106 | 2106 | 2350 | 2350 | 2350 | |
| Overall Length(without forks) | mm | 2550 | 2690 | 2725 | 3195 | 3195 | 3195 | |
| Overall Length(with forks) | mm | 3620 | 3760 | 3795 | 4265 | 4265 | 4265 | |
| Fork Overhang | mm | 435 | 465 | 465 | 555 | 555 | 555 | |
| Wheel Base | mm | 1600 | 1700 | 1700 | 2100 | 2100 | 2100 | |
| Real Overhang | mm | 515 | 525 | 560 | 540 | 540 | 584 | |
| Min. Ground Clearance(from bottom of mast) | mm | 128 | 145 | 145 | 175 | 175 | 175 | |
| Overall Width | mm | 1150 | 1225 | 1225 | 1420 | 1420 | 1420 | |
| Lateral Fork Adjustment(Outside of Fork) (max./min.) | mm | 1024/240 | 1091/250 | 1091/250 | 1340/300 | 1340/300 | 1340/300 | |
| Front Tread | mm | 970 | 1000 | 1000 | 1180 | 1180 | 1180 | |
| Rear Tread | mm | 970 | 970 | 970 | 1190 | 1190 | 1190 | |
| Min. Turing Radius(Outside) | mm | 2240 | 2420 | 2470 | 2600 | 2900 | 2900 | |
| Tilt of Mast Forward(deg)/ Backward(deg) a | / | 45820 | 45820 | 45820 | 45820 | 45820 | 45820 | |
| Fork Size | mm | 1070*120*40 | 1070*125*45 | 1070*125*50 | 1070*150*50 | 1070*150*50 | 1070*150*50 | |
| Specification | Travel Speed(laden/unladen) | km/h | 17/19.5 | 18/19.5 | 18/19.5 | 22/22.5 | 22/22.5 | 22/22.5 |
| Lifting Speed(laden/unladen) | mm/s | 570/600 | 450/500 | 380/450 | 370/400 | 370/400 | 460/500 | |
| Self Weight | kg | 3680 | 4370 | 4750 | 5950 | 6200 | 6400 | |
| Tyre | Number of Drive Wheels | - | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 |
| Tyres Type | - | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic |

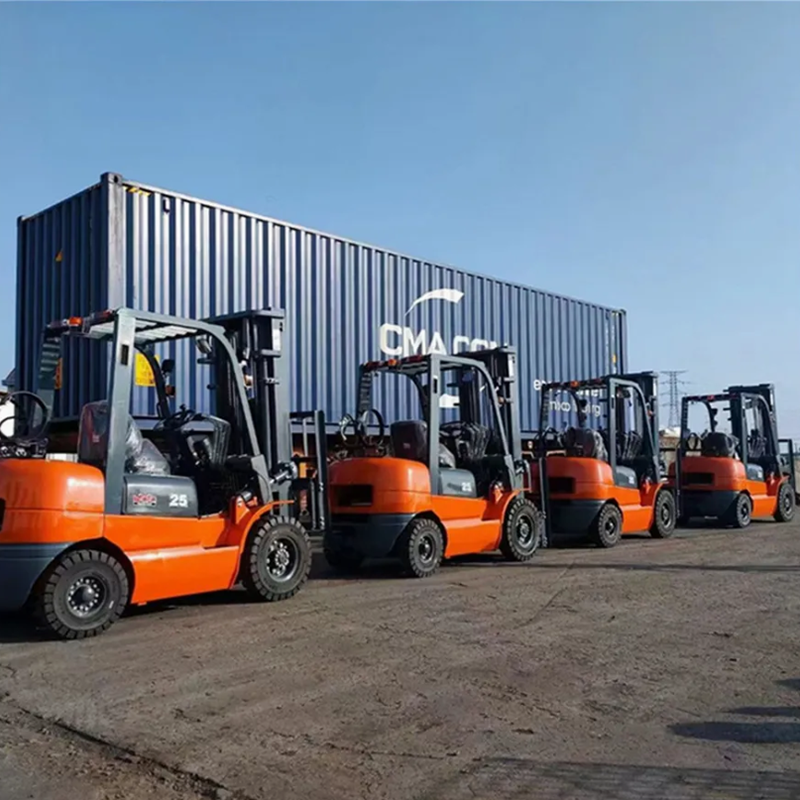

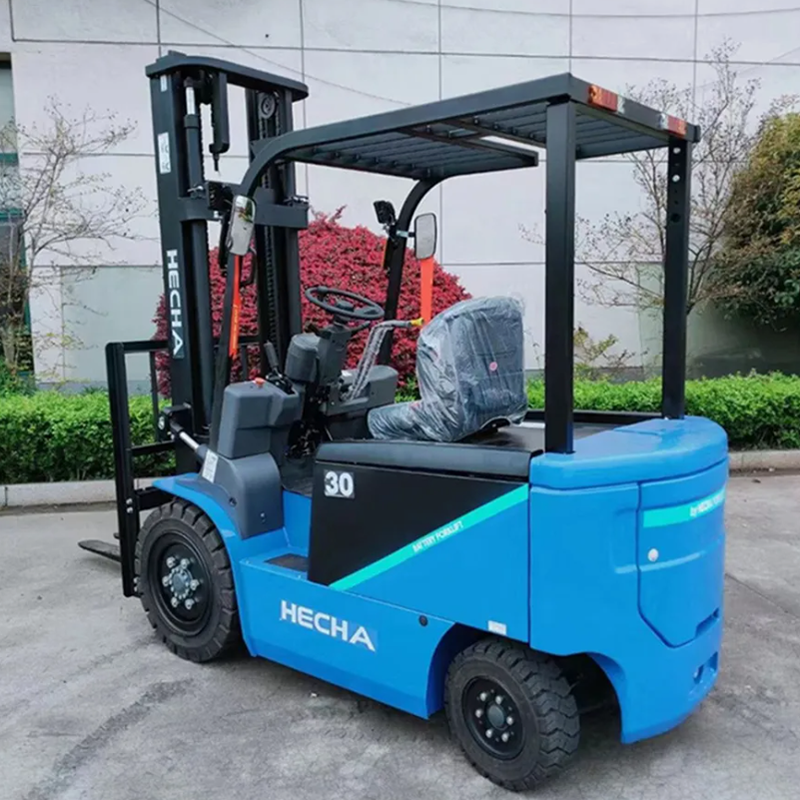

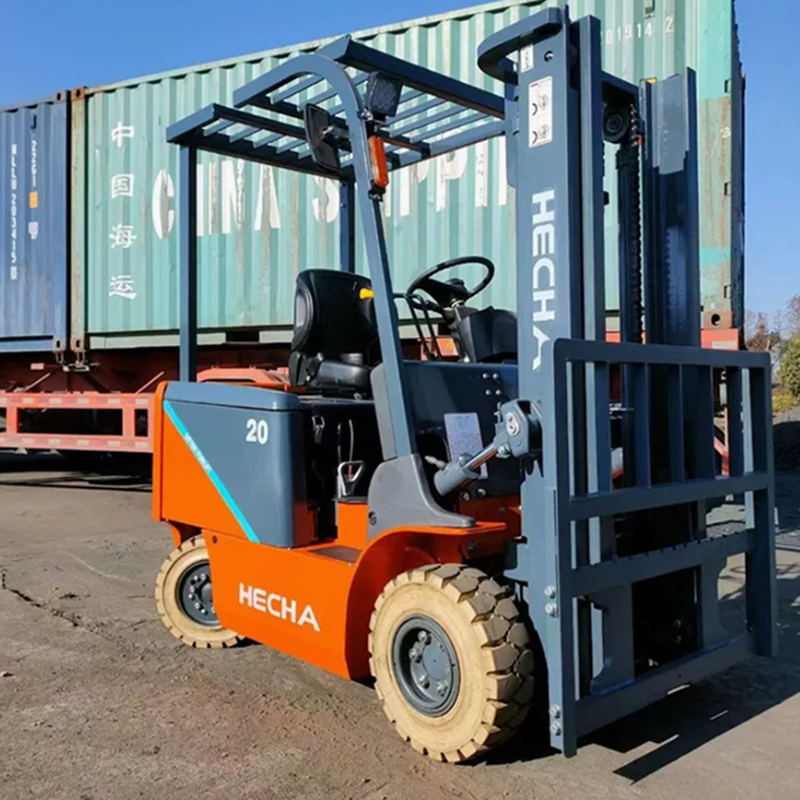

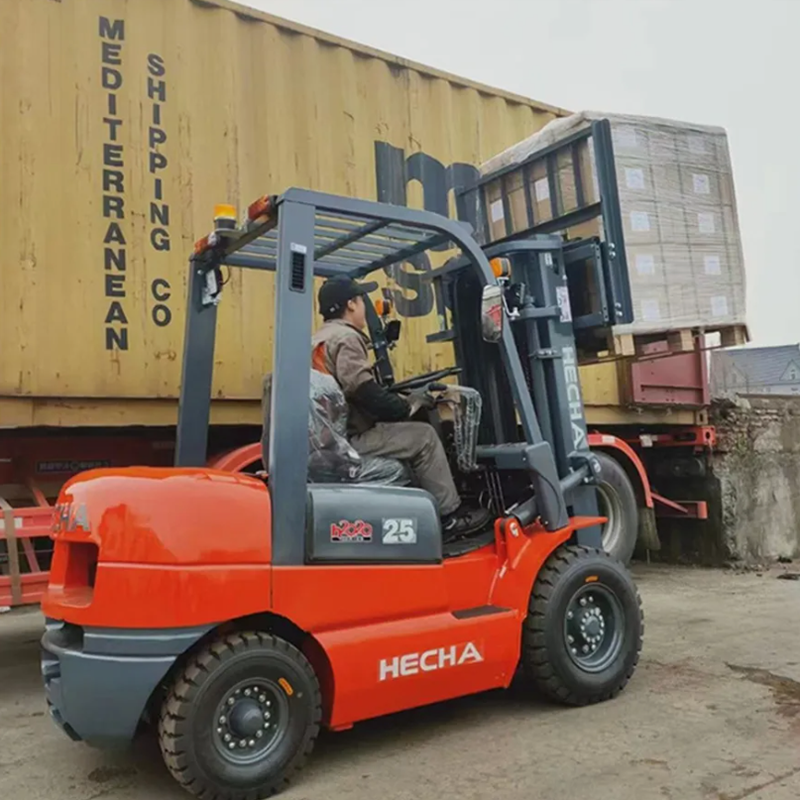

Products Pictures:
